A320 Neo v2 main wheels partly sunken into the ground ("flat tires") + fix

:wave: Thank you using the Bug section, using templates provided will greatly help the team reproducing the issue and ease the process of fixing it.

Are you using Developer Mode or made changes in it?

yes, used to make the fix :wink:

Which aircraft are you using that experiences this issue?

A320 Neo v2

Brief description of the issue:

by default the aircraft main wheels are a bit sunken into the ground due to contact points which are set too high. Also the nose wheel sits a slightly bit too high logically so itโ€™s also slightly โ€œflatโ€.

Provide Screenshot(s)/video(s) of the issue encountered:

Detailed steps to reproduce the issue encountered:

Watch the aircraft resting on ground with default load.

PC specs and peripheral set up:

Are you using DX11 or DX12?

Are you using DLSS?

:loudspeaker: For anyone who wants to contribute to this issue, Click on the button below to use this template:

Do you have the same issue if you follow the OPโ€™s steps to reproduce it?

Provide extra information to complete the original description of the issue:

Are you using DX11 or DX12?

Are you using DLSS?

If relevant, provide additional screenshots/video:

To fix the issues the following wheel contact points can be used (also by iniBuilds! Feel free to copycat :slight_smile: )

point.0 = 1,31.419989,-0,-12.88,1000,0,1.72,75,1,1.8,0.5,22,22,0,0,0,2
point.1 = 1,-10.132493,-13.981482,-13.47,1500,1,1.6,0,1.2,1.3,0.4,22,22,2,0,0,2
point.2 = 1,-10.132493,13.981482,-13.47,1500,2,1.6,0,1.2,1.3,0.4,22,22,3,0,0,2

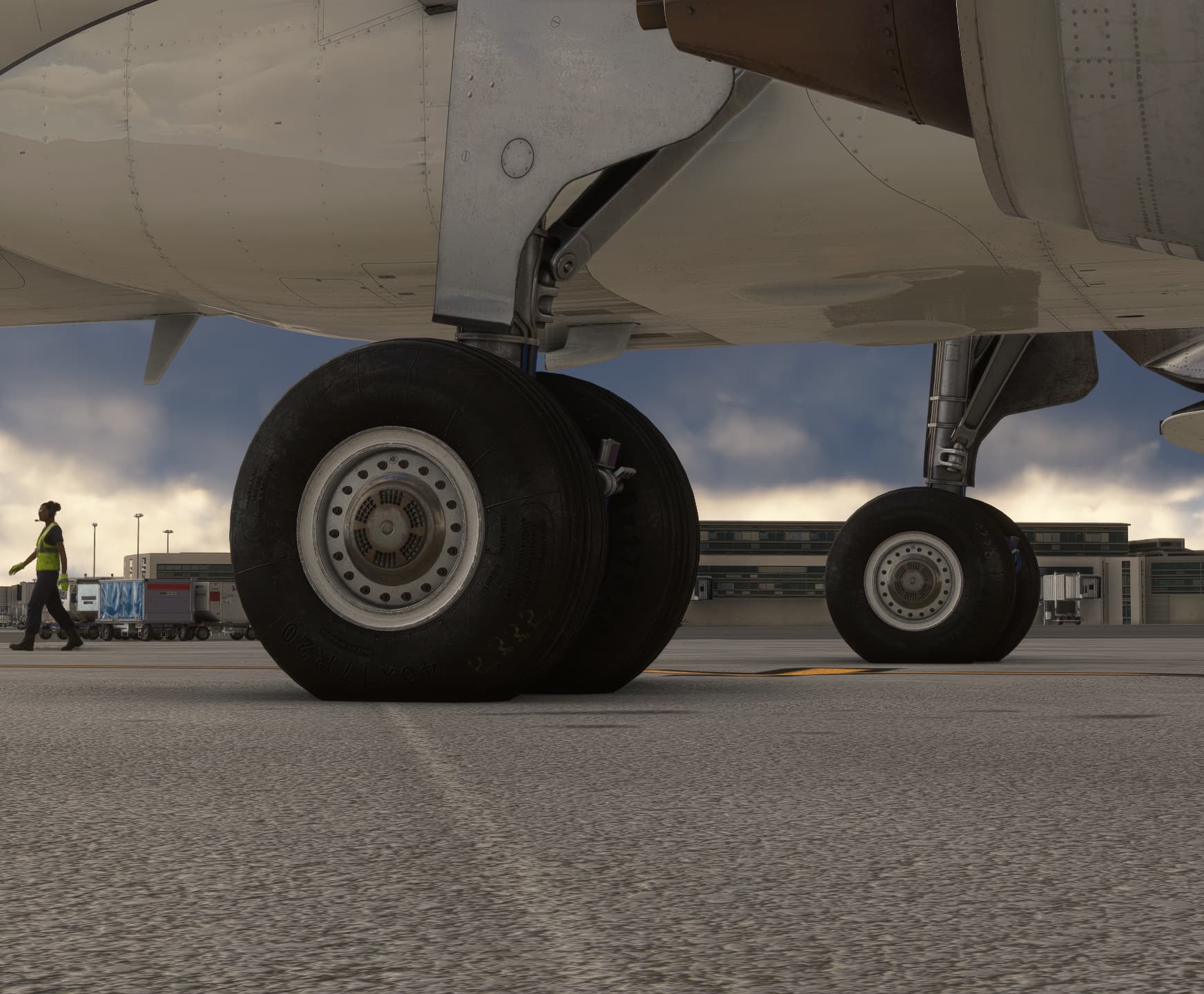

This will lead to the wheels to be spot on in most situations:

The weight of the airplane will cause the tires to collapse a little, so I think itโ€™s best if they are slightly buried in the ground.

Actually with more weight the tires sink into ground a bit - in case of the ini even without any fuel the aircraft tires look flattened :wink:

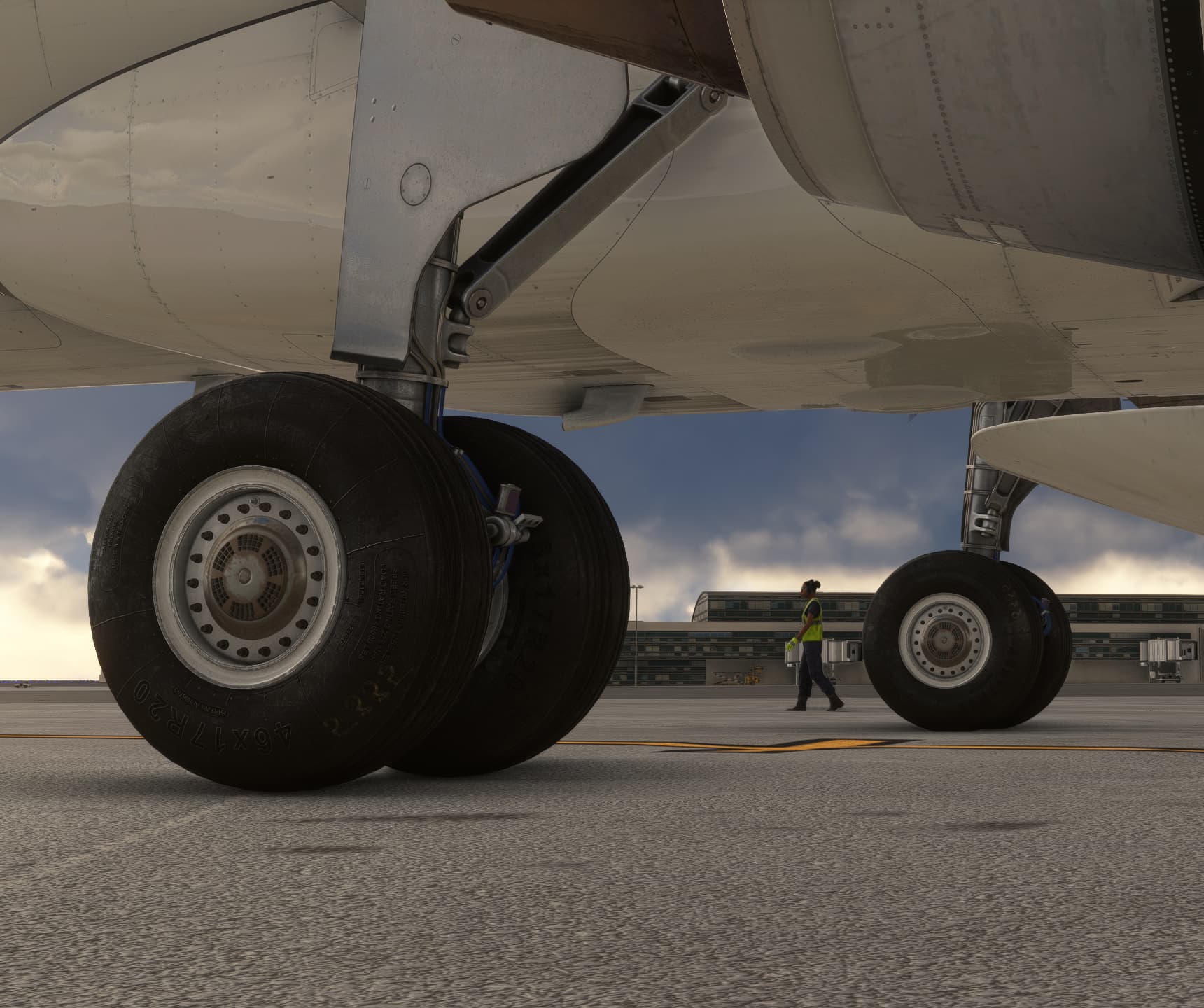

For comparison a picture of how usually the tires shall look with some weight applied:

That fits the tires in background pretty well while the ones in foreground are still in contact with the ground (MSFS airports are usually not completely flat and the surface collision is not that exact, so there is no perfectly working way on adjusting that for all conditions but hangar view)
