Axis and Ohs with VRInsight Boeing combo (can't get it to work)

User Support Hub Hardware & Peripherals
, ,
1

Hi,

I used to work with LINDA in combination with my VRInsight Boeing combo but I want to try Axis and Ohs. I removed LINDA and bought AAO, installed according to the manual but I can’t get it to work properly. I get the connection with my VRInsight but it doesn’t read the info back from the sim. The bridge seems to work fine. When I start AAO, the bridge and MSFS it sees my plane (PDMG B737).

When AAO and the bridge are running, the 2 screens in the VRInsight are blank. As soon
as the B737 is loaded, the VRInsight screens show the standard info but all the numbers stay on 0 (HDG, ALT, V/S etc). The B737 profile is loaded but none of the knobs or encoders work.

Any idea what to do to solve this?

Thanks!

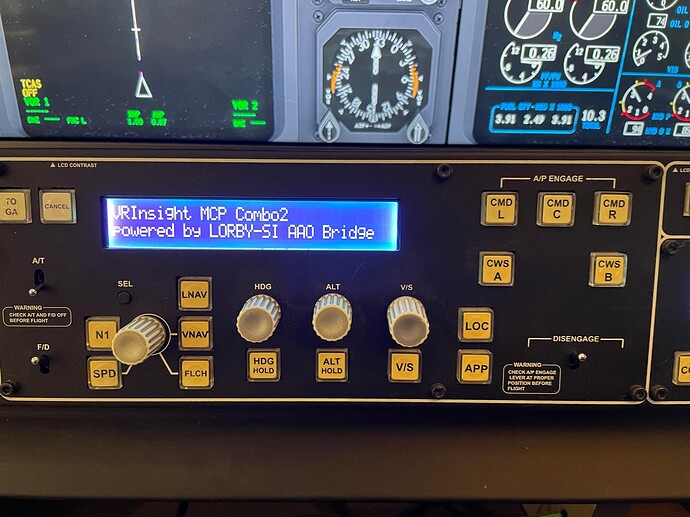

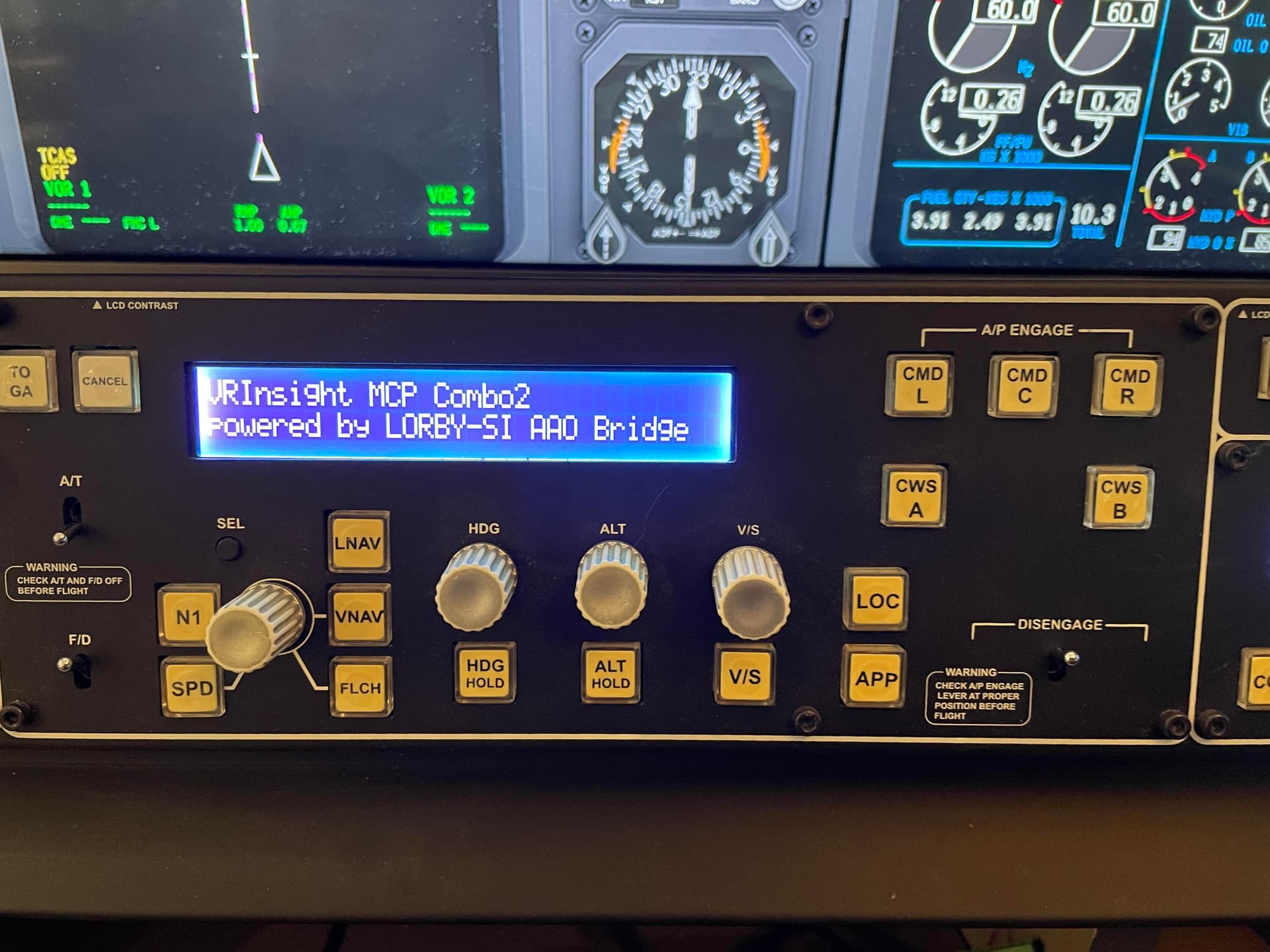

unnamed (2)
unnamed (2)1920×1440 229 KB

1

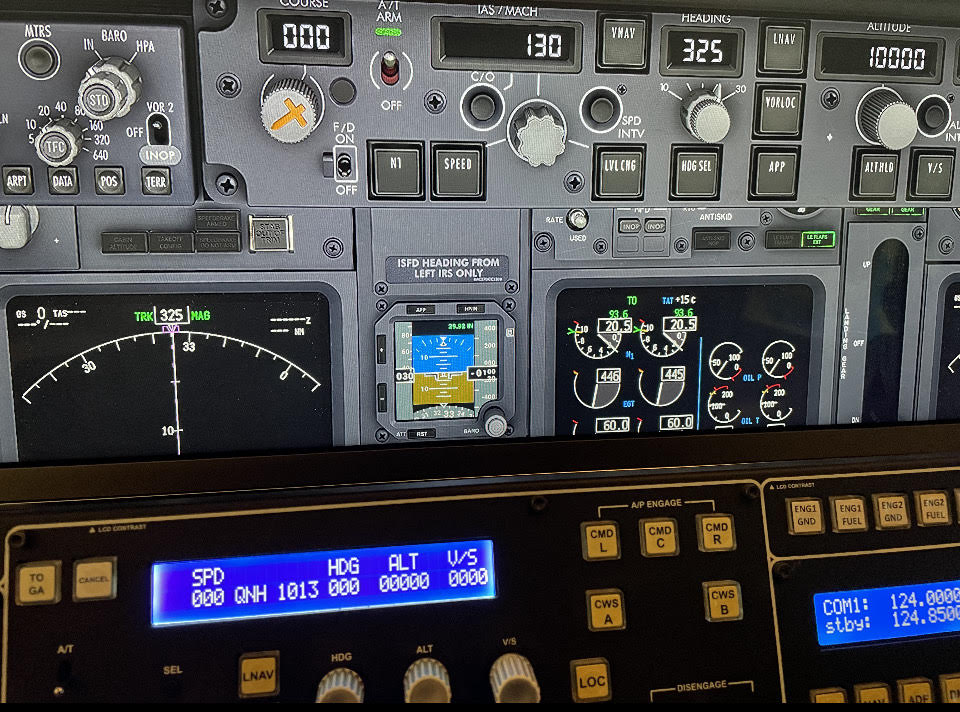

1960×712 171 KB

EDIT: found out it’s the profile for the PDMG Boeing 737. I have sent the author an email.. Anyone else with this issue?

2

Hi there I think I might have a fix for you, I have been working on this on my own setup for hours today, so here goes hope it works for you.

  1. make sure the green LED is not lit on the VRI Bridge and simconnect is off then close down VRI bridge otherwise you can not do the next part.

  2. on the AAO select tools at the top, then configure webapi port
    if your VRi Boeing bridge is in red, tick the box next to it and in the bottom left hit the SET Localhost, it should then go grey like the others if you have any in there.

3 close down all the AAO, make sure your in the cockpit and then restart AAO and hit that green LED and wait for approx 10-15 secs and bingo it should connect so the buttons work aswell to program.

hope that helps

Wazza
