Hey guys.
After 4 weeks of hard work (not much, every now and then, a beer…) I finished the rudder pedals. The original project was with a potentiometer and gears, but I was not satisfied and decided to use a hall sensor, simple and effective. I like simulating helicopters and that was my focus. Tested and working great! I am very pleased with the results. Good sensitivity and strong structure and best of all, few dollars (in fact, few “R$”… I’m Brazilian).

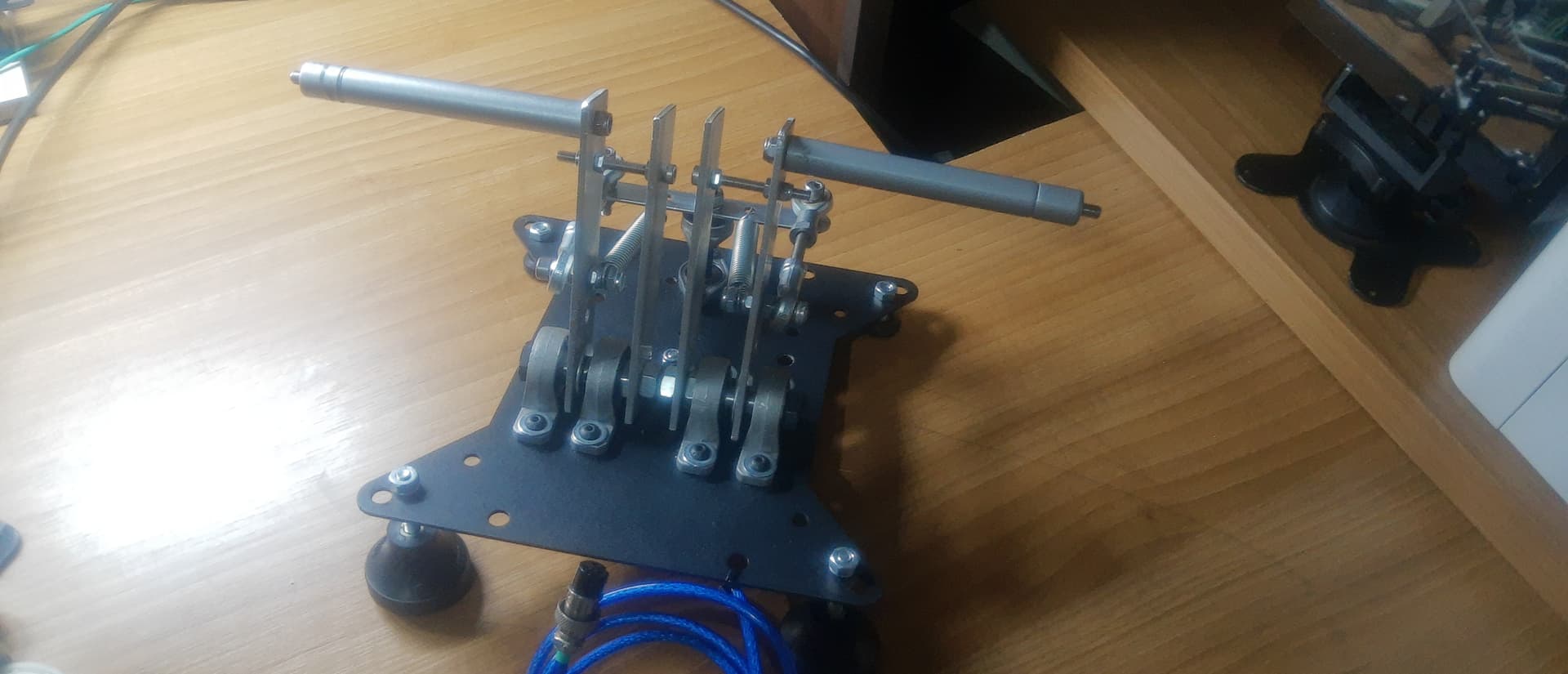

pedal
pedal1920×825 88.1 KB

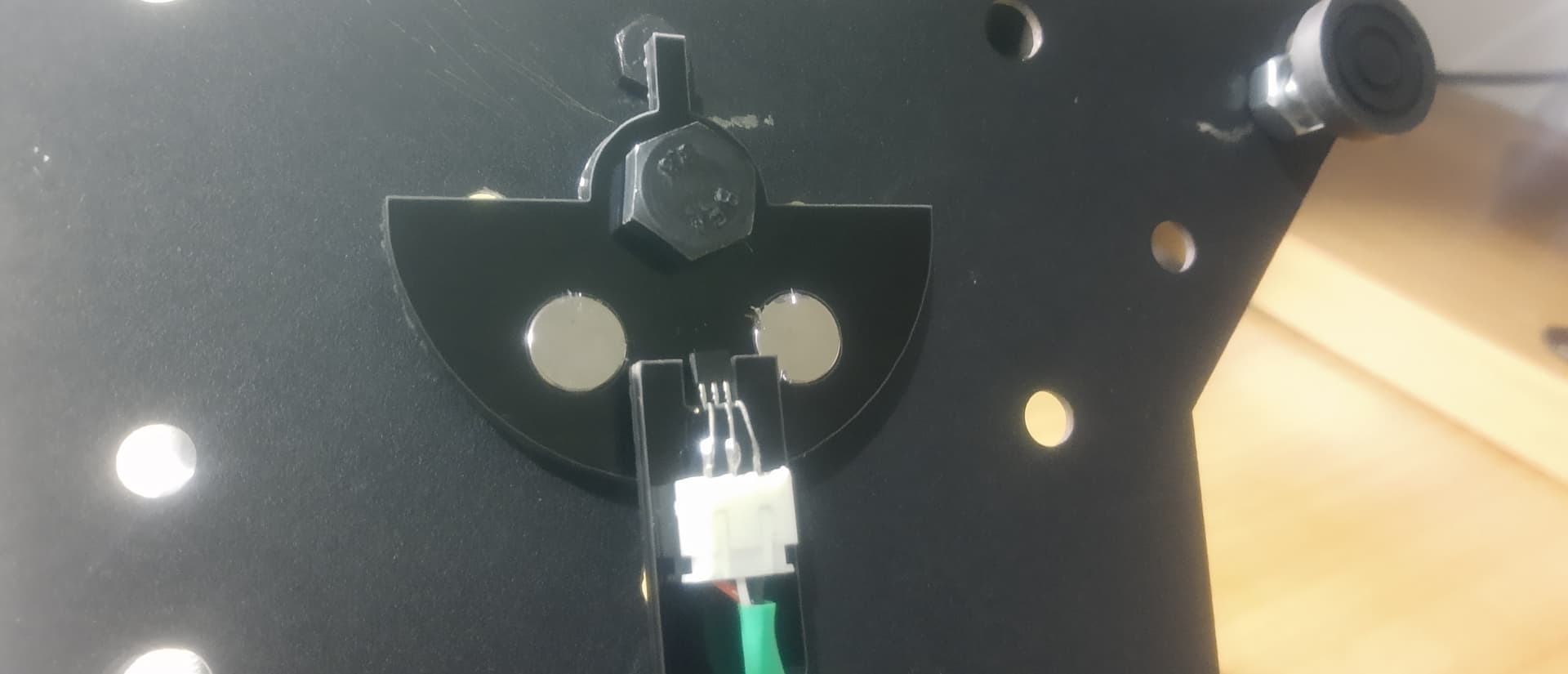

sensor
sensor1920×825 53.8 KB

I could have used other materials, perhaps something more professional, but the idea was to spend little and use materials that were not used in my workshop. I will make a video on YouTube with more information.

8 Likes
2

Please do!

Id like to “roll my own” too, and the hall effect sensors have me intrigued as I’ve never worked with them before.

3

Is not difficult. A few tests and you already see the results. I’m separating the materials to make the video.

4

Nice torque pedals.
I think I’m going to incorporate hall sensors into my collective. They seem to be a better option than pots.

5

Yes! Much better with a sensor! I’m very pleased with it. It is easy to install and very smooth. I’m going to change my collective and cyclical too. And thanks for the comment.
