Honeycomb Alpha Yoke Diagram?

User Support Hub Hardware & Peripherals
,
1

Does anyone out there have a printable diagram (external) of the Honeycomb Alpha Yoke and Throttle Quadrants? Trying to make a fill in the blank memory aid to learn the button-binds. Thanks a lot!

3

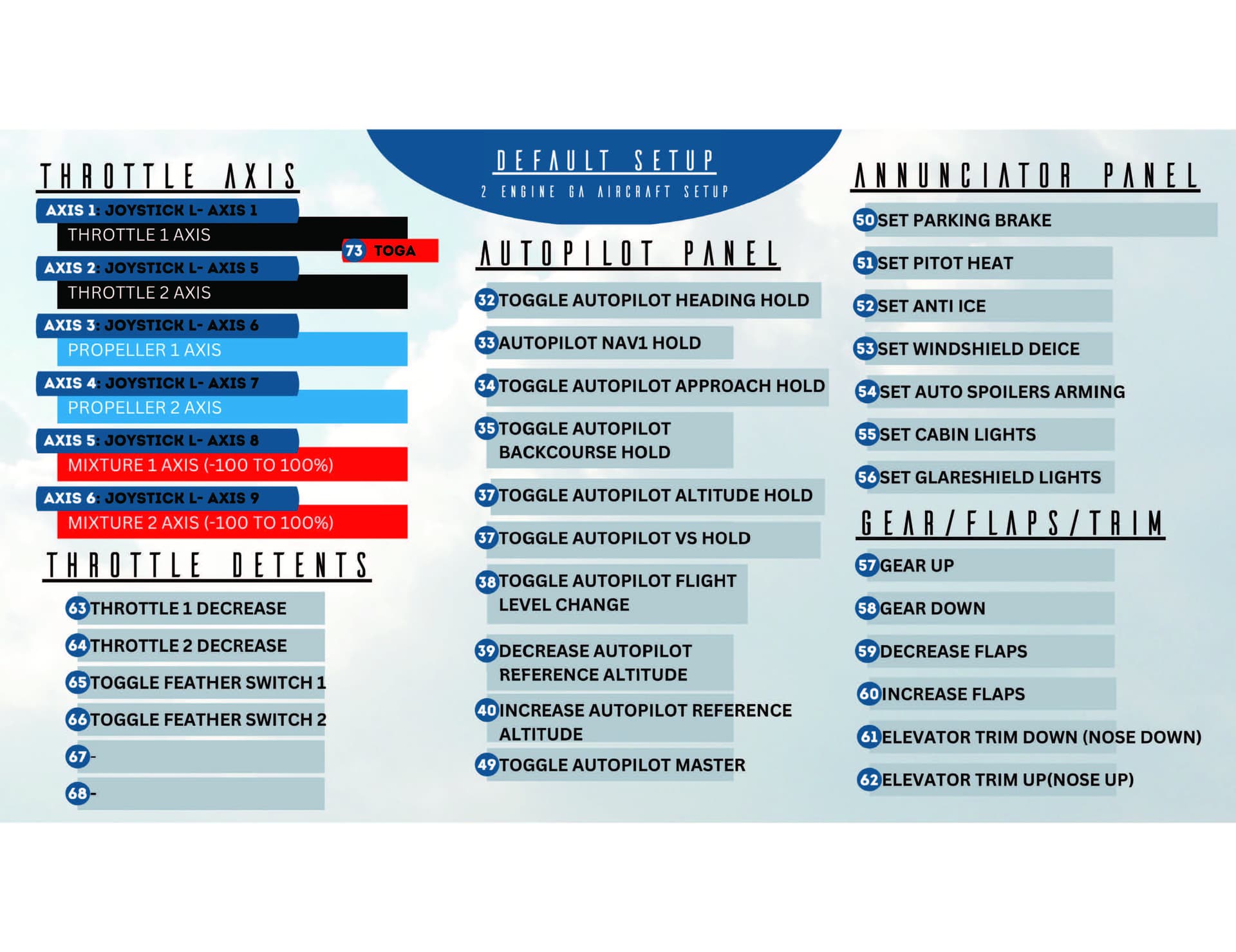

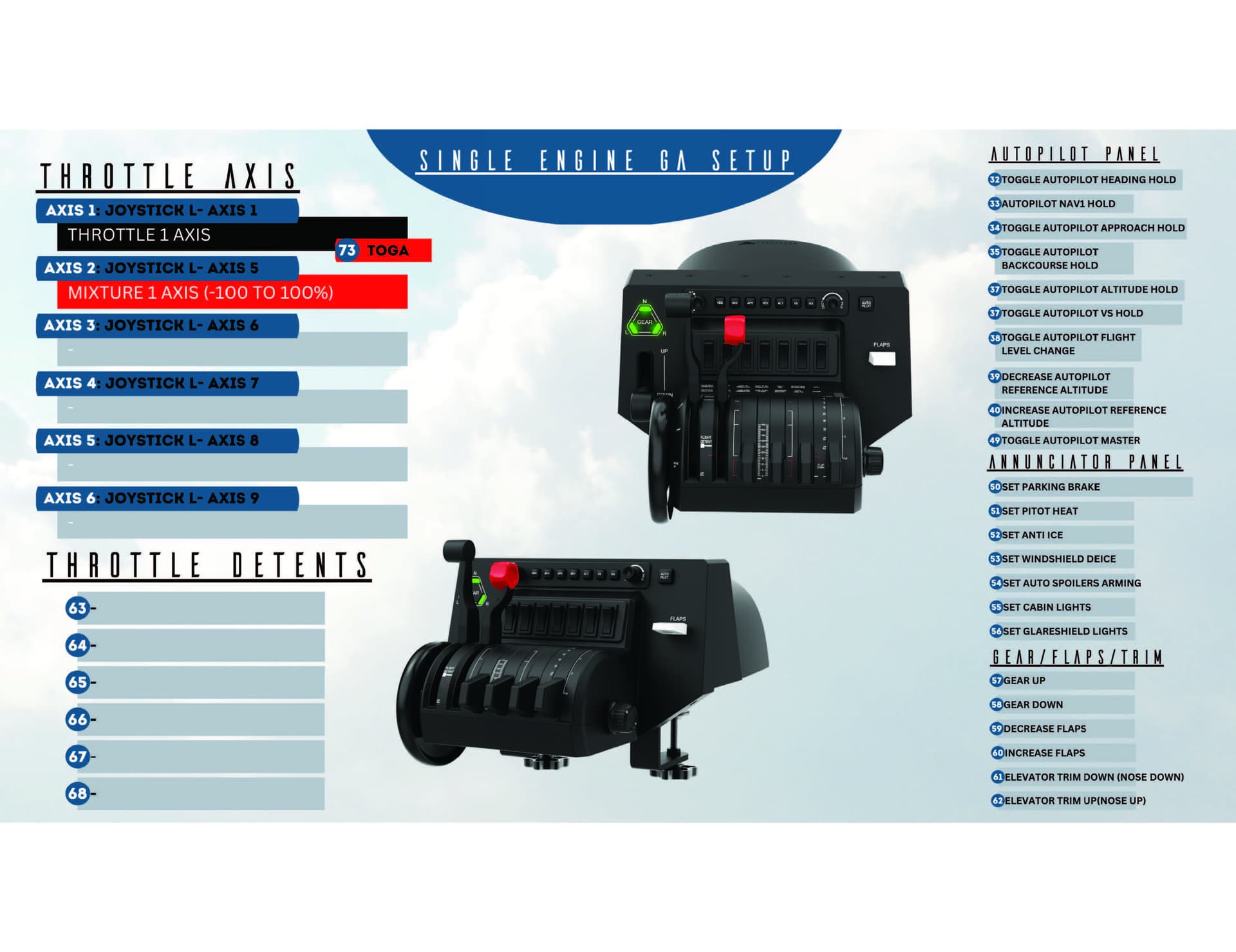

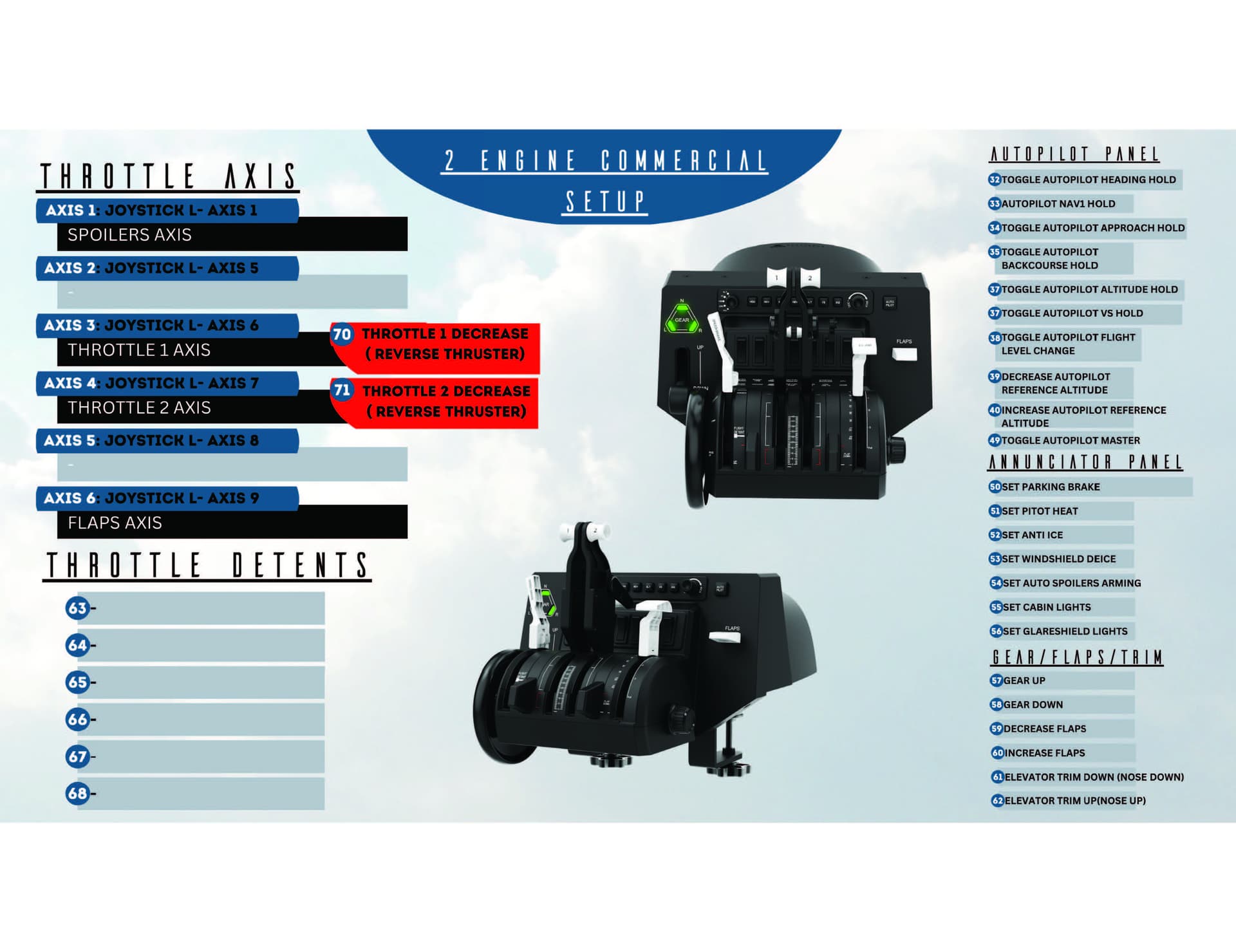

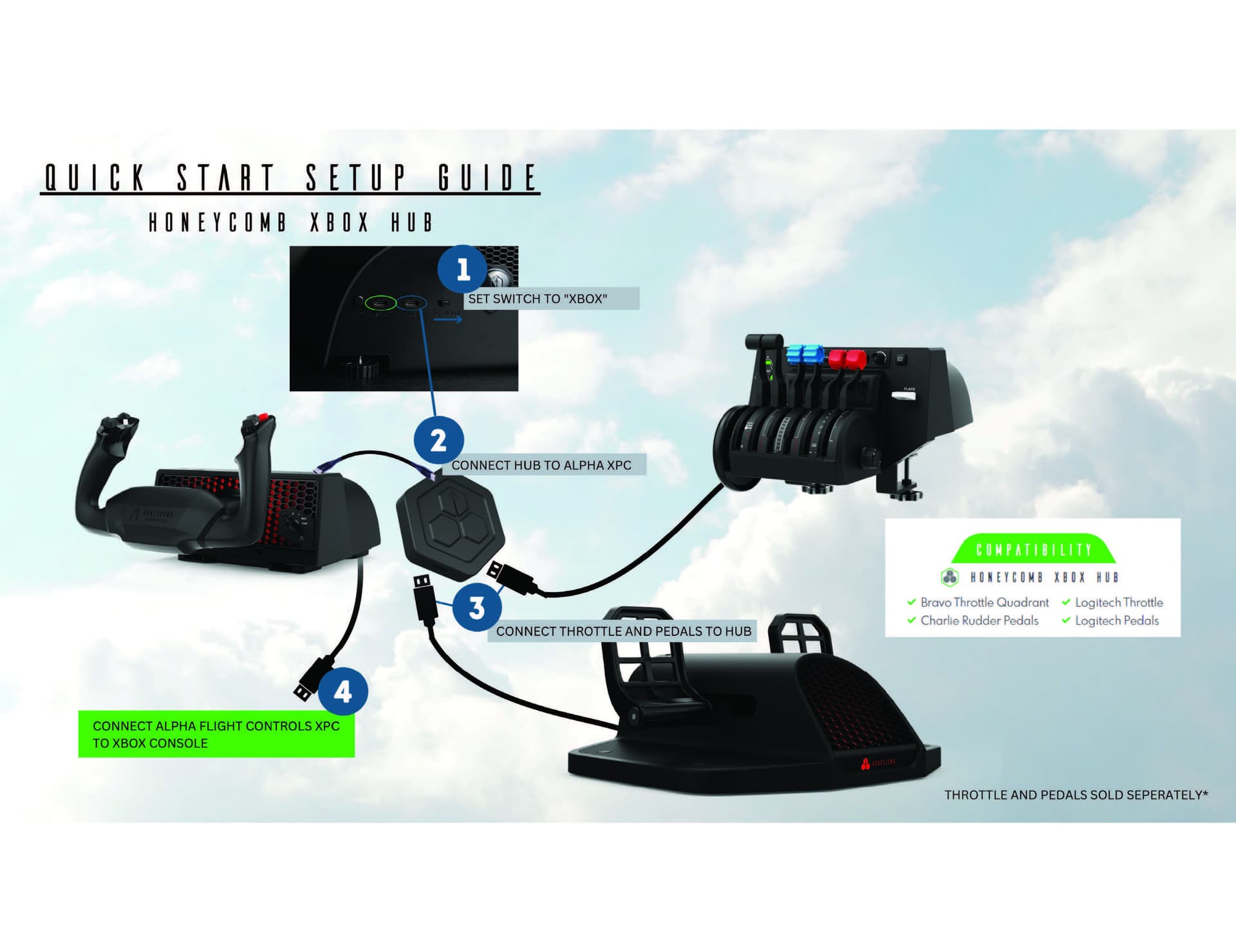

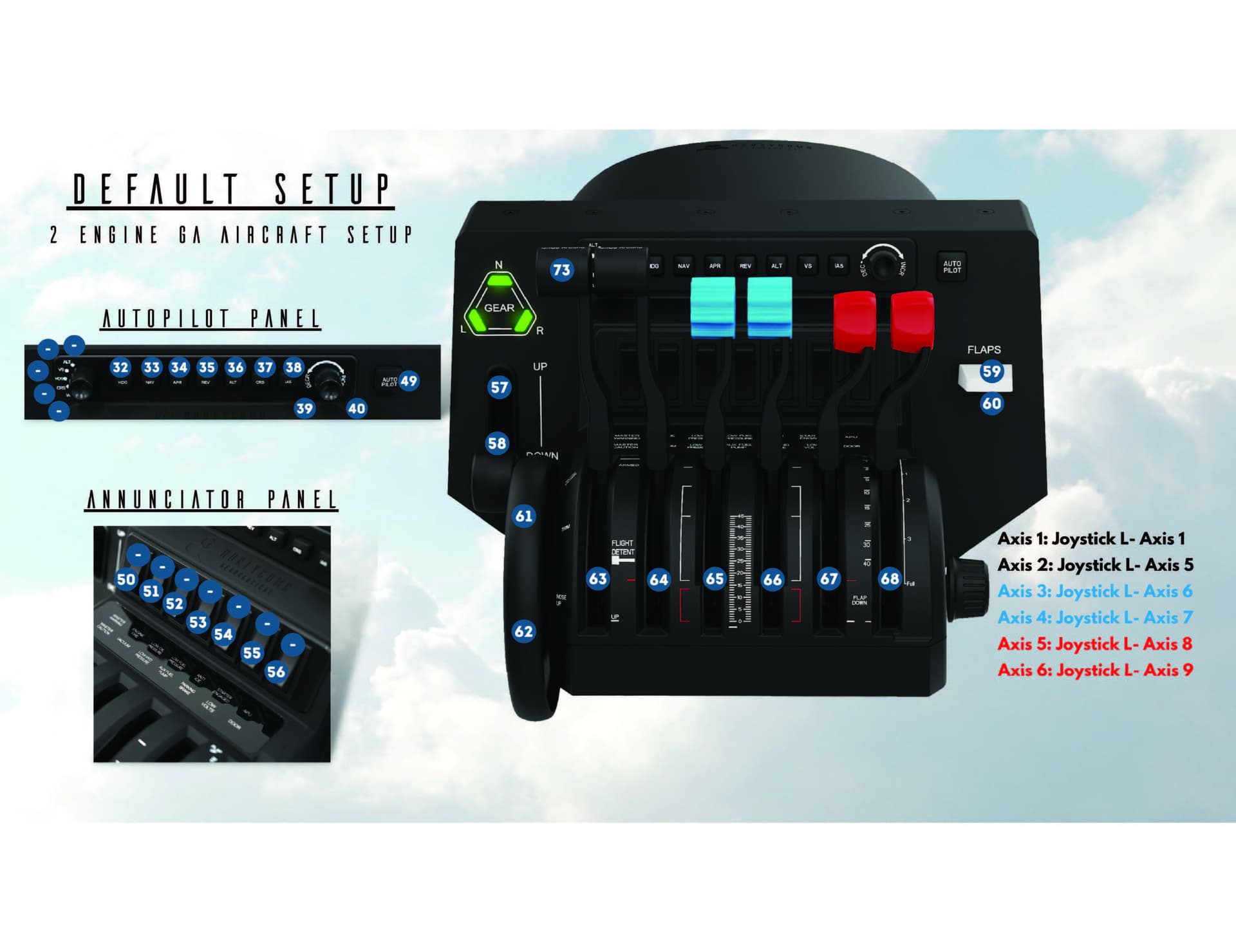

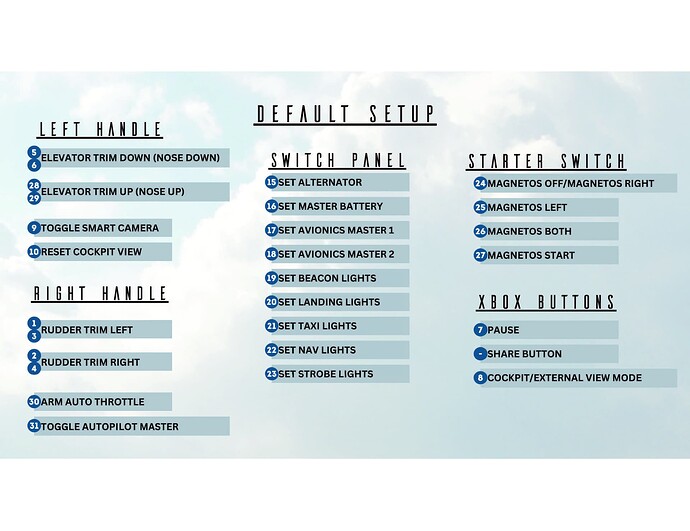

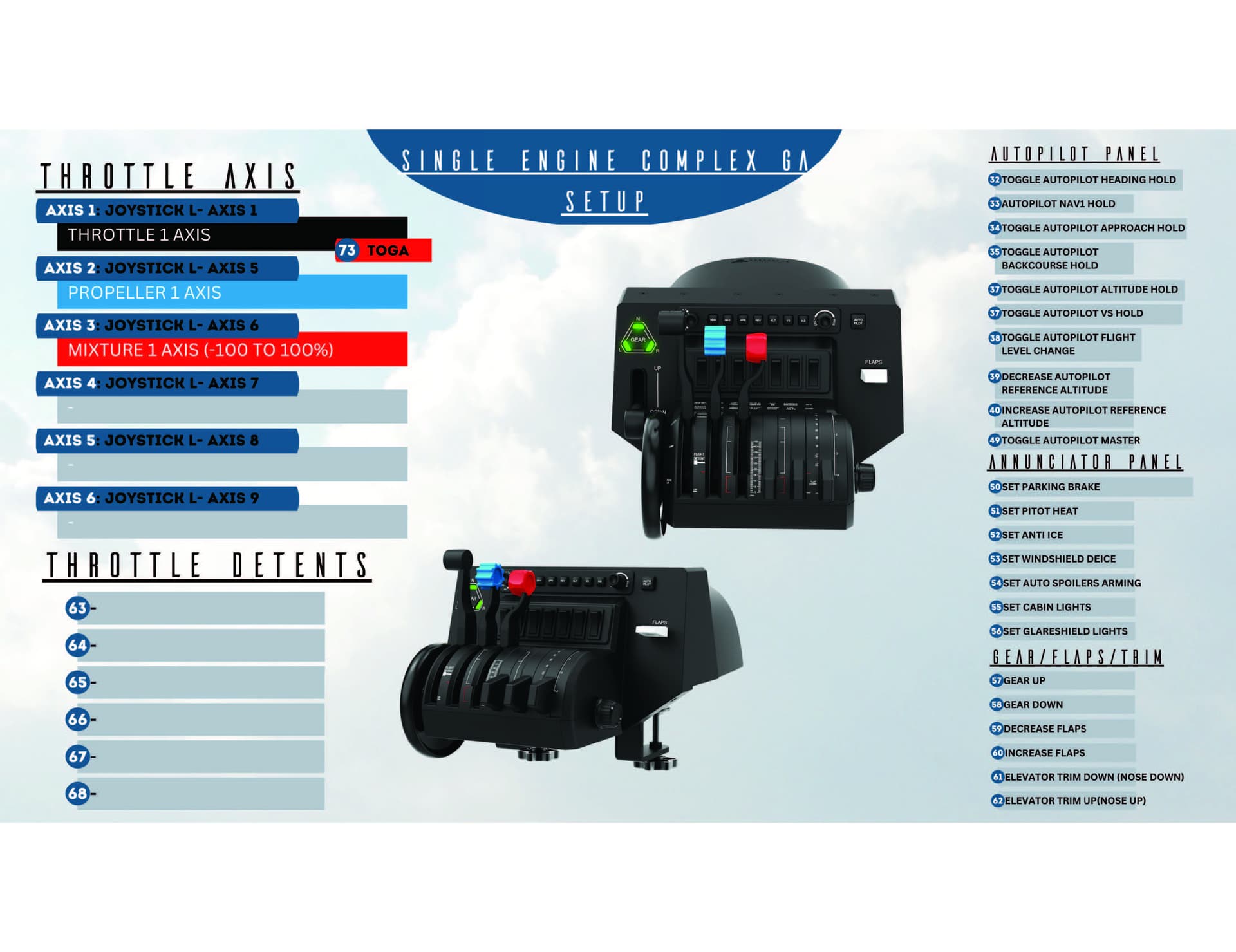

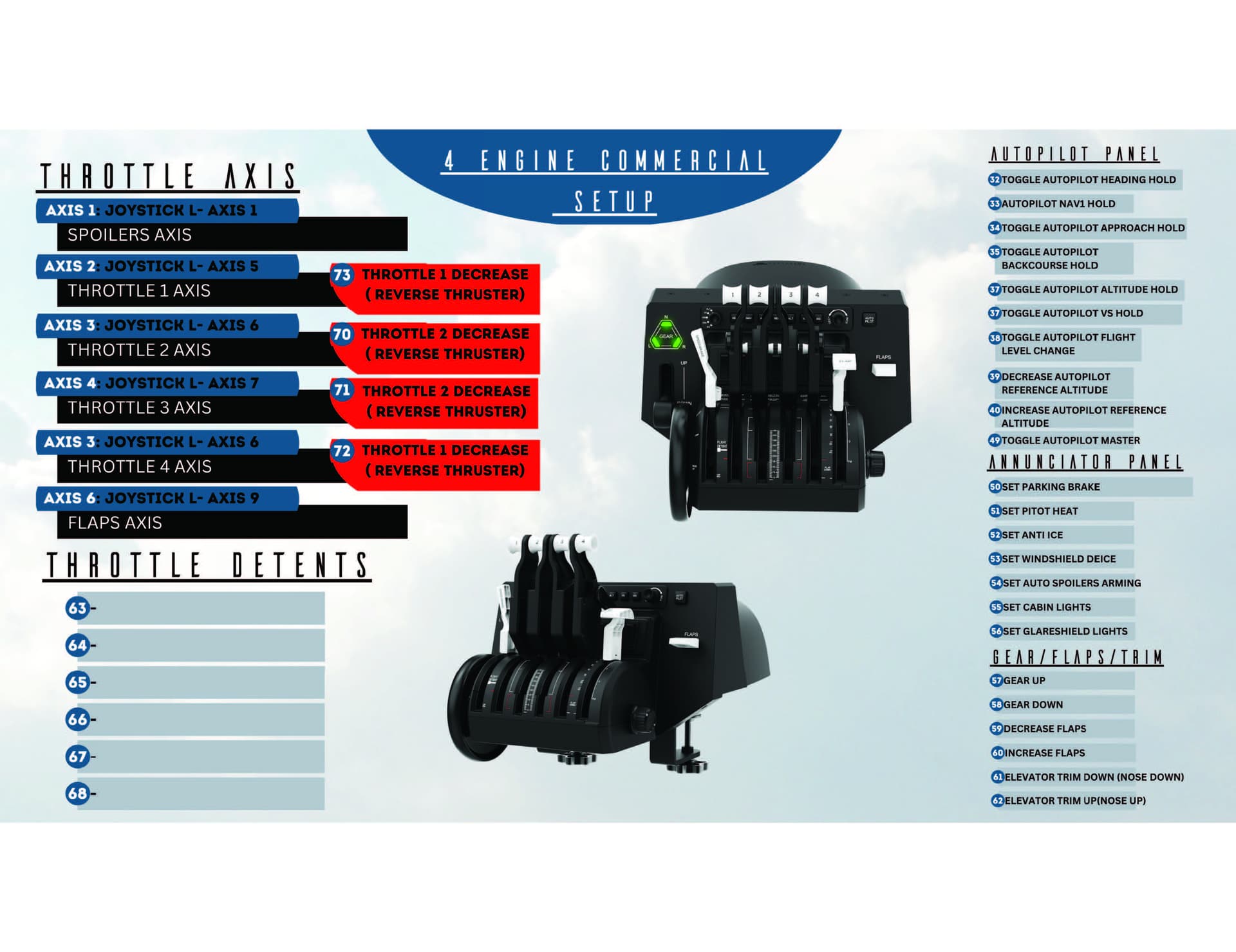

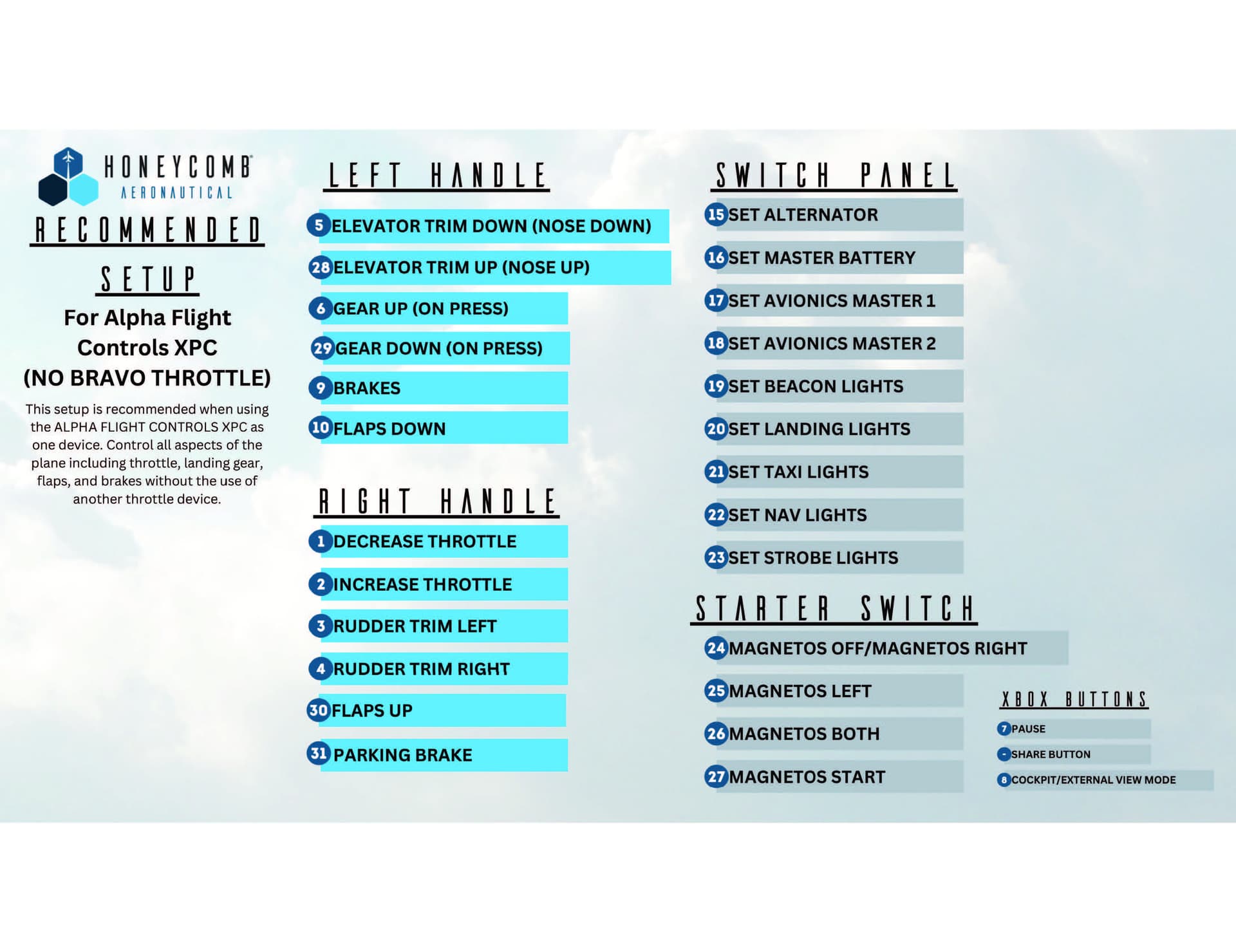

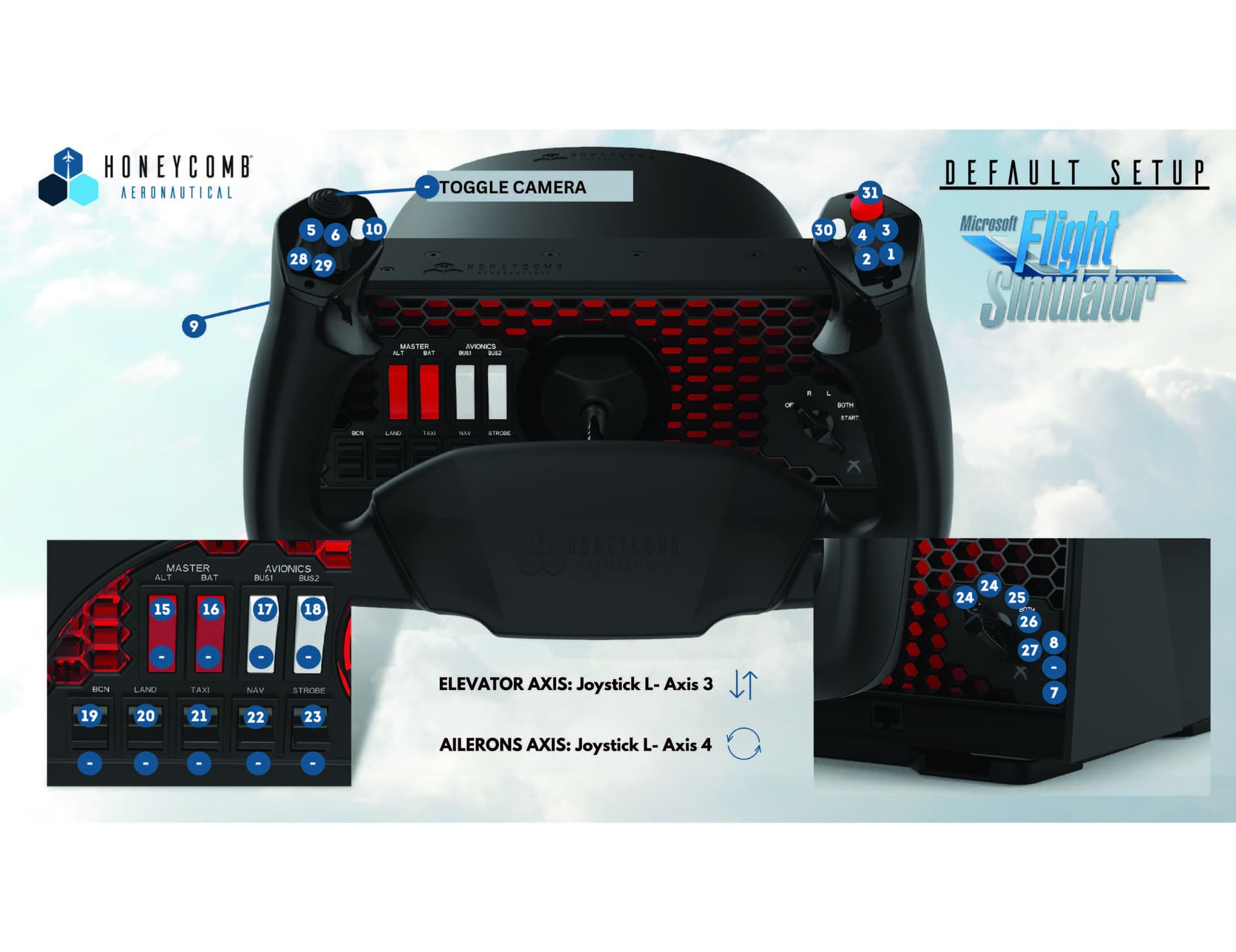

Couldn’t find Honeycomb Alpha Yoke button mapping/binding recommendations for MSFS so I sat down and made this, hope this helps others - User Support Hub / Hardware & Peripherals - Microsoft Flight Simulator Forums might help for the yoke?

4

Alpha_Flight_Controls_XPC_Setup_Guide1_Page_01
Alpha_Flight_Controls_XPC_Setup_Guide1_Page_011920×1479 126 KB

Alpha_Flight_Controls_XPC_Setup_Guide1_Page_02
Alpha_Flight_Controls_XPC_Setup_Guide1_Page_021920×1479 131 KB

Alpha_Flight_Controls_XPC_Setup_Guide1_Page_03
Alpha_Flight_Controls_XPC_Setup_Guide1_Page_031920×1479 168 KB

Alpha_Flight_Controls_XPC_Setup_Guide1_Page_04
Alpha_Flight_Controls_XPC_Setup_Guide1_Page_041920×1479 114 KB

Alpha_Flight_Controls_XPC_Setup_Guide1_Page_05
Alpha_Flight_Controls_XPC_Setup_Guide1_Page_051920×1479 123 KB

5

Alpha_Flight_Controls_XPC_Setup_Guide1_Page_06
Alpha_Flight_Controls_XPC_Setup_Guide1_Page_061920×1479 203 KB

Alpha_Flight_Controls_XPC_Setup_Guide1_Page_07
Alpha_Flight_Controls_XPC_Setup_Guide1_Page_071920×1479 157 KB

Alpha_Flight_Controls_XPC_Setup_Guide1_Page_08
Alpha_Flight_Controls_XPC_Setup_Guide1_Page_081920×1479 161 KB

Alpha_Flight_Controls_XPC_Setup_Guide1_Page_09
Alpha_Flight_Controls_XPC_Setup_Guide1_Page_091920×1479 168 KB

Alpha_Flight_Controls_XPC_Setup_Guide1_Page_10
Alpha_Flight_Controls_XPC_Setup_Guide1_Page_101920×1479 181 KB
