How can I control the brightness of internal lights, with shortcuts?

Discussion Hub Home Cockpit Builders
1

I’m trying to map buttons (using an arduino button-box) to control internal lights, but for now I can only figure out simple on/off - I can’t figure out how to control the strength (ie turning brightness up/down of the panel-lights or glareshield lights, fx).

I super-simply map external buttons to the built-in shortcut commands in MSFS (and adding custom shortcuts for those that don’t have default values), but for the life of me I can’t find any that decrease/increase brightness on any internal lights. I’m specifically trying to get this to work in Cessna 172, Baron and the Mooney, but I haven’t found a way in either of them.

2 Likes
2

In the end, I used Spad.Next to do this. Found which simconnect events were fired, and bound them to some of my Saitek FIP dials.

3

We’re you able to apply the brightness to an axis using SpadNext? Would you provide a screenshot of your spadnext config for the glare shield and gauges please.

Thanks

4

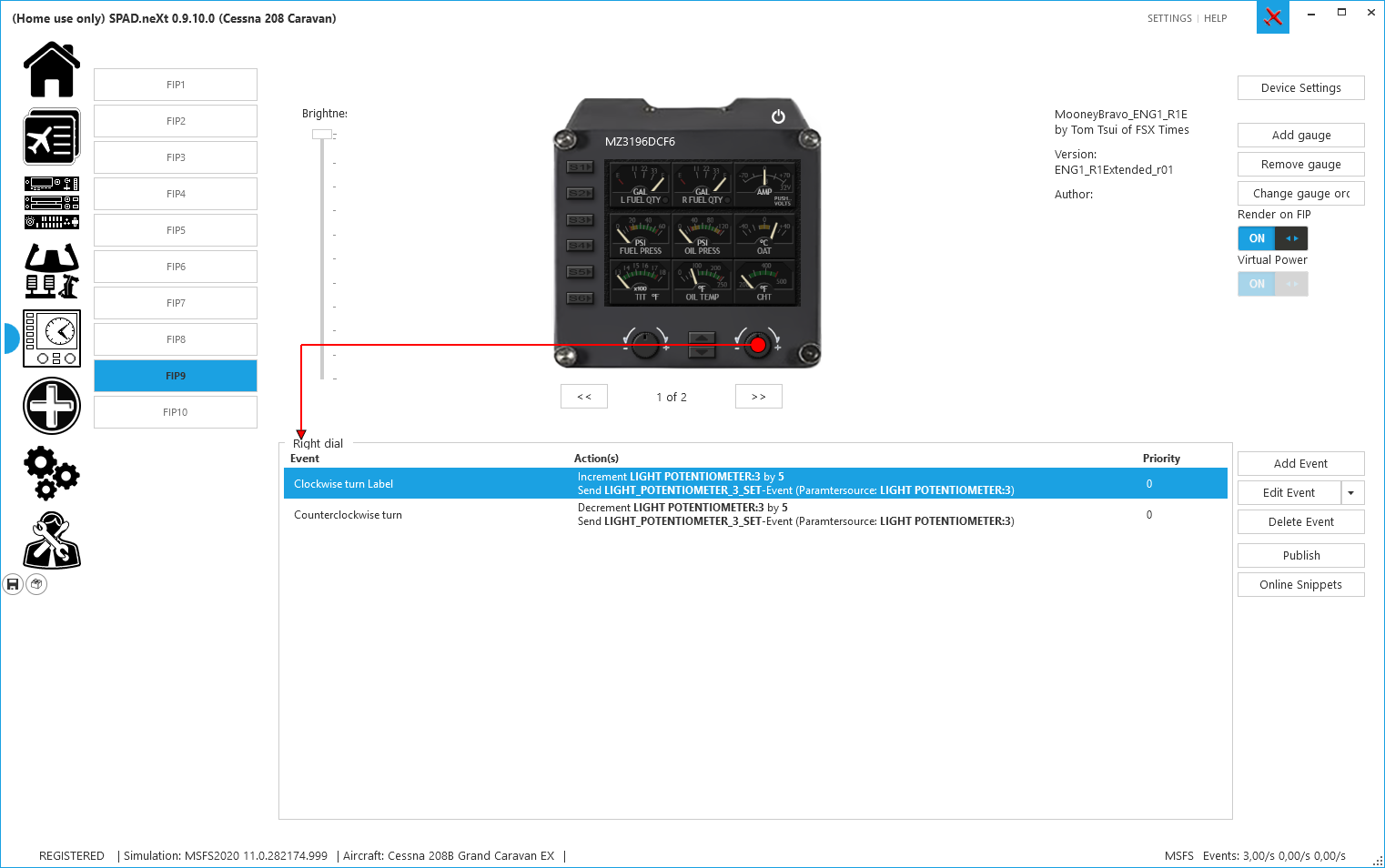

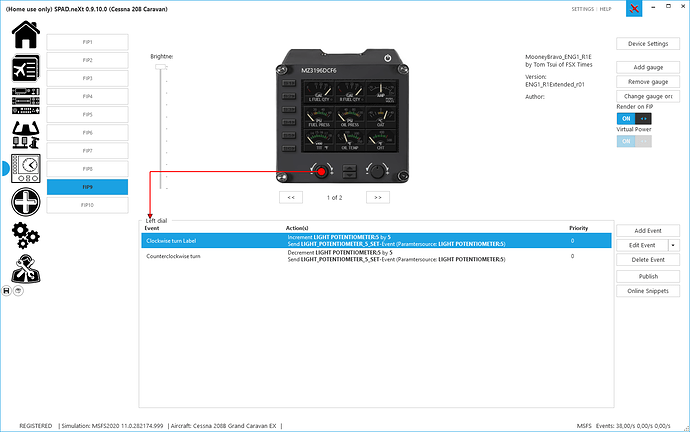

Sure thing

2
21522×954 123 KB
1
11522×954 123 KB

1 Like
5

Also, do you know about the Event Monitor in Spad.Next? Very useful to figure out which events to look for.

6

I do not but will look that up. Thanks for the info!!
