ISSUE DESCRIPTION
Description of the issue: while applying brakes, the brake pressure gauges, didn’t move at all. They only goes up when the parking brakes are applied.
FREQUENCY OF ISSUE
How often does this occur for you (Example: Just once, every time on sim load, intermittently)? everytime
REPRODUCTION STEPS
Please list clear steps you took in order to help our test team reproduce the same issue:
-
start the aircraft,
-
disengage parking brakes, the needles on the gauge goes from 3 to 0
-
apply brakes, and see nothing happens on the gauge
MEDIA
take a look at the gauge as I’m applying brakes
Can replicate with all inibulds aircraft except the A400. Title updated and corresponding tags added.
If you are experiencing same issue with others aircraft please create separate reports.
Hi
I just found the answer thanks to the FlyByWire team as there was the same bug on their A320.

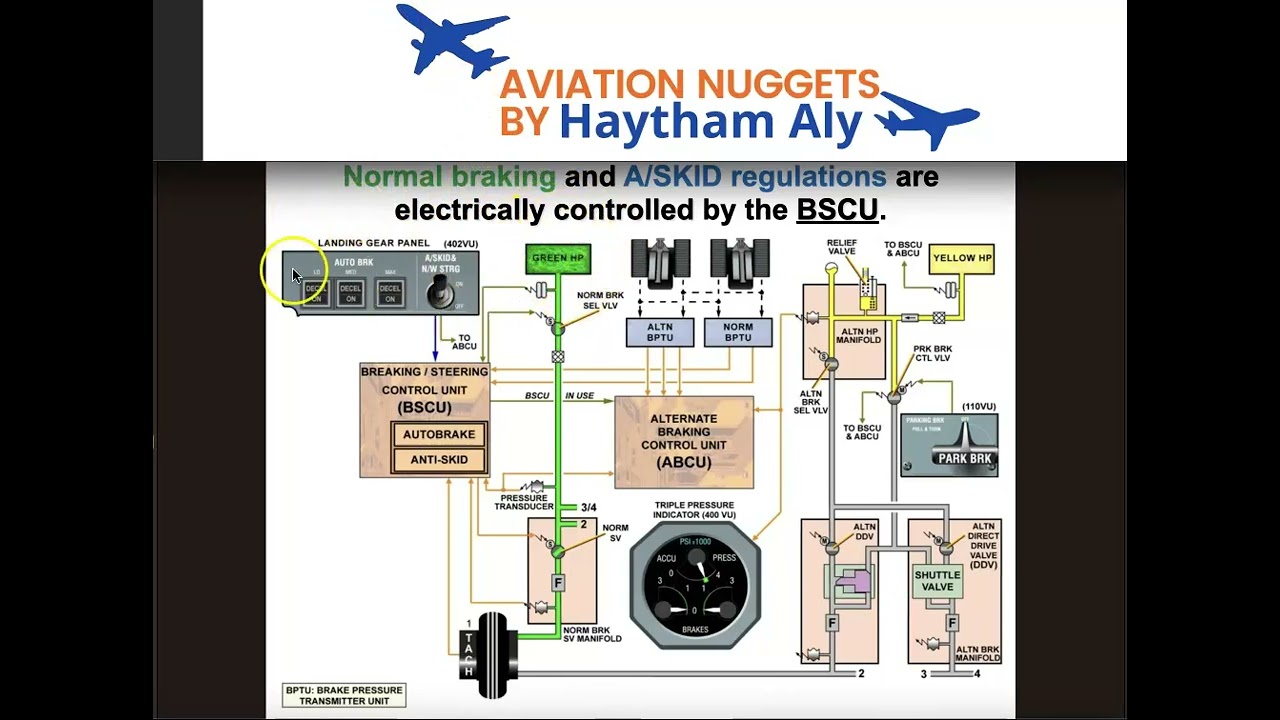

The pressure gauge is only connected to the Yellow system which is mainly used for the parking brake. The brake pedals are connected to the Green one, so it’s normal that there is no pressure indication, when you applies the brakes.
Here I found a video about the A320, but it’s maybe the same for most of the A3XX family.
If I correctly understand it, you will only have and indication in case of an alternate working system (green system out). I just tested it, and as you deactivate the Antiskid, you will have the gauges going up when pressing the brake, which is correct if I believe this video.
and this one
1 Like
In fact, it seems there is no bug at all about this.
so topic can be closed.
1 Like
