Nicely done, you must have taken the photographs during the “dog days of summer”. Congrats
2 Likes
My

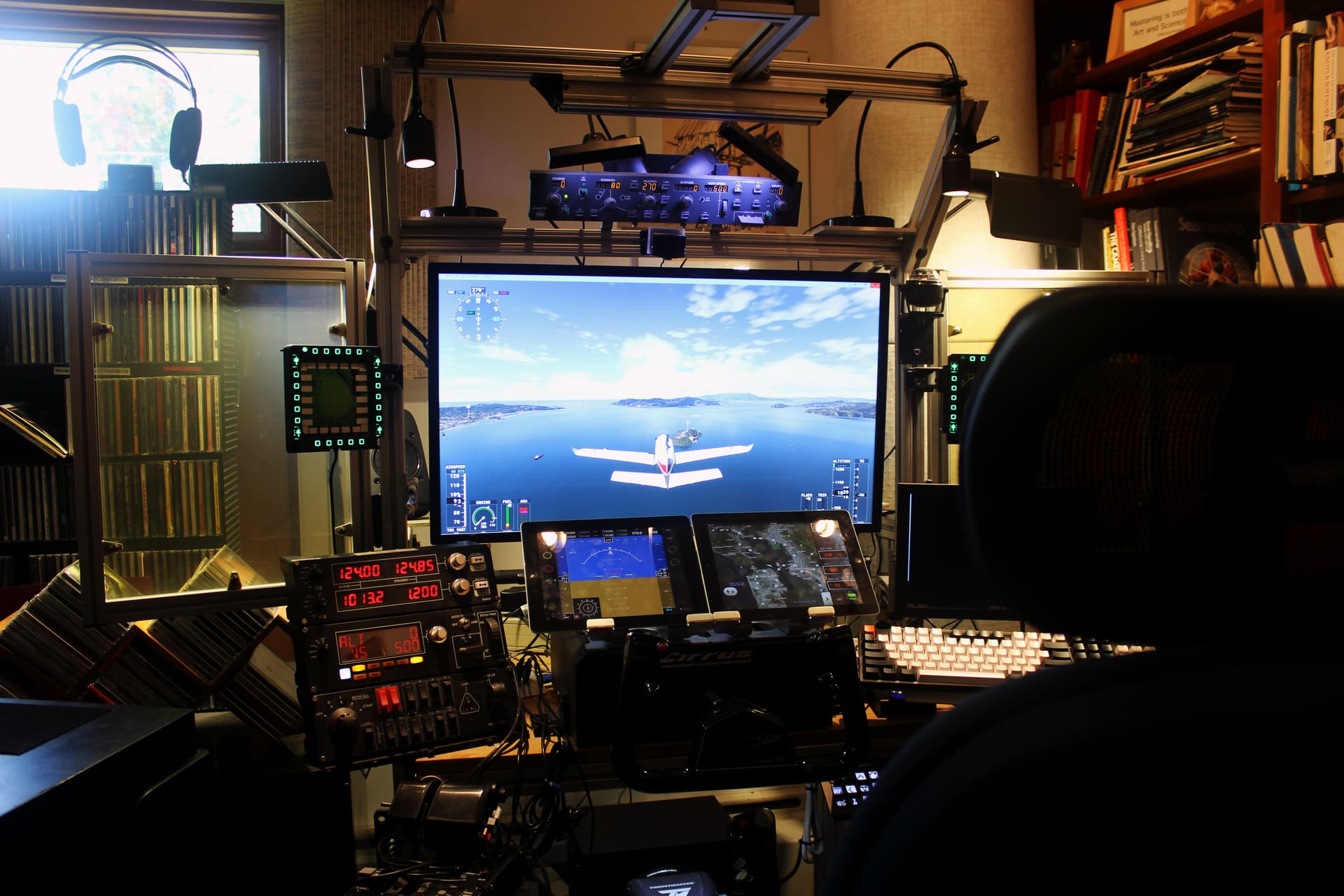

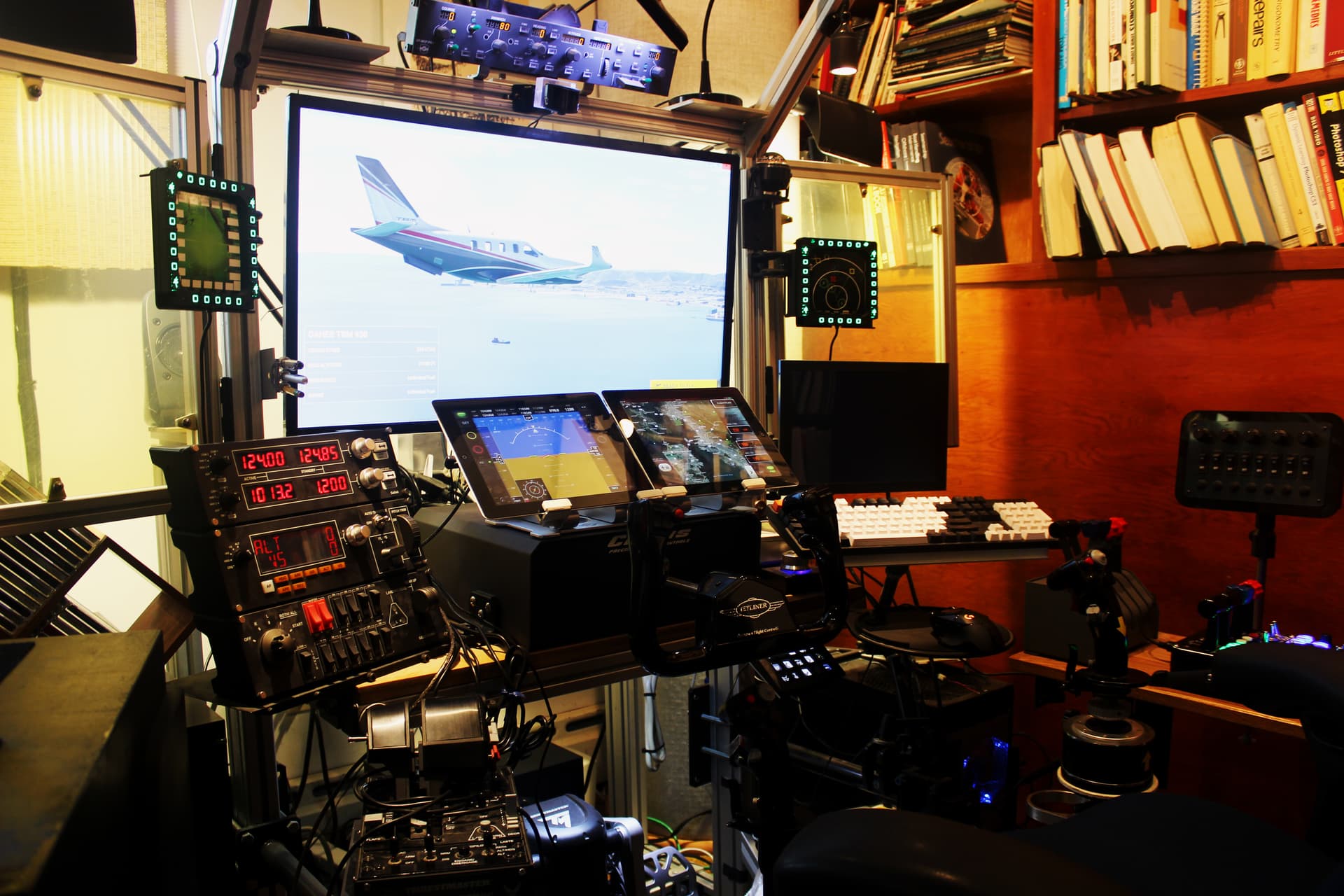

My 2 cents on the Cockpit subject. Not much but it´s given me a lot of “happy landings”..!
Hope you like it.
11 Likes
Nice!
May I ask, what’s the autopilot app on the right tablet?
1 Like
Thank you. It´s the called the A320 Remote MCDU.
Regards
2 Likes
1 Like
What are the label makers used for???
1 Like
Yes… that´s the one.
Enjoy it
Regards
1 Like
To make the labels/stickers for the equipment that I use.
2 Likes
Wow! Simply gorgeous…
2 Likes
Thanks SanMan!
1 Like

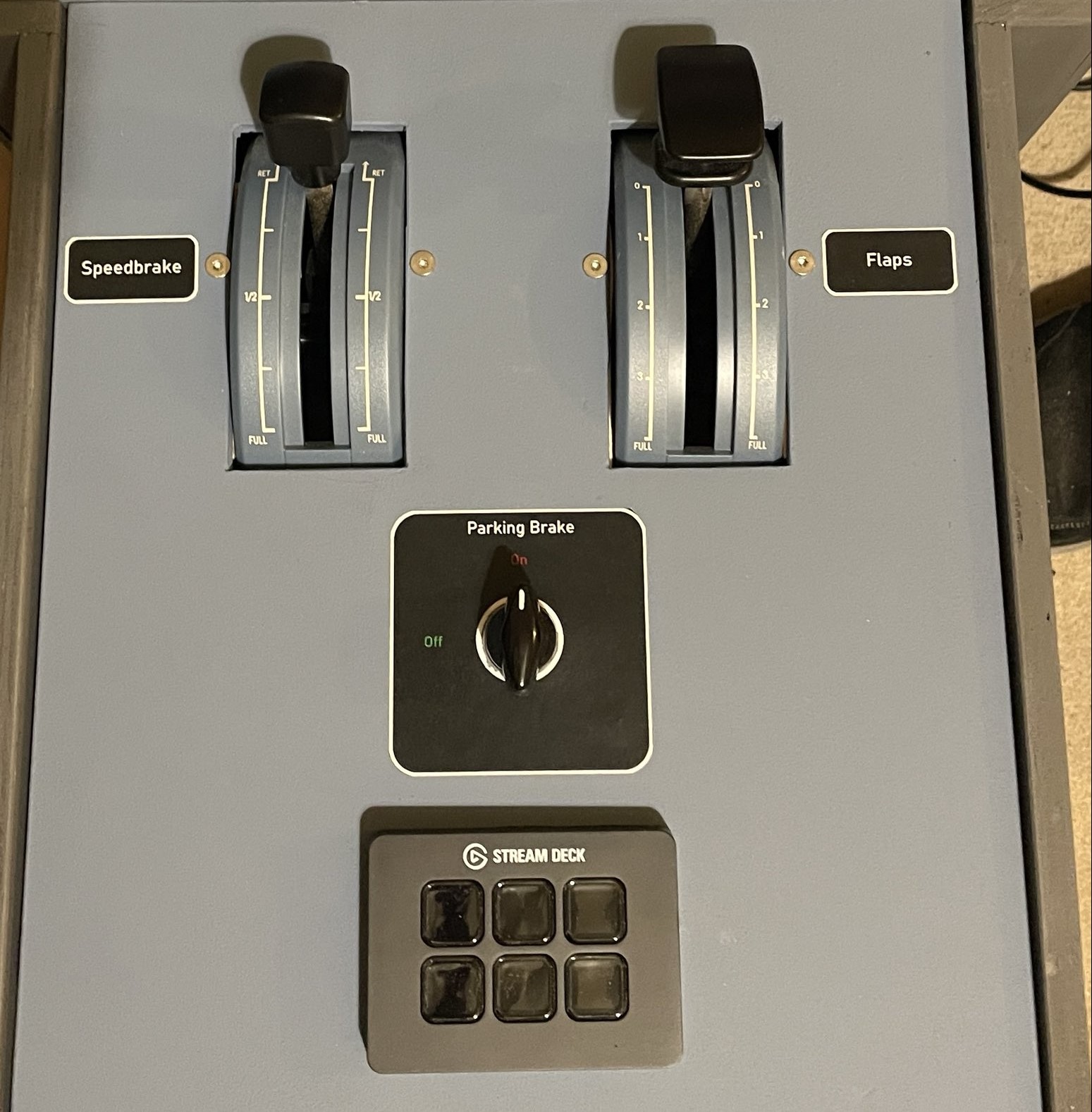

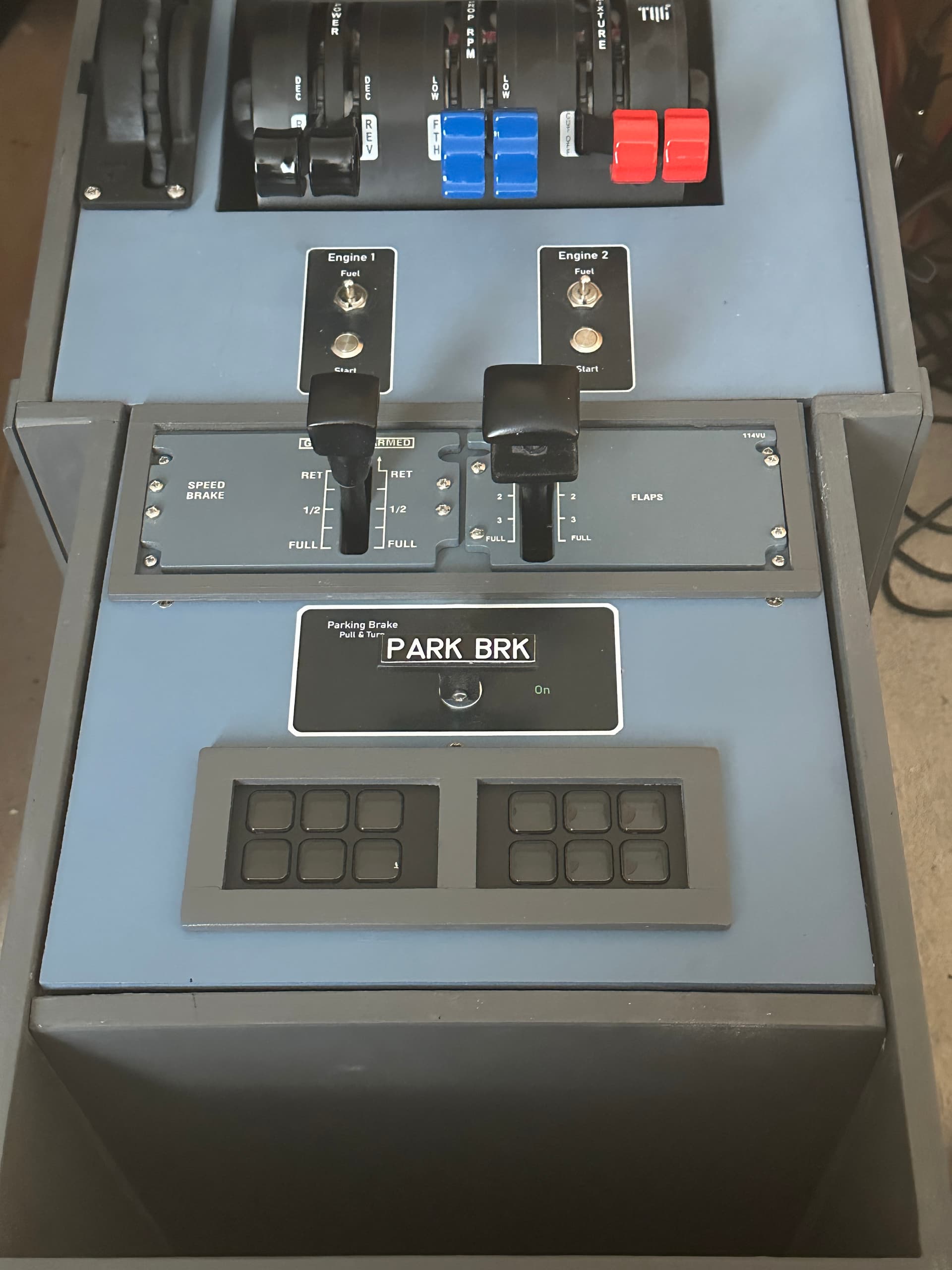

New panel for my pedestal. I have now completely removed the Thrustmaster TCA kit from my setup.
The flaps and speedbrake controls here (which are back-lit) are re-purposed from my old Throttletek Flightbox. Easy enough to do with a Bodnar card replacing the electronics. The parking brake is a pull-and-turn mechanism rather than the rotate-only switch I had before. It’s very noisy - I don’t know if the real thing is that loud. Got that from simparts.de, although that frankly is a saga all in itself, and not a good one.
I had intended to re-use the back-lit parking brake panel from the Flightbox here, and I had prepped the back-lighting, but there’s not enough height on the shaft that holds the parking brake handle, and to add more height I’d have had to fabricate a new brass rod and replace the one in the existing mechanism. Too much work, and beyond my DIY skills, so I used a printed label instead.
Finally, there’s a pair of Streamdeck Minis that can be configured for whatever random controls I want on the pedestal. I had a single Mini in my previous layout, but it was too far back to be convenient to use or see, because the panel length was dictated by the length of the TCA speedbrake / flap units. The new assembly is much smaller, so I could move everything up nearer to me including the Streamdecks.
Before:
and now:
With the panel being overall shorter, rather than leave blank space I decided to add in a pocket for checklists, manuals etc. All in all, I’m quite happy with this one, although I’m not 100% happy with the bezels around the Streamdecks. It’s 4mm thick (in height) and that’s too much. I might 3D print a new, low-profile bezel instead. Time to bone up on Fusion 360.
9 Likes
Nicely done…Congrats!!!
1 Like
Hi Mike
So nice to see your cockpit here. I do love watching you almost every night flying that monster. I´m not a 737 lover but I´m slowly getting there, thanks to you.
2 Likes
Thanks for watching, glad you enjoy the rides!
3 Likes
Still work in progress
But since last week i started to reconfigure my home style customable cockpit

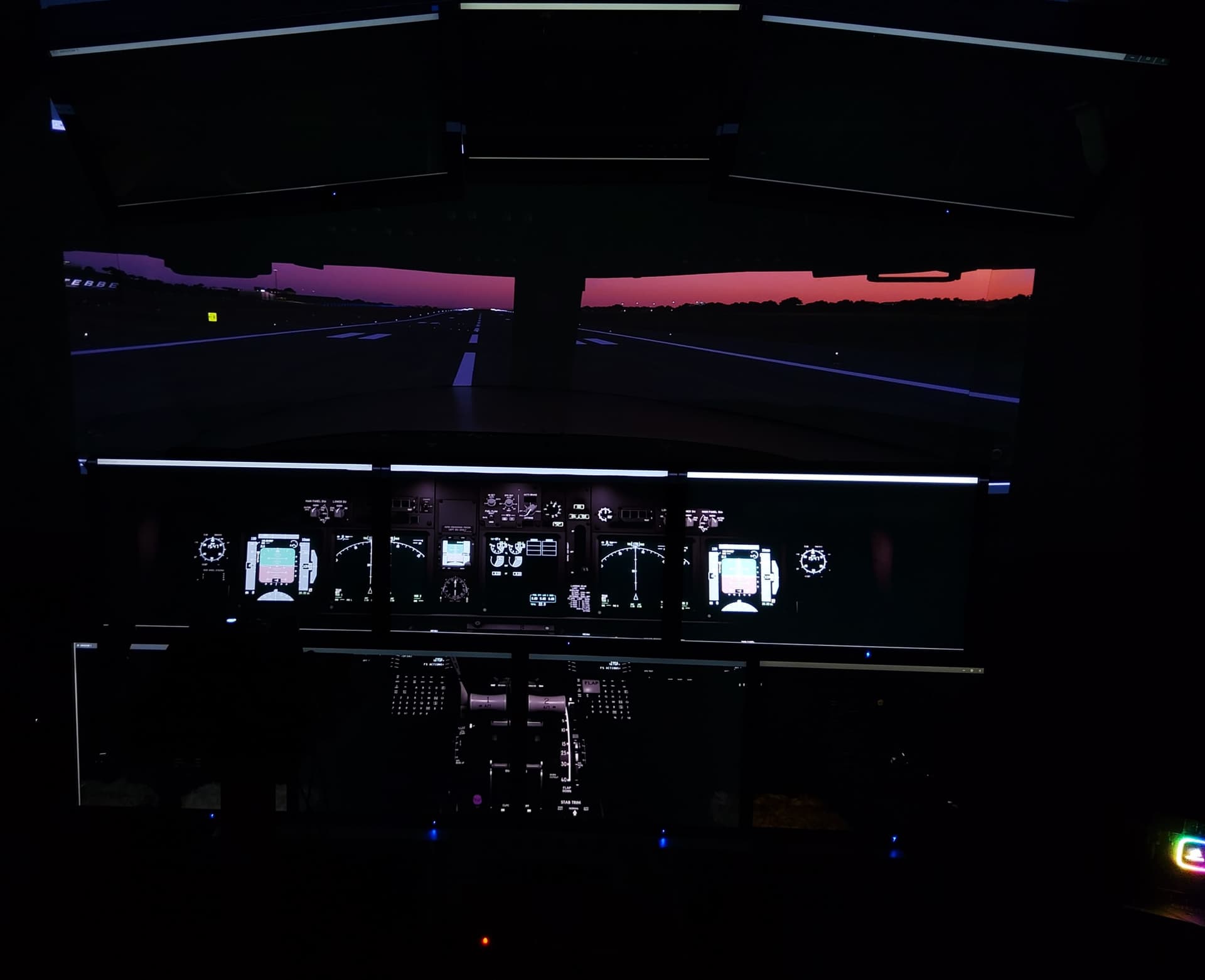

This was former last setup running on 7 screens

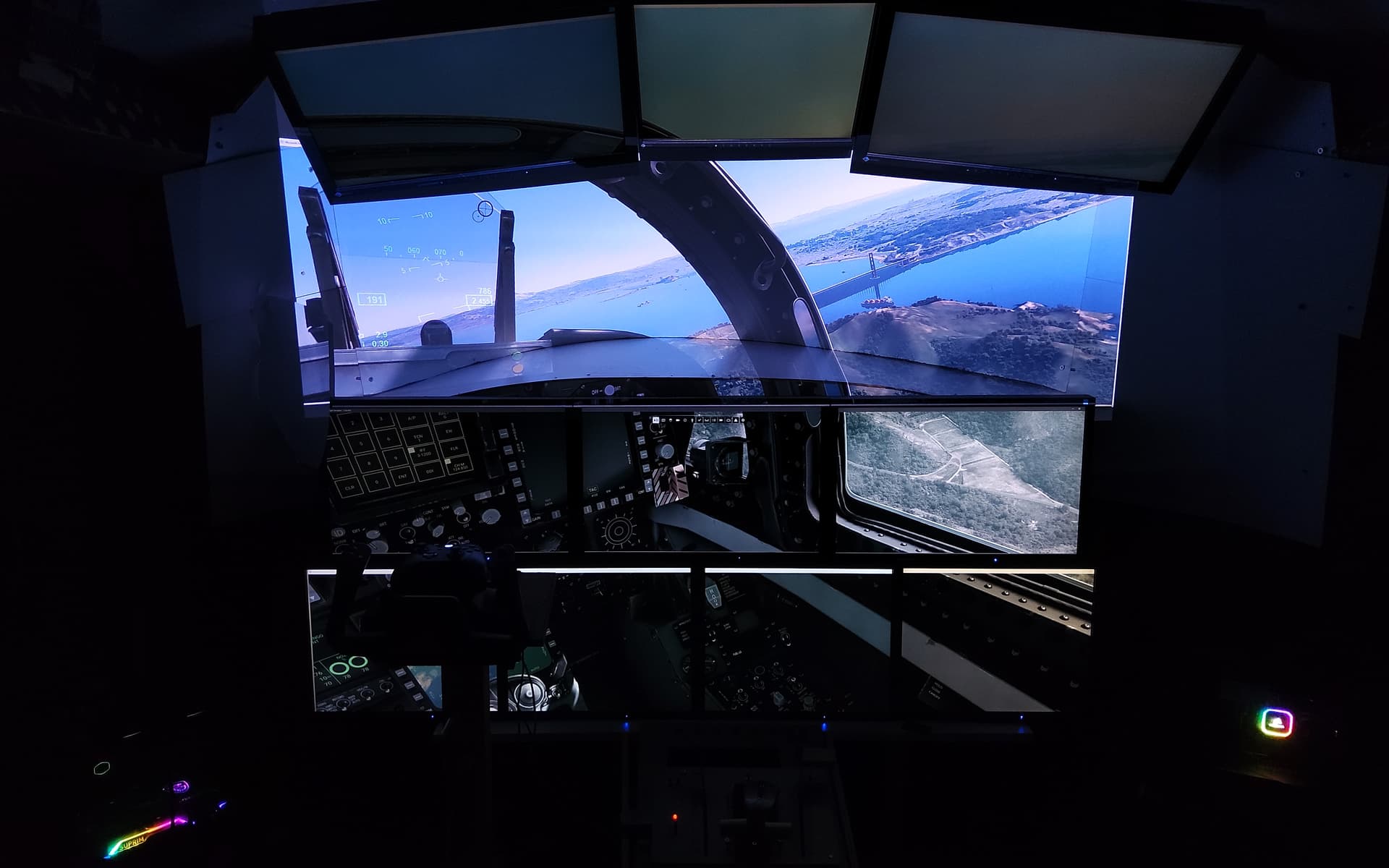

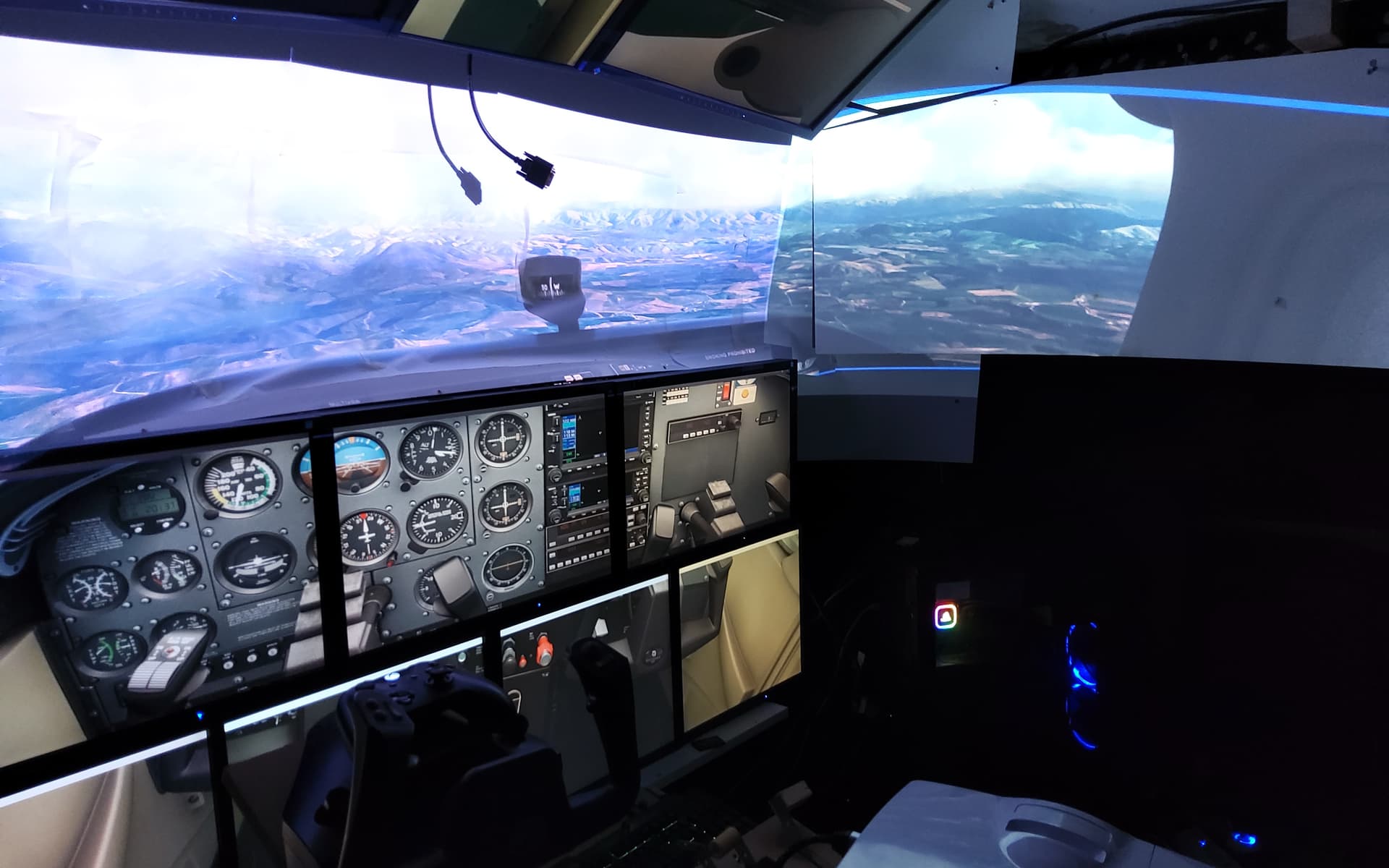

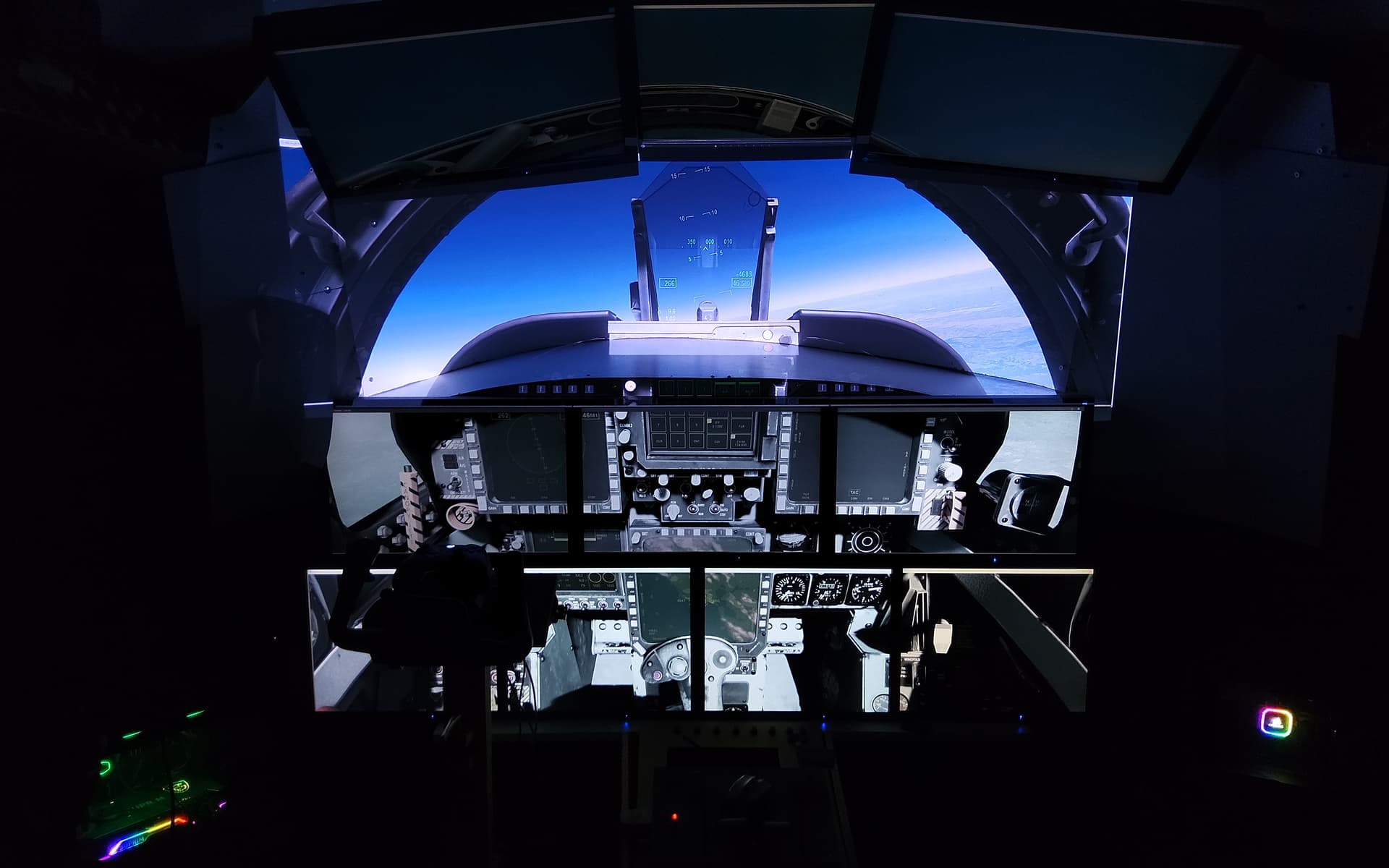

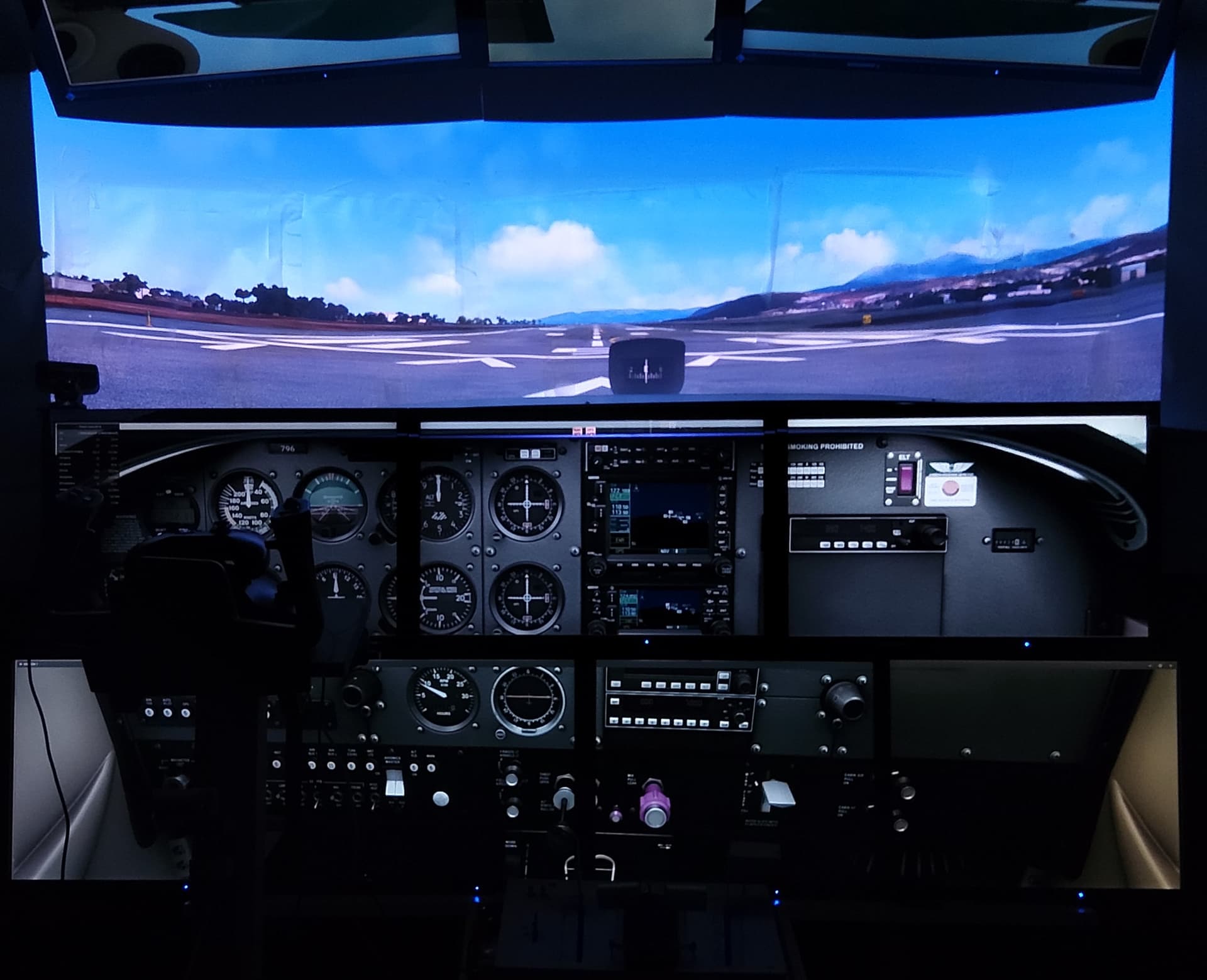

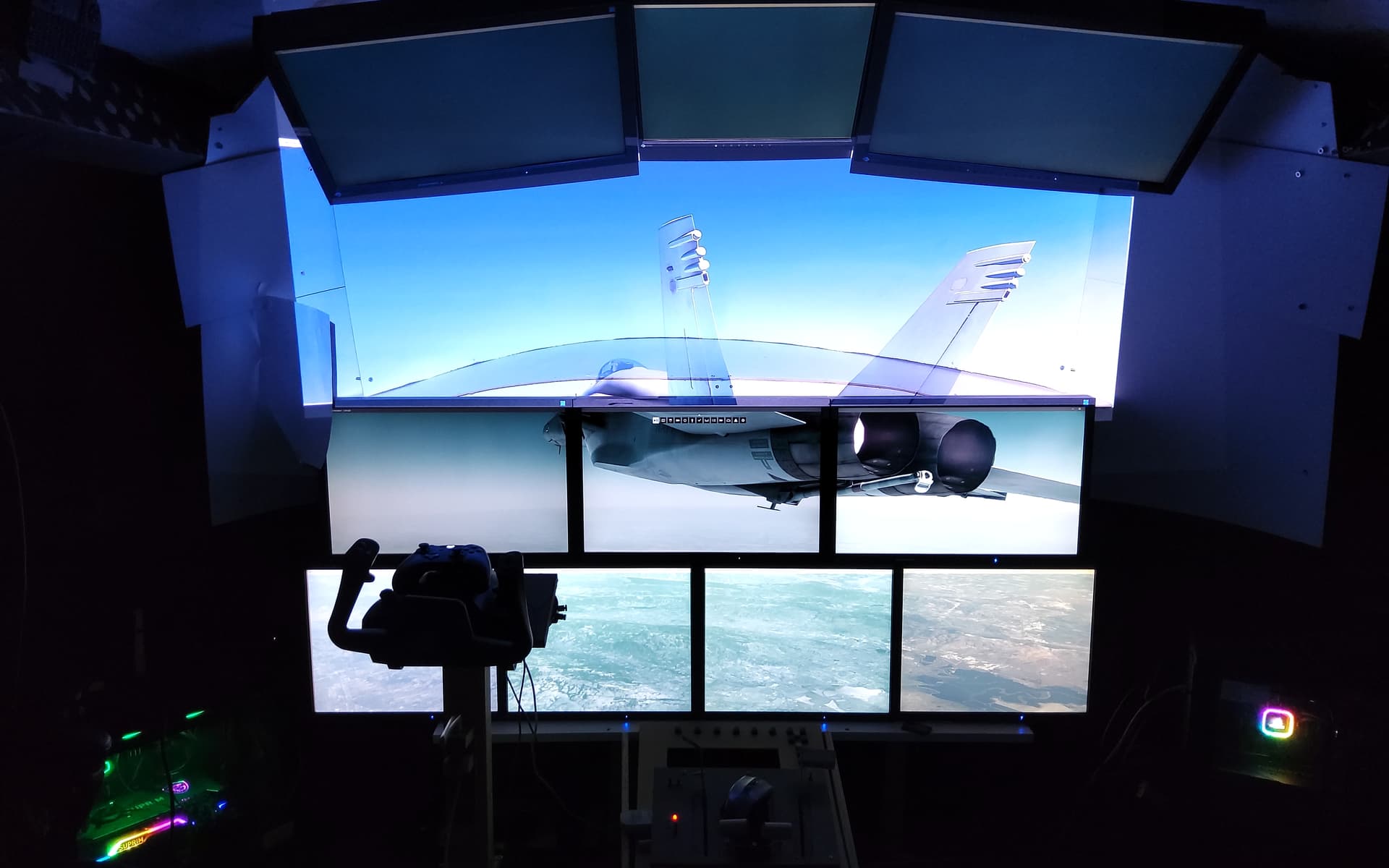

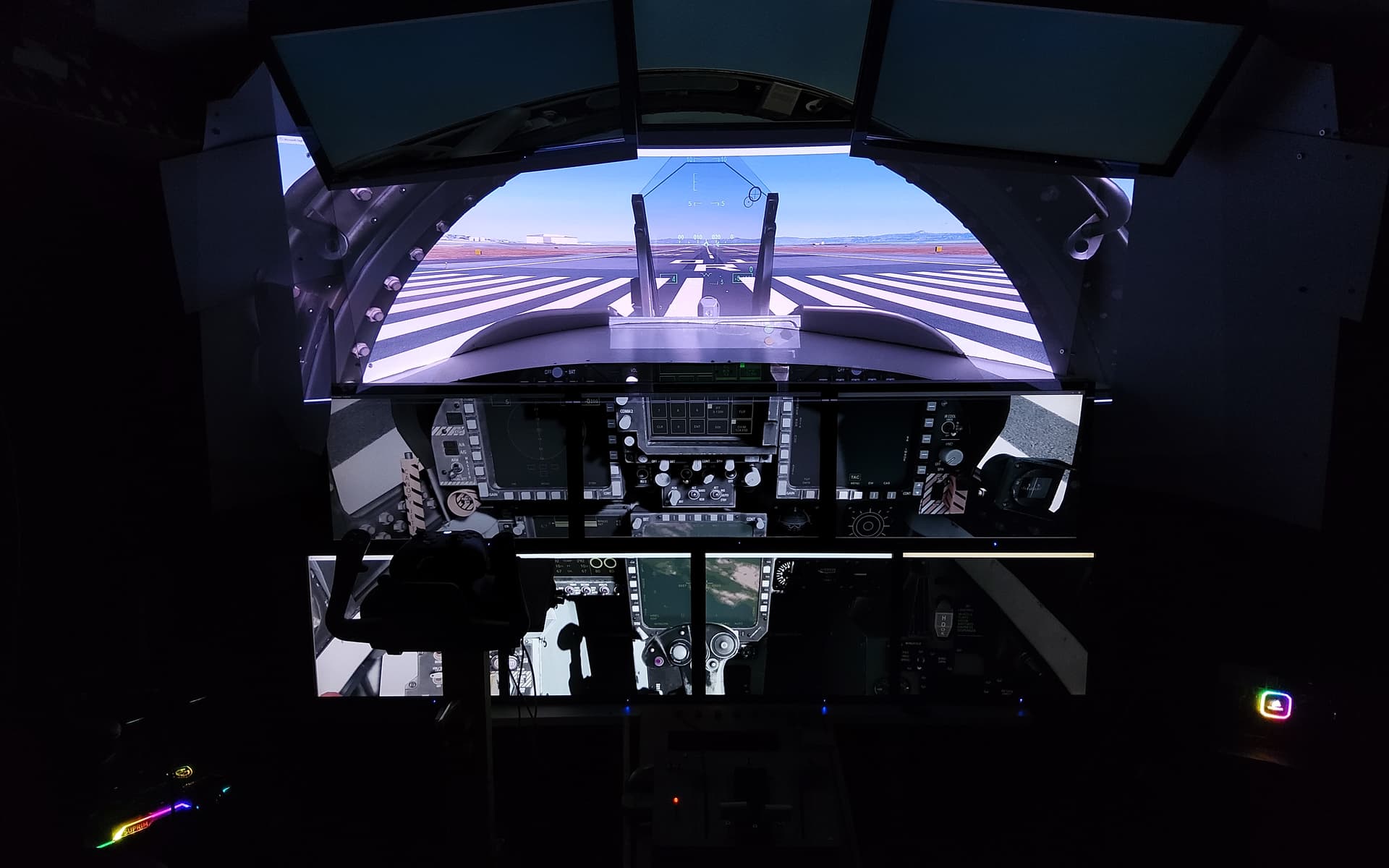

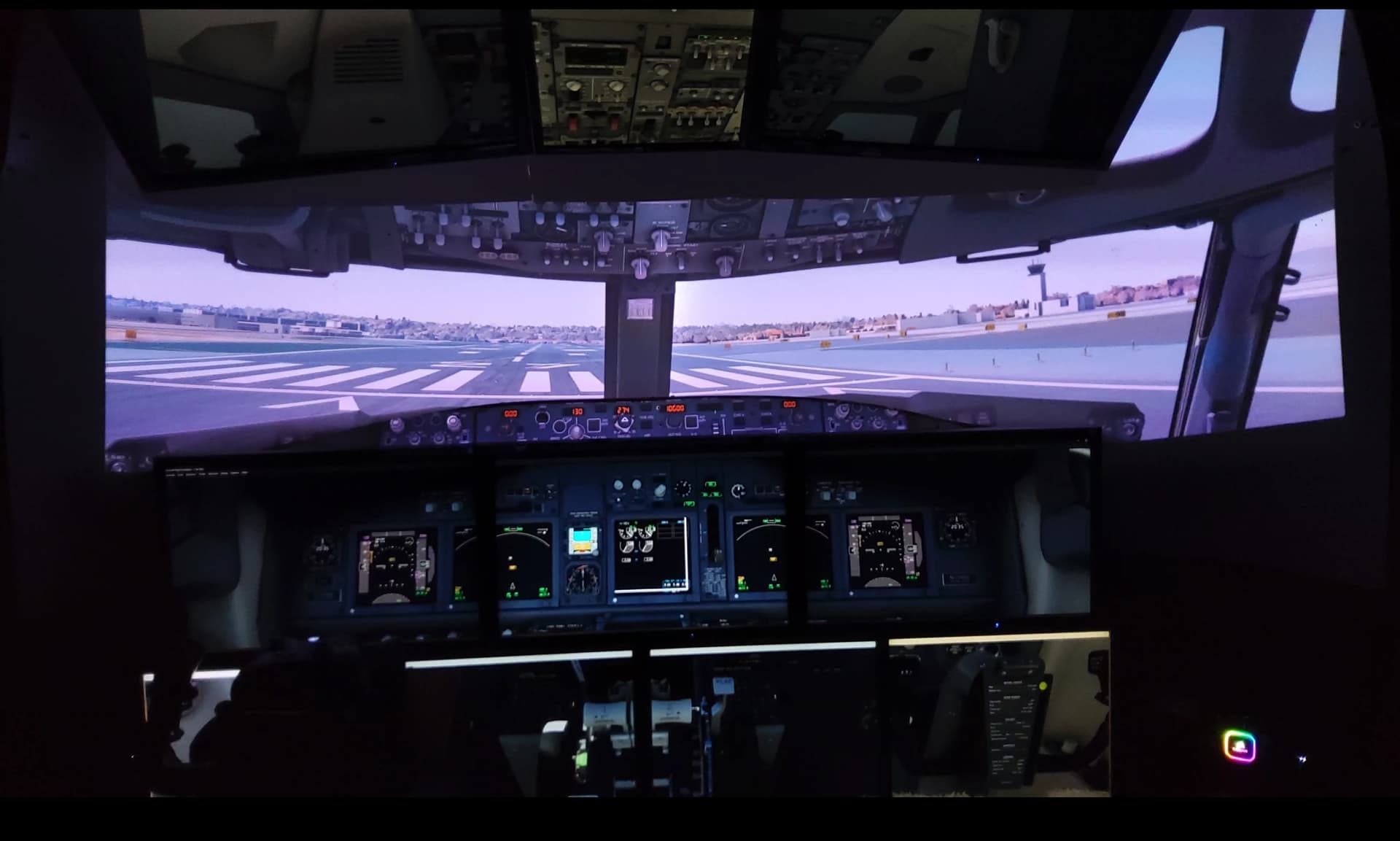

And this is the new running on 10 screens and one 4k beamer and made a combination
out of them.
Still have to tweak them and add my periphals but already happy with the result
Running on 2 pc and 3 graphicscards (1x 3090 and 2x 3060 ti)
Also i will use ir track on the two pc’s to look around each with different setting and 1 headset
So they move at the same time.
2pc connect together with either, your controls and or wideview (i prefer your control atm)
The screens in my possession i got at work and saved them from the bin where they waited to get destroyed so i gave them a second life.
Also i re used my former former setup which i had running since 2004 sim on beamer
Added matrox tripplehead2go
Easy flexible cockpit setup for different and all kind of planes
Now the project has reached the point where i can add track ir on my two pc setup.
15 Likes
Nice setup.
How is that ultra wide screen working for you?
I am contemplating on swapping my 3 monitors for one of those to help with frame rate.
That’s a cheaper option than building a new rig.
