Airbus FCU Build Project

Discussion Hub Home Cockpit Builders
1

Hello!

I am quite new to the whole aviation thing. I was putting together an airbus setup building off the Thrustmaster TCA Captain pack. I was going to expand it to include an FCU, until I saw how much these things cost. 4000$?

So as an engineer, if you can’t get what you want, you make what you want.

I have everything planned out except I need your help on one thing. The buttons.

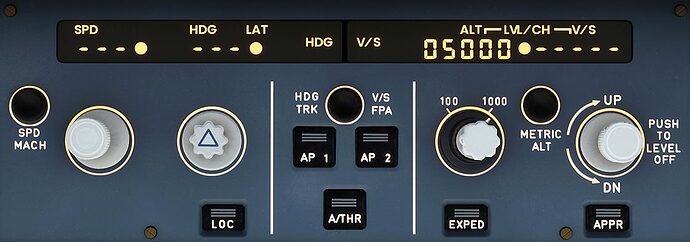

FCU
FCU1120×393 61.9 KB

This is the model I am going to recreate. Since I have never touched an Airbus, I need help figuring out what kind of button each one is. Mainly the spinny ones.
I know that they are push in/out but I don’t know how many degrees of rotation they have (or if they even have limits).

Thanks

2

Hello,
The cheapest method for the knobs will probably be to do it yourself with a 3D printer.

3

Hello,

I’m more talking about the actual rotary encoder.
