ATR 72-600: The pressure crossfeed valve doesn't work correctly

:wave: Thank you for using the Bug section, using templates provided will greatly help the team reproducing the issue and ease the process of fixing it.

2 tags are required: One for platform, and one for aircraft.

Are you using Developer Mode or made changes in it?

No

Have you disabled/removed all your mods and addons? If the issue still occurs with no mods and add-ons, please continue to report your issue. If not, please move this post to the Community Support section.

Yes

Which aircraft are you reporting an issue about? (Please also add the proper tag for it)

ATR 72-600

Brief description of the issue:

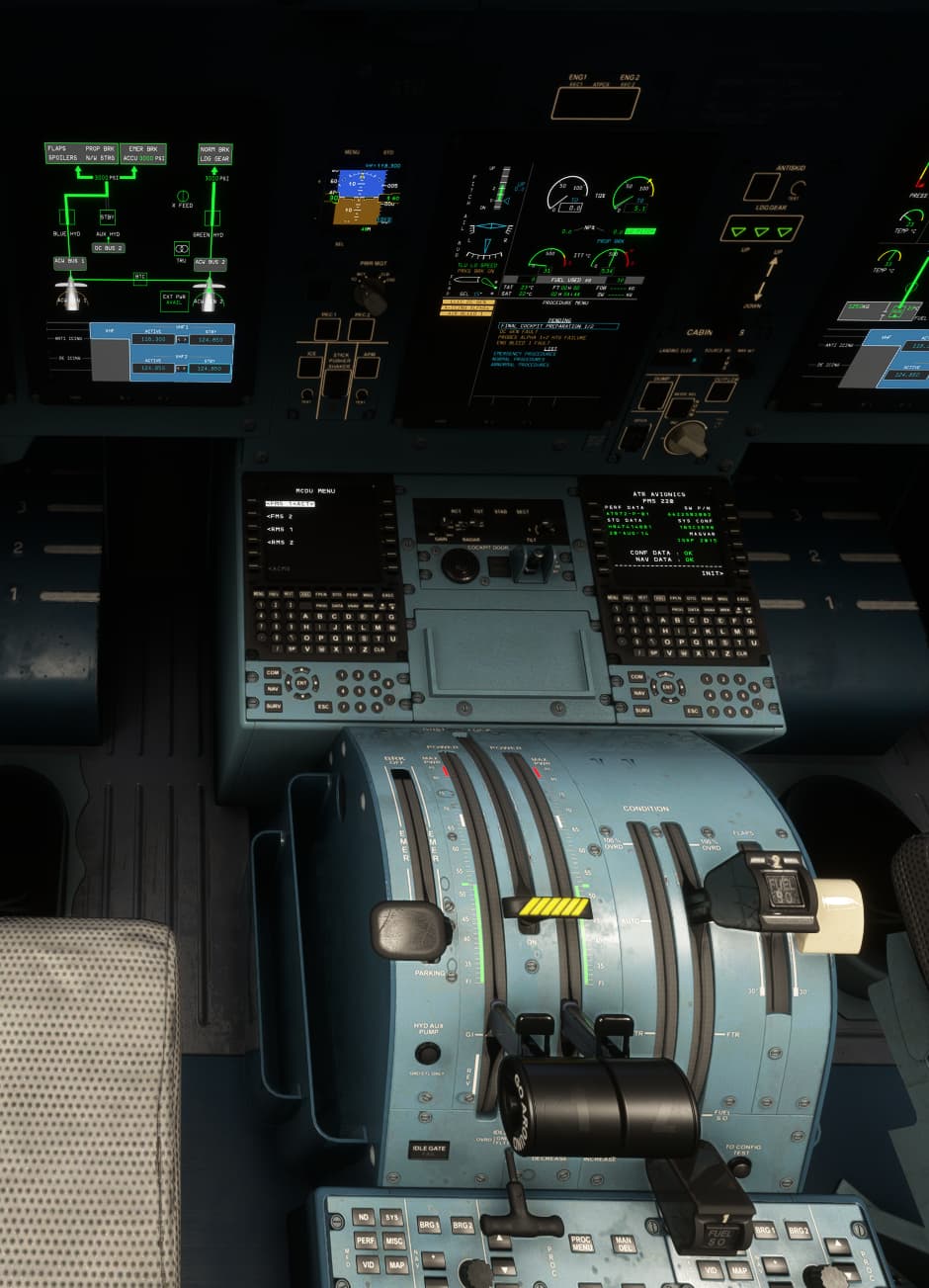

As you can see at the screenshot below, the left engine is stopped (completely) and hydraulic crossfeed is disabled, yet somehow the pressure from the right engine (which by the way with propeller break since it is stuck) going to the left part.

Provide Screenshot(s)/video(s) of the issue encountered:

Detailed steps to reproduce the issue encountered:

Start right engine with prop break.
Set condition to ‘Auto’
Leave the hydraulic crossfeed button off (i believe it’s default position)
Hydraulic pressure is present in the left part of the system.

Expectation:
Hydraulic pressure can’t be in the left part of the system since there’s no magic to bring it there and the valve is closed.

PC specs and/or peripheral set up if relevant:

Build Version # when you first started experiencing this issue:

1.33.8.0


:loudspeaker: For anyone who wants to contribute on this issue, Click on the button below to use this template:

Do you have the same issue if you follow the OP’s steps to reproduce it?

Provide extra information to complete the original description of the issue:

If relevant, provide additional screenshots/video:

This isn’t a bug. Its the way the ATR hydraulic systems work.

The hydraulic pumps are powered by the AC Wild generators. The ACW Generator on engine number 2 is powering both hydraulic pumps. If you look on the screen print you provided this is shown by the thinner green line connecting the two engines.

Thin green lines are signifying electrically powered and the thick lines are hydraulic pressure.

The hydraulic cross feed valve is used if there is a hydraulic pump failure and does function correctly.
