There is one simple trick we can use - Double the Resolution of the HTML Gauges. This is a quality gain, no matter the AA method. One can use this on Things like G1000 or GNS530 too. For the Fenix for instance, go to the Panel.cfg and just double from
[VCockpit0X]
size_mm=768,768
pixel_size=768,768
texture=XXXXXXXXXX
htmlgauge00=… 0,0,768,768
to
[VCockpit0X]
size_mm=1536,1536
pixel_size=1536,1536
texture=XXXXXXXXXX
htmlgauge00=… 0,0,1536,1536
I have no FPS loss but significant more sharper instruments. It has it limits. The further away you get with the viewpoint the more blurry it gets. But that would be true for any method I guess.
Here some screenshots (FENIX A320):

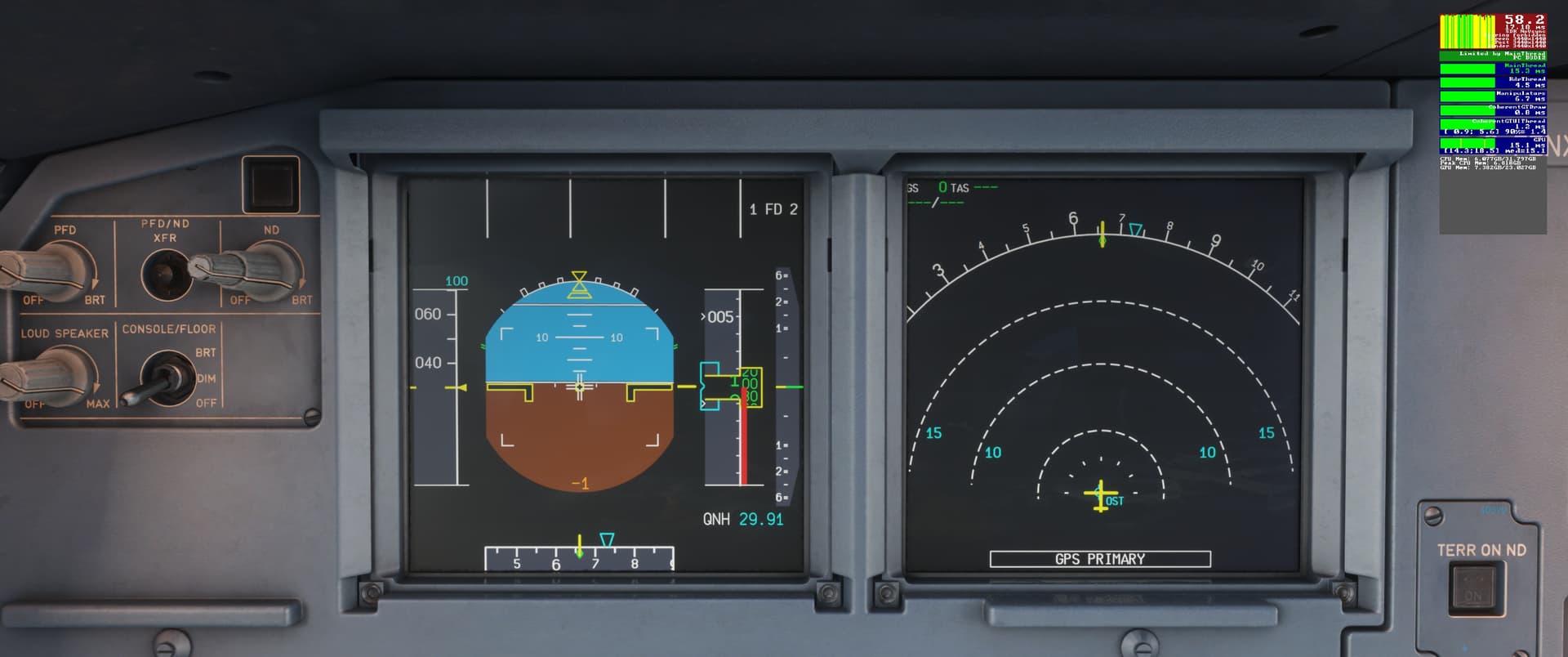

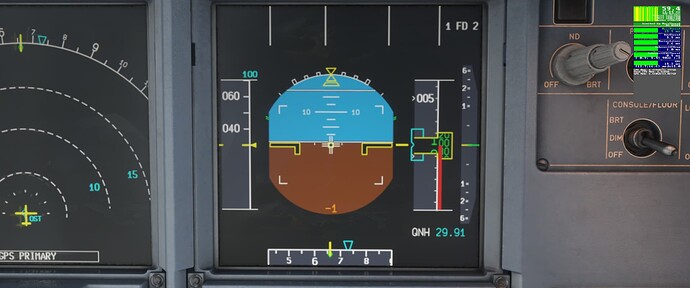

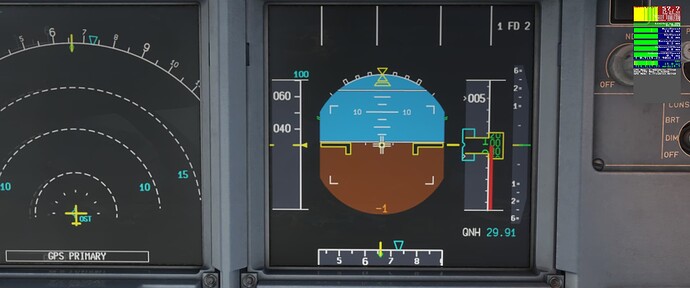

768x768 DLSS Quality
1536x1536 DLSS Quality
768x768 DLSS Performance
1536x1536 DLSS Performance
768x768 TAA 100%
1536x1536 TAA 100%
Kind Regards
JayDee
