C-46 Commando: Manifold Pressure and RPM gauges incorrect markings

Bug Reporting Hub Aircraft & Systems
,
1

:wave: Thank you for using the Bug section, using templates provided will greatly help the team reproducing the issue and ease the process of fixing it.

2 tags are required: One for platform, and one for aircraft.

Are you using Developer Mode or made changes in it?

No

Have you disabled/removed all your mods and addons? If the issue still occurs with no mods and add-ons, please continue to report your issue. If not, please move this post to the User Support Hub.

Yes

Which aircraft are you reporting an issue about? (Please also add the proper tag for it)

C-46 Commando

Which aircraft version are you experiencing this issue on? (You can find this listed in the Content Manager under the Aircraft Name)

1.1.0

Brief description of the issue:

Manifold Pressure and RPM gauges have incorrect markings. While the numbers depicted on the gauges are displayed correctly in increments of 5 (e.g. 15, 20, 25, 30 etc.), the long and short markings (white lines) are spaced incorrectly:

  • Manifold Pressure: There are two long white line markings between the numbers, therefore marking spacing of 1.66 inches of mercury. Correctly, there should be 4 line markings indicating spacing of 1 inch of mercury. There should not be any short white line markings on the gauge.
  • RPM: There is one long white line between the numbers, therefore marking spacing of 250 rpm. Correctly, there should be 4 line markings indicating spacing of 100 rpm. There should not be any short white line markings on the gauge.

Provide Screenshot(s)/video(s) of the issue encountered:

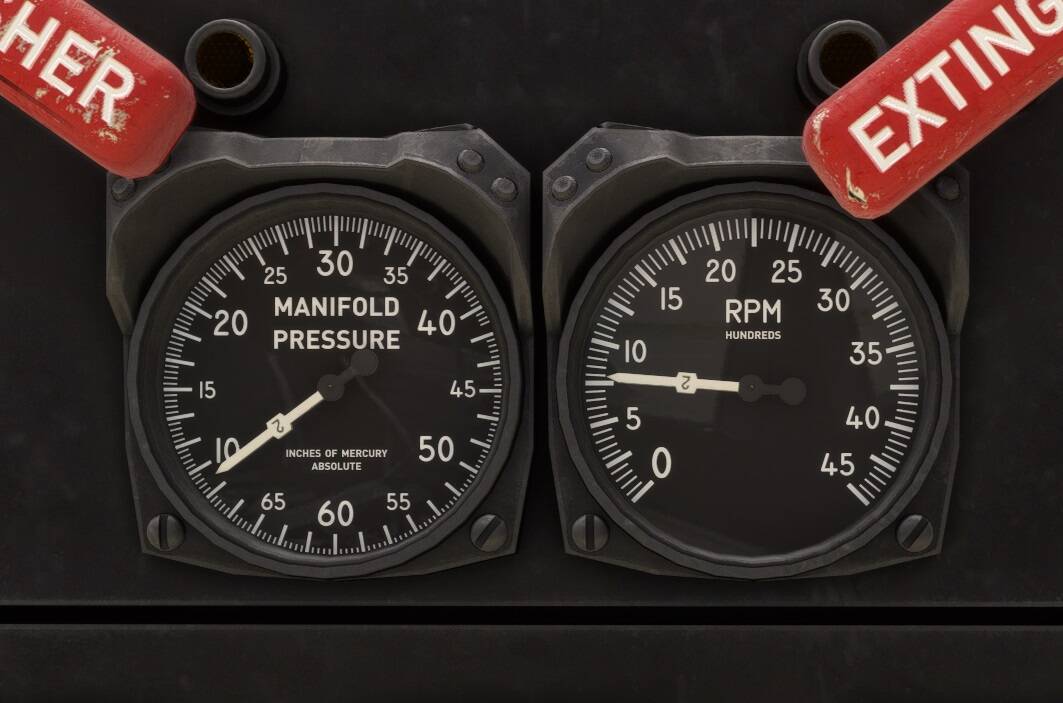

Currently in MSFS

C-46 MSFS
C-46 MSFS1063×703 68.4 KB

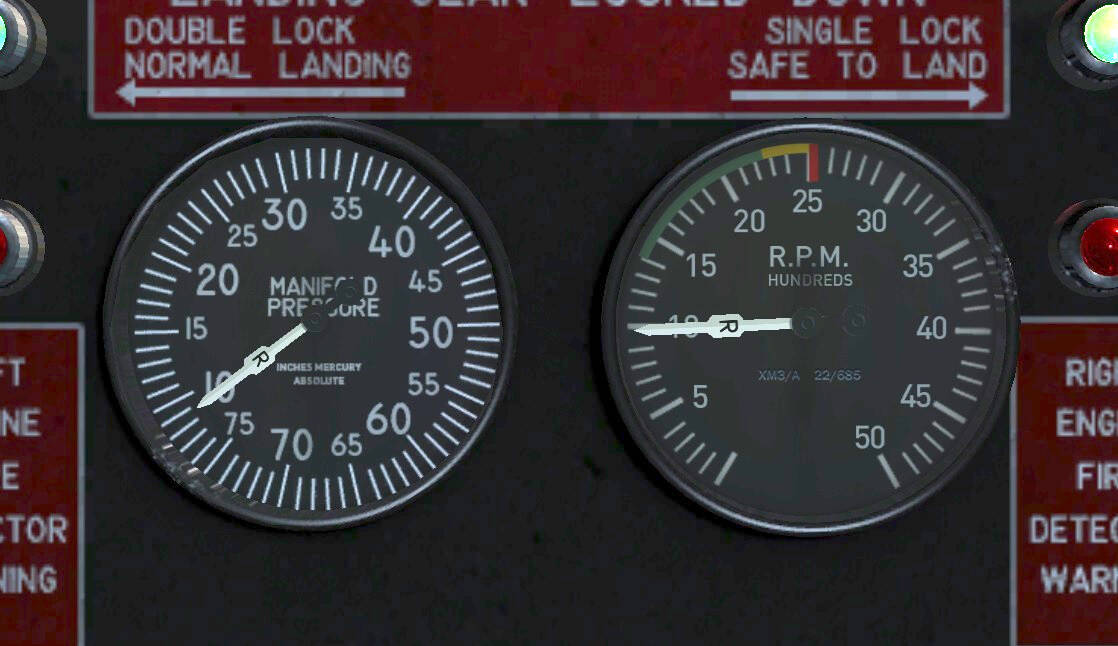

While the gauges should look like this (AH’s version of C-46 for FSX/P3D)

C-46 FSX
C-46 FSX1118×646 86 KB

Detailed steps to reproduce the issue encountered:

Load the flight and look at Manifold Pressure and RPM gauges. If in doubt, consult any real life example of these two gauges.

PC specs and/or peripheral set up if relevant:

N/A

Build Version # when you first started experiencing this issue:

1.37.19.0

:loudspeaker: For anyone who wants to contribute on this issue, Click on the button below to use this template:

Do you have the same issue if you follow the OP’s steps to reproduce it?

Provide extra information to complete the original description of the issue:

If relevant, provide additional screenshots/video:
