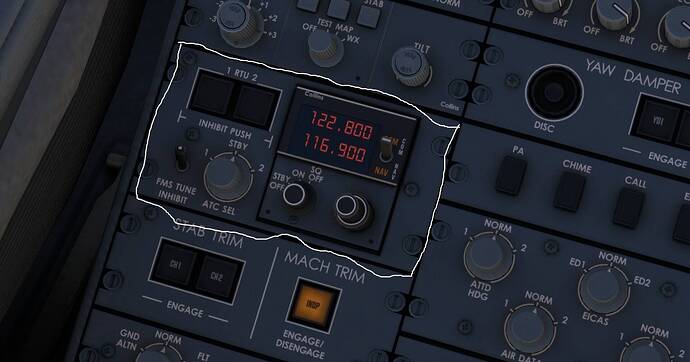

This is the Aerosoft CRJ-700 cockpit. What is this panel called, what is it for and/or what does it do?
Thanks!!!
Mike
Hi @SillyGameMonkey ,
Thank you for your post! Your topic has been moved to a sub-category of the User Support Hub
The General Discussion category is meant for discussions that fall outside of our other sub-categories.
If you would like other users to help you with an issue you are experiencing in the sim, consider these User Support Hub categories for your future post:
User Support Hub > Aircraft & Systems
User Support Hub > ATC, Traffic & NAVAIDs
User Support Hub > Crashes (CTDs)
User Support Hub > Hardware & Peripherals
User Support Hub > Install, Performance & Graphics
User Support Hub > Scenery & Airports
User Support Hub > User Interface & Activities
User Support Hub > Virtual Reality (VR)
User Support Hub > Weather & Live Weather
User Support Hub > Miscellaneous
This is TCAS panel
Multiple functions.
1 RTU 2 - inhibits radio tune unit 1 or 2 in case one fails to allow cross tuning.
Atc sel - select which transponder is operating. Again in case one channel fails you have back up.
Right panel is separate unit which is back up RTU in case you primary 1 and 2 fails.
1 Like
And to add, the display with the digital numbers is the Radio COM and NAV panel where you tune the frequency for radio communication with ATC or VOR navigation.
