DC-3 Sperry autopilot has incorrect functions

:wave: Thank you using the Bug section, using templates provided will greatly help the team reproducing the issue and ease the process of fixing it.

Are you using Developer Mode or made changes in it?

No

Have you disabled/removed all your mods and addons?

Yes

Brief description of the issue:

The Sperry autopilot currently has several incorrect/missing functions. This includes:

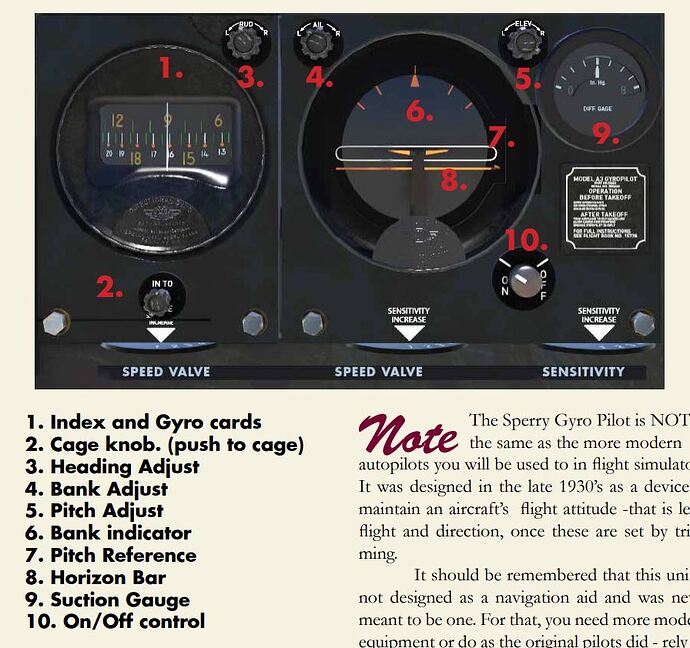

  1. Cage Knob on the Directional Gyro unit functions as a Desired Heading control right now (item 2 in the official manual image). This should be functioning as a Cage Knob, nothing more.
  2. The Aileron Control Knob functions as Pitch Hold right now (item 4 in the official manual image). This should be controlling the deflection of the ailerons instead.
  3. The Rudder control knob functions as a Heading Hold right now (item 3 in the official manual image). This should be used to set the desired heading instead.

Provide Screenshot(s)/video(s) of the issue encountered:


Detailed steps to reproduce the issue encountered:

N/A

PC specs and/or peripheral set up if relevant:

N/A

Build Version # when you first started experiencing this issue:

Latest public build.


:loudspeaker: For anyone who wants to contribute on this issue, Click on the button below to use this template:

Do you have the same issue if you follow the OP’s steps to reproduce it?

Provide extra information to complete the original description of the issue:

If relevant, provide additional screenshots/video:

Here is my two pennyworth (as at November 23):

I beleive that the Sperry functions have been corrected except for the ‘Heading Hold’ button. (Button number 5 in the lastest edition of the manual - and not as shown above).

I think that the heading hold button has been configured as a rotary control whereas it should be a push button (so as to activate the heading hold).

That should be easy enought to fix!
