FBW A320NEO take off flap question

Hello folks
Using the Thrustmaster Airbus throttle, stick and Rudder pedals. Before take-off, the flaps are set to 1+F. Autobrake set to maximum and Ground Spoilers armed. During climb-out after gear is retracted, at the appropriate speed it’s time to retract the flaps. Looking over the wing you can see the flap and slat retracting.

Question 1)Setting the FMGC initiate, flap setting has [1]followed BY / [Ths]. Obviously I enter “1” but I don’t know what to enter in the next bracket. I assume that is for “+F” but it won’t accept that entry so I leave it empty. So my question is, what do I enter in that bracket?

Question 2) How do I select 1+F when initially setting up for approach? The reason I ask is if I extend 1 notch of flaps, only the slat extends but not any flap. All I get when extending 1st notch is the front slat. Then one more notch gives me flaps 2, followed by flaps 3, then full.

Any Airbus pilots here please chime in. I’m feeling a bit ignorant here as I’ve been mainly a Boeing man until I hopped into the FBW A320 which I happen to love flying.

PS - I’m using the latest FBW development release, not the experimental or stable (version 7 to memory) because SU6 doesn’t support the stable version yet.

Thanks in advance :blush:

In the performance section, before setting V1,V2, etc, try this -

1/.15DN

It means flaps 1, 15 degrees down.

Hi,
You just need to add a 1 for Flaps Setting 1. THS is an optional Setting which set the trim to a „Standard“ Setting, doesn’t matter where the CG is. So it’s a nice feature for the Pilot, because IRL they have the same movement at the Stick for rotate, doesn’t matter where the weight and the CG is and most important, it doesn’t matter if it is a 319/320/321.
Thats my understanding of that function, IRL Airbus Pilots, go ahead to confirm or kick my ■■■ when I’m wrong. :stuck_out_tongue_winking_eye:

Setting Flaps 1 is only going to extend the Slats. That’s correct. Flaps 2 is going to extend the flaps too.
At approach, you switching to the Flaps detents one by one until Full Flaps.
You will find the target speeds at the Perf Page when you set your MCDU correctly.

It’s not that complicated as you maybe think.

1 Like

@CatapultF4E
conf 1 = 1+F (slats and flaps) on ground
conf 1 = 1 (slats) in flight

1 Like

Not at all optional. Setting the correct stab trim is essential and depends only on CG.

1 Like

Is there really a difference? Ok, never realized that. Shame on me. :woozy_face:

I’m not quite sure if it makes a huge difference. Yes, the Pilot will „feel“ a difference, but I guess I read somewhere it’s not really necessary to enter a value. Maybe it is a company procedure.
So I found this one for the moment, but I know I read some more….
https://www.airliners.net/forum/viewtopic.php?t=733873

1 Like

Thanks for the prompt reply.
So, let’s say that I know my CG when fuelling up and loaded my pax, cargo etc…

For hypothetical situation, let’s say my CG is 28%, what do I enter in the [THS] bracket? Is there a formula?

PS or do I simply enter the CG factor?

I’m not near my PC at the moment. It’s 0230 here in Perth, so I’ll try this out tomorrow…

Thanks in advance

1 Like

Found another Post of THS
https://www.pprune.org/tech-log/556007-a320-purpose-ths-mcdu.html

1 Like

Cheers for that. Anyone know what THS actually stands for?

TrimmableHorizontalStabilizer

3 Likes

As I understood this correct, you need to have this calculated by a separate system, so named a Dispatch System. Will that be included in Simbrief?? Going to check this out soon. (No, the entry is missing in Simbrief)
It won’t be calculate by the FMS. So, the entry its just a reminder during your takeoff config check. Takeoff checklist, all green no blue.
Hm…it‘s strange. I guess I have to get a IRL manual of an A320 for sure. I never broke my head about the entry, because it never made a difference. :yum:

1 Like

Of course it makes a huge difference. A mistrimmed stabilizer can cause an premature rotation and on the other hand severely delay the rotation, if not prevent it.

1 Like

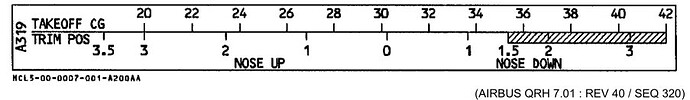

No formula. The CG/trim table is printed on the QRH.
Maybe there’s a misunderstanding. The THS setting in the MCDU doesn’t make any difference,
but the actual stab trim setting does.

e.g.

4 Likes

That makes total sense. Thanks for that. :+1:

1 Like

Ok, we get closer. Maybe that confused me. trim setting is important but not the THS Setting.
But, the Airbus set trim by itself when all Data are set?!
Another procedure I missed until now. Maybe I should start to work with checklists and not free nose

I’m not sure if I understand. The Trim setting is the same as the THS setting.
The one you set on the trim wheel.

No. That’s exactly the reason why you must set it manually!

So it always matters where the CG is, in any aircraft. Also the flap/THS setting in blue on the MCDU, in the real airplane, is totally optional. the MCDU doesn’t use that data at all. However, as simulated in MSFS, you need to enter the flap setting in order to get the v-speeds to calculate.

The Trimmable Horizontal Stabilizer setting is completely dependent on the CG. With your CG, you would either reference a handy chart or simply look at the CG/trim scale next to the thrust levers to determine what your TO trim needs to be. You would then dial that in using your trim control and confirm on the lower ECAM FCTL page.

1 Like

THS is just the reminder as I read in the post I linked up.
Ok, takeoff trim will not be set automatically by the FMS.
I never took notice of that….well if there would be a Problem during takeoff, I would take notice of it anyway. :man_facepalming:

A pilot I used to fly with in the USNavy just transitioned to the A350. He was a MadDog Captain for Delta. I just shot him an email asking him to elaborate on this. I’m pretty sure that THS is an entry for the A350 as well.
When he replies, I’ll post what he says here. It could be a while as he’s doing long hauls from KDTW to Shanghai and back 3 days a week, but he always replies…

Way after V1…
That’s one of the reasons I find the TO briefing point ‘if aircraft is unable to fly’ some pilots are using, pretty useless.

2 Likes
