G1000 PFD Bug: Low Bank arc missing

[outermarker8412]

ISSUE DESCRIPTION

Description of the issue:
The G1000 PFD is missing the green Low Bank mode arc when the Autopilot is engaged and the Low Bank mode is active. When Low Bank mode is active, the flight director limits bank in HDG, VOR/LOC, and FMS lateral modes which is working correctly. Low Bank mode is accompanied by a green arc on the PFD roll scale depicting the range of supported bank angles which is currently missing.

If applicable, which aircraft is experiencing this issue:
Cessna 208 Caravan

[PC Only] Did you remove all your community mods/add-ons? If yes, are you still experiencing the issue?
Yes

FREQUENCY OF ISSUE

How often does this occur for you (Example: Just once, every time on sim load, intermittently)?
Always

REPRODUCTION STEPS

Please list clear steps you took in order to help our test team reproduce the same issue:

1. Load a flight in the Cessna 208 Caravan, preferably already in the air
2. Activate the Flight Director and engage the Autopilot
3. Activate the Low Bank mode by pressing the “BANK” button on the Autopilot
4. Check the roll scale on the PFD and observe the missing green low bank arc

[PC Only] Are you using Developer Mode or have you made any changes to it?
No

MEDIA

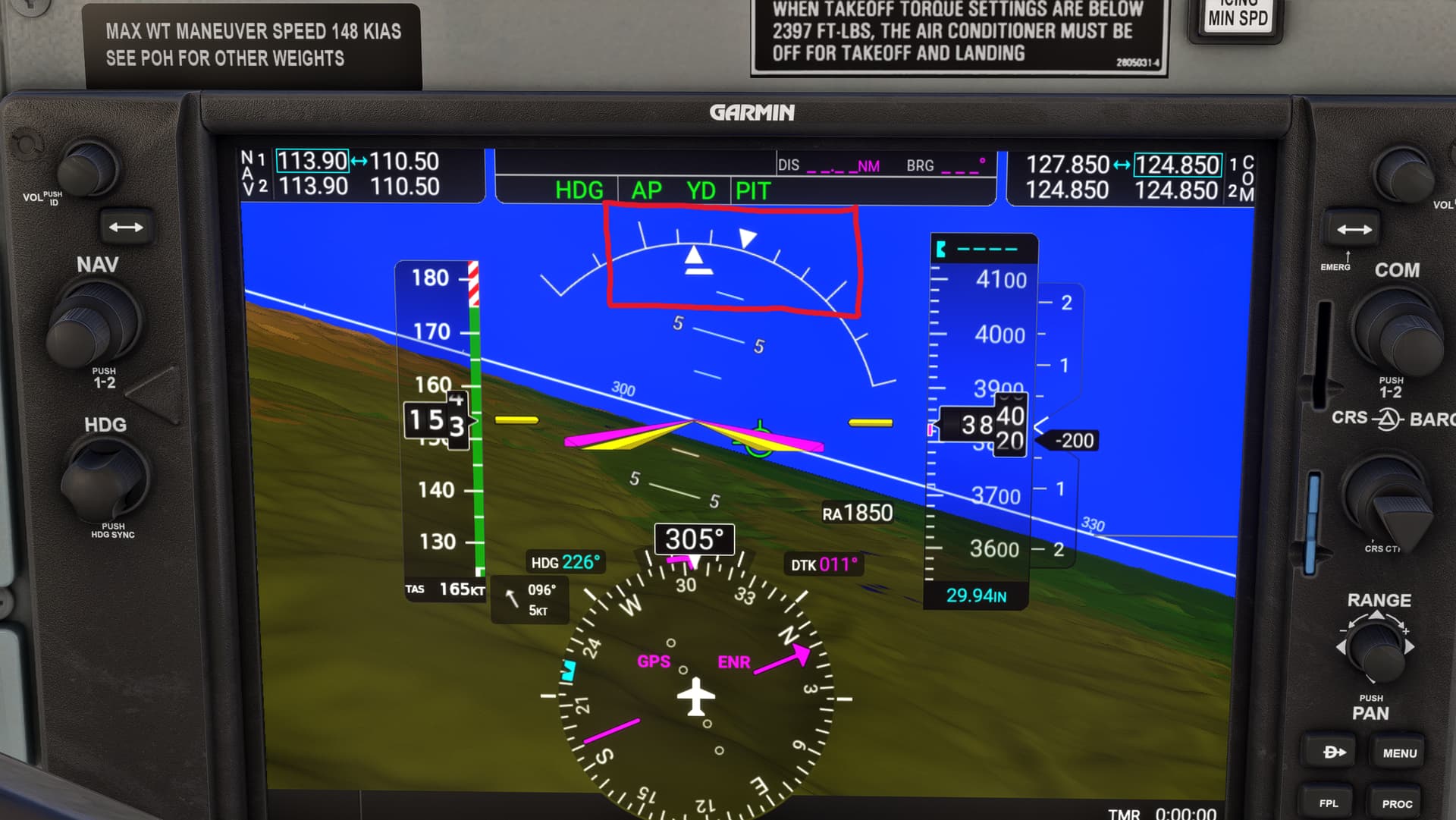

Please add a screenshot or video of the issue occurring.

vs how it should look like

[END OF FIRST USER REPORT]

---

For anyone who wants to contribute on this issue, Click on the button below to use this template:

Do you have the same issue if you follow the OP’s steps to reproduce it?
•

Provide extra information to complete the original description of the issue:
•

If relevant, provide additional screenshots/video:
•

[OrdainedFox3050]

I also have this problem and without the tooltips there is no way to know if low bank mode is on without the arc. Also, I wonder if the autopilot may be exceeding the max bank angle in low bank mode because I have seen it exceed 20 degrees. I’m not sure what the max is, but I would think either 15 or 20 degrees.
