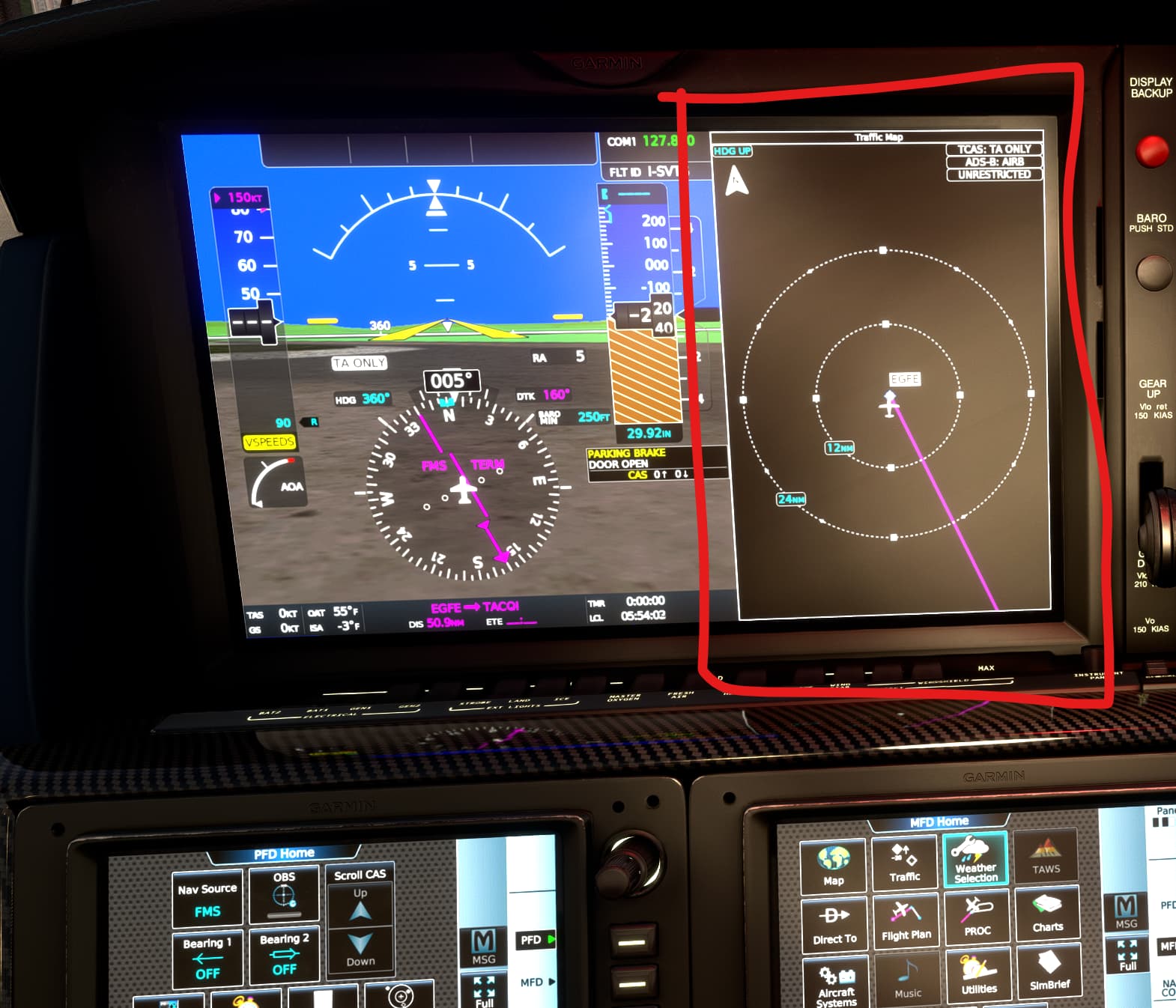

I accidentally changed the split screen view to traffic map from navigation map (circled in screenshot). How do I get the right side back to navigation map?
In the leftmost GTC, ensure it’s set to PFD, and press the button with the four outward facing arrows.
you’re saying to press the “full” button, but that only makes the main PFD switch back to full screen. i was wanting the split traffic screen to show the moving map.

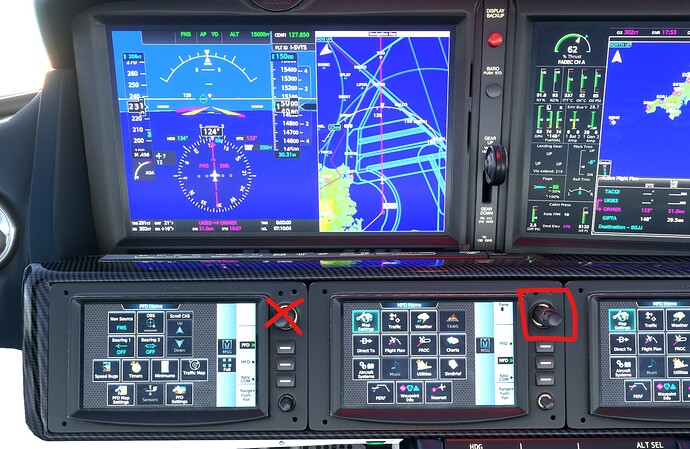

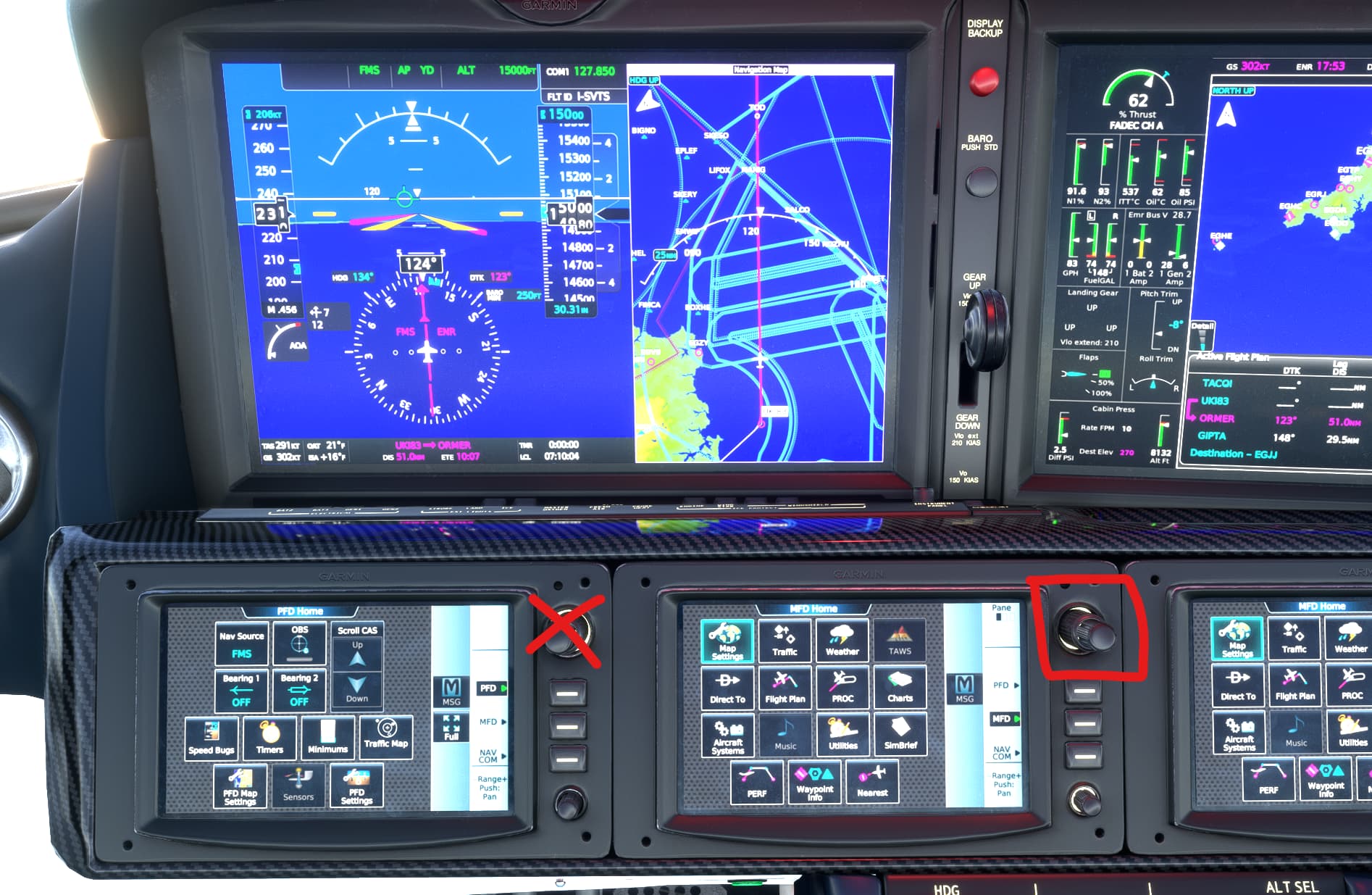

however I did eventually figure it out and it’s tricky and not obvious: you have to rotate the center GTC knob, the left one does not work for some reason. i have highlighted the correct knob in the screenshot. once you rotate this knob, it highlights the left MFD’s split screen, allowing you to change it back to the moving map
