ILS to RWY 07 at MRLB anomaly

User Support Hub Aircraft & Systems
, , ,
1

:wave: Thank you for using the Bug section, using templates provided will greatly help the team reproducing the issue and ease the process of fixing it.

Are you using Developer Mode or made changes in it?

No

Have you disabled/removed all your mods and addons?

No

Brief description of the issue:

ILS to RWY 07 at MRLB (Marcos A. Gelabert) lines the aircraft over to the right of the runway. The necessitates a manual line up and landing.

Provide Screenshot(s)/video(s) of the issue encountered:

NA

Detailed steps to reproduce the issue encountered:

ILS configuration for RWY 07.

PC specs and/or peripheral set up if relevant:

NA

Build Version # when you first started experiencing this issue:

:loudspeaker: For anyone who wants to contribute on this issue, Click on the button below to use this template:

Do you have the same issue if you follow the OP’s steps to reproduce it?

Provide extra information to complete the original description of the issue:

If relevant, provide additional screenshots/video:

2

If you search the airport up on LittleNavMap you’ll notice that the localizer has an off-set of 2 degrees on the left side of the runway centerline. RW 07 heading 72° while Loc heading is 70°.You need a detailed airport map to check/ match the exact off-set number.
There are many airports in the world with this type of off-set (even much greater than this!!) and therefore you need to align-up manually on landing.

3

Hi,

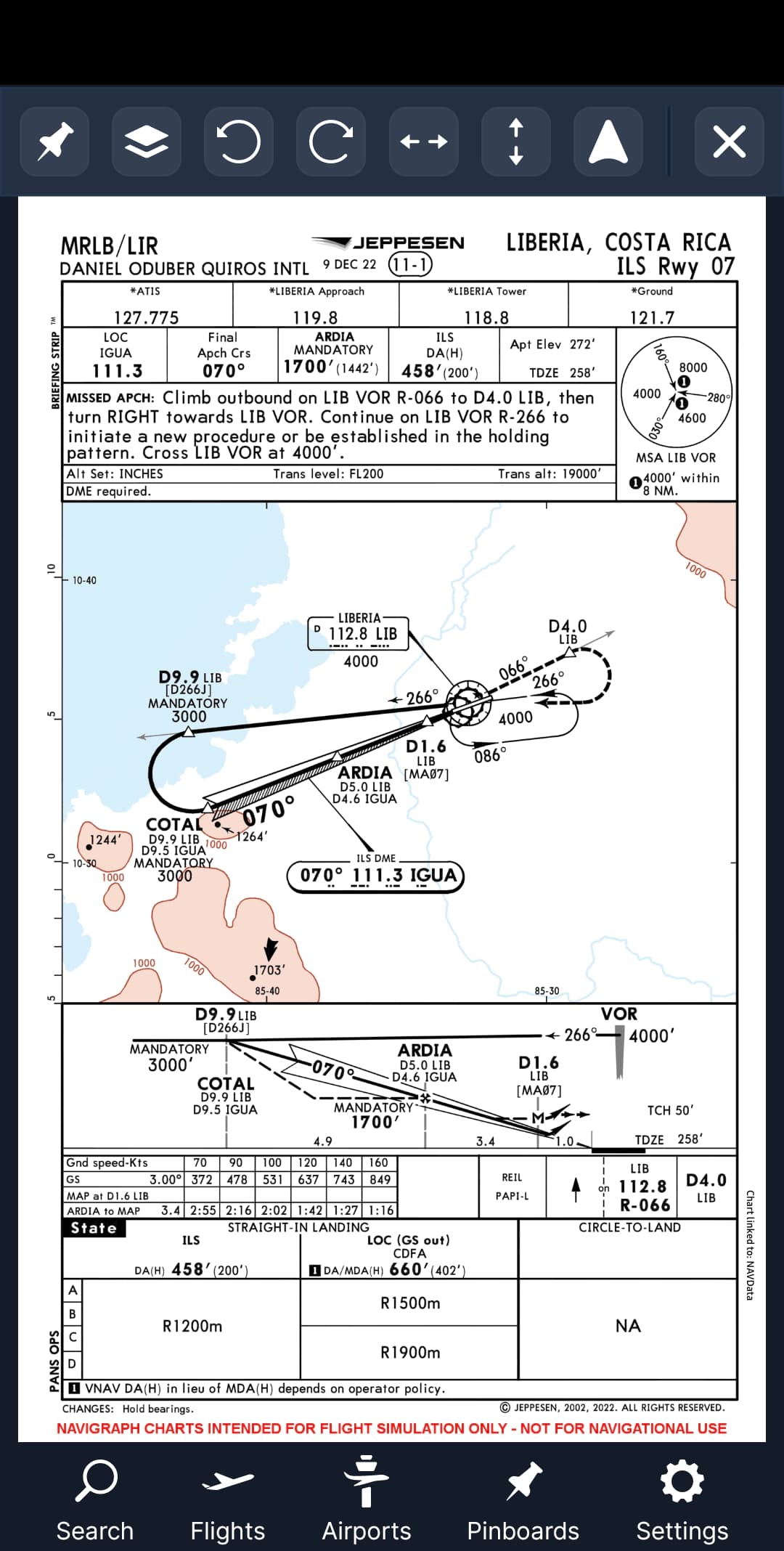

sorry to say, but this ILS approach 07 has in real no offset, the LOC course is 70 degrees.

image1080×2136 192 KB

It seems more a scenery issue … Offset approaches are normally LDA and not ILS approaches.

Cheers
Richard

4

Thank you. Something else I have learnt.
