Description of the issue:
When tracking a VOR in the A330 (and also the A400, so I suspect it is either a general FS24 or IniBuilds issue) with the NAV page in VOR mode, the CDI deflects in the wrong direction while for example the deflection of the LOC is correct.
I recreated the following situation:

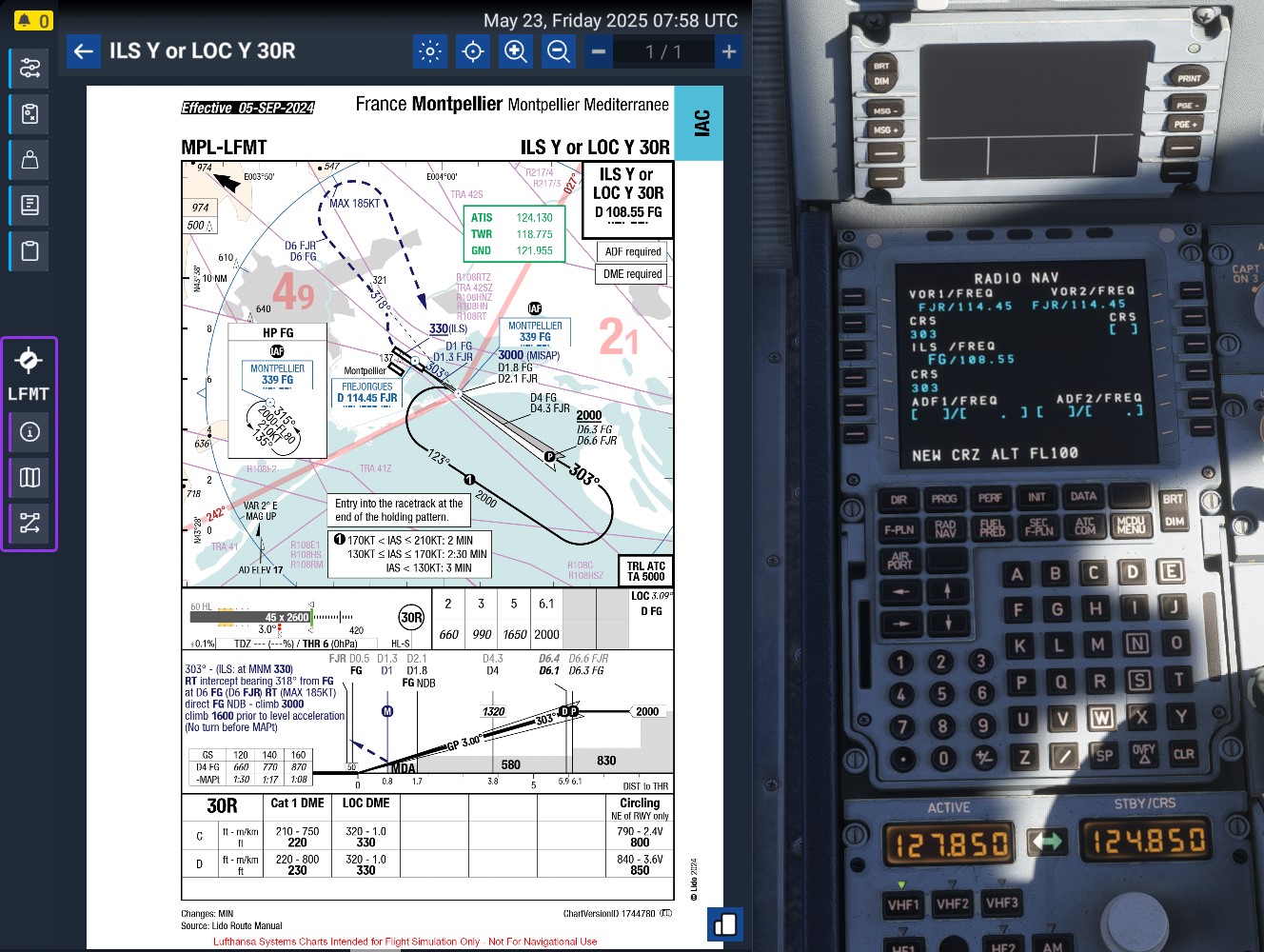

I approached LFMT (Montpellier Airport) Runway 30R, intercepting the ILS Y 30R approach from the left. LFMT has the following NAVAIDS available to use for RWY 30R:
VOR “Frejorgues” (FRJ, 114.45)
ILS “FG”, 108.55 (not to be mistaken for NDB “FG”, 339.0)

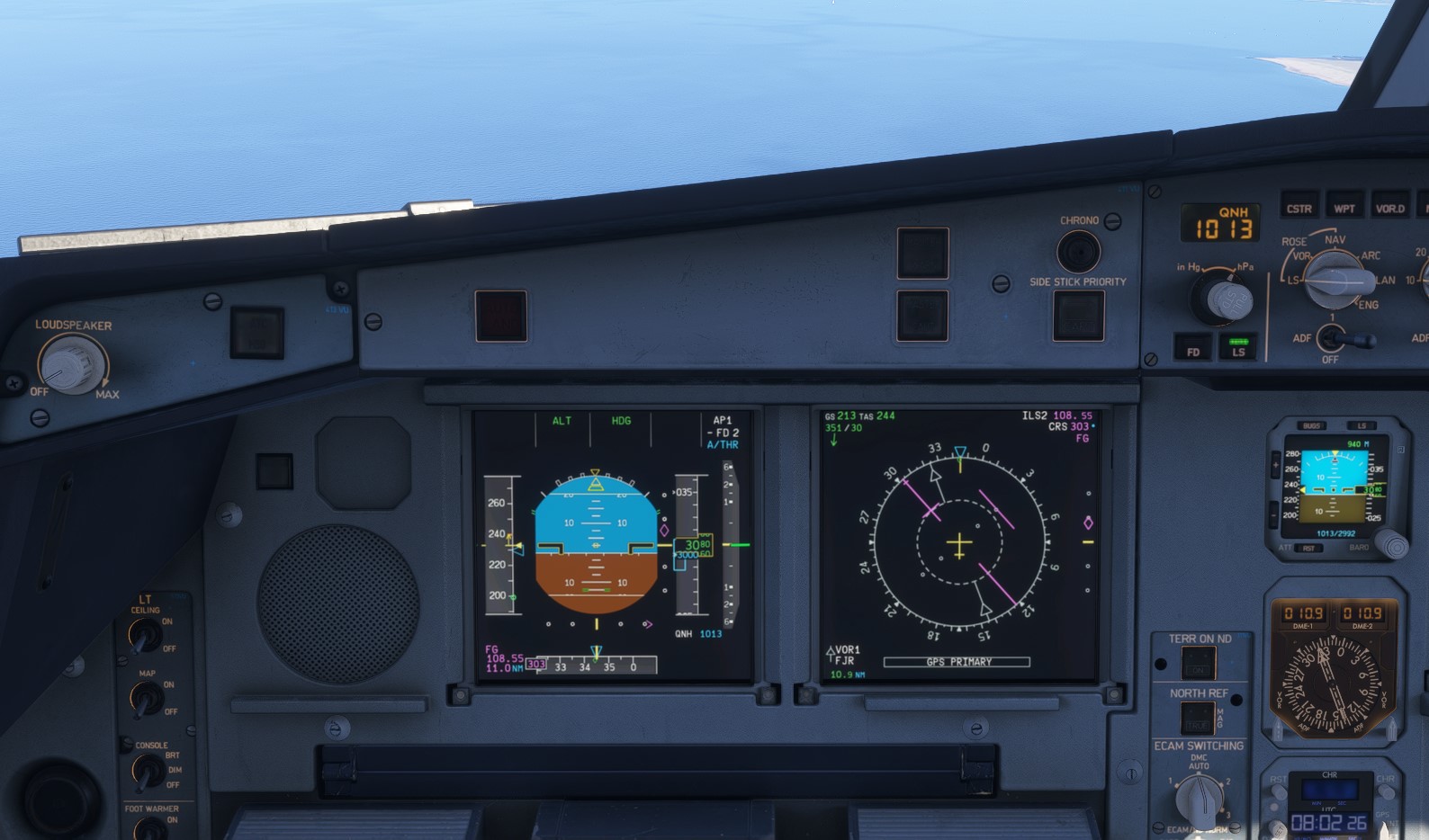

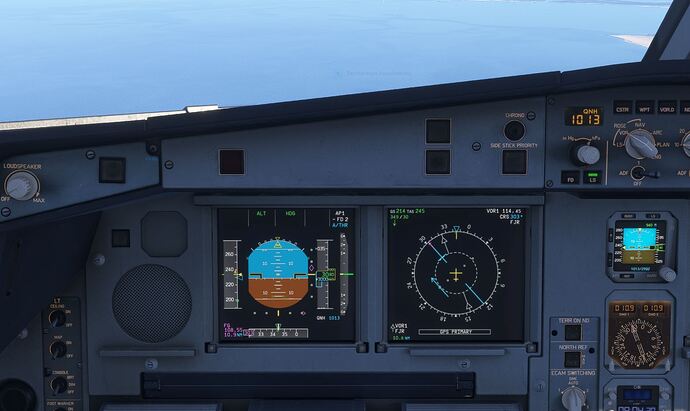

Intercepting the ILS from the left (the VOR is also very close to the runway axis and therefore on the same course as the ILS final), the CDI for both the VOR and ILS should deflect to the right, as the selected course/radial is to the right of the aircraft position. However, the CDI only behaves correctly in LOC mode. While in VOR mode, the CDI incorrectly deflects to the left. I didn’t try selecting a reciprocal course to see if maybe the issue is related to some kind of implementation of reverse sensing, since Airbus planes’ avionics do not experience reverse sensing.
This has occured also on other airports and also generally when selecting a VOR radial to be displayed on the NAV page. The CDI deflection in VOR mode is always wrong.
I just chose LFMT as an example, because this is where I did my real life flight training and therefore am very familiar with the procedures.
If applicable, which aircraft is experiencing this issue:
IniBuilds A330-200
IniBuilds A400M
[PC Only] Did you remove all your community mods/add-ons? If yes, are you still experiencing the issue?
yes
FREQUENCY OF ISSUE
How often does this occur for you (Example: Just once, every time on sim load, intermittently)?
every time
REPRODUCTION STEPS
see description of the issue and attached images. Should work for any other airport with ILS and VOR available to compare.
[PC Only] Are you using Developer Mode or have you made any changes to it?
no
[PC Only] What GPU (Graphics Card) do you use?
RTX 4070
[PC Only] What other relevant PC specs can you share?
not relevant to issue
MEDIA
Please add a screenshot or video of the issue occurring.
