Navigation data waypoints are thousands nm away

I found that a lot of navigation data and many coordinates are offset by thousands of nautical miles. This problem has existed in msfs2020 before, but if the unicode program language is adjusted to American English, this bug will not exist. The problem of MSFS2024 actually exists again.

Just give an example:
The flight plan is as follows:
ZSSS/36L NXD71D NXD W131 AKDIM A470 DUBGO W134 ELNEX A599 PLT W19 MABAG W44 OLPAB OLPA3A ZGGG/GG424.I02LZ

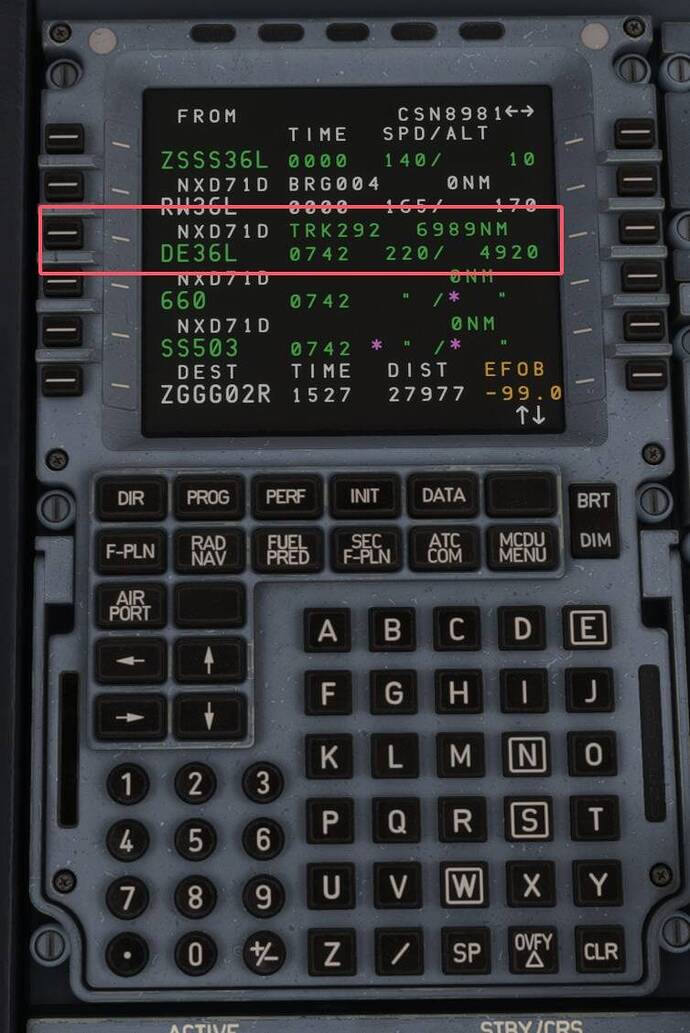

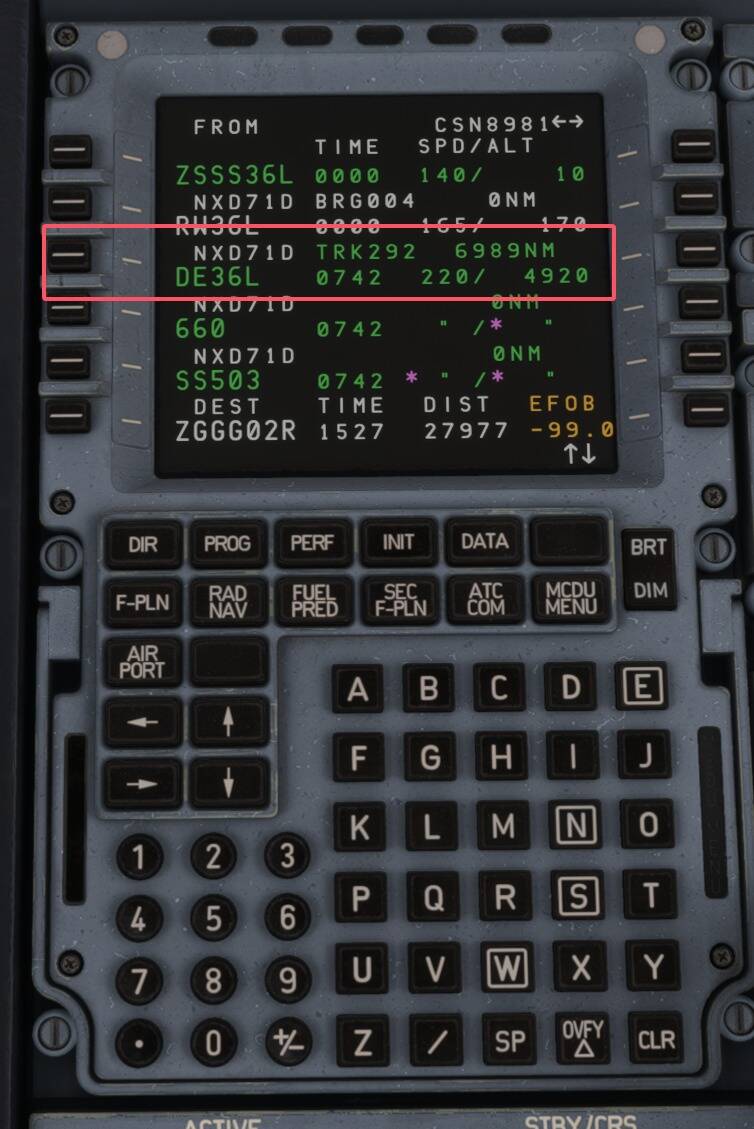

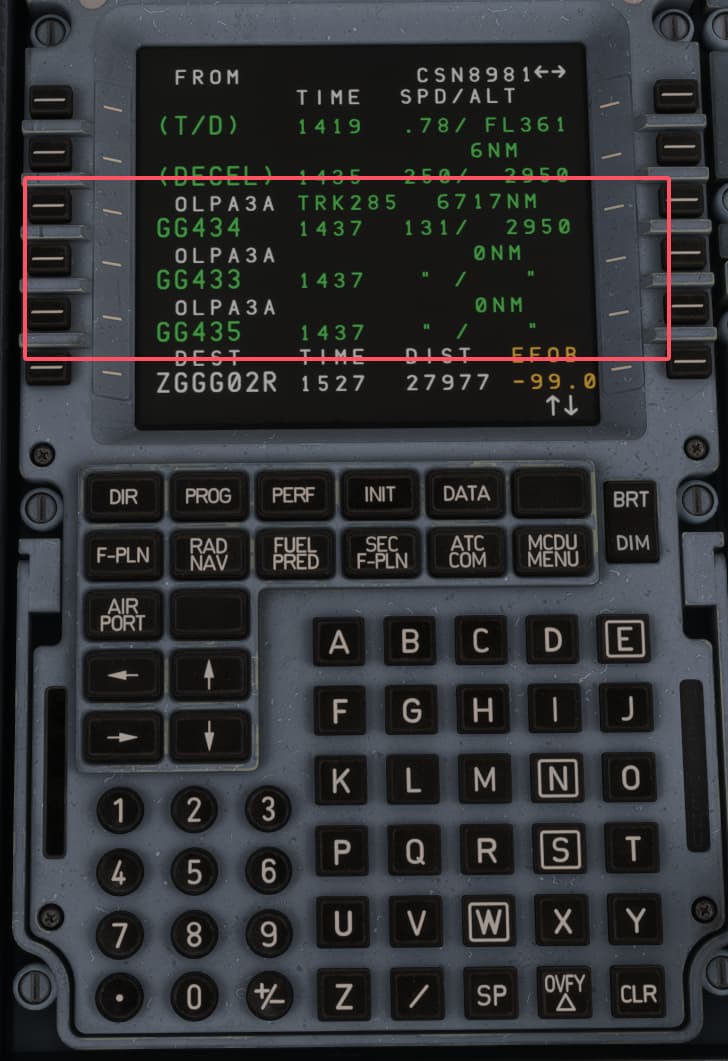

These waypoints I circled are all thousands of nautical miles away. And, if the first navigation data is at the end of the runway, that waypoint is 100% thousands of nautical miles away.

I’ve actually seen something similar to this in medium cargo flights with a Caravan across Australia. The flight path looks normal in-game but when I load the flight plan into Navigraph Charts sometimes there are 1 or 2 waypoints on another continent.

This suggests to me there may be problems with the base game’s navigation data.

I have this problem too.It make me no choose but stop flying ini A330 and other build in aircraft,just use fenix in 2024.

I’ve seen the same thing and posted it here, but then found that my custom VHHH scenery might cause the issue. Once removed, the distances are fine and the waypoints are back in the nav database. Maybe a scenery can bring it’s own (tiny) nav DB?

I also found that this happens if you use a third-party airport. But why a third-party airport would cause this is worth investigating by Asobo. In addition, I also found a solution to install navigraph and then adjust the priority. Ensure that navigraph-navdate has the highest priority, and airports with navigation bugs have a smaller priority than it.

2 Likes

How do you install navigraph into 24?

I planned a simple 30 min flight from Montreal to Ottawa and it wanted to take me via Nigeria…

Copy the two navigraph folders in the msfs2020 community to the msfs2024 community.Then in the settings, set the priority of navigraph

may i ask where to set priority
In which part of the settings

Before msfs2024 was updated to 1.2.7.0, this method was available. But after the update, the format of content.xml changed, so I don’t know if the method of adjusting the priority still works. But now it seems that the method has failed.

sad to hear that
I originally thought that the new navigraph will fix those problem
but i tried and the problem still exist

you just have to add an “A” the 3rd party scenery file name to make it load before the navdata.
https://forum.navigraph.com/t/vhhh-sid-and-star-waypoints-located-at-0-0n-0-0e/18118/5

Correct! Just add a number or the letter A before the scenery that iscausing issues.
It fixed all waypoints for SID/STAR in VHHH for me

Matteo

1 Like

Same issue for ZBAA from WFSS. Why in the world did they even remove the option for manual priority setting…

Hi all, I am facing the same issue now. Adding the letter A in front doesn’t make a difference. Flying out of VHHH from WFSS seems impossible with a STAR and iniBuilds A321.
Any idea ?

Thanks a lot

Currently, I have found a solution to this issue. First, install the Navigraph navigation data. Second, use the package reorder tool to sort the files, moving third-party add-on airports above fs-base-nav , as shown in the image. Then restart the game.

Remove the underscores “_” in the folder name WFSS_VHHH located at the path Community\wfscenerystudio-vhhh-ms24\scenery. For example, I renamed it to WFSceneryStudioVHHH. Then use MSFSLayoutGenerator.exe to regenerate the layout.json file.

This should resolve the issue of scrambled navigation data.



1 Like

great ! Thanks a lot. I’ll give that a try

Unfortunately this doesn’t work either as I cannot place the airport above fs-base-nav. Base-nav shows as locked, and therefore I cannot place anything above it.
Does anybody know of another VHHH airport scenery that I could use ?

Using the template below will greatly help the team reproduce the issue and ease the process of fixing it. Before posting, search for an existing report. If you are not sure it’s a bug, please first report in User Support Hub.

3 tags are required - add them in the tag section next to the title above:

Feel free to delete this quote section after adding your appropriate tags.


ISSUE DESCRIPTION

So far I have noticed that VHHH Hong Kong and ZSPD Shanghai Pudong arrival and departure procedures are completely broken to the point where you can’t use any RNAV or even VOR instrument departure. All the waypoints seem to go to somewhere literally on the other side of the world and are just stacked on top of each other before connecting to your route of flight.

The iniBuilds A300 is the only aircraft that does this. The A350, and even with the TDS GTNXi and all worked flawlessly. So I am not sure what went wrong here. I am on version 1.0.4 and the latest AIRAC cycle. This only happens in 2024 as I tested this in 2020 and the SIDS and STARS work just fine. I contacted iniBuilds and they said it’s most likely a sim issue because of how frequently it happens with other aircraft too. Though, the A350 was fine for me.

If applicable, which aircraft is experiencing this issue:

[PC Only] Did you remove all your community mods/add-ons? If yes, are you still experiencing the issue?

Yes

FREQUENCY OF ISSUE

Every time

REPRODUCTION STEPS

Please list clear steps you took in order to help our test team reproduce the same issue:

  1. Spawn in anywhere at VHHH or ZSPD
  2. Select SID or STAR

YOUR SETTINGS

If the issue still occurs with no mods and add-ons, please continue to report your issue. If not, please move this post to the User Support Hub.

What peripherals are you using, if relevant:

[PC Only] Are you using Developer Mode or have you made any changes to it?
no

[PC, MSFS 2020 Only] Are you using DX11 or DX12?
DX12

[PC Only] What GPU (Graphics Card) do you use?
4070

[PC Only] What other relevant PC specs can you share?

MEDIA

Please add a screenshot or video of the issue occurring.

[END OF FIRST USER REPORT]


:loudspeaker: For anyone who wants to contribute on this issue, Click on the button below to use this template:

Do you have the same issue if you follow the OP’s steps to reproduce it?
•

Provide extra information to complete the original description of the issue:
•

If relevant, provide additional screenshots/video:
•

Do you have the same issue if you follow the OP’s steps to reproduce it?
• Yes,

Provide extra information to complete the original description of the issue:
• I thought it may because that the designers of the airport scenery, WFSS specifically, did not put waypoints near the airport.

If relevant, provide additional screenshots/video:
•
