I could need some little help of a real Boeing 737 pilot here ![]()
While overhauling the overhead panel, I have some difficulties finding good pictures of the “NEW” overhead panel (the question is about the Boeing 737 MAX differential pressure panel, that can be used in the NG when using the new pressure panel).

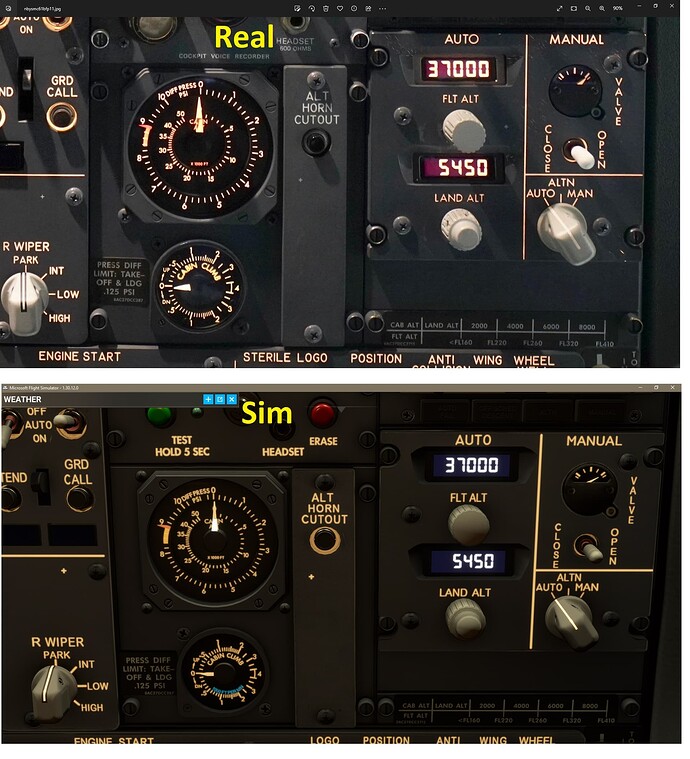

On some pictures it looks like the FLT ALT and LAND ALT labels of the new differential pressure panel have a bit smaller font than the rest of the labels, while on the older NG differential pressure panels all fonts have the same size… but I am not really sure, because I cannot find any 737 MAX overhead panel pictures.

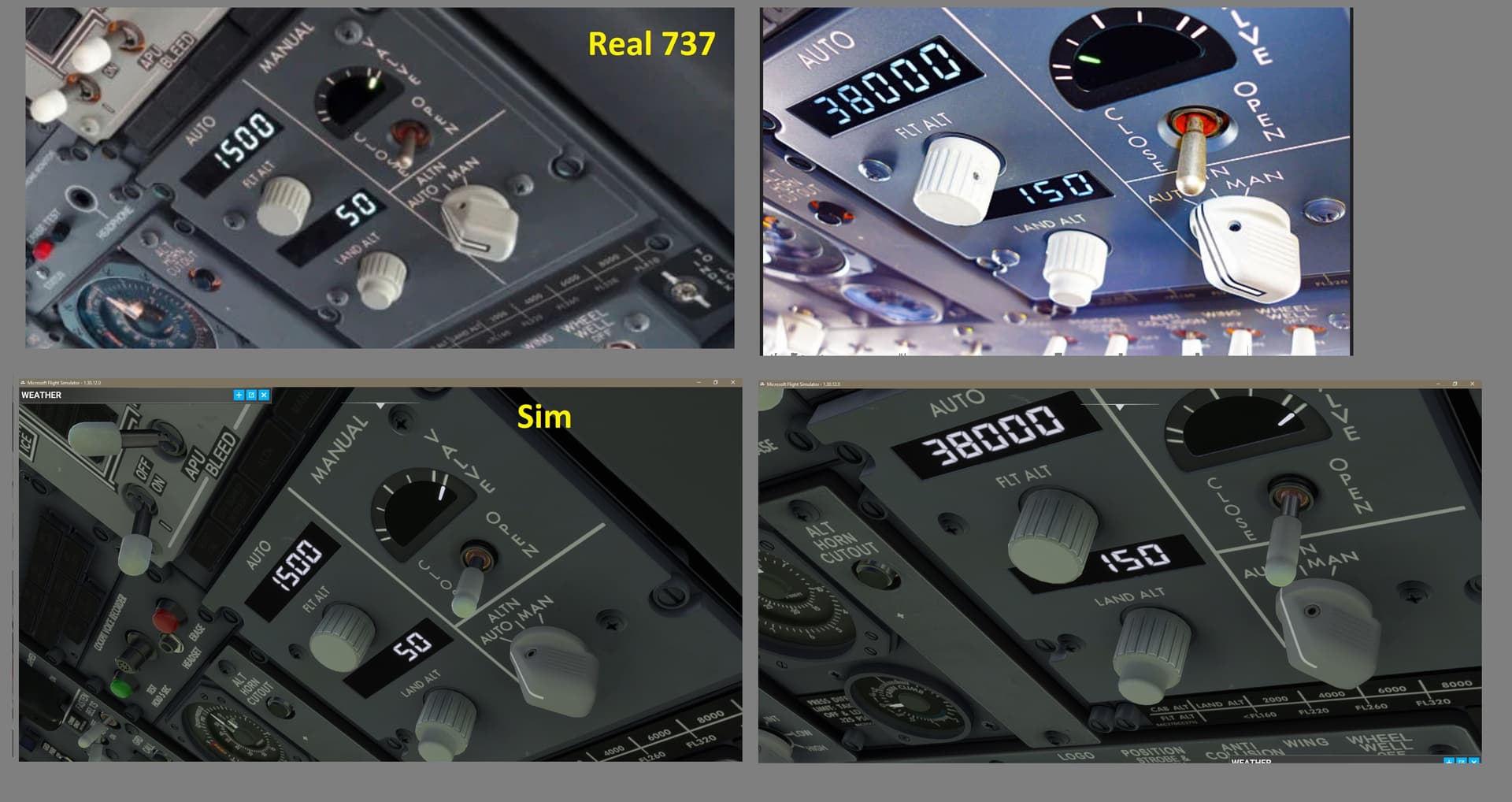

These two pictures with strange angles were the only 737 MAX detail pictures I was able to find:
The APU exhaust temperature gauge is illuminated red in some YouTube videos, while the index needle has beige illumination.
But some APU exhaust temperature gauges are illuminated fully in beige, which illumination is more common for newer 737 NG aircraft?
