Savage autopilot for crop dusting

I set out to make a crop duster autopilot for Savage.

My project is based on Nguyễn Quý Hy’s flight recorder, everyone using C# Visual Studio 2019+ and SimConnect must study these sources on Github, It has a Roslyn code generator for the SimConnect data you fetch. so you can tailor the poll to your needs :slight_smile:

Instead of passing position and angles to the aircraft directly, like Nguyen does for his playback…I inserted a very basic pilot simulation model to keep the aircraft on the correct altitude (elevator & throttle setting), prevent banking (aileron) . To change course, I modify rudder, in very small steps, until the heading is correct. Between changing the rudder setting, I keep using aileron to compensate for the banking.

My program reports all data and currently has only Start and Stop and 8 heading buttons. See below. In this flight I clicked north east, and south west headings a few times, and ended with a north west heading, straight back.

Below flight was about 100 minutes and all I had to do was press my direction buttons,southeast-northwest alternating, every 10 minutes or so. The aircraft kept altitude at 2000 feet, and the turns were done with a maximal banking of 6 degrees. As a result, these turns are very wide ! But when I try to change rudder in larger steps, the aircraft goes shaking and becomes unstable… I have to find a way to do the turns quicker. My crop duster is not ready yet…

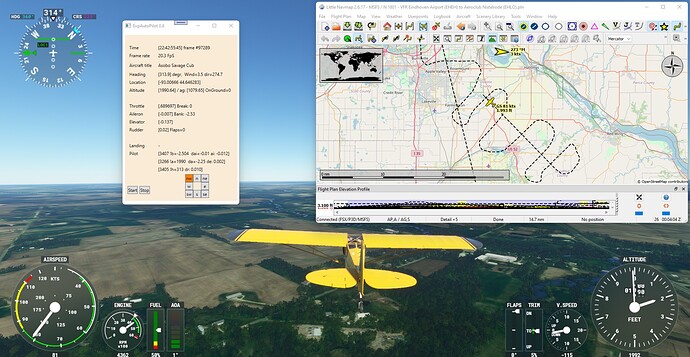

Flight looks like this now,


I have a GitHub, I’ll release the source when it is ready for crop dusting action.
