Triple Screen Setup super difficult

[PHSepp796]

The setup can be a hassle but not impossible and yes i think it is better in msfs 2024 than msfs 2020 for the plane is more flexible texture display wise. (You can see this in the start up video when loading the sim where you see the instrument panel of the plane)

The thing is the cockpit setup is sphere wise which seems to make it difficult.
But also this makes it flexible

This is a good way to start 3 screen setup

Triple Monitor Setup Distorted Perspective

Have you setup tripple screen with default at 50 in general settings menu before you started to add the left and right view [20241126_142257] Instead of zoomed in to desired you want [20241126_142726] For this can make a huge difference in end result. I mean i have not perfected yet (read fine tuned) But no zoom distortion [20241125_152616] Also check this small video at eyepoint change what happens to perspective on the sim It is from my onedrive. And this took me less than 10 mi…

When it is set to what you like, you can zoom in now within perspective but when change your head than view may look out of sync,

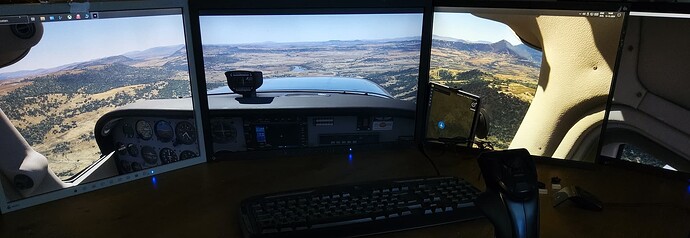

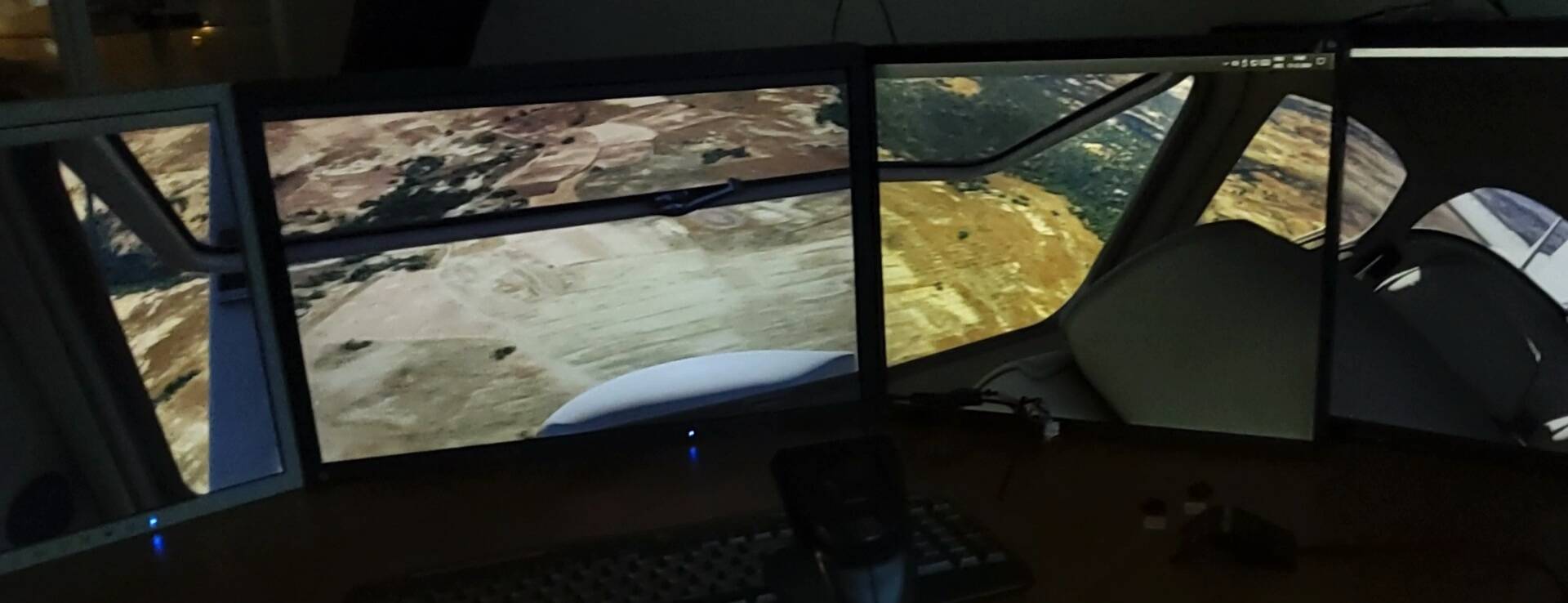

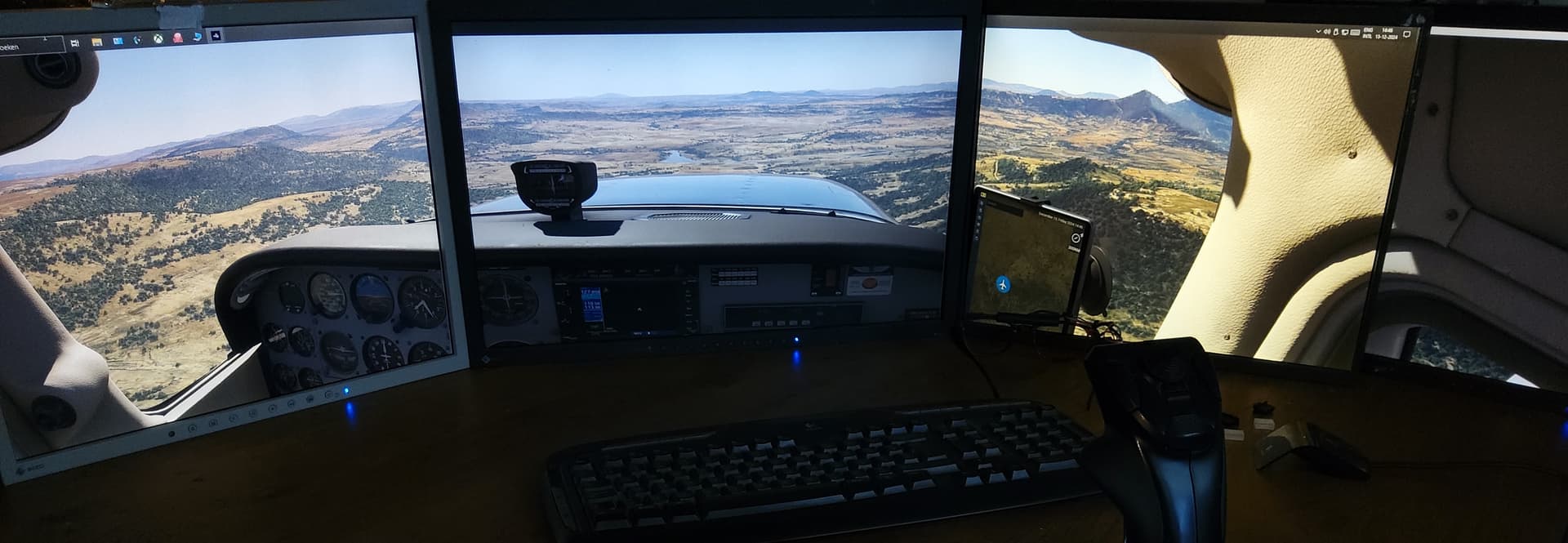

Here i have setup 4 screens see pictures below from co pilot perspective

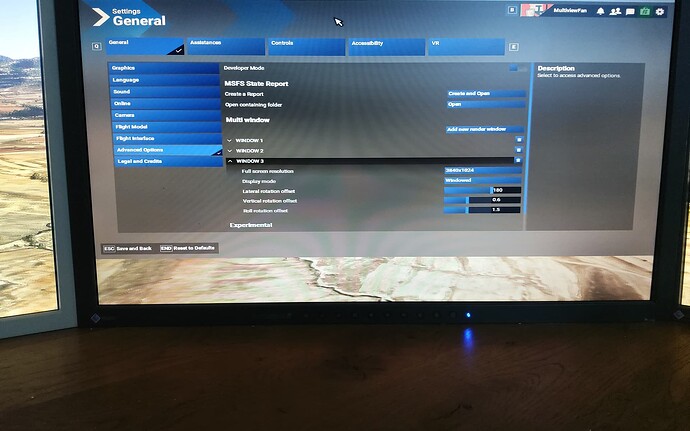

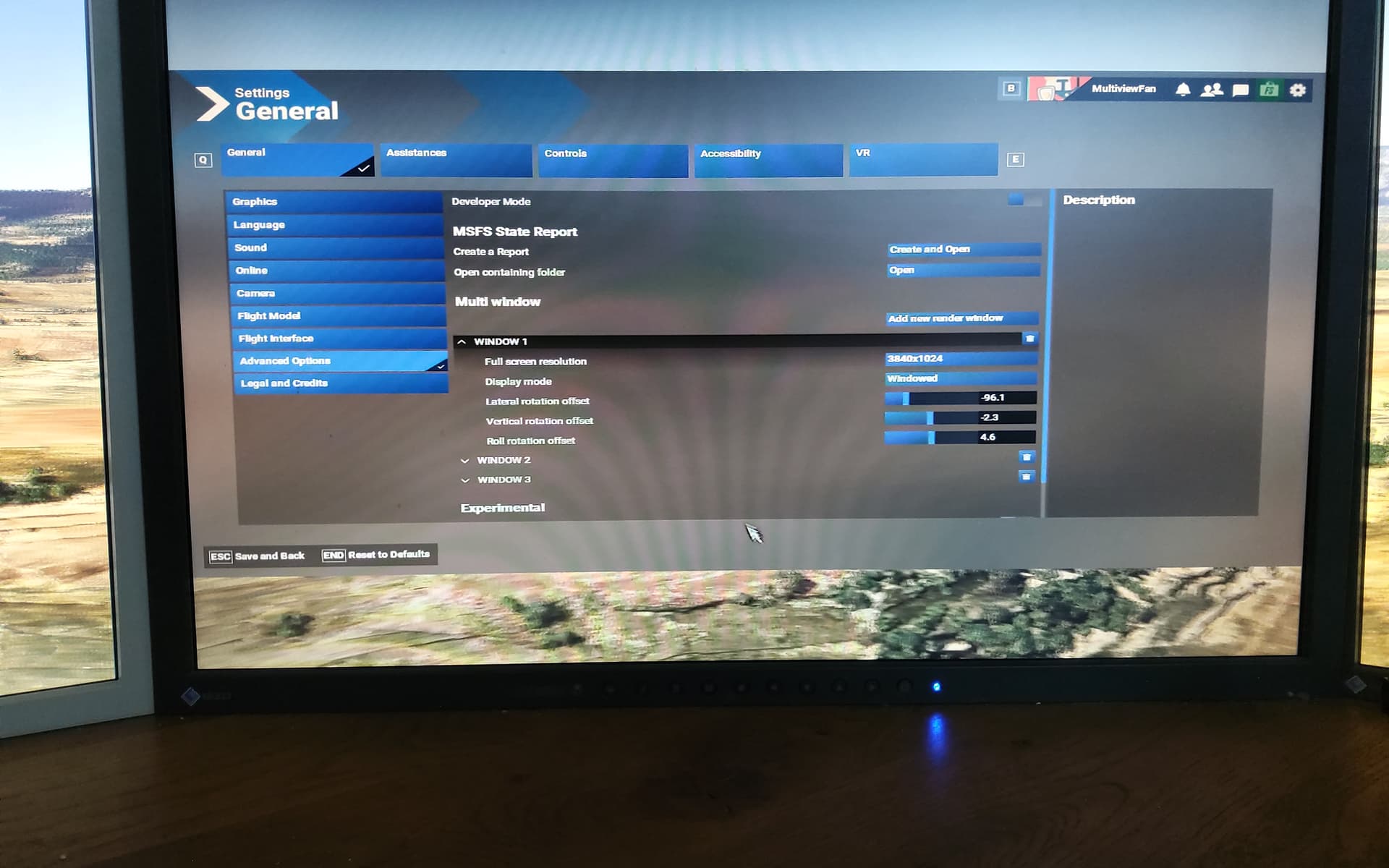

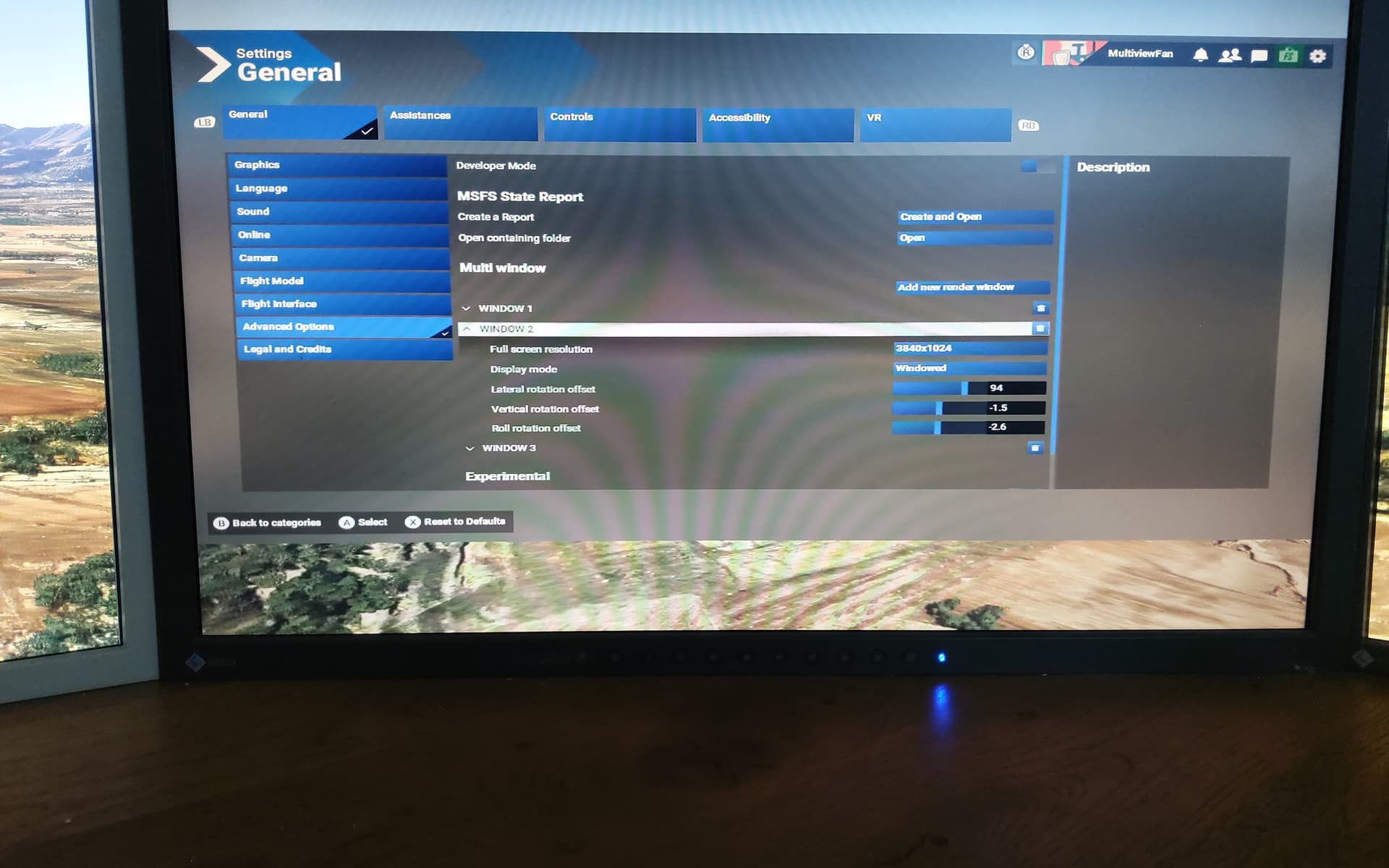

These are my settings for this

Now these settings may not fit your setup, but it is a start where you can tweak to fit to your screens.

Hope it shed some light on how to work with this

Sebastiaan

Ps to Asobo i would like to see that -180°/ 180° is accounted par screen and not to the total amount, because if you want more than 3 screens you run short on ° .
