Underclocking GPU tips please?

User Support Hub Hardware & Peripherals
1

Hello all. Yes, that’s right, I wish to underclock my GPU

My GPU is a GTX 1070 (which I know, isn’t even mid-tier by today’s standards) but I’m comfortably hitting 60fps (as I was before SU5) - only now my GPU is roaring ever so loudly.

And since MFS’s graphical engine is just an unoptimized mess right now, I’d rather keep MFS’s settings as they are and take matters into my own hands by downclocking my GPU.

Whilst I could experiment myself with clock speeds and voltages, I’d really like to save myself the stability issues of playing trial and error. I haven’t had any CTD’s to speak of so far in this sim, so I’d like to keep a good thing going, y’know? :grinning:

So I’d really appreciate some advice from those who have done this before. The only thing I turned down so far was “Power Target” (down to 90%) and the temp has respectively gone down a few degrees, along with the Fan RPM. OK, great start.

Now my question is, should I continue dialing this particular setting down? Is this an effective way to downclock, or should I really be turning down at least one of: Core Clock/Memory clock/GPU voltage to efficiently and safely power it down?

I’ll post my current settings if that would help answer the question. Thanks in advance.

2

Is this the kind of thing you want to do?

1 Like
3

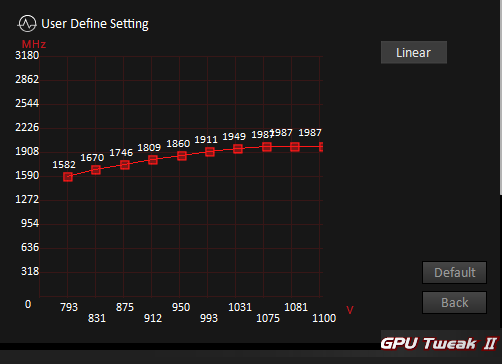

Thanks for that video - that cleared up a few things. I use Asus’ GPU Tweak II for my card, which is the equivalent of MSI Afterburner.

image502×364 10.4 KB

Following his technique, I’ll play it safe and undervolt by no more than 25mV for now and keep the same voltage/clock ratio.

Thanks again.

4

25 mV is probably not even worth the trouble. You should save something like 4% power or such, maybe about 6 watts.

For comparison I undervolted my 3080 from over 1000 mV at load to 850 mV. Saves 70-100 W in most cases.

5

You were right, I didn’t see a significant drop off in temp until I made a 100mV undervolt. :slightly_smiling_face:

Thanks. Such a shame I’m having to take these measures as MFS is only ever using no more than 40% of my CPU (i7-10700K). It’s a full whack on GPU’s now after SU5.. :pensive:

1 Like
