Warthog mappings?

[Hambone6563]

I posted this elsewhere, but it’s probably better in a new thread.

I replaced my HOTAS X with a TM Warthog. When mapping functions to the Warthog, I can only map flight control and camera functions. I was able to map just about anything to the HOTAS X. Can I do this with the Warthog?

[ccpbusiness]

Create a new profile and you should be able to map anything you want.

[Raynen]

Make sure you’ve set the controls menu filter to All instead of Assigned.

[Hambone6563]

That’s it! Thank you.

[Turk10mm]

Here are some things I’ve mapped to improve quality of life. Ymmv

Stick
-Right thumb hat
-up down alt bug
-left right heading bug
-red button
-AP on off
-mid stick thumb button
-press - VS mode on/off
-up -increase vs speed
-down -decrease vs speed

Throttle

• red momentary switch
  • forward increase flaps
    -aft decrease flaps
• gray thumb switch forward set/aft momentary
  -forward reverse thrust set
  -aft reverse thrust momentary

[FurrySand443505]

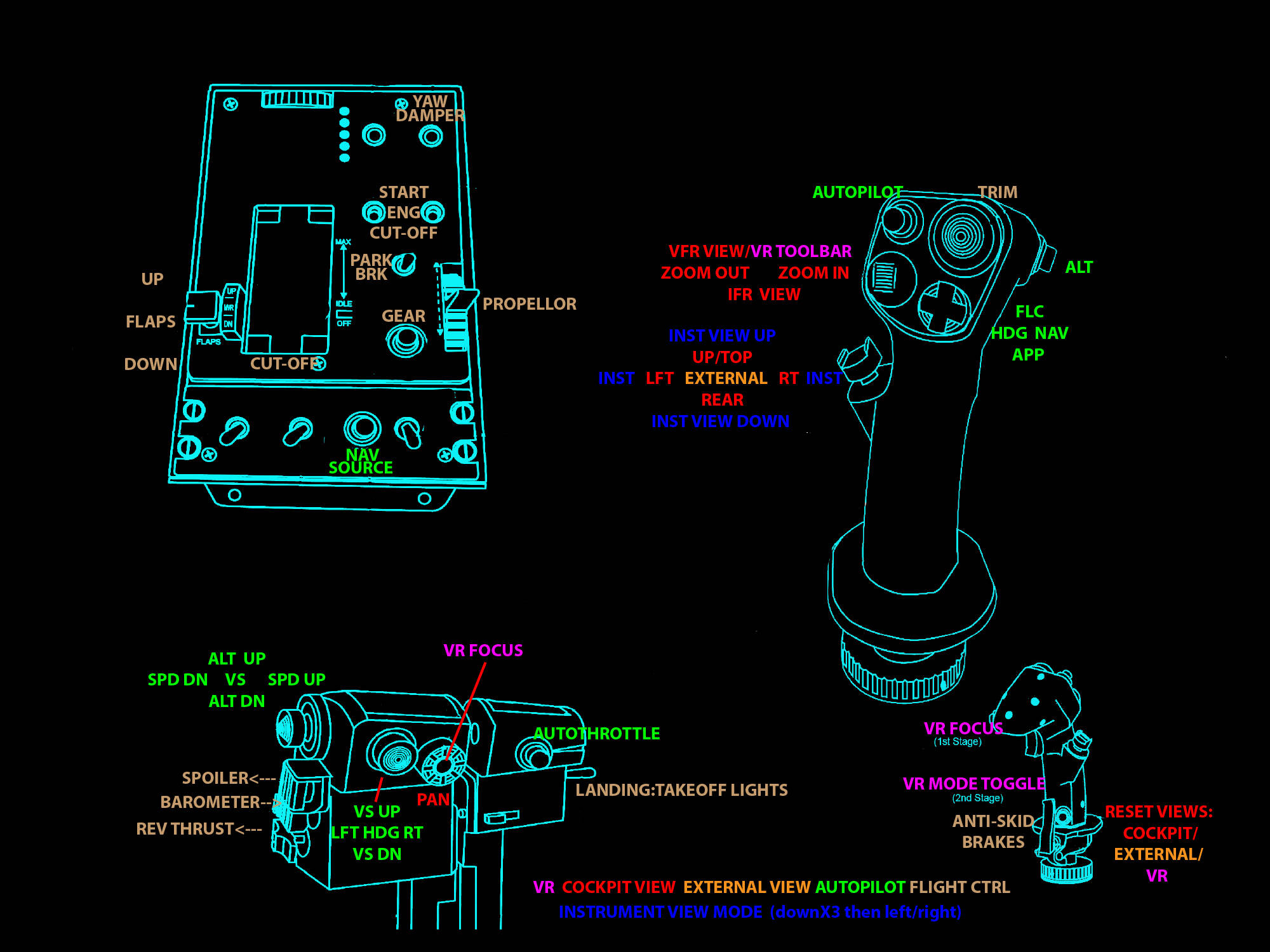

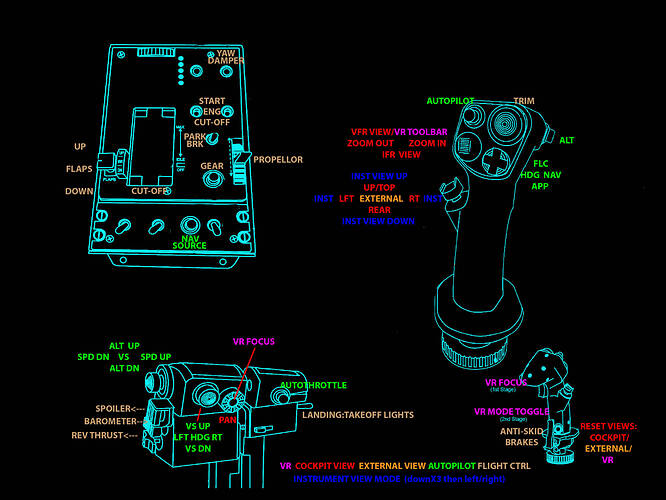

I have spent a few score hours perfecting and testing a very simple but flexible assignment list for the Thrustmaster Warthog Hotas controls. This configuration works pretty well on any aircraft from the Piper to the Airbus (though some of the autopilot mappings are not universal!) I have included screen snips of the actual assignment tool so you can actually see what goes to what. I purposely avoided using SHIFT keys to keep it simple - just what you need in the air.
Note: My china hat and boat switch are broken, so you will have to assign those yourself. I recommend:
China Hat (12): TOGGLE THROTTLE REVERSE THRUST
China Hat (11): HOLD THROTTLE REVERSE THRUST
Boat Switch (10): RADIO > KOLLSMAN > DECREASE ALTIMETER
Boat Switch (9): RADIO > KOLLSMAN > INCREASE ALTIMETER

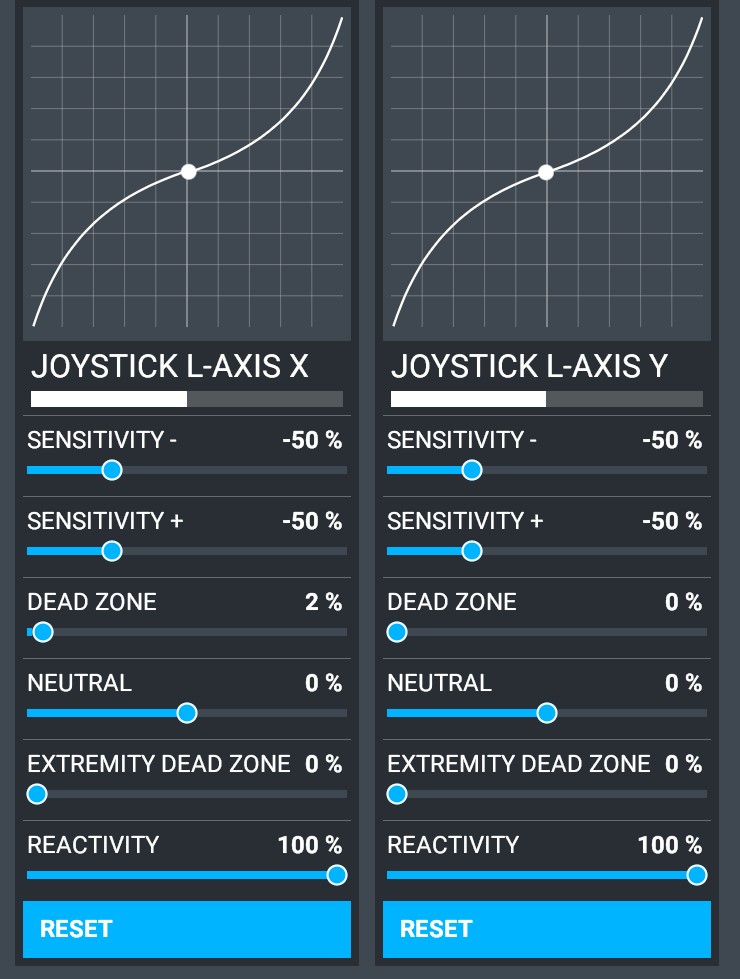

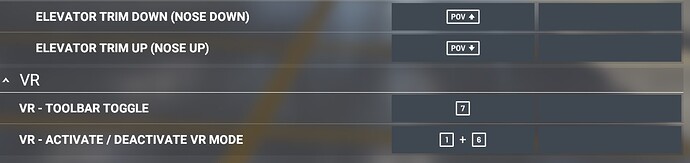

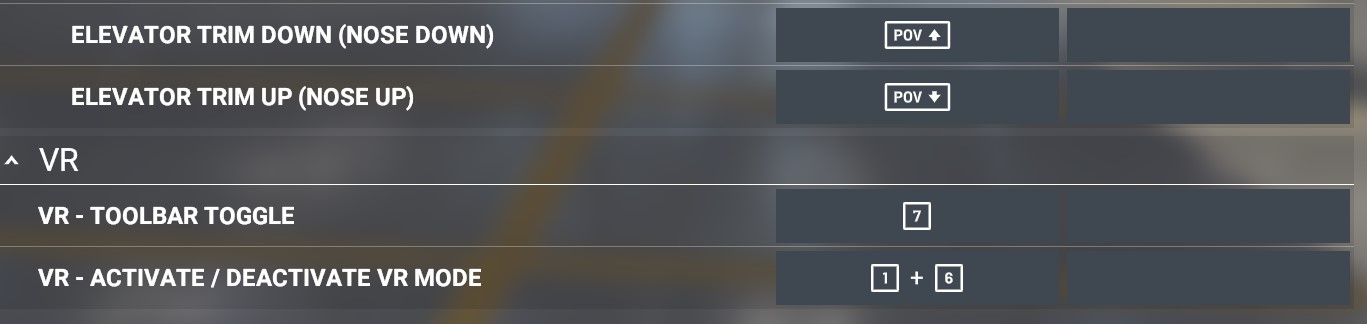

Joystick Mappings:

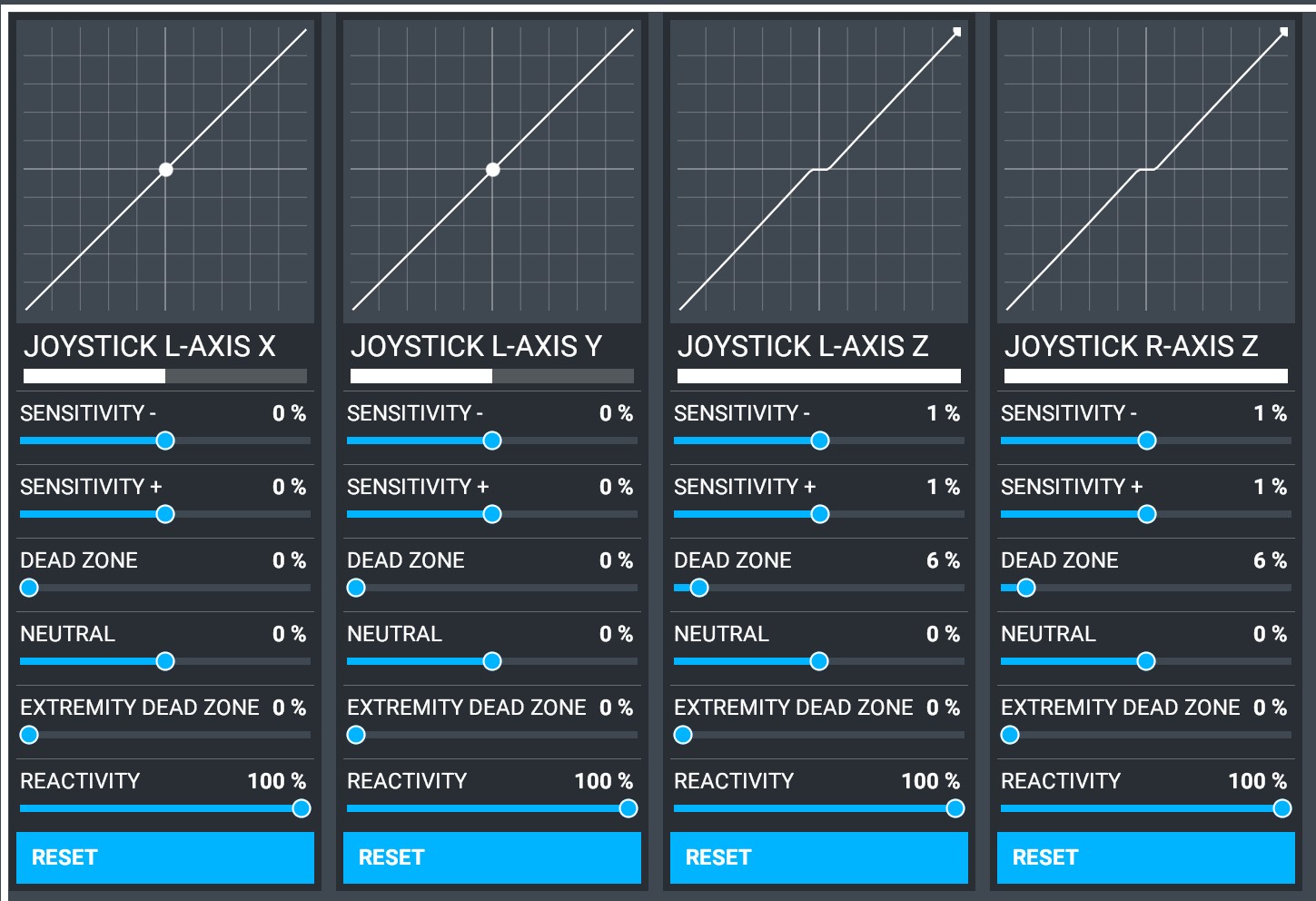

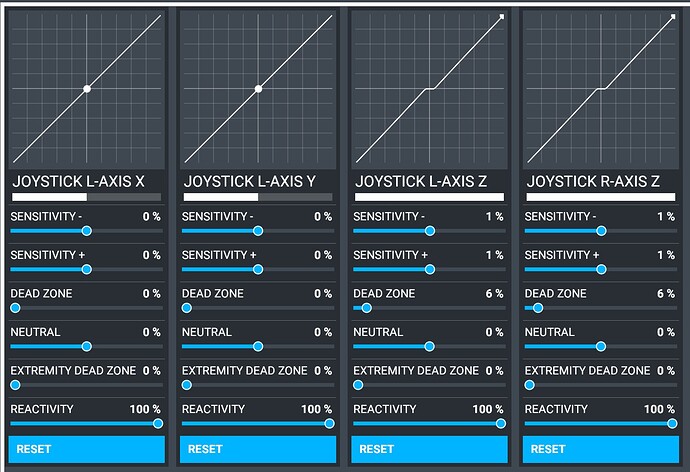

Throttle Mappings:

[TelBradley]

No	Type	Category A	Category B	Function	Key Binding A	Key Binding B	Comments

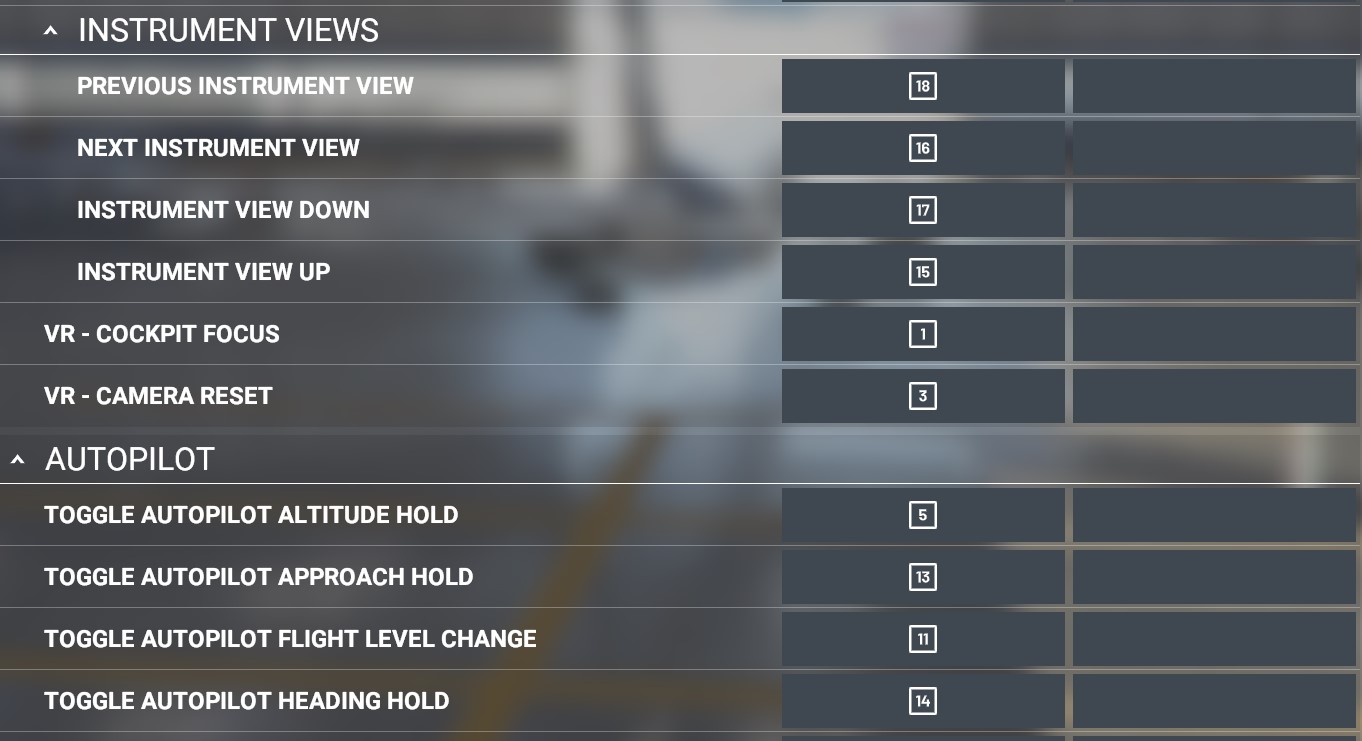

1	Joystick Mapping	AutoPilot		Autopilot NAV1 Hold	12
2	Joystick Mapping	AutoPilot		Toggle Autopilot Altitude Hold	5
3	Joystick Mapping	AutoPilot		Toggle Autopilot Approach Hold	13
4	Joystick Mapping	AutoPilot		Toggle Autopilot Flight Level Change	11
5	Joystick Mapping	AutoPilot		Toggle Autopilot Heading Hold	14

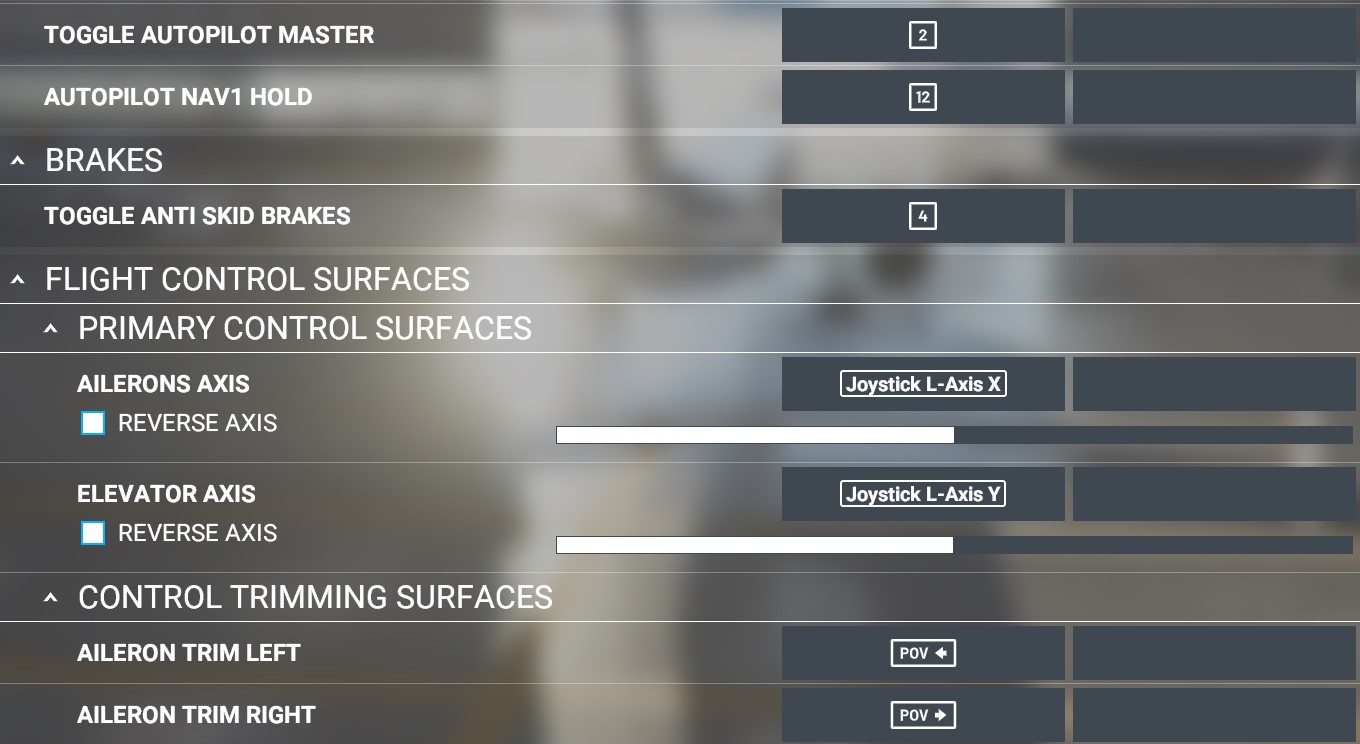

6	Joystick Mapping	AutoPilot		Toggle Autopilot Master	2
7	Joystick Mapping	Brakes		Toggle Anti Skid Brakes	4
8	Joystick Mapping	Camera	Camera Mode Switch	Cockpit External View Mode	19

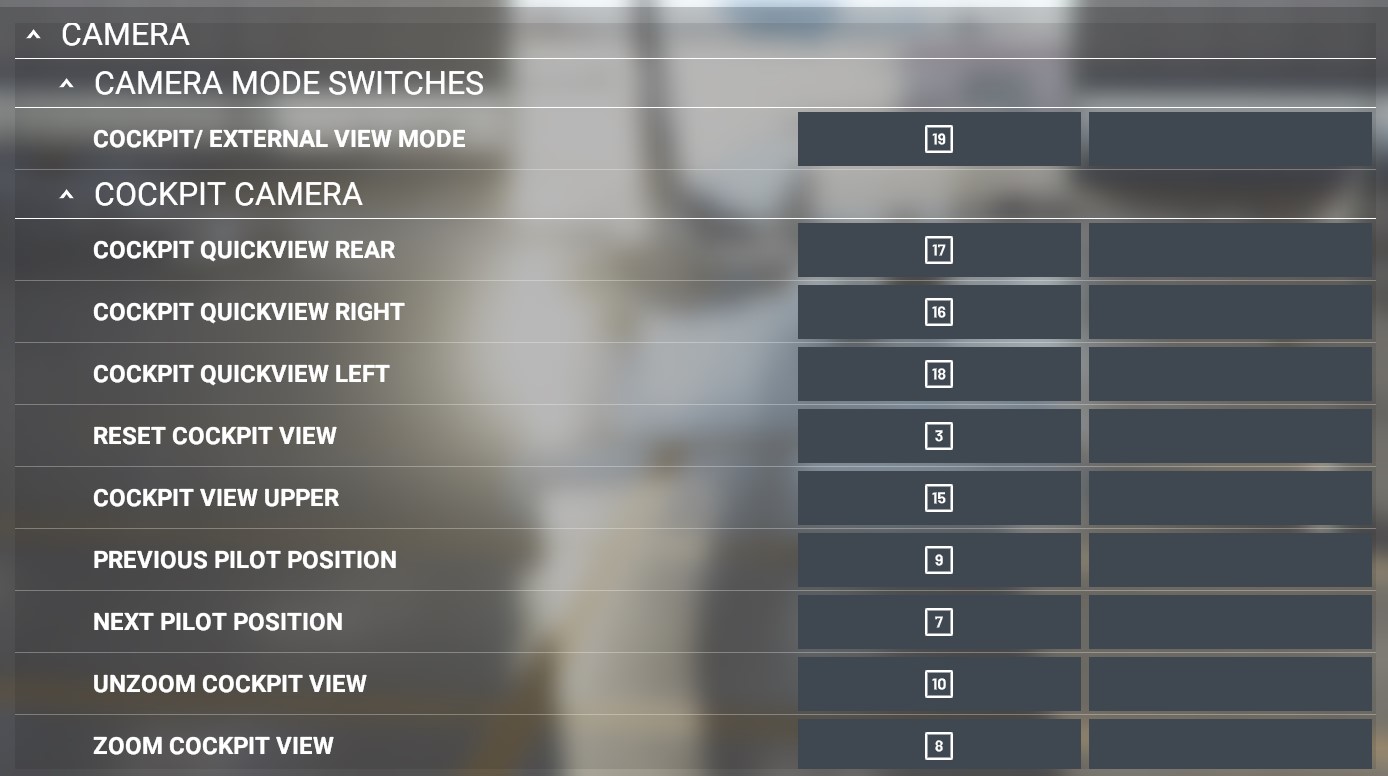

9	Joystick Mapping	Camera	Cockpit Camera	Cockpit Quickview Left	18
10	Joystick Mapping	Camera	Cockpit Camera	Cockpit Quickview Rear	17
11	Joystick Mapping	Camera	Cockpit Camera	Cockpit Quickview Right	16
12	Joystick Mapping	Camera	Cockpit Camera	Cockpit View Upper	15
13	Joystick Mapping	Camera	Cockpit Camera	Next Pilot Position	7
14	Joystick Mapping	Camera	Cockpit Camera	Previous Pilot Position	9
15	Joystick Mapping	Camera	Cockpit Camera	Reset Cockpit View	3
16	Joystick Mapping	Camera	Cockpit Camera	Unzoom Cockpit View	10

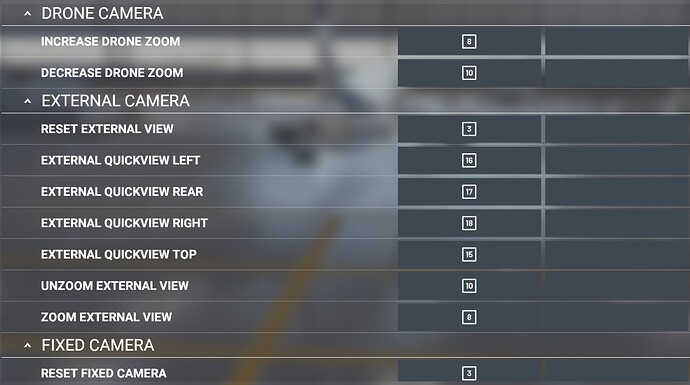

17	Joystick Mapping	Camera	Drone Camera	Decrease Drone Zoom	10
18	Joystick Mapping	Camera	Drone Camera	Increase Drone Zoom	8
19	Joystick Mapping	Camera	External Camera	External Quickview Left	16
20	Joystick Mapping	Camera	External Camera	External Quickview Rear	17
21	Joystick Mapping	Camera	External Camera	External Quickview Right	18
22	Joystick Mapping	Camera	External Camera	External Quickview Top	15
23	Joystick Mapping	Camera	External Camera	Reset External View	3
24	Joystick Mapping	Camera	External Camera	Unzoom External View	10
25	Joystick Mapping	Camera	External Camera	Zoom External View	8
26	Joystick Mapping	Camera	Fixed Camera	Reset Fixed Camera	3
27	Joystick Mapping	Camera	Instrument Views	Instrument View Down	17
28	Joystick Mapping	Camera	Instrument Views	Instrument View Up	15
29	Joystick Mapping	Camera	Instrument Views	Next Instrument View	16
30	Joystick Mapping	Camera	Instrument Views	Previous Instrument View	18
31	Joystick Mapping	Camera	Instrument Views	VR - Camera Reset	3
32	Joystick Mapping	Camera	Instrument Views	VR - Cockpit Focus	1
33	Joystick Mapping	Flight Control Surfaces	Control Trimming Surfaces	Aileron Trim Left	POV ?
34	Joystick Mapping	Flight Control Surfaces	Control Trimming Surfaces	Aileron Trim Right	POV ?
35	Joystick Mapping	Flight Control Surfaces	Control Trimming Surfaces	Elevator Trim Down (Nose Down)	POV ?
36	Joystick Mapping	Flight Control Surfaces	Control Trimming Surfaces	Elevator Trim Up (Nose Up)	POV ?
37	Joystick Mapping	Flight Control Surfaces	Control Trimming Surfaces	VR - Activate / Deactivate VR Mode	1 + 6
38	Joystick Mapping	Flight Control Surfaces	Control Trimming Surfaces	VR - Toolbar Toggle	7
39	Joystick Mapping	Flight Control Surfaces	Primary Control Surfaces	Ailerons Axis	Joystick L-Axis X
40	Joystick Mapping	Flight Control Surfaces	Primary Control Surfaces	Ailerons Axis - Reverse Axis
41	Joystick Mapping	Flight Control Surfaces	Primary Control Surfaces	Elevator Axis	Joystick L-Axis Y
42	Joystick Mapping	Flight Control Surfaces	Primary Control Surfaces	Elevator Axis - Reverse Axis
43	Joystick Mapping	Flight Control Surfaces	Primary Control Surfaces	Reverse Axis

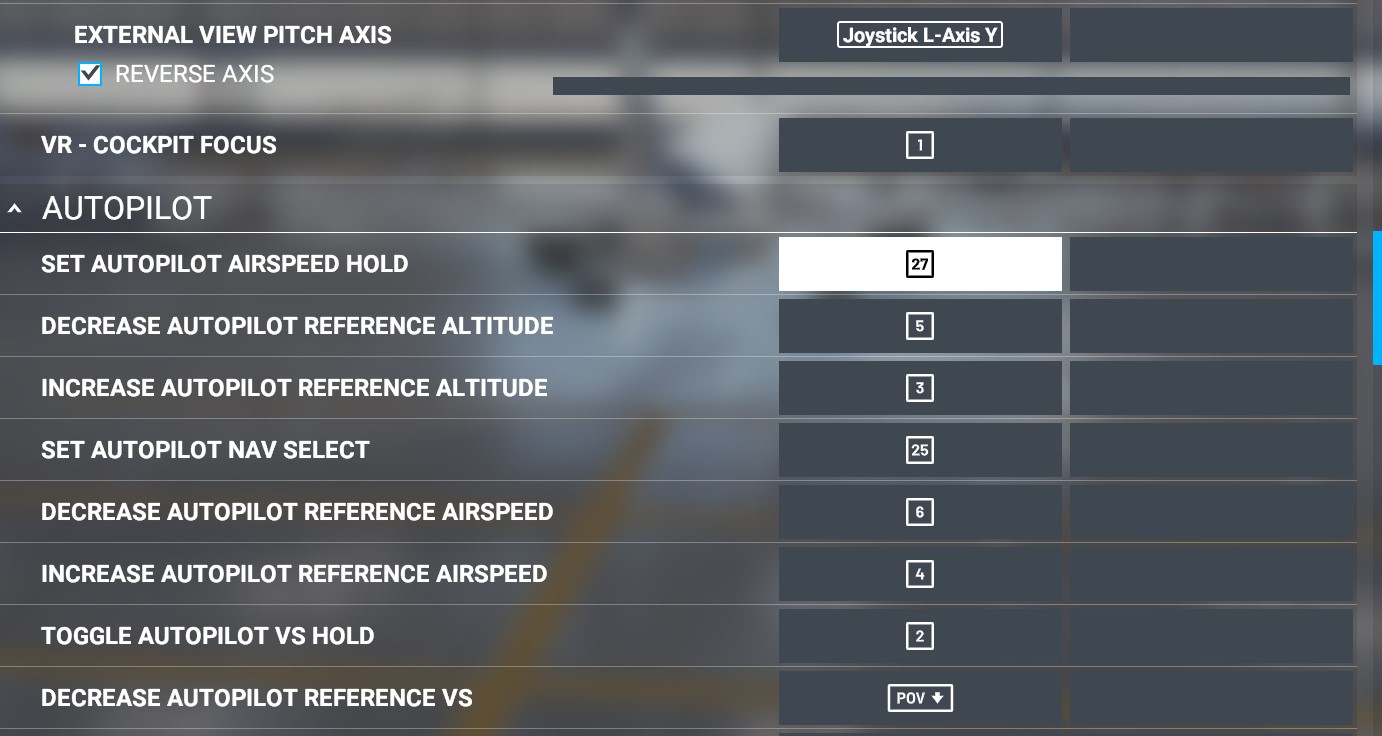

44	Throttle Mapping	Autopilot		Autothrottle Disconnect	15
45	Throttle Mapping	Autopilot		Decrease Autopilot Reference Airspeed	6
46	Throttle Mapping	Autopilot		Decrease Autopilot Reference Altitude	5
47	Throttle Mapping	Autopilot		Increase Autopilot Reference Airspeed	4
48	Throttle Mapping	Autopilot		Increase Autopilot Reference Altitude	3
49	Throttle Mapping	Autopilot		Increase Autopilot Reference VS	POV ?
50	Throttle Mapping	Autopilot		Set Autopilot Airspeed Hold	27
51	Throttle Mapping	Autopilot		Set Autopilot NAV Select	25
52	Throttle Mapping	Autopilot		Set Yaw Damper	17
53	Throttle Mapping	Autopilot		Toggle Autopilot VS Hold	2
54	Throttle Mapping	Brakes		Set Parking Brake	20

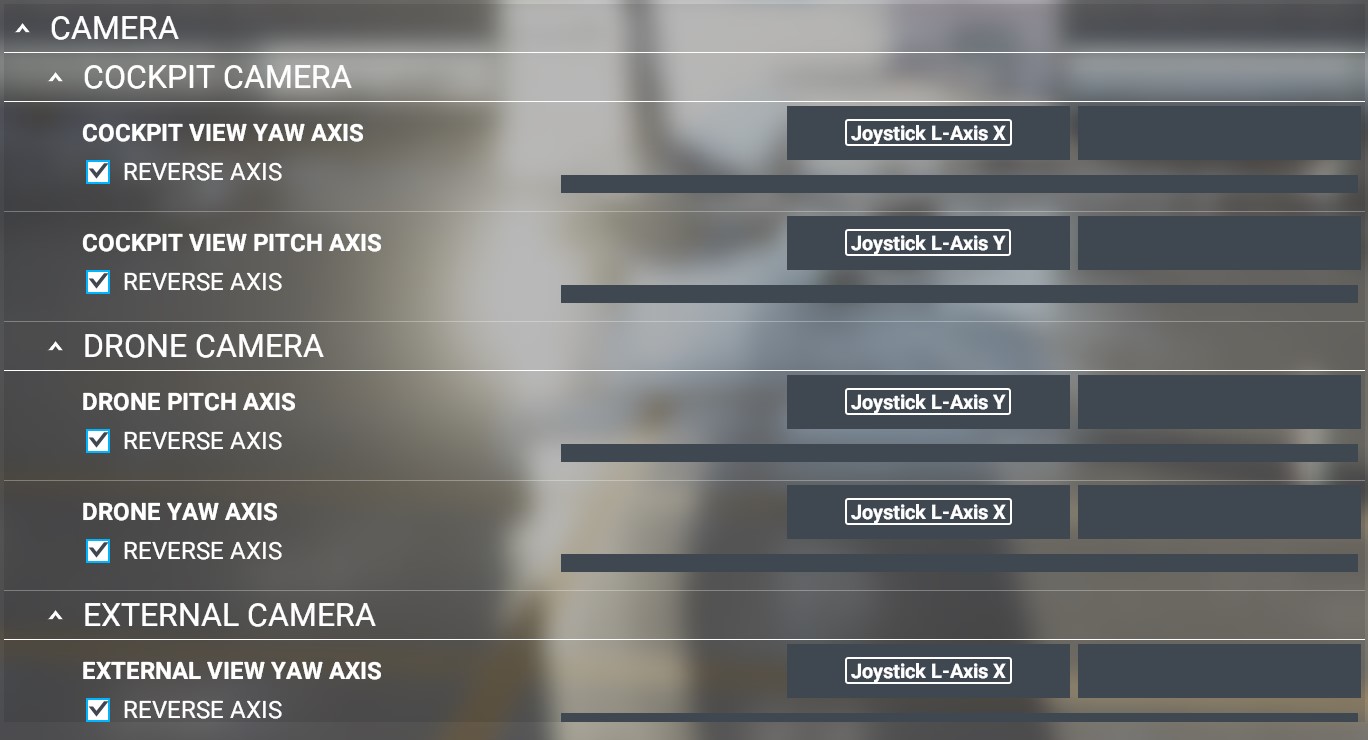

55	Throttle Mapping	Camera	Cockpit Camera	Cockpit View Pitch Axis	Joystick L-Axis Y
56	Throttle Mapping	Camera	Cockpit Camera	Cockpit View Pitch Axis - Reverse Axis	Joystick L-Axis Y
57	Throttle Mapping	Camera	Cockpit Camera	Cockpit View Yaw Axis	Joystick L-Axis X
58	Throttle Mapping	Camera	Cockpit Camera	Cockpit View Yaw Axis - Reverse Axis	Joystick L-Axis X
59	Throttle Mapping	Camera	Drone Camera	Drone Pitch Axis	Joystick L-Axis Y
60	Throttle Mapping	Camera	Drone Camera	Drone Pitch Axis	Joystick L-Axis Y
61	Throttle Mapping	Camera	Drone Camera	Drone Yaw Axis	Joystick L-Axis X
62	Throttle Mapping	Camera	Drone Camera	Drone Yaw Axis - Reverse Axis	Joystick L-Axis Y
63	Throttle Mapping	Camera	External Camera	External View Pitch Axis	Joystick L-Axis Y
64	Throttle Mapping	Camera	External Camera	External View Pitch Axis - Reverse Axis	Joystick L-Axis Y
65	Throttle Mapping	Camera	External Camera	External View Yaw Axis	Joystick L-Axis X
66	Throttle Mapping	Camera	External Camera	External View Yaw Axis - Reverse Axis	Joystick L-Axis X
67	Throttle Mapping	Camera	VR - Cockpit	VR - Cockpit Focus	Unidentified
68	Throttle Mapping	Flight Control Surfaces	Landing Gear	Toggle Landing Gear	21

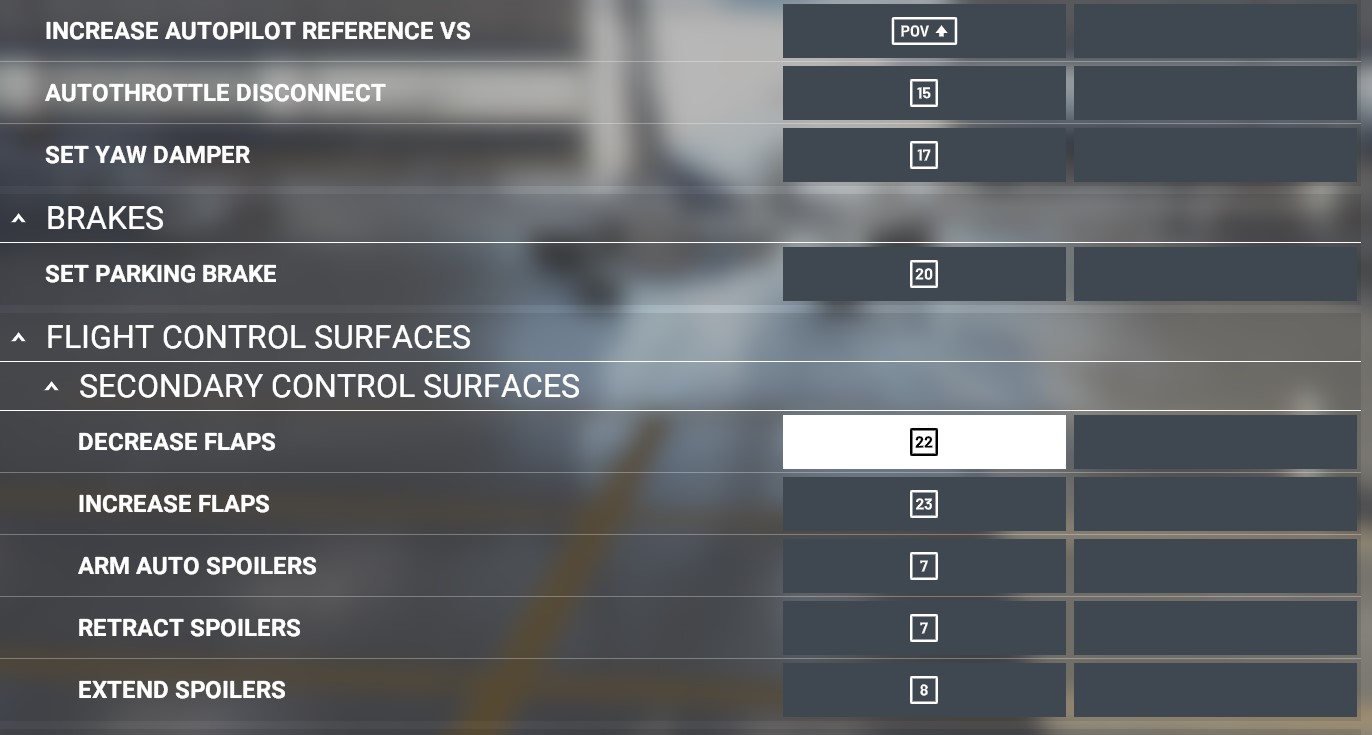

69	Throttle Mapping	Flight Control Surfaces	Secondary Control Surfaces	Arm Auto Spoilers	7
70	Throttle Mapping	Flight Control Surfaces	Secondary Control Surfaces	Decrease Flaps	22
71	Throttle Mapping	Flight Control Surfaces	Secondary Control Surfaces	Extend Spoilers	8
72	Throttle Mapping	Flight Control Surfaces	Secondary Control Surfaces	Increase Flaps	23
73	Throttle Mapping	Flight Control Surfaces	Secondary Control Surfaces	Retract Spoilers	7

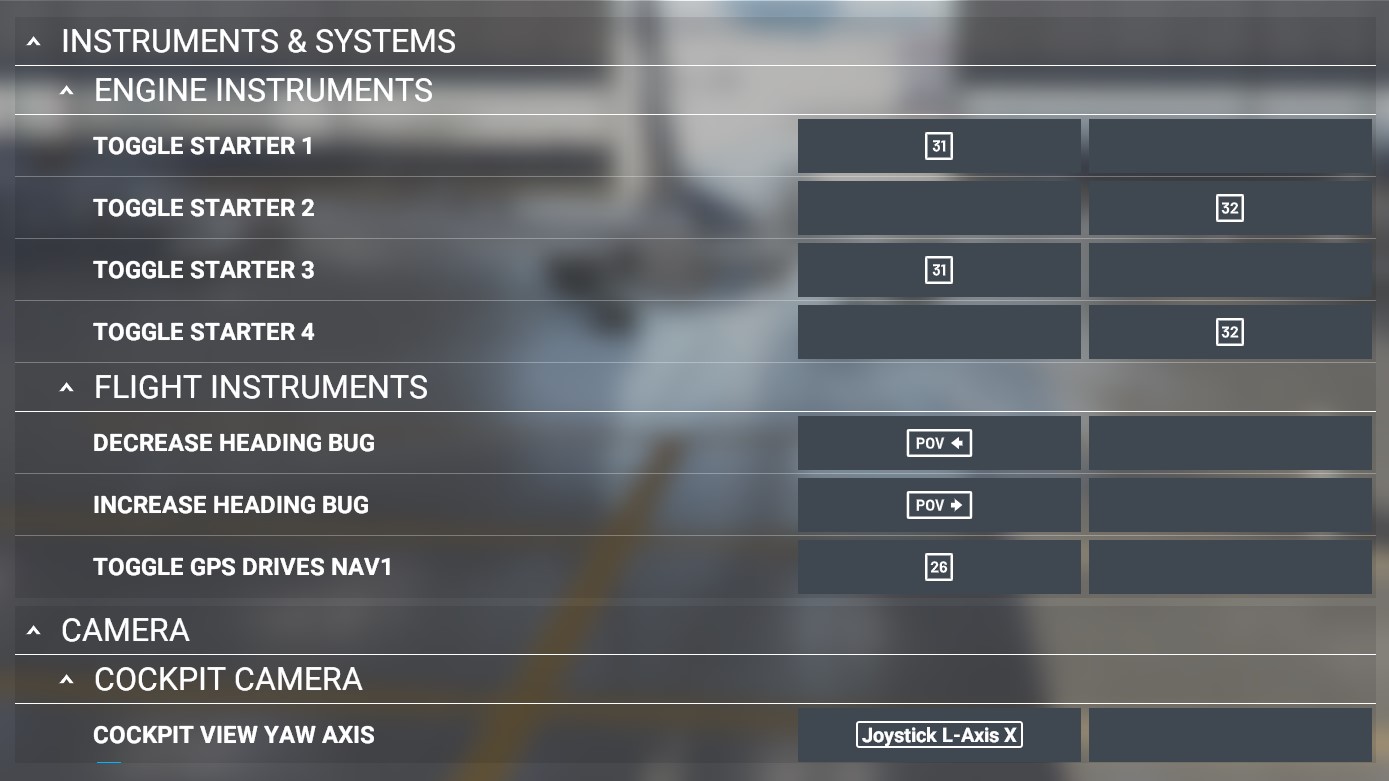

74	Throttle Mapping	Instruments and Systems	Engine Instruments	Toggle Starter 1	31
75	Throttle Mapping	Instruments and Systems	Engine Instruments	Toggle Starter 2	32
76	Throttle Mapping	Instruments and Systems	Engine Instruments	Toggle Starter 3	31
77	Throttle Mapping	Instruments and Systems	Engine Instruments	Toggle Starter 4	32
78	Throttle Mapping	Instruments and Systems	Flight Instruments	Decrease Heading Bug	POV ?
79	Throttle Mapping	Instruments and Systems	Flight Instruments	Increase Heading Bug	POV ?
80	Throttle Mapping	Instruments and Systems	Flight Instruments	Kollsman - Decrease Altimeter	10		Boat Switch
81	Throttle Mapping	Instruments and Systems	Flight Instruments	Kollsman - Increase Altimeter	9		Boat Switch
82	Throttle Mapping	Instruments and Systems	Flight Instruments	Toggle GPS Drives NAV1	26

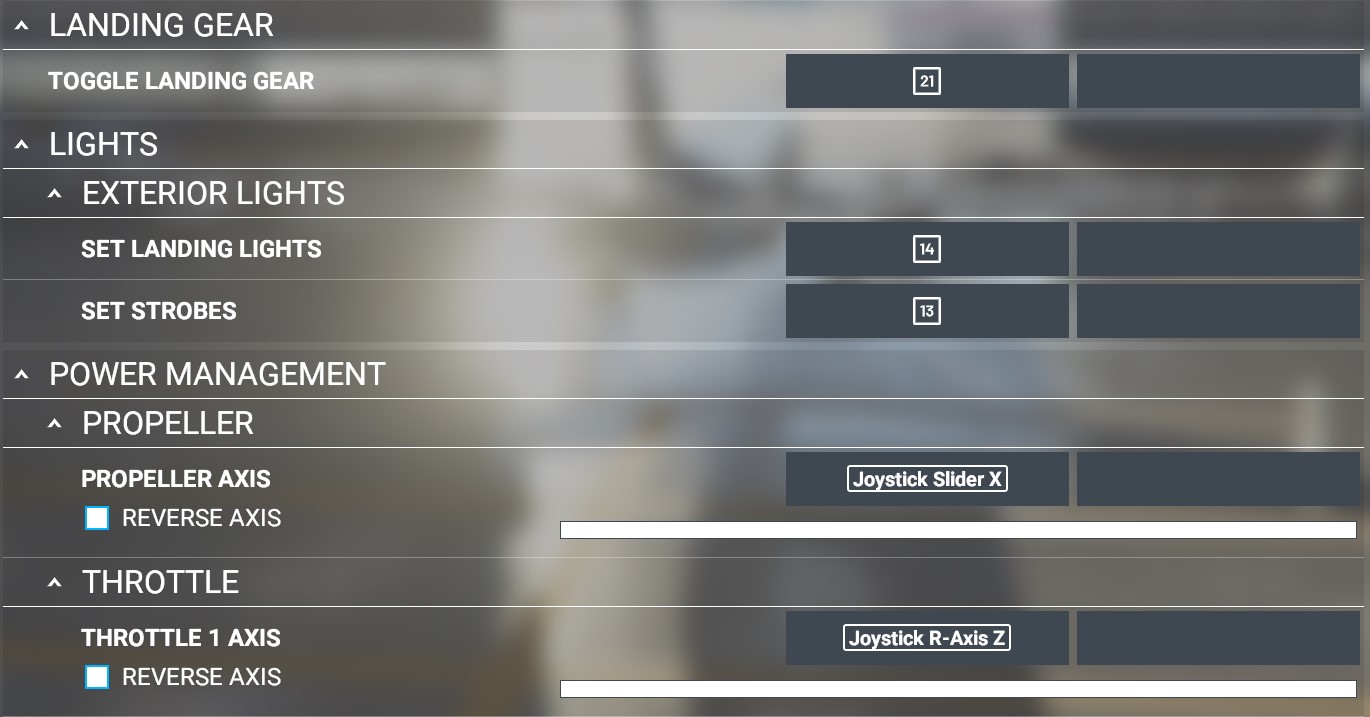

83	Throttle Mapping	Lights	Exterior Lights	Set Landing Lights	14
84	Throttle Mapping	Lights	Exterior Lights	Set Strobes	13
85	Throttle Mapping	Power Management	Propellor	Propeller Axis	Joystick Slider X
86	Throttle Mapping	Power Management	Propellor	Propeller Axis - Reverse Axix	Joystick Slider X
87	Throttle Mapping	Power Management	Throttle	Hold Throttle Reverse Thrust	11
88	Throttle Mapping	Power Management	Throttle	Hold Throttle Reverse Thrust	11

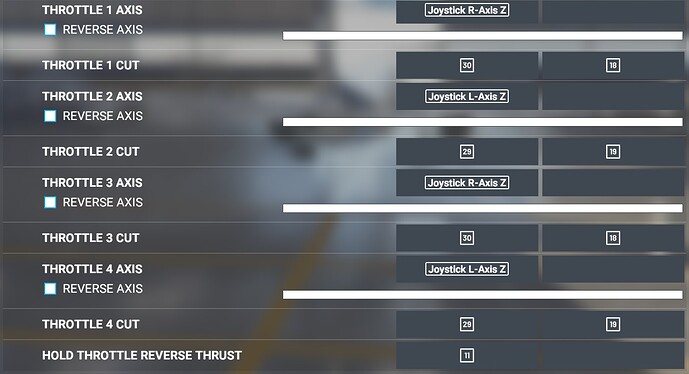

89	Throttle Mapping	Power Management	Throttle	Throttle 1 Axis	Joystick R-Axis Z
90	Throttle Mapping	Power Management	Throttle	Throttle 1 Axis - Reverse Axis	Joystick R-Axis Z
91	Throttle Mapping	Power Management	Throttle	Throttle 1 Cut	30	18.0
92	Throttle Mapping	Power Management	Throttle	Throttle 2 Axis	Joystick L-Axis Z
93	Throttle Mapping	Power Management	Throttle	Throttle 2 Axis - Reverse Axis	Joystick R-Axis Z
94	Throttle Mapping	Power Management	Throttle	Throttle 2 Cut	29	19.0
95	Throttle Mapping	Power Management	Throttle	Throttle 3 Axis	Joystick R-Axis Z
96	Throttle Mapping	Power Management	Throttle	Throttle 3 Axis - Reverse Axis	Joystick R-Axis Z
97	Throttle Mapping	Power Management	Throttle	Throttle 3 Cut	30	18.0
98	Throttle Mapping	Power Management	Throttle	Throttle 4 Axis	Joystick L-Axis Z
99	Throttle Mapping	Power Management	Throttle	Throttle 4 Axis - Reverse Axis	Joystick L-Axis Z
100	Throttle Mapping	Power Management	Throttle	Throttle 4 Cut	29	19.0
101	Throttle Mapping	Power Management	Throttle	Toggle Throttle Reverse Thrust	12

[TelBradley]

Thrustmaster HOTAS Warthog Key Mapping - Potential T.A.R.G.E.T Script.
Here is a potential script that implements the mappings defined in the table above. I am hoping that it might help further.

include “target.tmh”

int main()
{
if(Init(&EventHandle)) return 1; // declare the event handler, return on error

Copy code
// Joystick mappings
MapKey(&Joystick, TG1, PULSE+USB[0x2C]); // Wheel Brake
MapKey(&Joystick, H2U, 0);
MapKey(&Joystick, H2D, 0);
MapKey(&Joystick, H2L, PULSE+USB[0x50]); // Look Left
MapKey(&Joystick, H2R, PULSE+USB[0x4F]); // Look Right
MapKey(&Joystick, H3U, PULSE+USB[0x52]); // Look Up
MapKey(&Joystick, H3D, PULSE+USB[0x51]); // Look Down
MapKey(&Joystick, H4U, PULSE+‘x’); //Zoom In
MapKey(&Joystick, H4D, PULSE+‘z’); //Zoom Out
MapKey(&Joystick, S2, 0);
MapKey(&Joystick, S3, PULSE+USB[0x3A]); //Reset Cockpit View
MapKey(&Joystick, S4, CHAIN(
EXEC(“ActKey(PULSE+KEYON+USB[0x07]);”), // Flaps Up
D(200),
EXEC(“ActKey(PULSE+KEYON+USB[0x07]);”) // Flaps Down
));

// Throttle mappings
MapKey(&Throttle, APENG, PULSE+‘a’); // Toggle Autopilot Master
MapKey(&Throttle, APPAT, EXEC(“MapKey(&Throttle, APENG, PULSE+L_ALT+USB[0x23]);”)); // Route Following
MapKey(&Throttle, APAH, EXEC(“MapKey(&Throttle, APENG, PULSE+L_ALT+USB[0x1E]);”)); // Heading Hold
MapKey(&Throttle, APALT, EXEC(“MapKey(&Throttle, APENG, PULSE+L_ALT+USB[0x21]);”)); // Altitude Hold
MapKey(&Throttle, PBON, PULSE+USB[0x14]); // Parking Brake On
MapKey(&Throttle, EACON, CHAIN(
EXEC(“ActKey(KEYON+PULSE+USB[0x09]);”), // Landing Lights On
EXEC(“ActKey(KEYON+PULSE+USB[0x0B]);”) // Taxi Lights On
));
MapKey(&Throttle, EACOFF, CHAIN(
EXEC(“ActKey(KEYON+PULSE+USB[0x38]);”), // Landing Lights Off
EXEC(“ActKey(KEYON+PULSE+USB[0x38]);”) // Taxi Lights Off
));
MapKey(&Throttle, RDRNRM, PULSE+USB[0x1A]); // Turn On Strobes
MapKey(&Throttle, RDRDIS, PULSE+USB[0x38]); // Turn Off Strobes
MapKey(&Throttle, APUON, EXEC(“ActKey(PULSE+KEYON+USB[0x1E]);”)); // Engine 1 Start
MapKey(&Throttle, APUOFF, EXEC(“ActKey(PULSE+KEYON+USB[0x1F]);”)); // Engine 2 Start
MapKeyR(&Throttle, APUOFF, EXEC(“ActKey(PULSE+KEYON+USB[0x1E]);”)); // Engine 1 Stop
MapKeyR(&Throttle, APUOFF, EXEC(“ActKey(PULSE+KEYON+USB[0x1F]);”)); // Engine 2 Stop
MapKey(&Throttle, LDGH, PULSE+‘g’); //Landing Gear Up/Down
MapKey(&Throttle, CRUISE, EXEC(“ActKey(KEYON+PULSE+L_ALT+USB[0x02]);”)); // Set Airspeed Hold
MapKey(&Throttle, CSU, L_SHIFT+USB[0x23]); // Trim Up
MapKey(&Throttle, CSD, L_SHIFT+USB[0x1B]); // Trim Down

//Axis Mappings
MapAxis(&Joystick, JOYX, DX_X_AXIS);
MapAxis(&Joystick, JOYY, DX_Y_AXIS);
MapAxis(&Throttle, THR_LEFT, DX_ZROT_AXIS);
MapAxis(&Throttle, THR_RIGHT, DX_Z_AXIS);
MapAxis(&Throttle, SCX, DX_XROT_AXIS, AXIS_NORMAL, MAP_RELATIVE);
MapAxis(&Throttle, SCY, DX_YROT_AXIS, AXIS_NORMAL, MAP_RELATIVE);
MapAxis(&Throttle, THR_FC, DX_SLIDER_AXIS);

//Throttle Slew Control Axes
SetSCurve(&Throttle, SCX, 0, 10, 0, 0, -4); // Make slew control less sensitive
SetSCurve(&Throttle, SCY, 0, 10, 0, 0, -4);
}

int EventHandle(int type, alias o, int x)
{
DefaultMapping(&o, x);
}

This script maps the buttons, switches and axes of the HOTAS Warthog throttle and joystick according to the keybindings defined in the CSV file. It uses the USB code format for the keybindings.

Some key points:
It maps the joystick and throttle axes to the standard DirectX axes
For the slew control axes, it uses MAP_RELATIVE mode and adjusts the curves to make them less sensitive
It uses EXEC commands to dynamically remap certain autopilot buttons depending on the position of the LASTE switch
It uses PULSE for most key presses to prevent keys getting stuck on
It uses CHAIN to send multiple keystrokes for things like turning on/off lights
It uses MapKeyR to map key releases for the APU switches to stop the engines
Let me know if you have any other questions! I tried to follow the bindings from the CSV as closely as possible while organizing the script in a logical way with comments.

[MUST4NG7]

Can you tell me how to use this script? I just got MSFS and the TM HOTAS Warthog and cannot for the life of me figure out how to make the script work. I keep getting the error “filename” expected in MSFS.tmc at line 1
