Hello everyone,

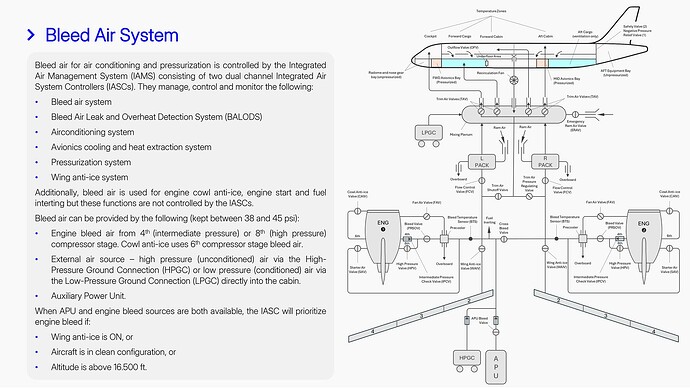

I completed my “little” project to create a comprehensive summary of the Airbus A220 FCOM part 1 and part 2 + more. After reading 4000+ FCOM pages and probably a few hundred hours of work I managed to condense everything into a 275 page manual with everything there is to know about this aircraft. My eyes are square now after all those hours staring at a screen, so I’m gonna take a break from this.
Now all that is missing is an aircraft, in any case you have something to study in the meantime to be fully prepared when it releases
.
Link: https://smallpdf.com/file#s=0efdd02d-f5dd-4731-89dc-9a8737a01eb5
Cheers
21 Likes
Thank you in advance for your work!
2 Likes
I like this method of explaining v.much
1 Like
Very nicely done…can’t wait for the final project to be completed. Thanks for sharing…

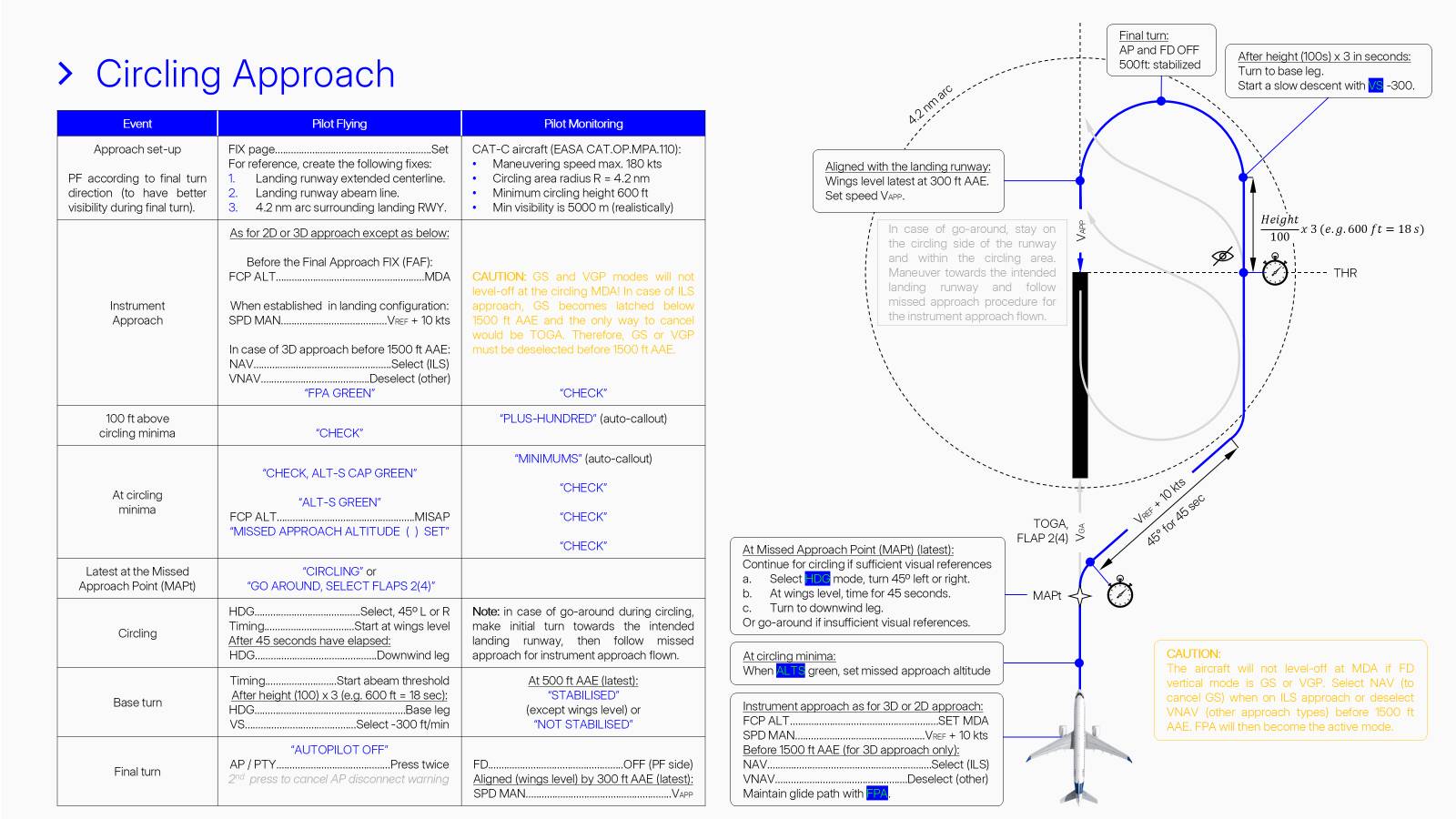

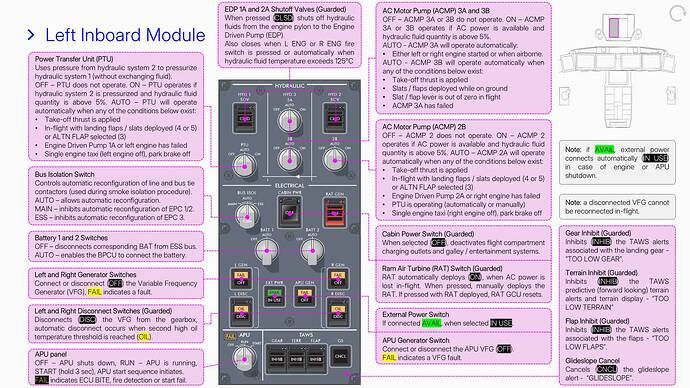

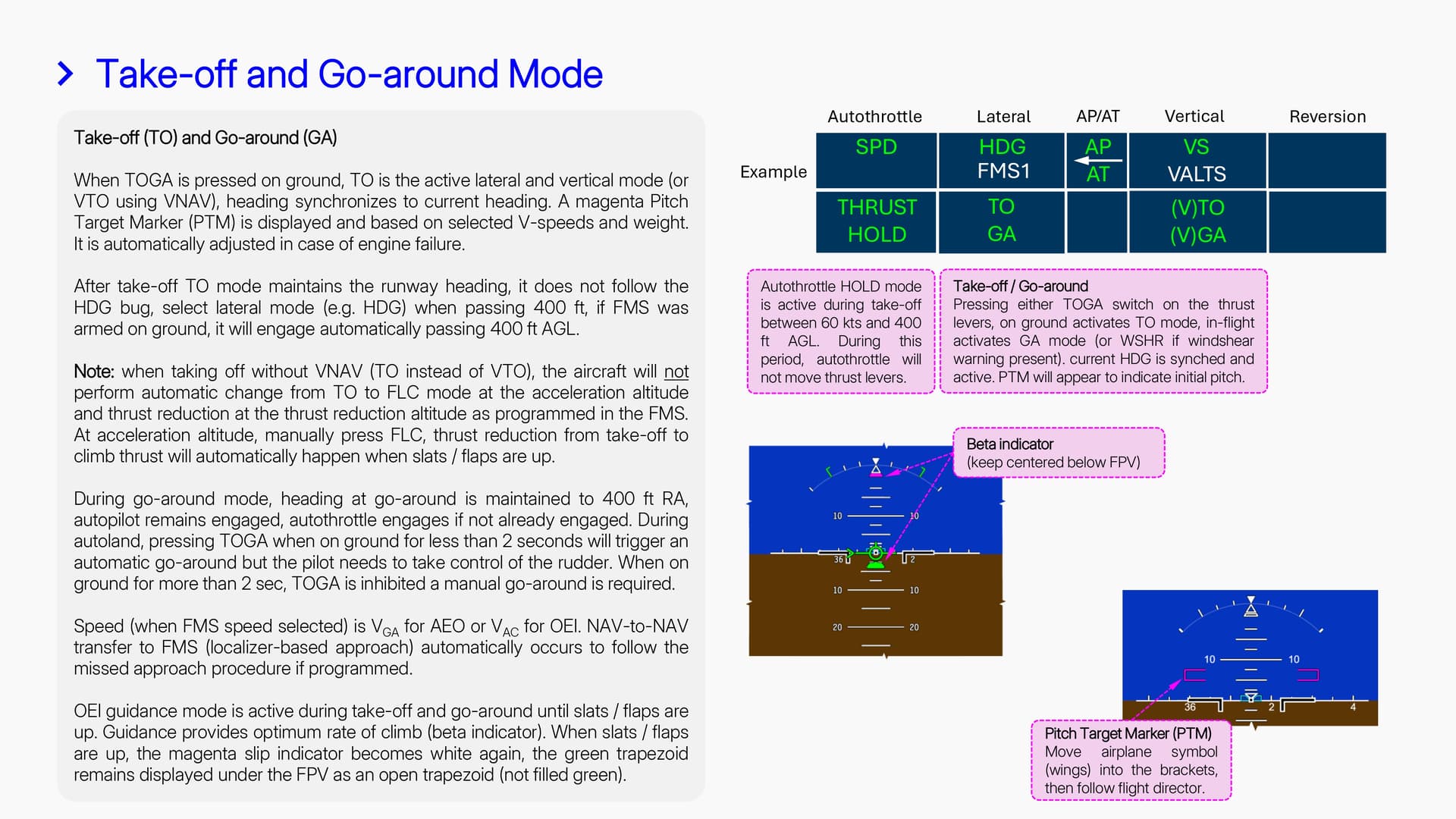

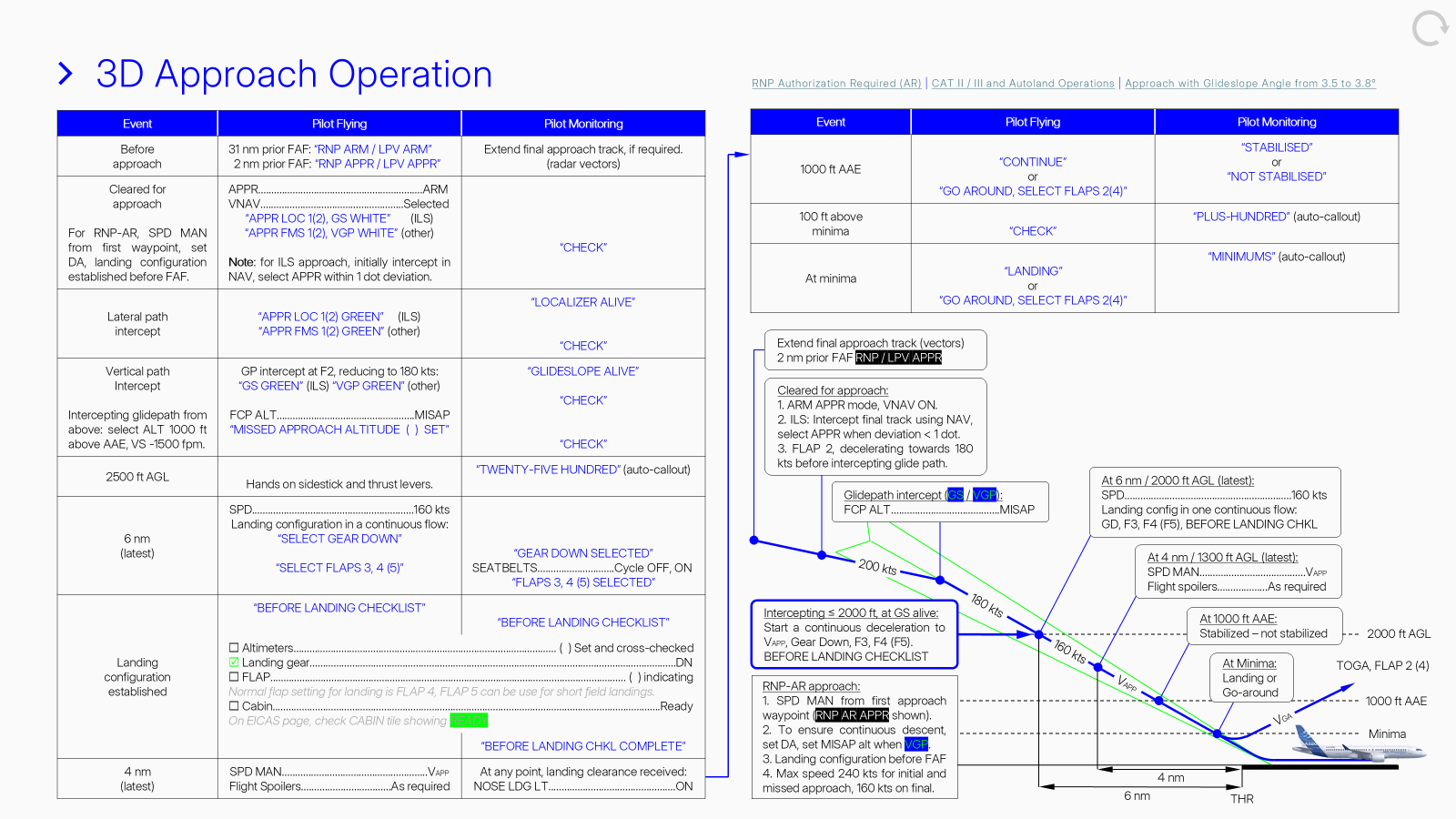

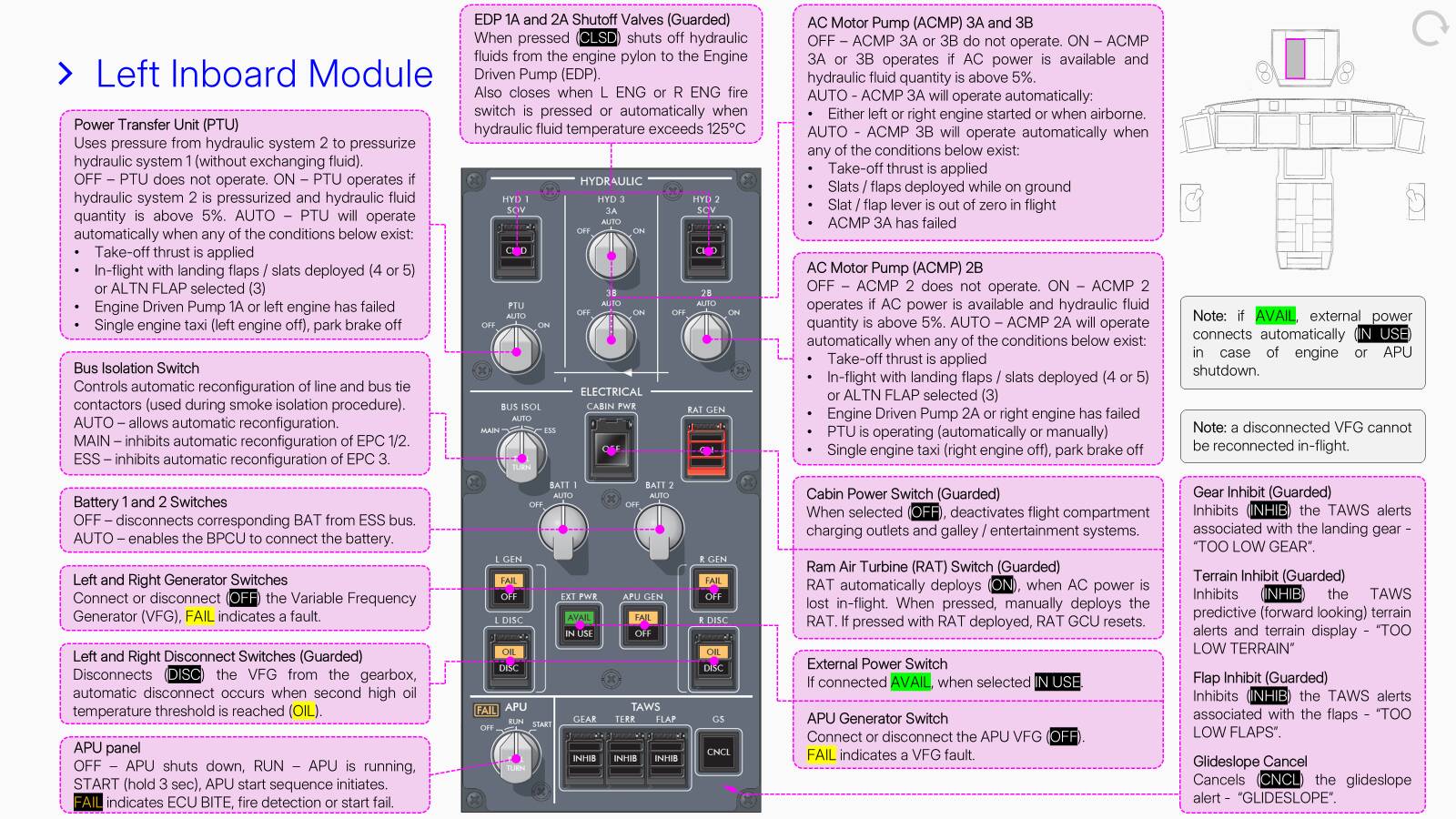

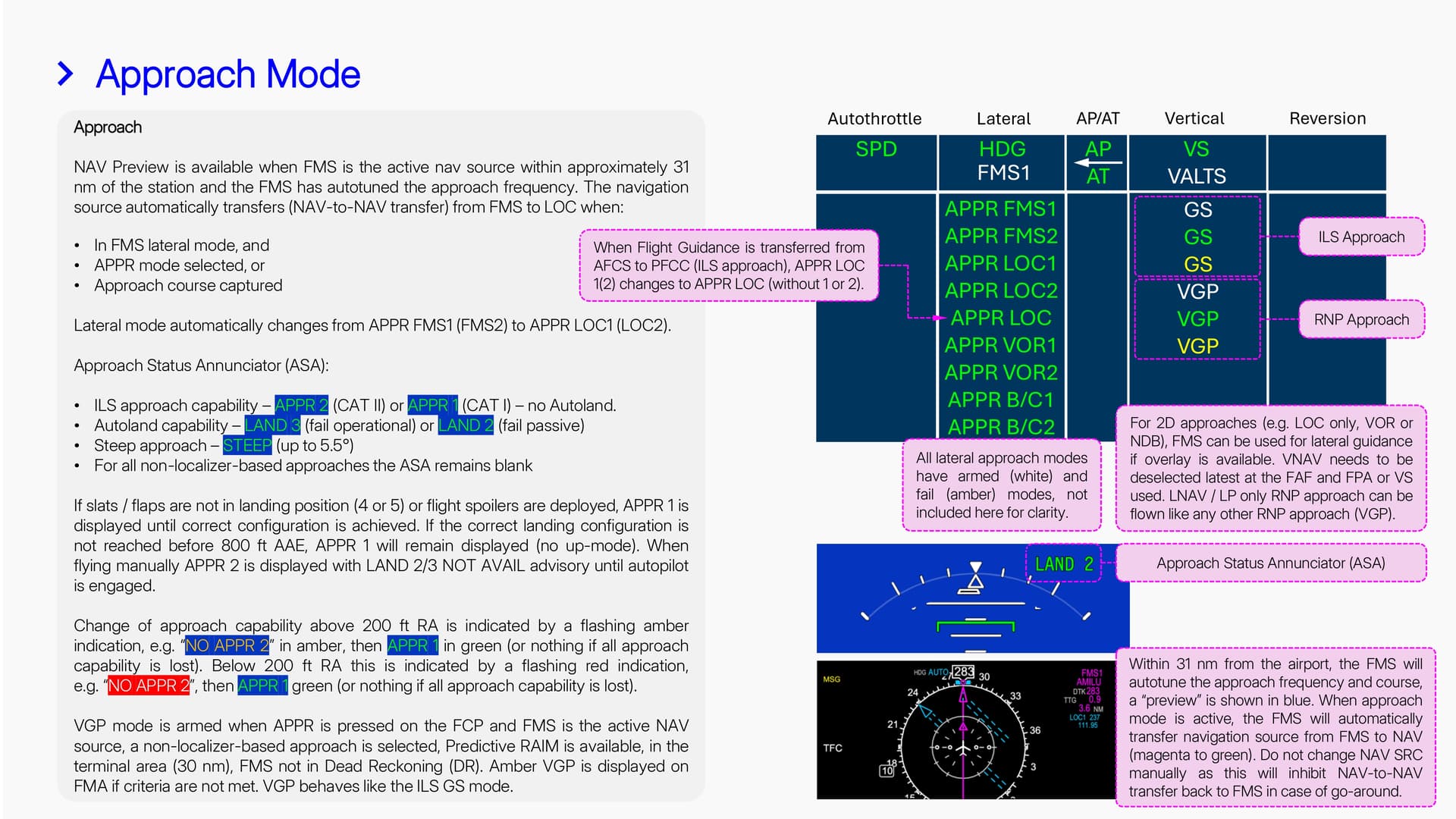

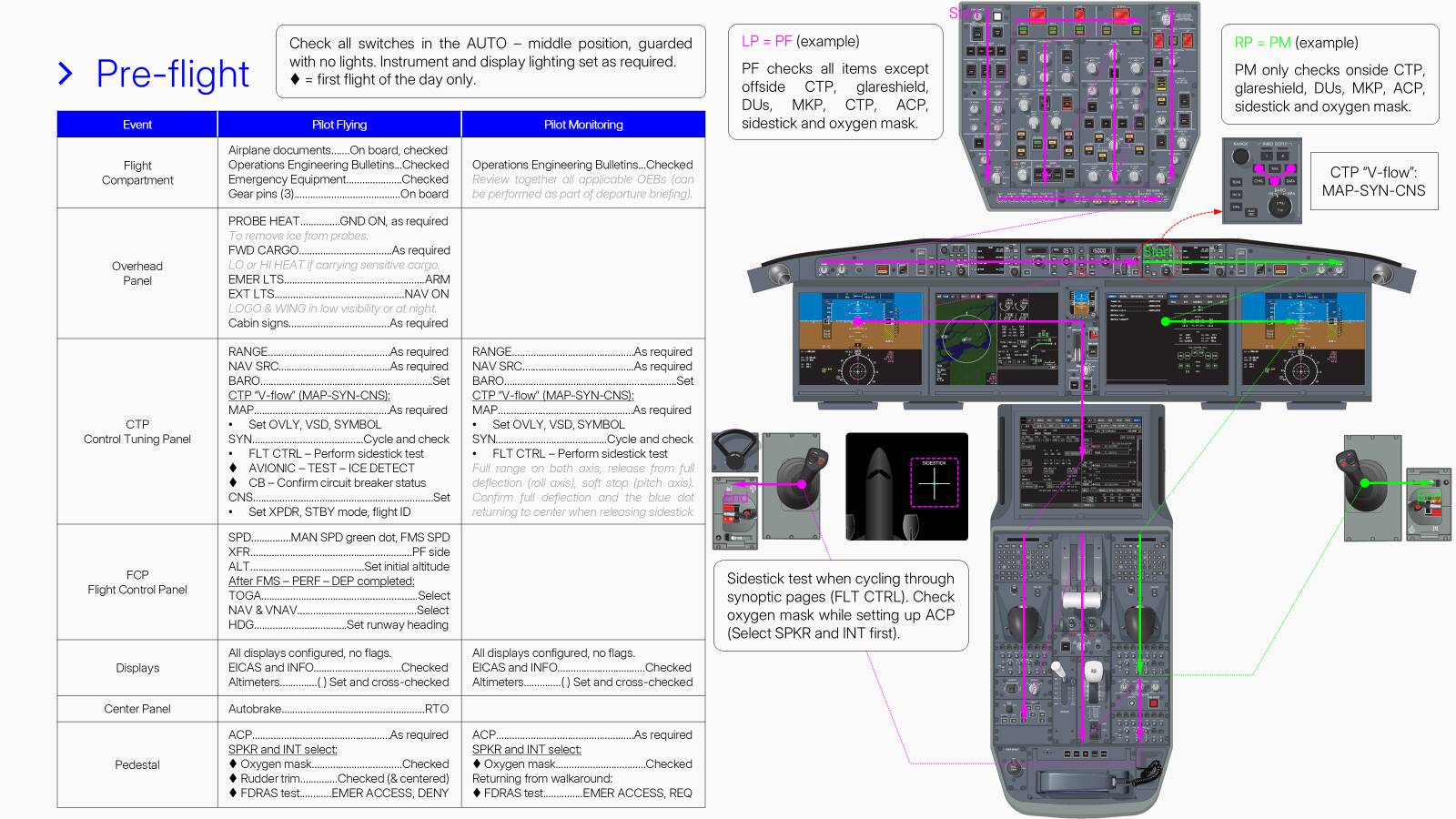

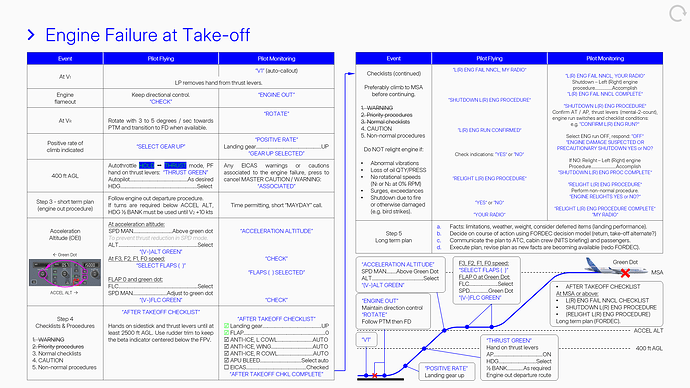

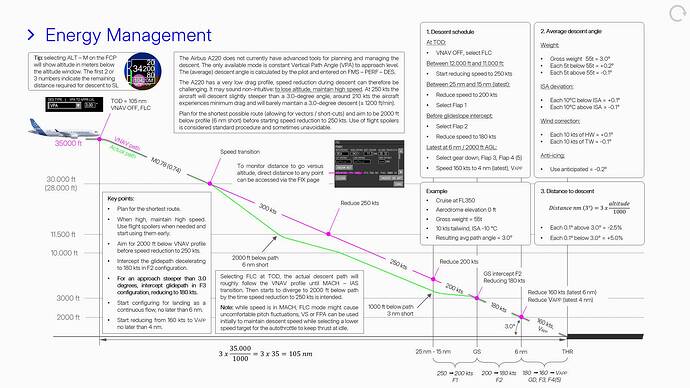

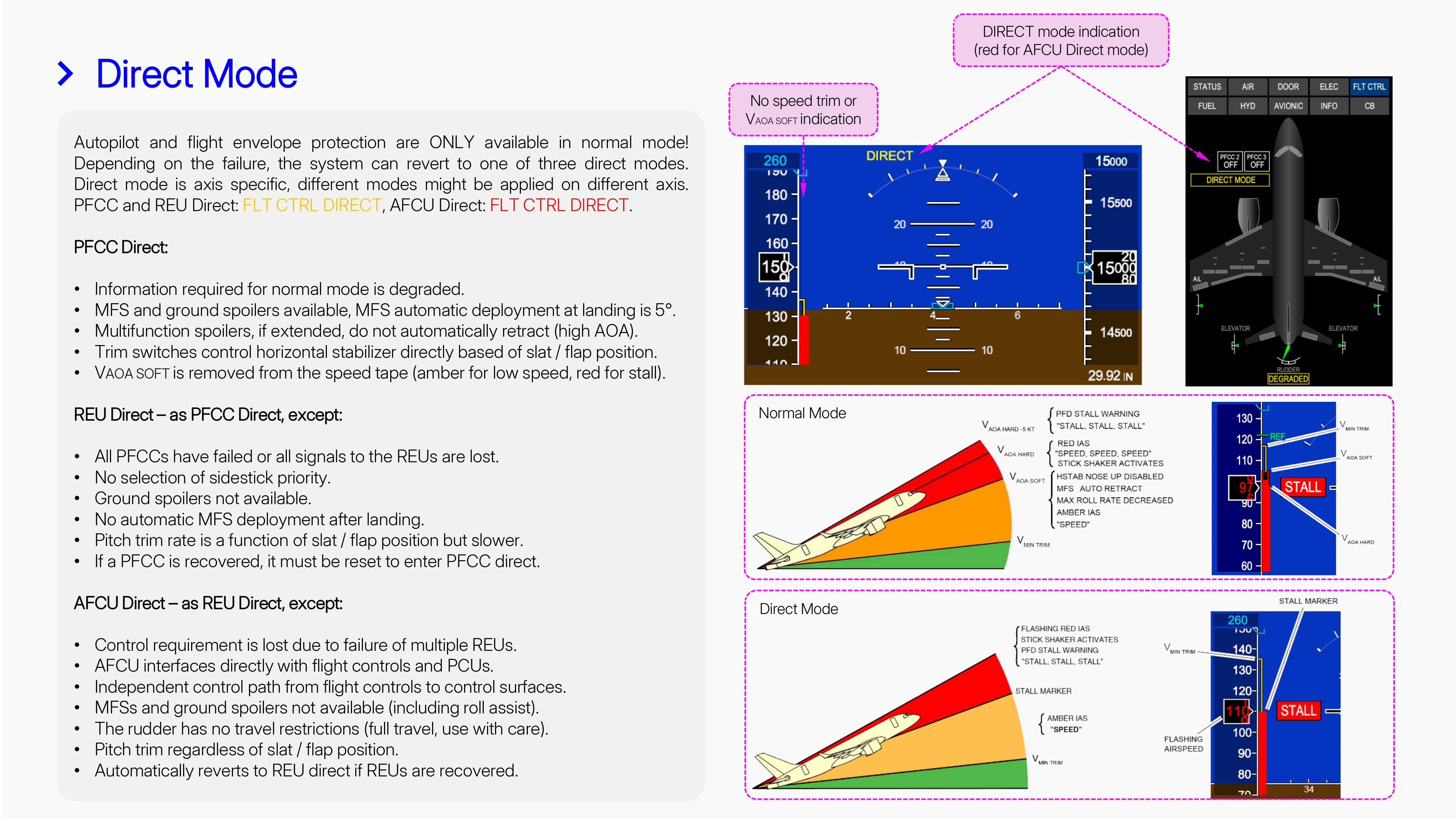

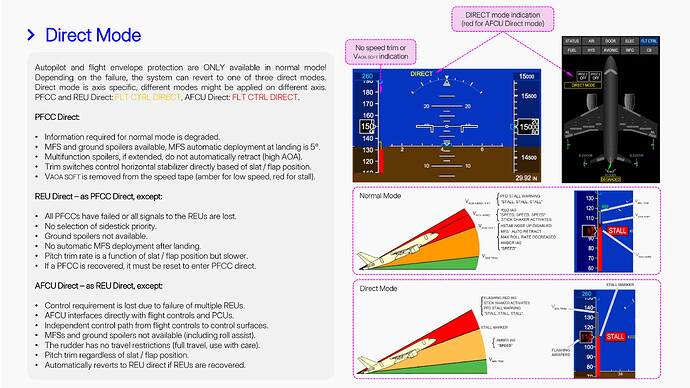

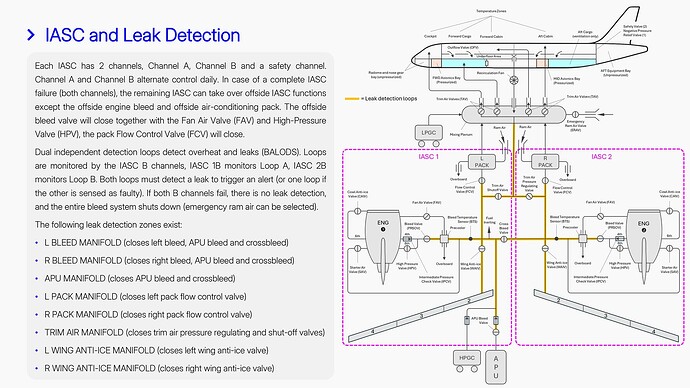

If anyone is interested in learning about the A220 already, I managed to describe pretty much every switch with corresponding logics.
13 Likes
That is a brilliant piece of work, thanks
1 Like

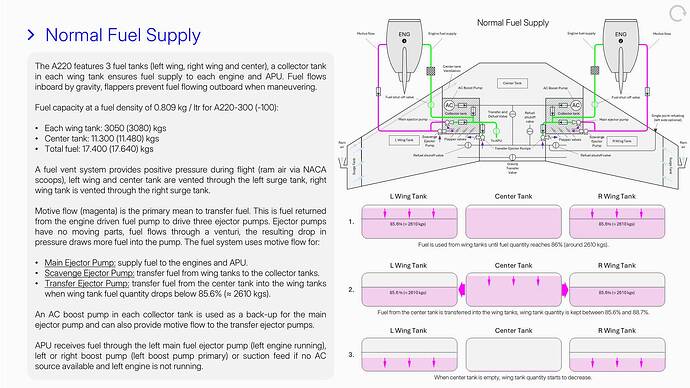

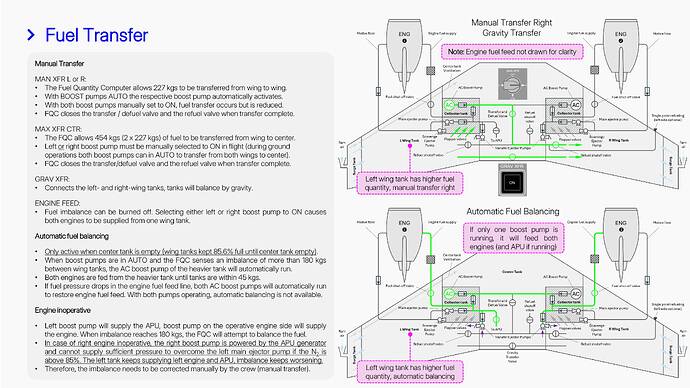

I am trying to draw my own schematics as copying from the FCOM is probably copyright infringement. Takes a long time though…
Yes, i was wondering how long it took to complete one page. Do you fly these IRL?
I do fly the A220 in real life yes
.
4 Likes
The manual looks outstanding. Now all we need is a plane to go with it.
3 Likes

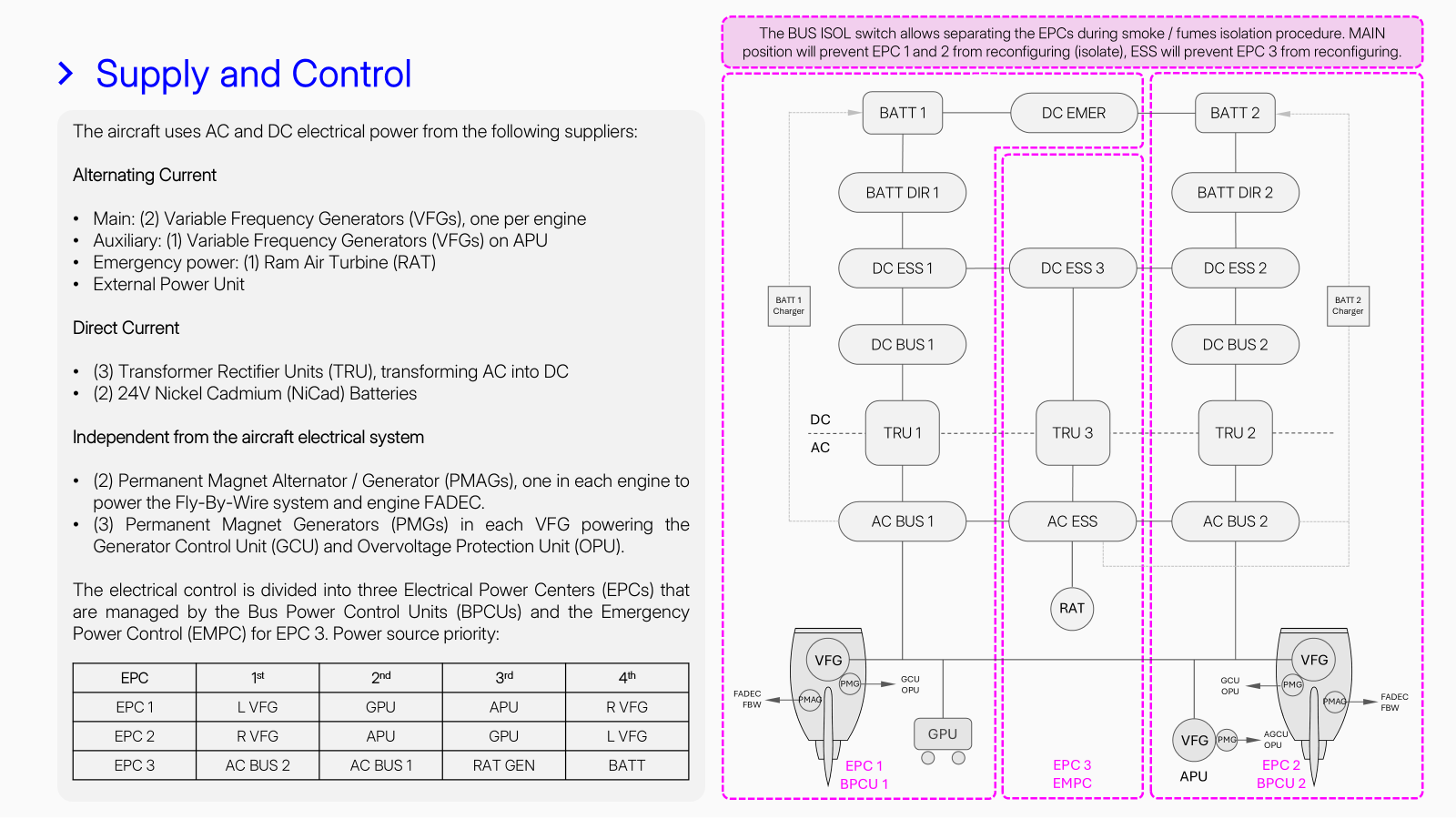

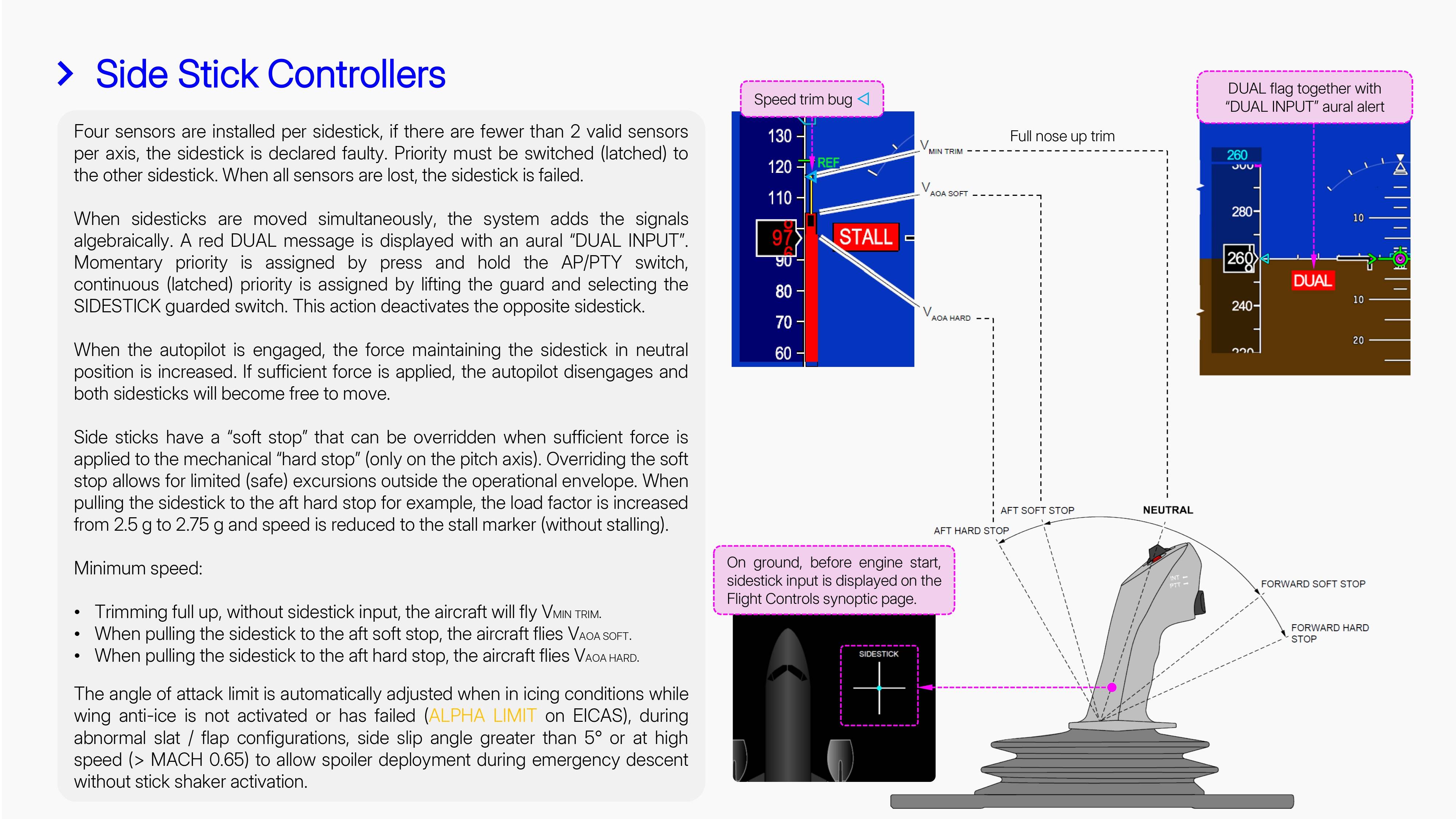

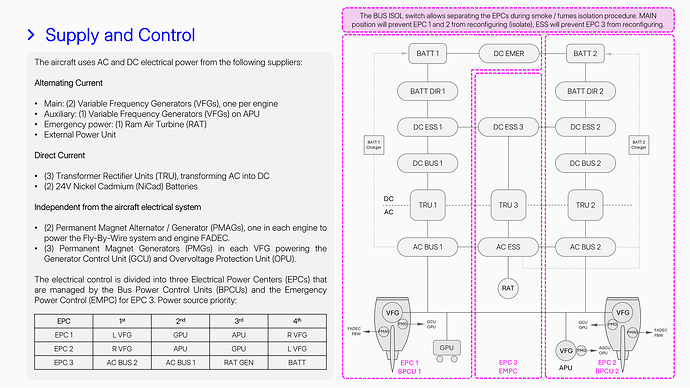

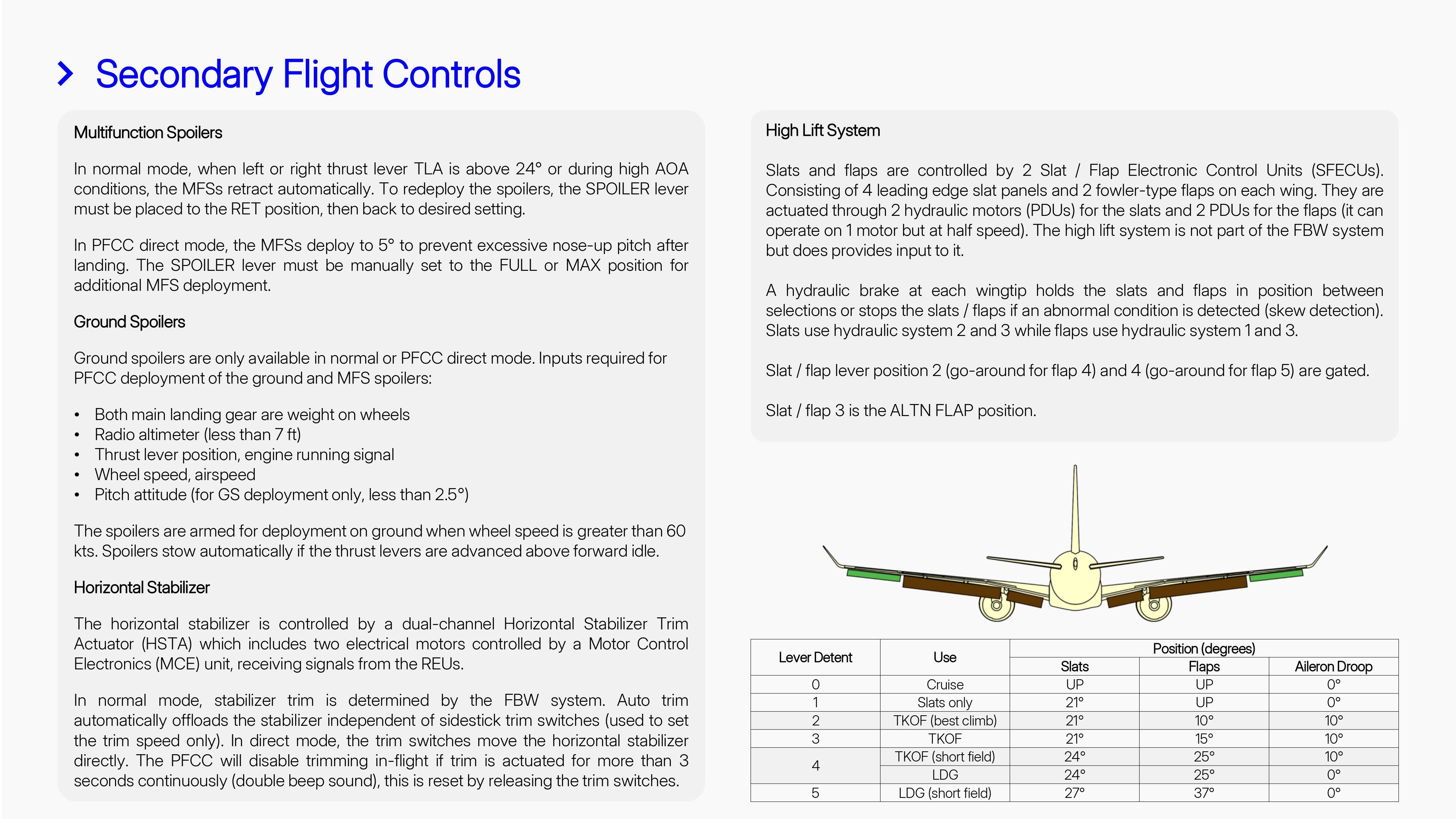

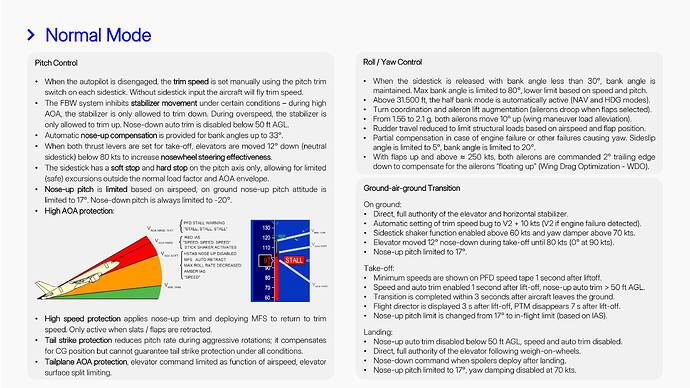

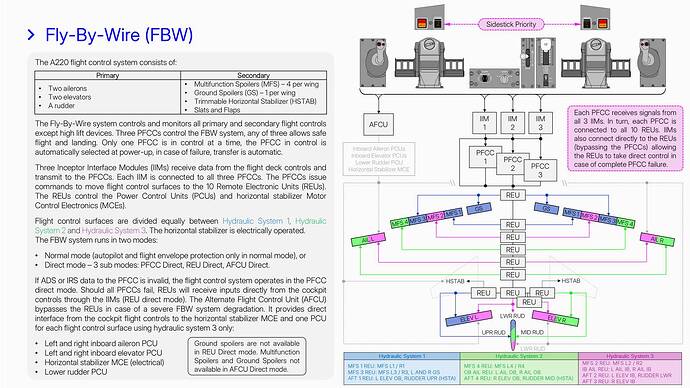

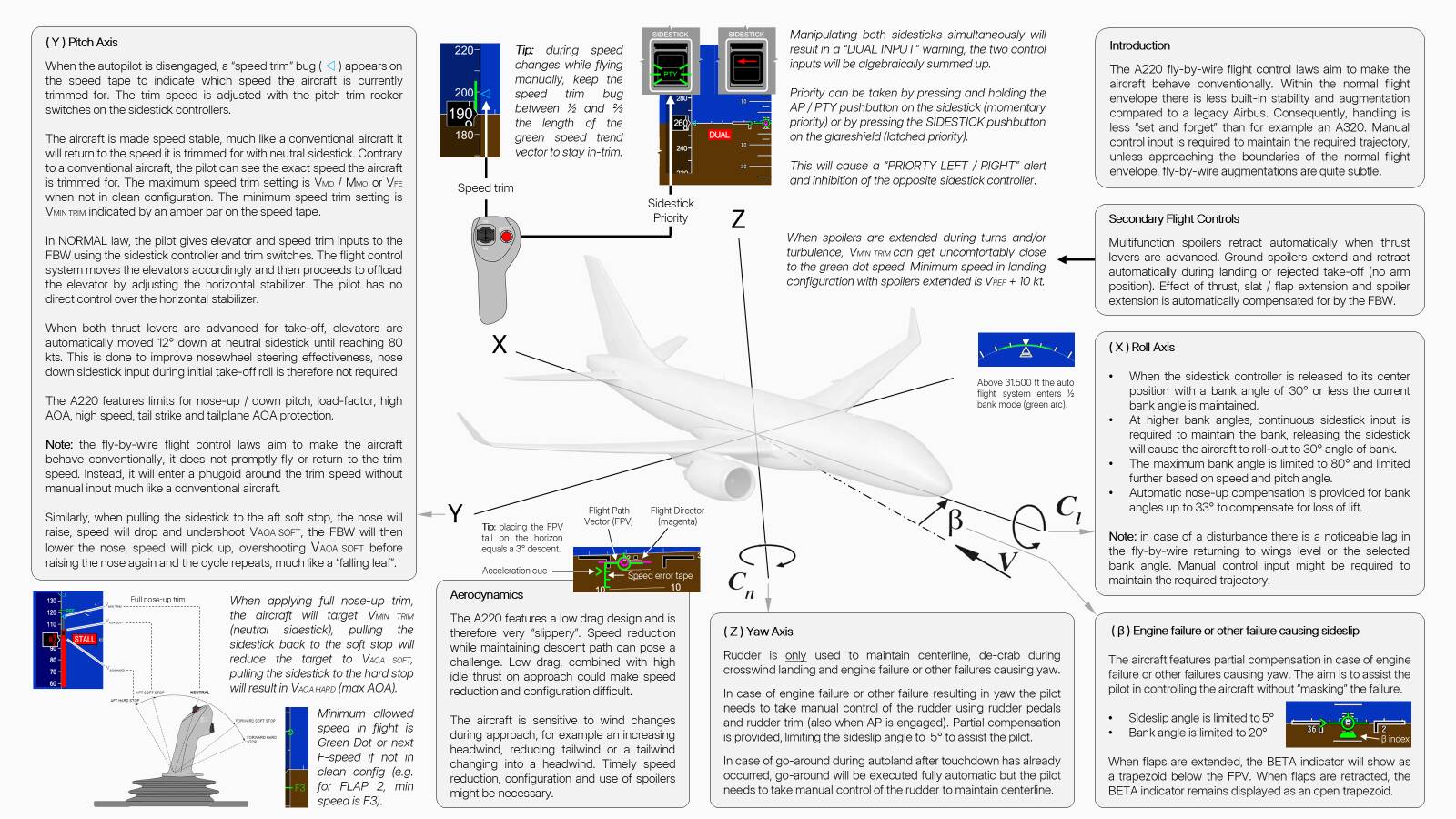

Got flight controls and electrical system done. Still a lot to do, but I guess the A220 won’t be released anytime soon.
4 Likes
If when you are finished the A220, do you think you might be interested in adapting these to another A… version. I’m thinking maybe all of the Airbus iterations could do with these wonderful tutorials. Maybe even create yourself a website and get a few £’s for each set? They are worth it
Problem is that I haven’t flown those for real.
1 Like

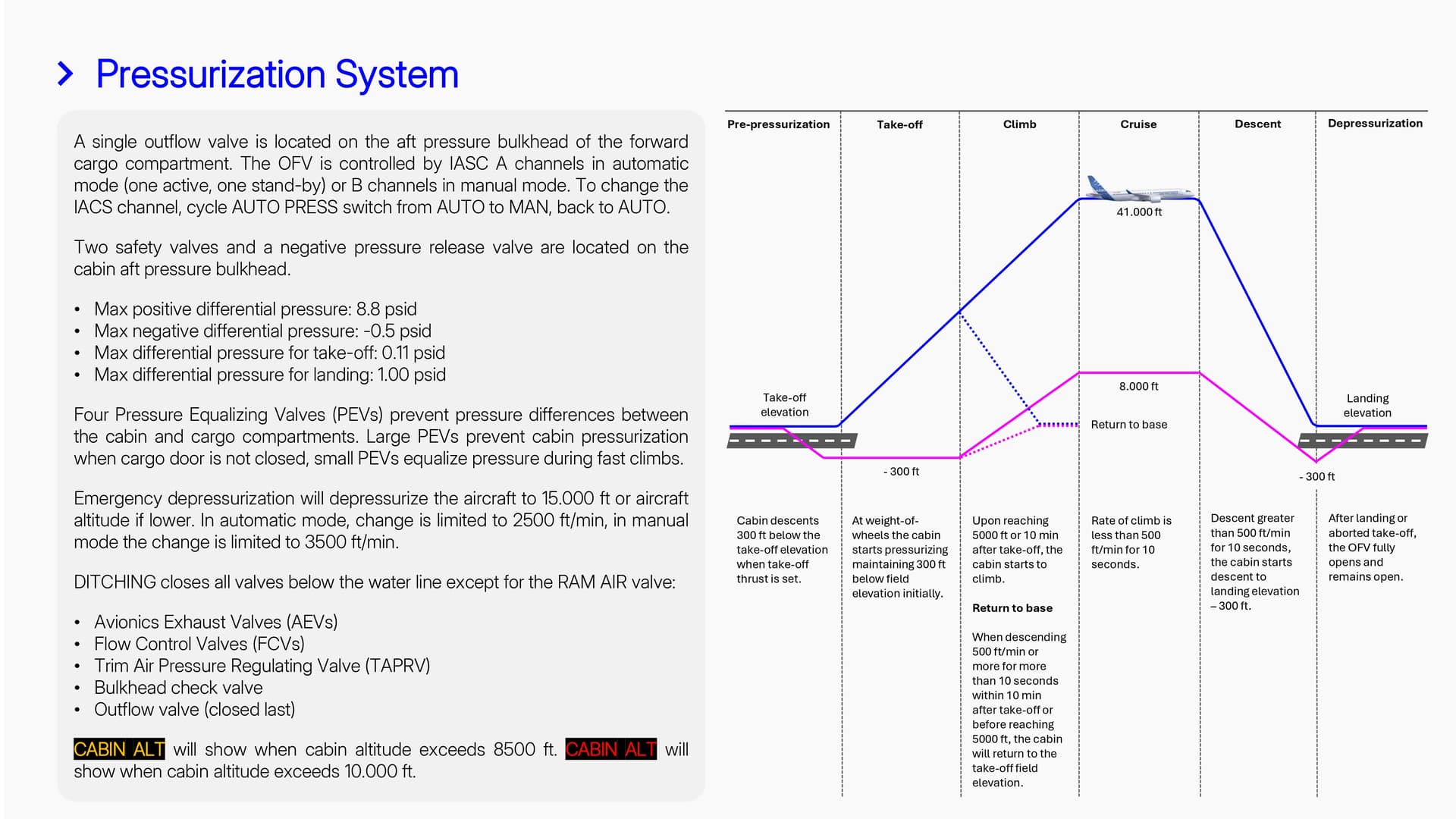

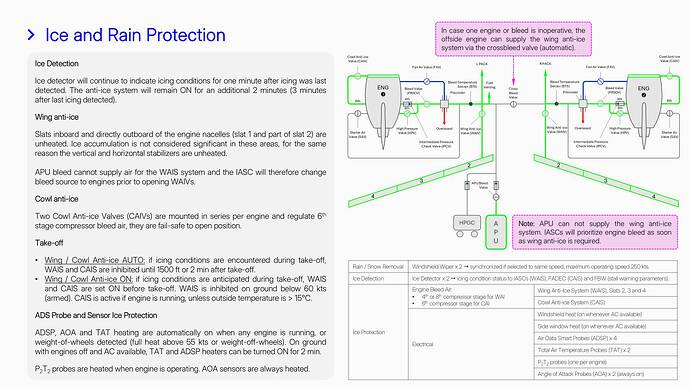

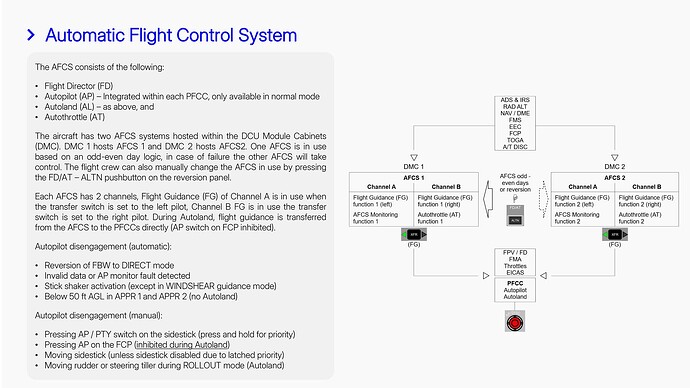

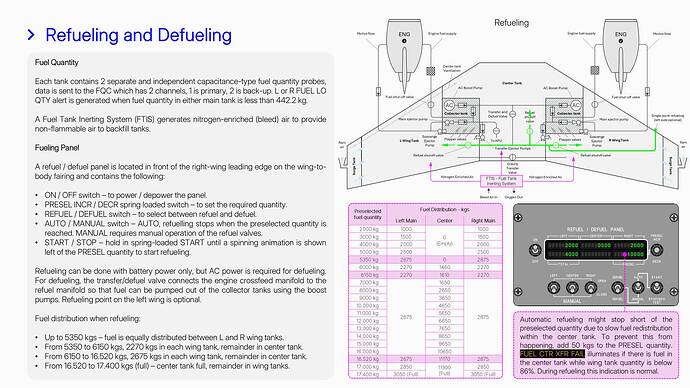

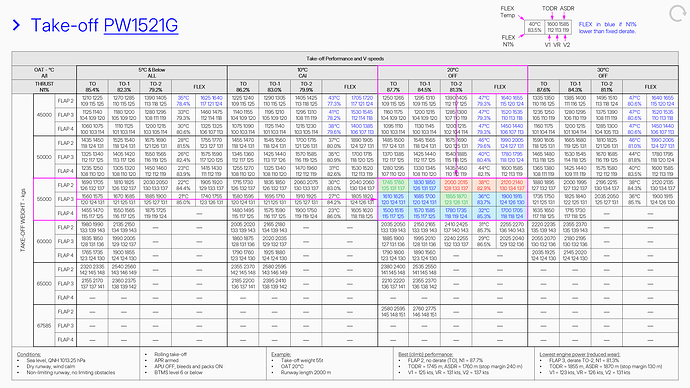

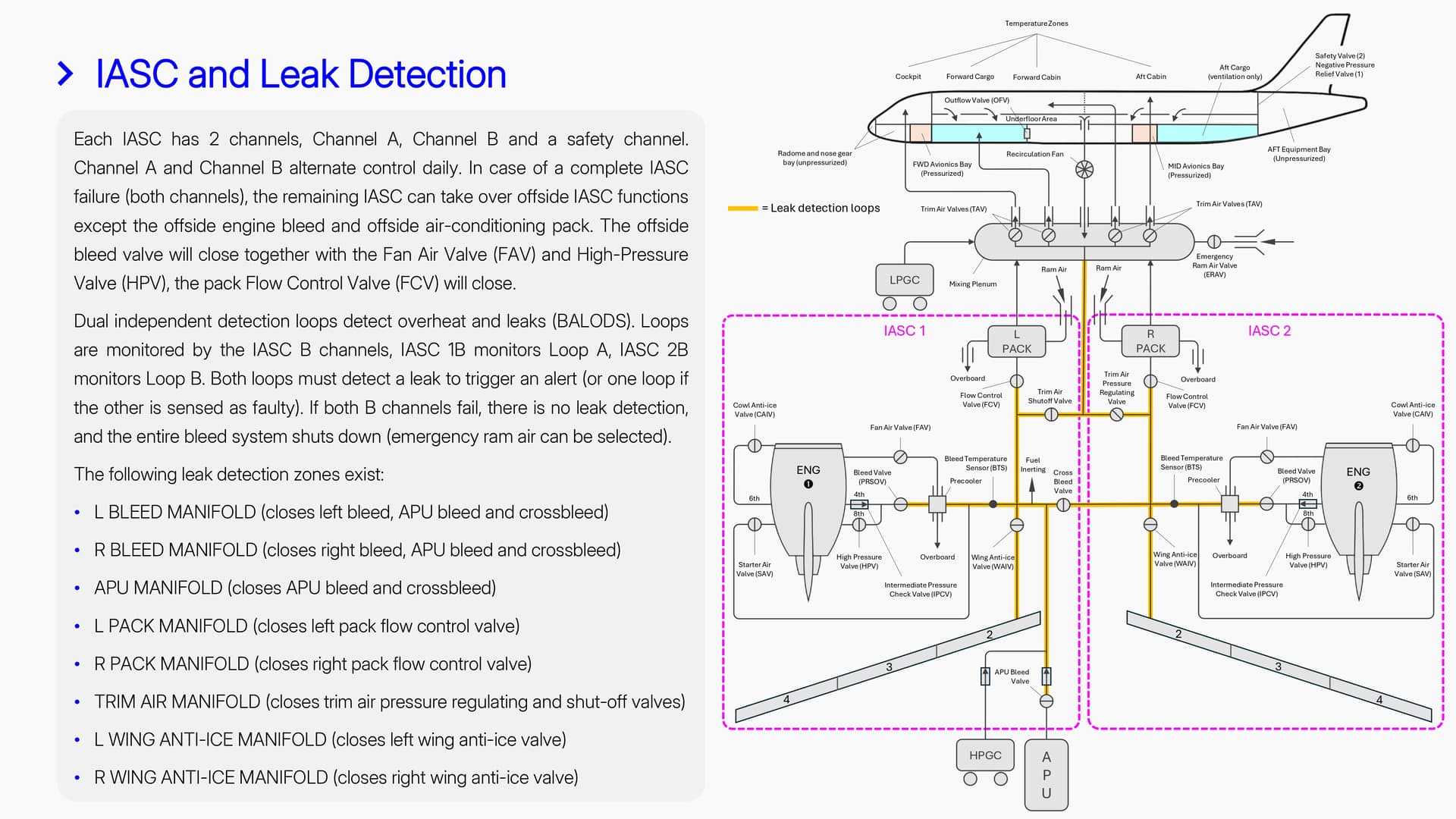

I’m working this week, but a few more systems done in the meanwhile.
4 Likes

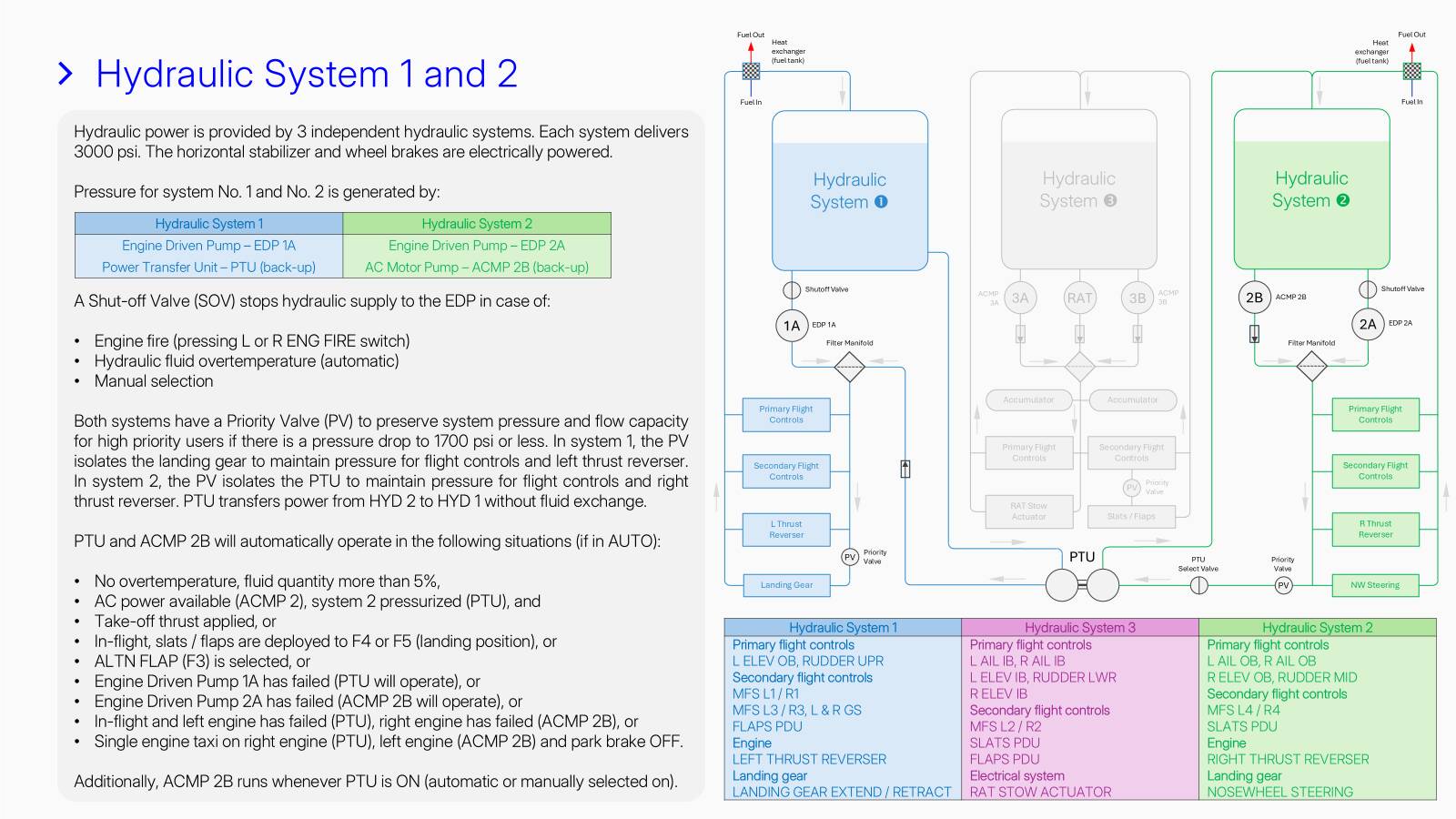

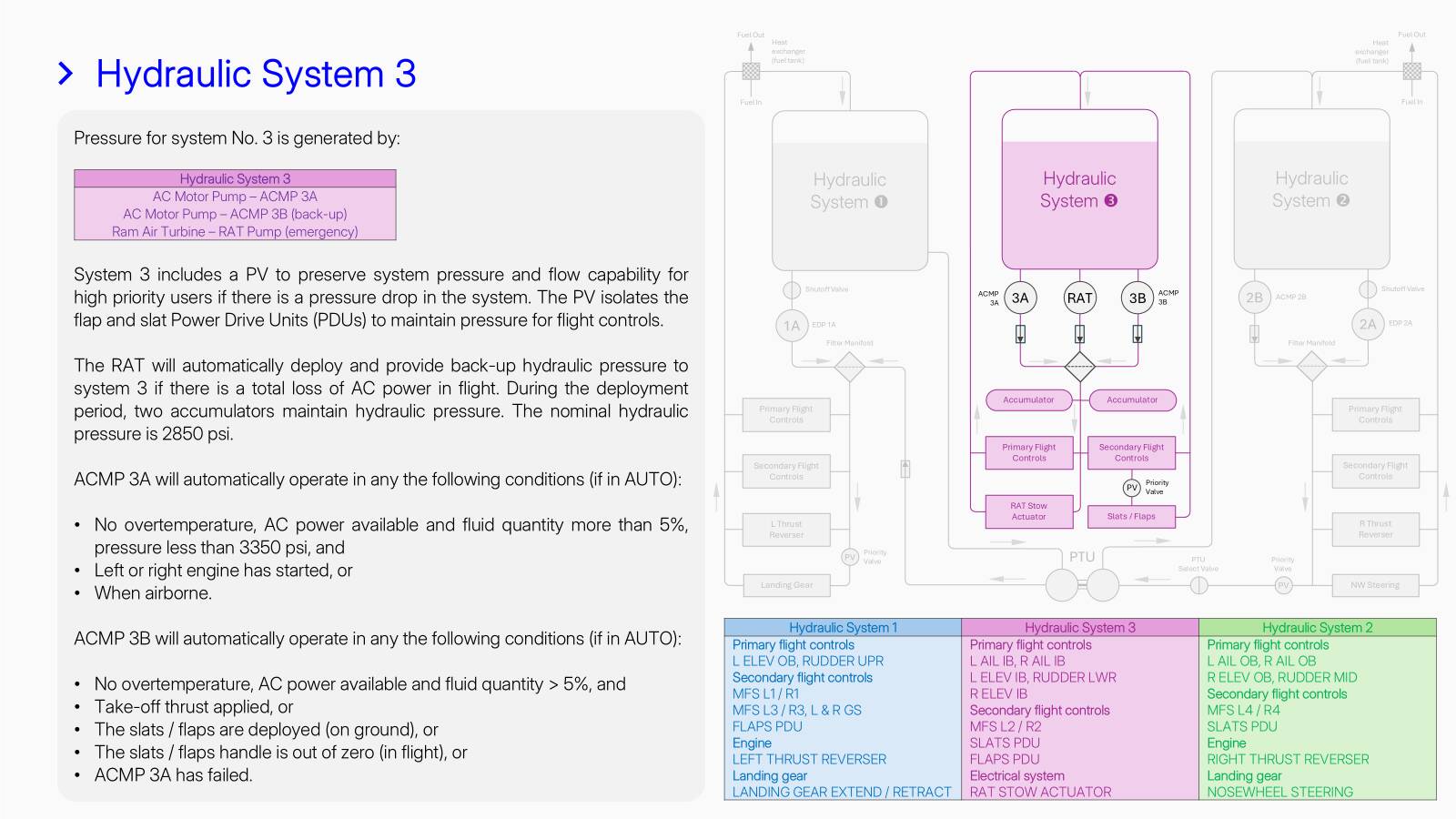

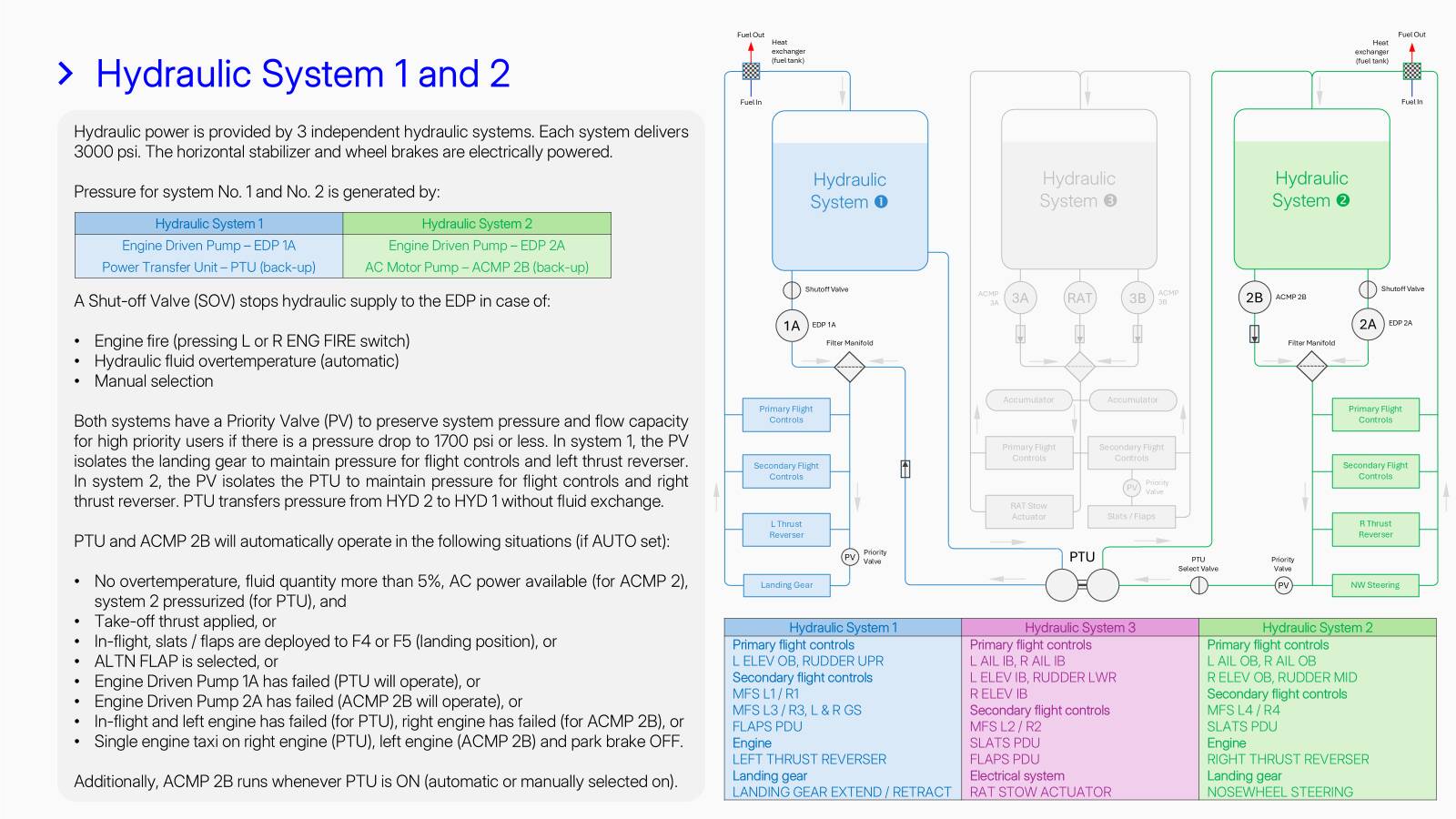

Hydraulic system done as well
Wow! Nicely done. When is this aircraft due to be released? Any idea?
Hopefully not before I’m done, but your guess is as good as mine .
