Boeing 707 LE Flaps do not deploy in any flap setting configuration

Bug Reporting Hub Resolved
, , , , ,
1

:wave: Thank you for using the Bug section, using templates provided will greatly help the team reproducing the issue and ease the process of fixing it.

2 tags are required: One for platform, and one for aircraft.

Are you using Developer Mode or made changes in it?

No

Have you disabled/removed all your mods and addons? If the issue still occurs with no mods and add-ons, please continue to report your issue. If not, please move this post to the User Support Hub.

No, not relevant

Which aircraft are you reporting an issue about? (Please also add the proper tag for it)

Boeing 707 by Aeroplane Heaven

Which aircraft version are you experiencing this issue on? (You can find this listed in the Content Manager under the Aircraft Name)

Release version as of 9/24/2024

Brief description of the issue:

Widely reported by many forum users: The LE flaps do not deploy when the manual states that they should. They never deploy in all the testing Iā€™ve done.
The indicator lights in the cockpit turn blue when the trailing edge flaps are completely retracted, and turn off when and the flaps are deployed. It seems that the indicator light should show as blue when the LE flaps do deploy? Since the LE flaps are not deploying at all, I canā€™t tell what the correct indicator behavior is supposed to be.

Provide Screenshot(s)/video(s) of the issue encountered:

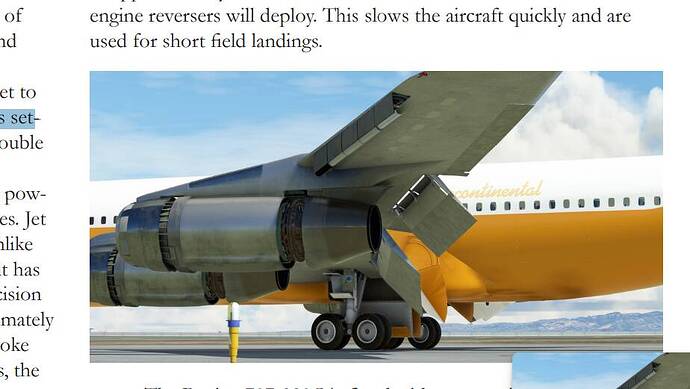

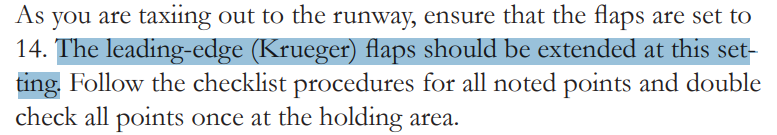

How it should be as shown in the manual:

image777Ɨ135 41 KB

image924Ɨ521 49.1 KB

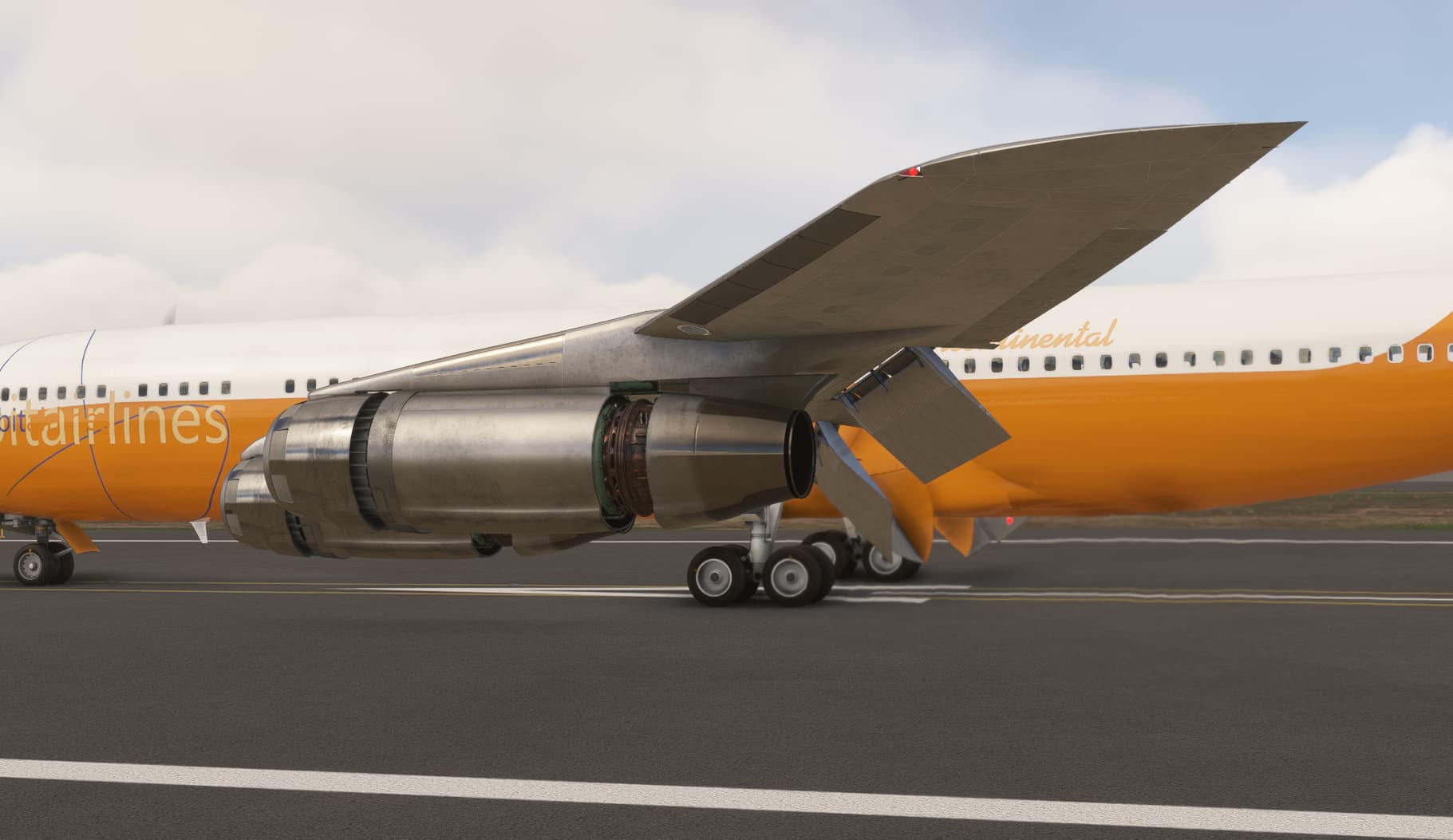

Screenshot recreated in the sim:
image1821Ɨ1053 94.1 KB

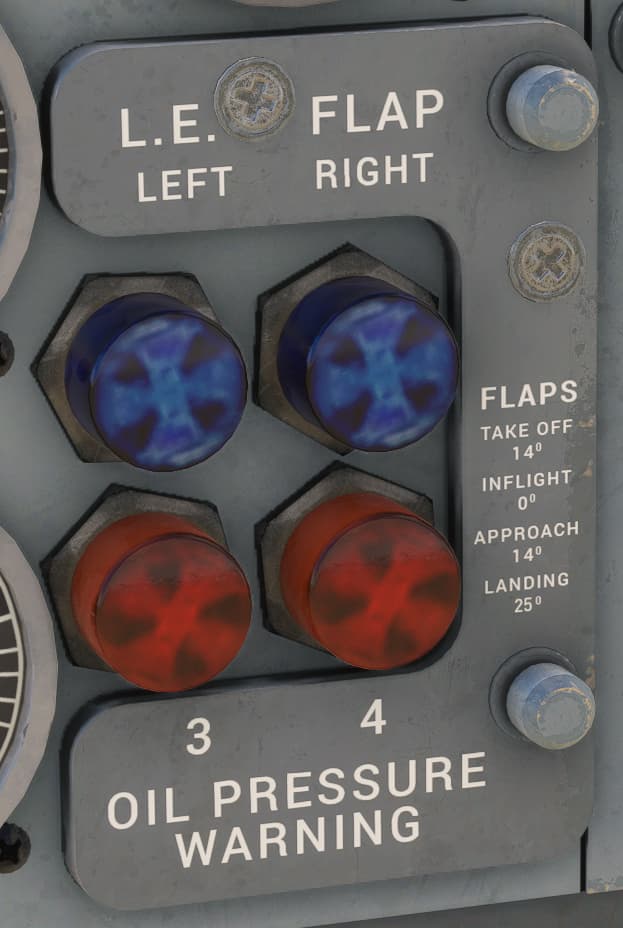

LE Flap Indicator when flaps are set to 0 degrees:

image712Ɨ930 54.1 KB

LE Flap indicator in any other flap configuration:
image623Ɨ928 45 KB

Detailed steps to reproduce the issue encountered:

Deploy flaps to where the manual indicated the LE flaps should be deployed (14 degrees). LE Flaps do not deploy.

PC specs and/or peripheral set up if relevant:

Not relevant

Build Version # when you first started experiencing this issue:

On release of 707 (9/24/2024)

:loudspeaker: For anyone who wants to contribute on this issue, Click on the button below to use this template:

Do you have the same issue if you follow the OPā€™s steps to reproduce it?

Provide extra information to complete the original description of the issue:

If relevant, provide additional screenshots/video:

3

This is a reminder that this thread is meant to serve as a bug topic, not a discussion topic. If you are experiencing this issue, please feel free to report your findings using the following template. In addition, if you find workarounds or processes that helped resolve the bug for you, please feel free to post about it, as it may help the teamā€™s investigation. Outside of this, please use an existing or new topic in the appropriate Discussion Hub or User Support Hub to discuss/assist others with this bug.

All other posts will be removed.

:loudspeaker: For anyone who wants to contribute on this issue, Click on the button below to use this template:

Do you have the same issue if you follow the OPā€™s steps to reproduce it?

Provide extra information to complete the original description of the issue:

If relevant, provide additional screenshots/video:

4

Do you have the same issue if you follow the OPā€™s steps to reproduce it?

Yes

Provide extra information to complete the original description of the issue:

Leading Edge (Krueger) Slats do not deploy at all at any flap setting. Blue lights for slats come on when flaps retracted. Manual suggests in images and text that they should be able to be deployed.

If relevant, provide additional screenshots/video:

https://forums.flightsimulator.com/t/famous-flyer-10-the-boeing-707-320c/656196/330?u=bragraindrop933

5

Do you have the same issue if you follow the OPā€™s steps to reproduce it?

Yes

Provide extra information to complete the original description of the issue:

Nothing to add.

If relevant, provide additional screenshots/video:

6

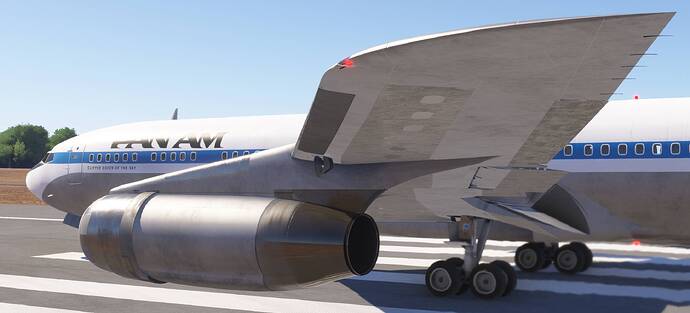

The LE flaps are deployed with the Pan Am livery if you load in as an Arrival at any airport. To do this, just click on an airport on the world map and click ā€œSet as Arrivalā€ and then click ā€œFlyā€.

The LE flaps are never able to be retracted in this situation, even if the flaps are completely up and then accelerating to extremely high speed.

7

Do you have the same issue if you follow the OPā€™s steps to reproduce it?

yes

Provide extra information to complete the original description of the issue:

Blue lights: wrong code in folder ModelBehaviorDefs, file B707_front.xml, NODE_IDs warn_flapfail_left and warn_flapfail_right.
Extend and retract: missing code to animate, although Simvars LEADING EDGE FLAPS LEFT PERCENT and LEADING EDGE FLAPS RIGHT PERCENT can be written to succesfully.
See mod: ā€œhttps://flightsim.to/file/83079/msfs-boeing-707-320c-leading-edge-flaps-animationā€.

If relevant, provide additional screenshots/video:

N/A

8

The mod mentioned above no longer works in SU4 it seems. So this is still a bug for the 707.

Also, the 707 is now ā€œunverifiedā€ on the My Library page for FS2024, and as an Aviator edition plane that seems like it has been mostly forgotten.

The 707 released with this bug over a year ago and it has still never been fixed. As in my original post, the manual for the aircraft it shows them working.

This is in my opinion the most important bug to fix for the 707 because it actually changes the flight dynamics for landing and taking off pretty drastically.

Why is it taking so long to solve this?

image2640Ɨ1201 175 KB
9

IMO itā€™s now abandonware. If it had not been for the FS2024 juggernaut releasing about a month after the 707, there may have been a window for fixing this. Now the original dev doesnā€™t seem to care and MS is too busy fixing FS2024 and launching the sim on PS5.

Too bad to hear that the even the community mod is now broken too in SU4. Although many users not on PC wouldnā€™t even have had access to the mod, so have never had working LE flaps.

All in all quite shocking but not surprising. But after a year Iā€™d say nothing is going to be forthcoming.

10

My hope is that because itā€™s part of the aviator edition it might make them take a second look, but I know there are many other planes in the aviator edition that are even more broken than this.

11

Thereā€™s a good reason I didnā€™t buy aviator edition. But itā€™s still disappointing to see them not even patch the glaring bug that is the LE flaps on the 707. Which even the devā€™s flight modeller said was working before release and hinted that the wrong version had been released. Itā€™s so frustrating as it is now ā€˜bug loggedā€™ status.

12

Jorg mentioned 70 aircraft are being updated for SU4. I really hope this is one of them, as itā€™s close to being enjoyable, if they get basic functionality like the LE flaps working.

13

I guess many aircraft patches could still be in the works, but Iā€™d love to see those aircraft fixes in the beta so we can test them out. I guess they donā€™t want to release so we can just check the base sim though. We shall see. On a not entirely unrelated issue, I wish we could see changelogs for updates without having to wait for sim update release notes. We should be able to click on My Library and the add on and an ā€˜infoā€™ section to see what changed from version to version.

14

Not working anymore with SU4 beta?

Currently, I keep using SU3. When SU4 final is released, I try to solve the issue and make a new version.

Meanwhile, binding some of your hardware controls to WASM calculator codes, you could control them:
ā€x (>A:LEADING EDGE FLAPS LEFT PERCENT,PERCENT)ā€ and ā€œx (>A:LEADING EDGE FLAPS RIGHT PERCENT,PERCENT)ā€, where x ranges from 0 (retracted) to 100 (fully extended).

15

I downloaded today an update for the FS2020 B707, from v0.1.25 to v0.2.0 (no details in the release notes).
The LE flaps deploy as expected (not sure if it has been fixed in a prior release) but blue lights still turn off when deployed and turn on when retracted.

16

In FS2024 the FS2020 version still says ā€˜unverifiedā€™ but it is at v0.2.0.

17

It was updated from v0.1.25 to v0.2.0 in FS2020.
Maybe in FS2024 version has also been updated today to v0.2.0 ?. More difficult to know since for the streamed aircraft they are automatically updated.

18

itā€™s v 0.2.0 too, just still says ā€˜unverifiedā€™ but thereā€™s a lot of fs2020 content that says that too. Maybe weā€™ll get details in SU4 release notes eventually.

19

Awesome, itā€™s fixed for me now. Plane flies great.

Only took about a year or so :joy:, but props to getting it updated :raising_hands:

20

Thanks for confirming !. The related issue that remains are the flaps blue lights that are inverted (correct me if I am wrong). Should be a new report :confused:
