Cessna T207A Autopilot is Unstable on VOR

[BigCow74]

Thank you for using the Bug section, using templates provided will greatly help the team reproducing the issue and ease the process of fixing it.

2 tags are required: One for platform, and one for aircraft.

Are you using Developer Mode or made changes in it?

No

Have you disabled/removed all your mods and addons? If the issue still occurs with no mods and add-ons, please continue to report your issue. If not, please move this post to the Community Support section.

Yes

Which aircraft are you reporting an issue about? (Please also add the proper tag for it)

Cessna T207A StationAir

Which aircraft version are you experiencing this issue on? (You can find this listed in the Content Manager under the Aircraft Name)

Latest as of 1.35.21.0 sim version.

Brief description of the issue:

Navigating in VLOC mode, NAV enabled, outbound 344 radial of OBK VOR. Airplane is unable to track and maintain the radial and weaves back and forth. It would seem the AP tuning is underdamped and needs some improvements.

Provide Screenshot(s)/video(s) of the issue encountered:

Detailed steps to reproduce the issue encountered:

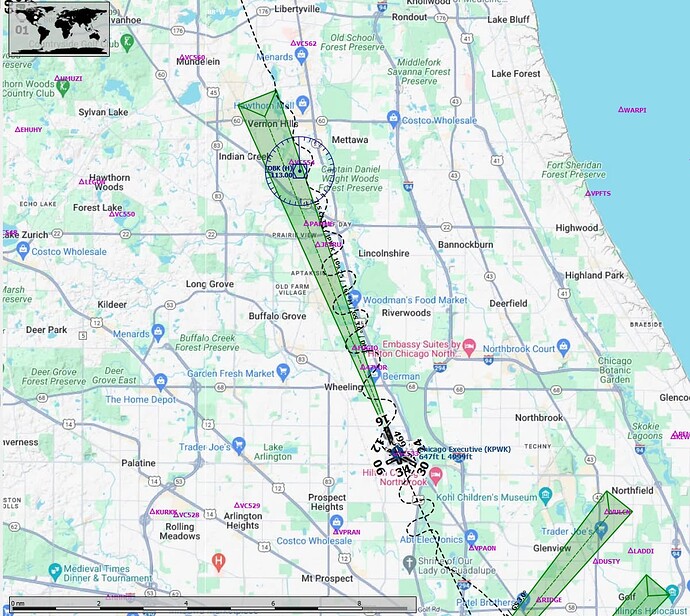

See description for details. Screenshot show flight path (dotted line).

PC specs and/or peripheral set up if relevant:

Not relevant.

Build Version # when you first started experiencing this issue:

1.35.21.0

---

For anyone who wants to contribute on this issue, Click on the button below to use this template:

Do you have the same issue if you follow the OP’s steps to reproduce it?

Provide extra information to complete the original description of the issue:

If relevant, provide additional screenshots/video:

[udidwht]

You switching from cockpit view to external view while in AP?

If so …

This is a confirmed Bug in Sim Update 12. Asobo said they fixed it in Sim Update 13, but unfortunately it looks like only fixed for G1000 planes. Many other planes still have this bug. Here is the original Sim Update 12 bug thread on this bug.

I think you will see that if you go back into cockpit mode, the autopilot catches up again.

[DementedCorn327]

Which autopilot is using the T207A ?
FYI there is an open topic for the external view issue when using the GNS530 AP:

Garmin GNS 530 external view autopilot bug

Thank you for using the Bug section, using templates provided will greatly help the team reproducing the issue and ease the process of fixing it. 2 tags are required: One for platform, and one for aircraft. Are you using Developer Mode or made changes in it? No Have you disabled/removed all your mods and addons? If the issue still occurs with no mods and add-ons, please continue to report your issue. If not, please move this post to the Community Support section. Yes Which aircr…

What I am seeing on OP screenshot looks different than the external view issue, the trajectory is making regular “S”.

[BigCow74]

@udidwht

You switching from cockpit view to external view while in AP?

No, I was in the cockpit watching it weave back and forth.

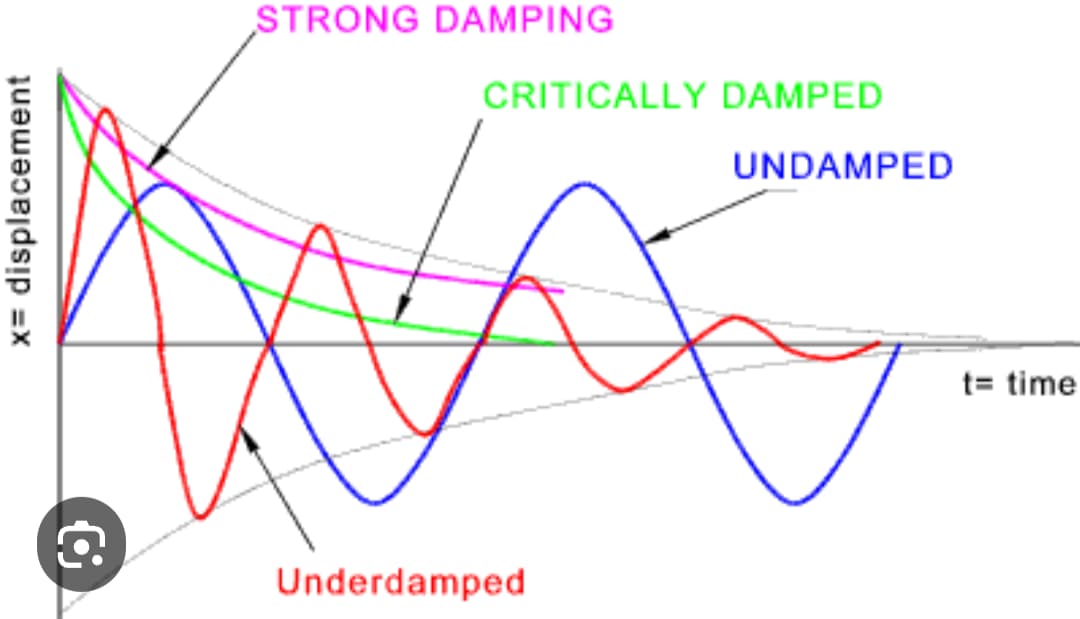

If I remember the bug you are referencing, it was AP not working at all when external. You would just fly off like in HDG mode. In my instance, NAV was working, just very poorly It has the classic symptoms of an under-damped control loop.
