DIY Autopilot panel from VIZIX

Discussion Hub Home Cockpit Builders
1

Came across this today on YouTube. A recent video of someone building a custom AP panel and demonstrating it on the FBW A320. Maybe he should put together a Kickstarter program to make it more widely available.

2 Likes
2

Thanks for sharing that information.

1 Like
3

DIY flight simulator panels have become somewhat ubiquitous. I don’t think kickstarter’s would do well at this point. Unless of course it’s a professional-grade low-cost solution

4

The push -button function to set managed modes in the Airbus planes is a nice feature. That’s something not possible with just control keybinds.

5

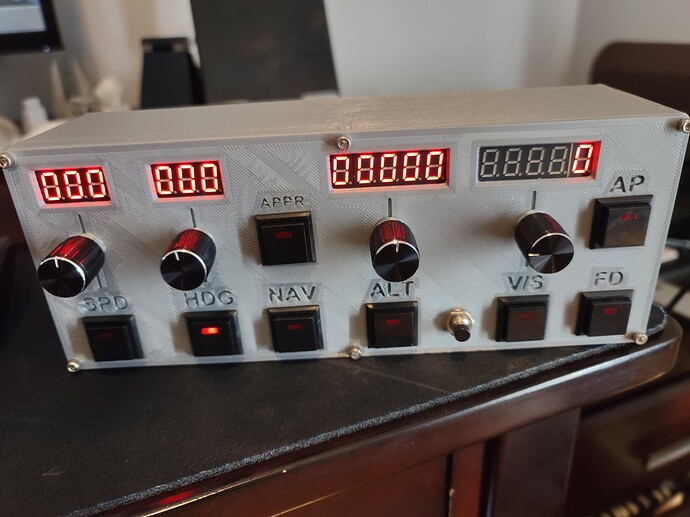

I bought one and it arrived today. Haven’t had a lot of time to put it through it’s paces but a quick flight in the FBW A320 went smoothly. I made one configuration change on the default A320 profile. More testing to come.

IMG_20220328_145040231
IMG_20220328_1450402311920Ă—1440 191 KB

6

BigCow74, please post your thoughts on this thanks.

7

Will do. I’d like to spend some more time with it and try it in a few planes.

It ships with three profiles (FBW A320, Aerosoft CRJ, and a “Generic Asobo” autopilot primarily for G1000 equipped planes).

I might try to put a profile together for the Salty B747 if MobiFlight has the 747 sim variables available. I haven’t looked into those details yet.

8

Kind of an old topic but I am strying to build one of these. Has anyone built one succesfully? I have a couple of very basic questions and was hoping someone could push me down the right path.

I have all the parts now. Starting in the upper right, when looking at the wiring diagram (from the back) it shows I need GND and 5v. Piece of cake with the bread board.

Then the first wire says it goes from the 7 segment display to D49. Then what? Doesn’t something have to connect to D49 other than the LED?

Does anyone have photos, a better wiring diagram or suggestions?

THANKS

9

You could probably ask the creator on his Discord server. I don’t think he does active development on it anymore but he seems to be still supportive.

10

Thanks for the response!

However, the link above says the invitation has expired or is invalid. I tried searching for the discord channel but didn’t dind anything.

How do I get an invite or verify the proper link?

Thanks!

11

It works OK for me!

1 Like
