motor ~$250
laser cutting with material ~$150

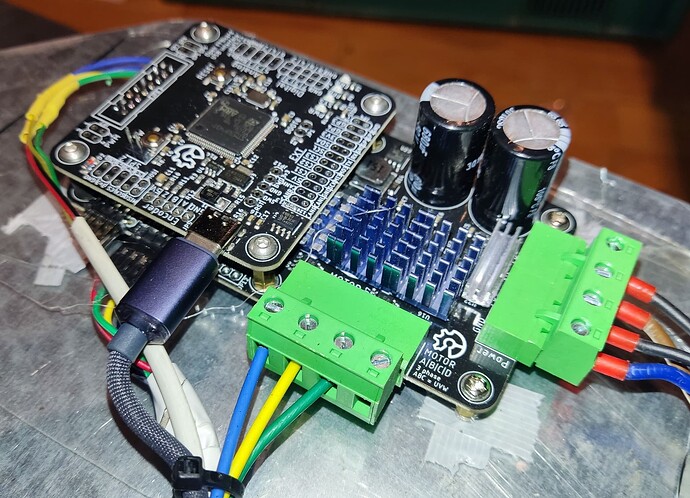

openFFBoard (with motor driver) $200

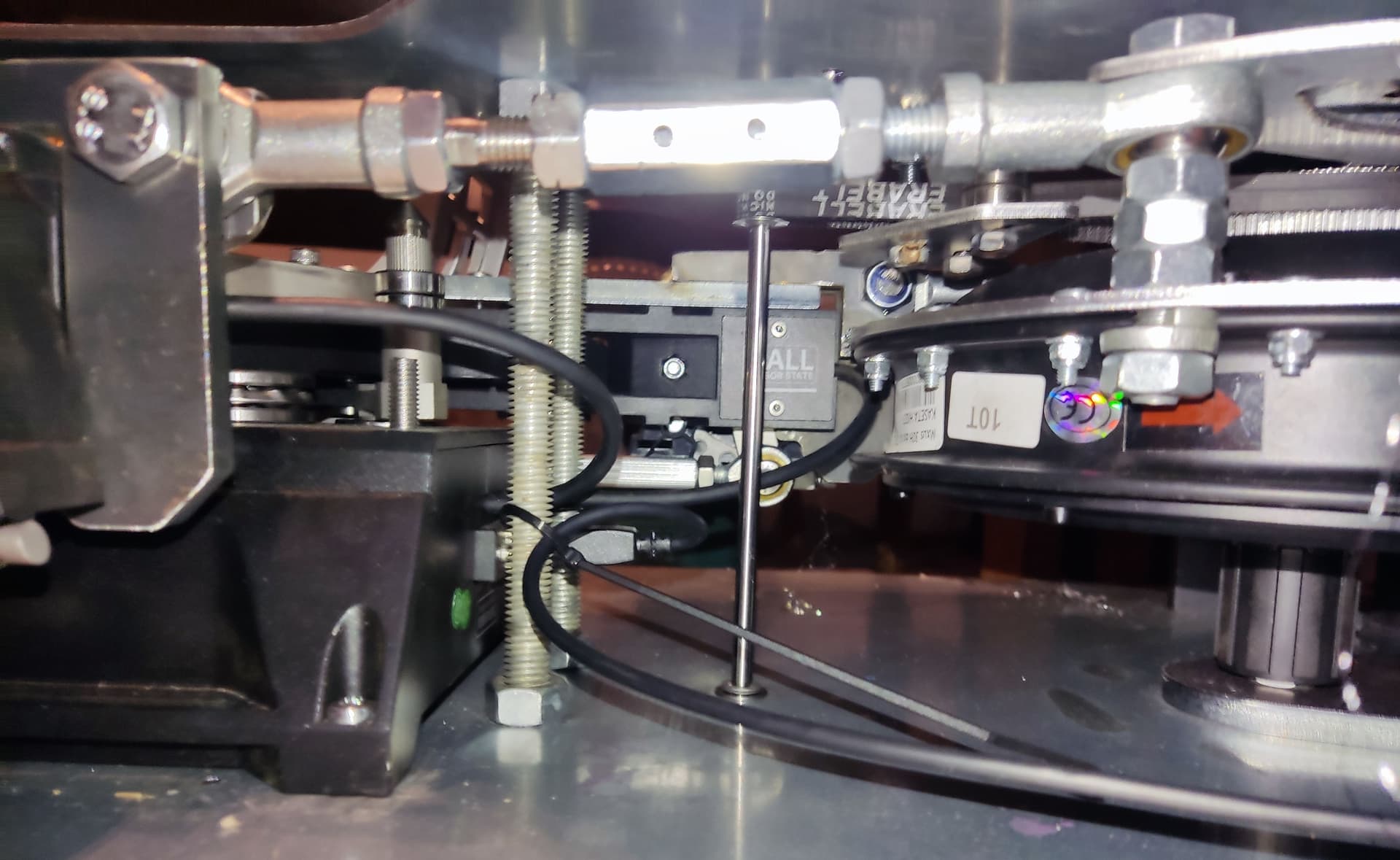

pulleys, timing belt, bearings, screws etc. ~100$
encoder + programmer ~15$
power supply ~$60, 48V 10A, (I have 24V 20A, and at 50% power max usage was 3A)

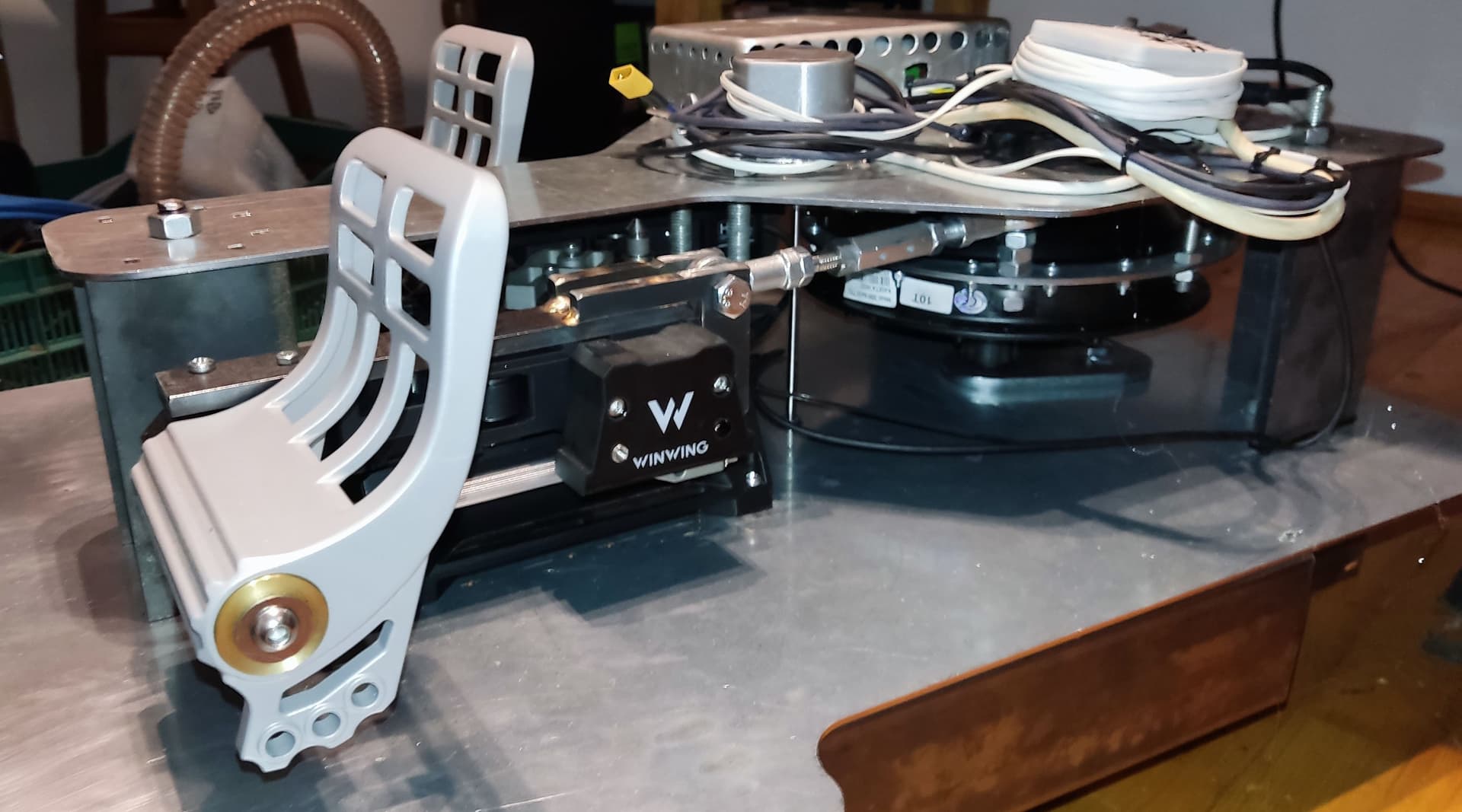

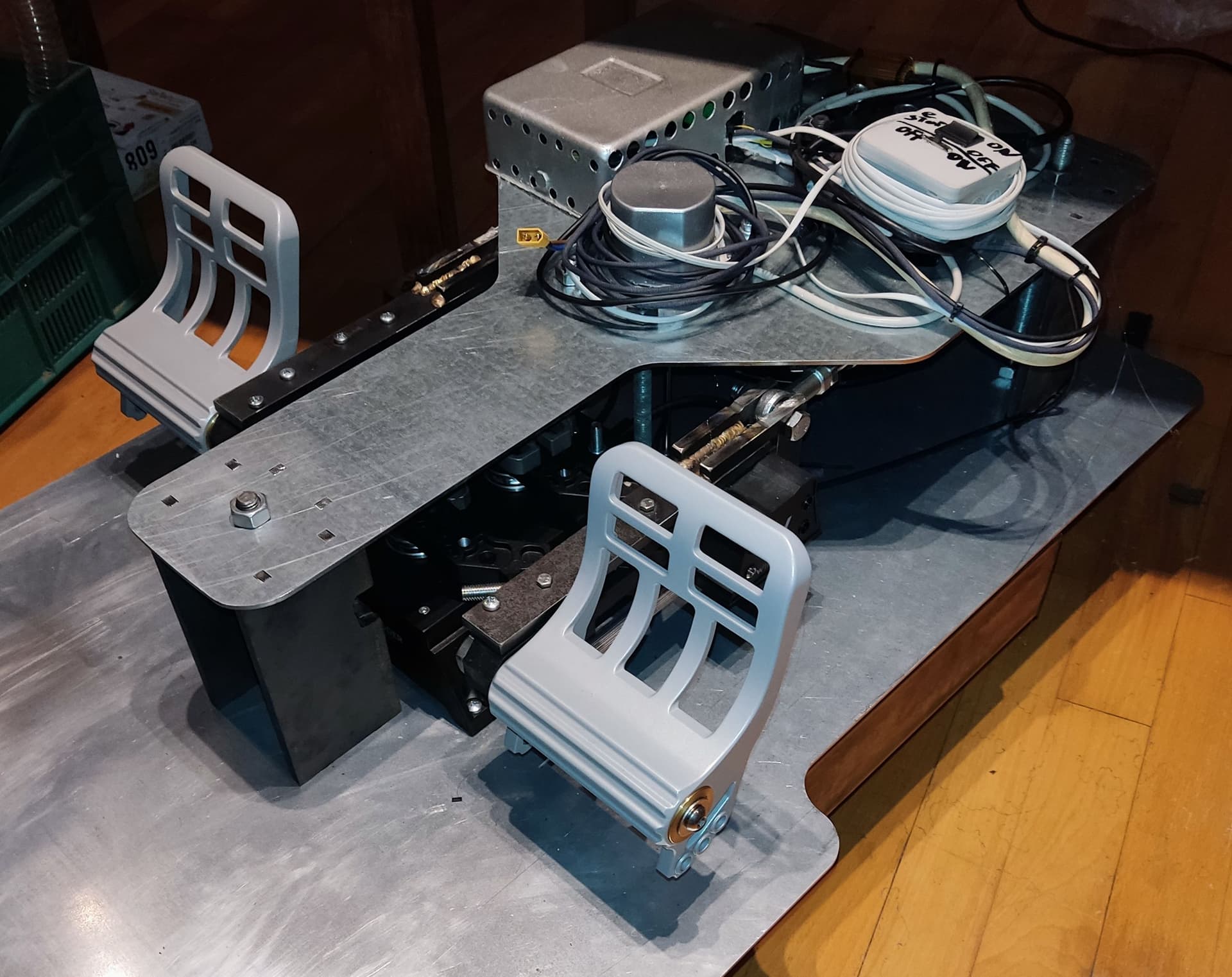

WinWing Orion rudders ~$300
works with xpforce ~$10 (if you use it for yoke/stick, it should work together, what I know some commercial yoke use xpforce)
tig brazing 30min (adapter plate on rudder pedals)
lathe work ~1hour (to modify pulleys, and make pocket for magnet for magnetic encoder)

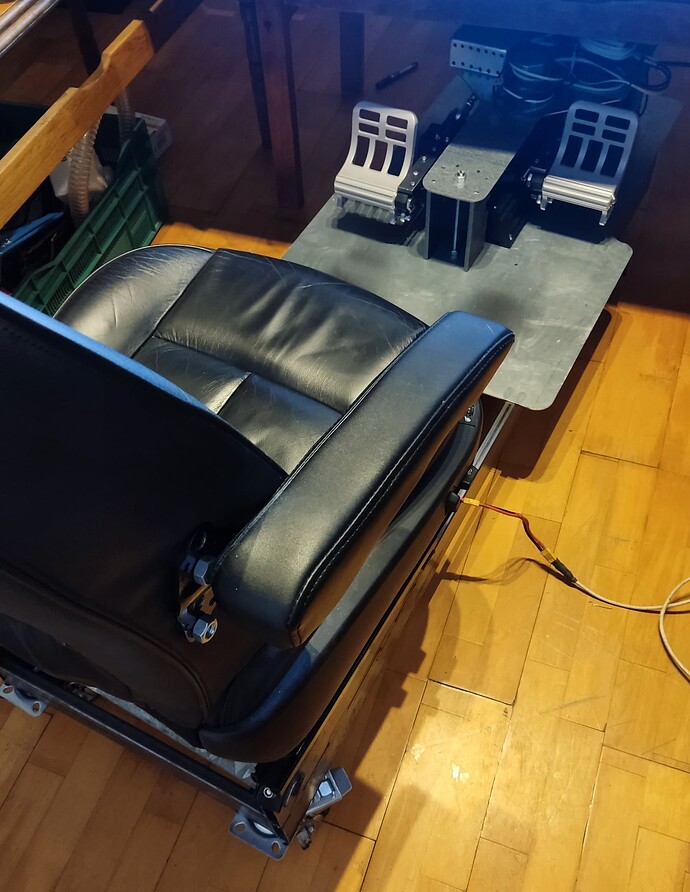

armchair (from car with electric adjust) +frame + ~250$
In to compare with stock WinWing they feel like them without spring and dumper at lowest (or neer to lowest) setting. completely smooth.
cogging/stickines are completely FREE.
and with software you can simulate as you want by FFB.
openffboard project have some years (for ffb wheels) so it’s quite mature in my opinion.
