GNS 530: how to change channel spacing from 25kHz to 8.33?

User Support Hub Aircraft & Systems
,
1

Hey all

How do I (in the default Asobo Cessna 172 (analogue!) with the GNS 530 change the Com channel spacing?
In Europe it needs to be 8.33… in the US 25kHz…
How do I change that?

Kind regards, Oliver

2

Does this article provide any help?
https://forums.flightsimulator.com/t/the-com-frequencies-are-at-6-25khz-spacing-not-the-expected-8-33khz/571432

3

Hi. No that’s not what I mean.
I wonder how to change it in the setup menue of the GNS 530… there somewhere I should be able to switch from 25khz to 8.33 and vise versa… But it can’t find it.

4

You need to use the large rotary to go to the “AUX” page,

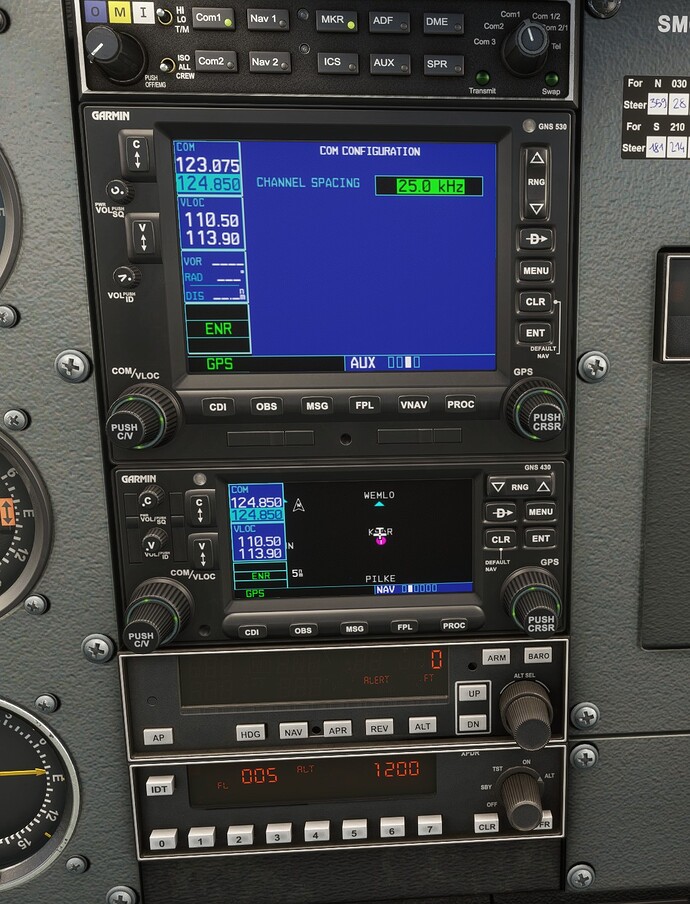

530 comm spacing change 1
530 comm spacing change 11325×1440 451 KB

then hit “PUSH CRSR” and use the large rotary to go to “COMM CONFIGURATION”, select it and get the channel spacing page

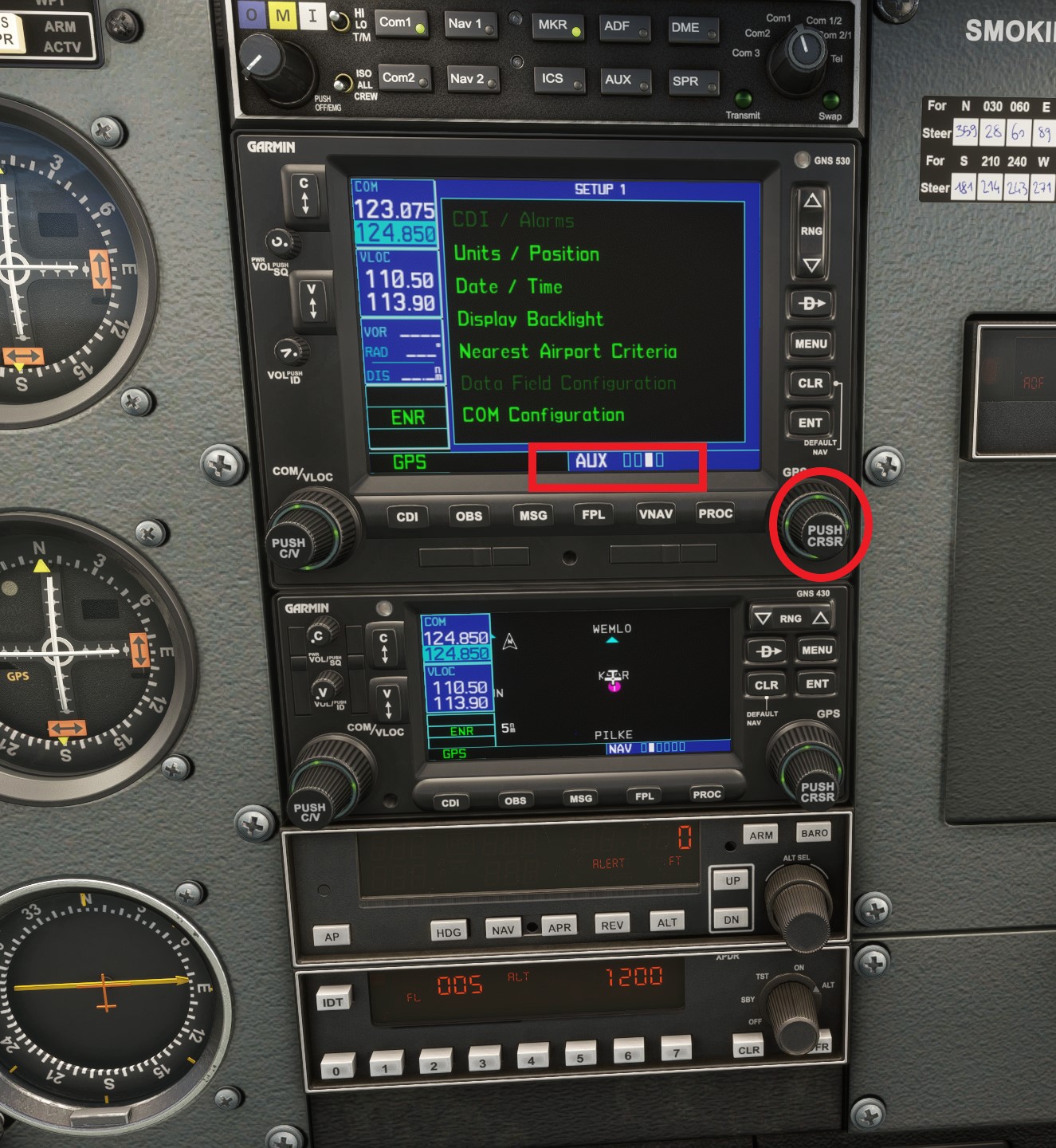

530 comm spacing 2
530 comm spacing 21099×1440 350 KB

Hit “ENT” and get the channel spacing page, and use small rotary to select the spacing you want and hit “ENT”.

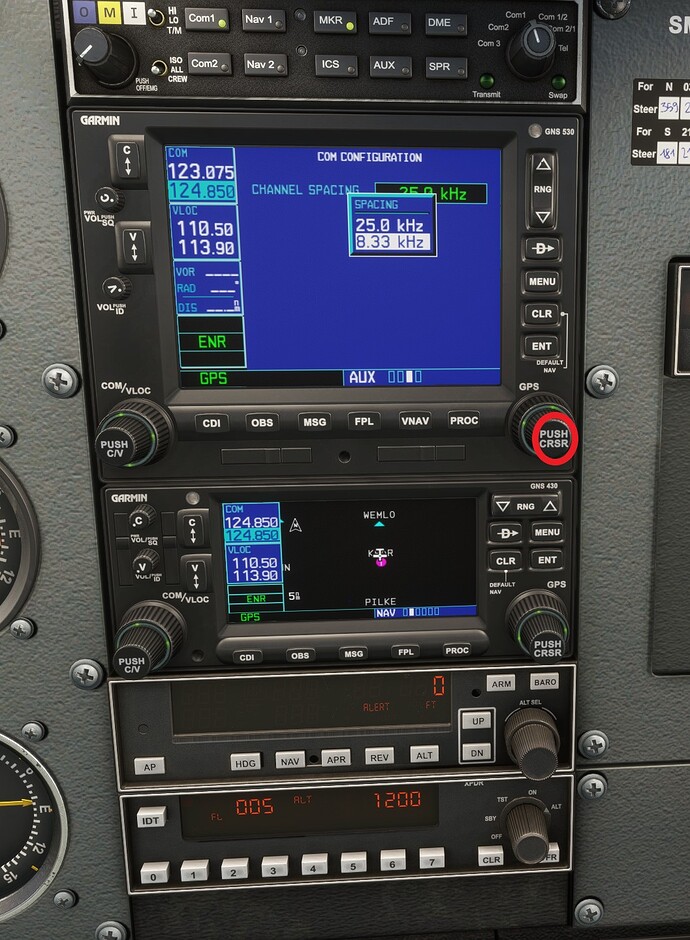

530 comm spacing 3
530 comm spacing 31057×1440 340 KB

Regards

1 Like
5

Perfect! Thanks a lot!!

1 Like
6

Is this permanently saved for all aircraft with GNS 530/430, or do you have to keep changing it again and again to 8.33? The standard is 25.0, but in Europe we have a 8.33 channel spacing.
