Logitech Saitek Pro Flight Rudder Pedals - how to make braking less "grabby"

[CaptainCoop779]

Hello Captains,… does anyone have a tip for the sensitivity setting on these pedals? I find the slightest toe pressure makes the brakes GRAB and the plane jerks to a halt.

If someone has a picture of these settings that I could reproduce, I would appreciate it? Thanks.

[HeikoJ2709]

Logitech pedals - braking anomoly

I had the exact same problem after building up a new system. And I think the solution was a full calibration of the rudder pedals (and brakes) under windows settings (devices and printers) although it seemed alright there.

Have a look!

[GaiideNinja]

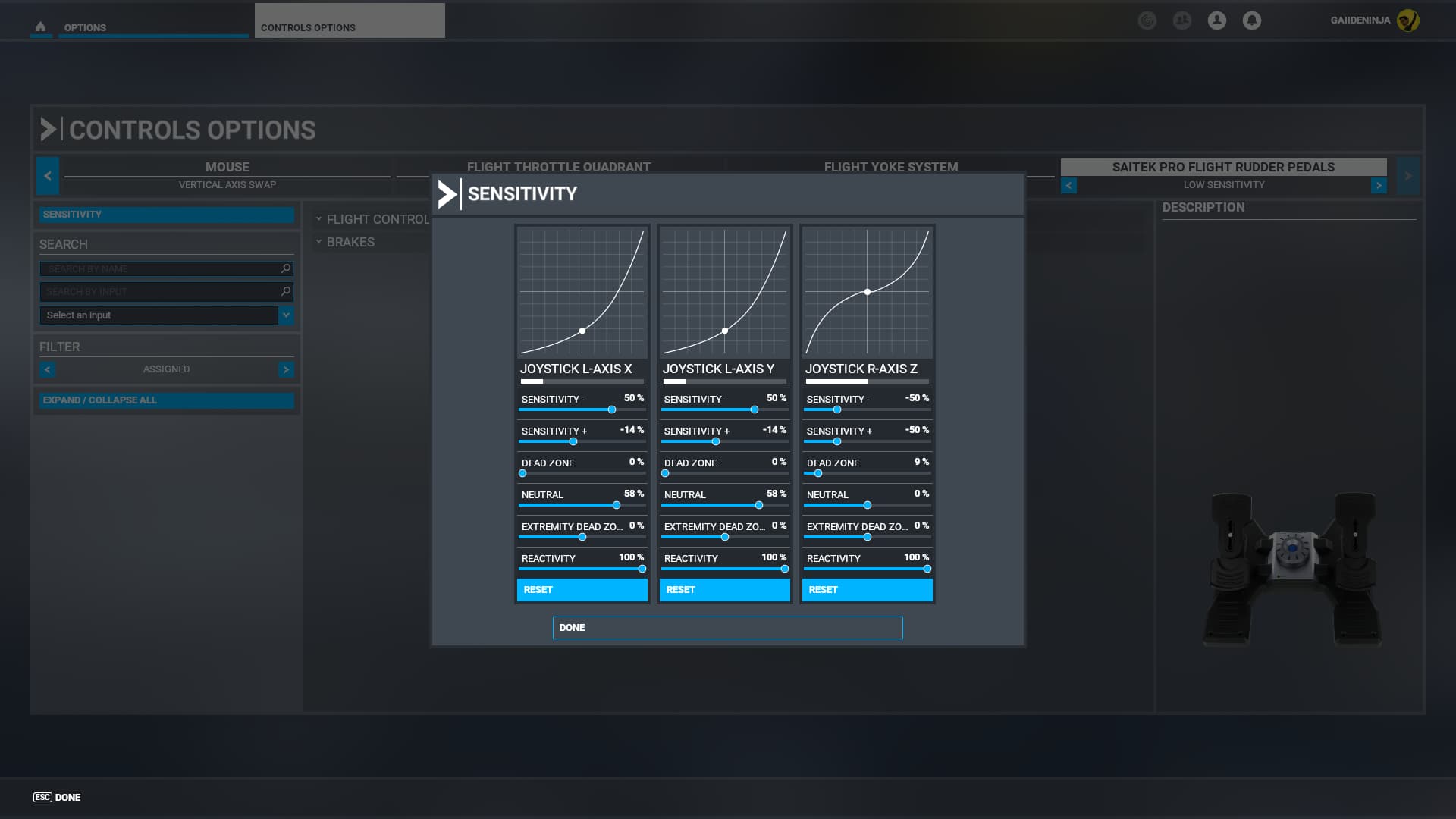

Still jerks down the P-38L despite my best efforts but even showing these curves to the devs they maintain that it just has huge brakes, which I suppose it does. Everything else I fly - 152, 172, TBM, D17, Optica, Cub, Icon, Goose, etc - they all feel very nice on the braking

[AlpineB4652]

In addition to the above setting suggestions, you can also:

• Put in an extermity deadzone (say negative -15 on the x-axis) to prevent unwanted braking when turning. This can increase the application of the brake (the line will get steeper), so throw in a curve.

• Reduce both the reactivity and sensitivity values to dampen the effect. This varies by aircraft for me but I have reactivity at 50.

It all helps, but they don’t have a smooth action. I’m gonna by getting Charlies as soon as I can!

[CaptainCoop779]

Thanks all… Much better, still somewhat aggressive, but controllable now. I followed @ GaiideNinja settings to start with. It could be a little more “softer” on braking, but these settings really helped. Thanks.

[JetWash1023]

FWIW I found all you need to change is the reactivity of all 3 axis to 40% and leave sensitivity as it is.

Everything feels much more realistic.

[CaptainCoop779]

Thanks - I just tried the Reactivity to 40% and that also seems to work, with about the same effect. So I’ll try keeping that and mess with sensitivity now…

[iamcanadian2756]

My Logitech pedals are in the crawl space. I have been using TFRP Thrustmaster for a while now Much better control. I could not get the Saitek RP to work well. I will wait and see about the new Charlie pedals coming out .

[SuperVertrix]

Guys, take a look at this post:

Logitech pedals - braking anomoly

I noticed this a while ago and tried adjusting everything to make it work right but no luck. I am using Logitech/Saitek Pro Flight Rudder Pedals. When viewing the braking function from the Windows game controllers properties, I see a smooth bar graph going from 0% to 100% as I gently apply brakes. As we would expect. But when I do the same inside MSFS (controller sensitivity graphs), applying the brakes shows it going from 0% to 50% instantly and then proper linear pressure from 50% to 100%. I…

It appears to be corrupted calibration data within Windows.
Read the thread, there’s a link to a registry file to clear the bad calibration data.
Following those instructions helped me. When I barely press the podals brakes, MSFS2020 would immediately register 50% depression of the brakes, after that a smooth curve from 50% to 100%

[EdamllamaB]

Going into Win10 USB device calibration and resetting to default might help.
