SimConnect and GPS Event IDs

SergioSS1956 · January 1, 2021, 8:27pm

Thank you very much, I really appreciate

hazbenz · January 1, 2021, 9:37pm

Just in case you are a Spad.Next user and are unaware - c0nnex has also created a WASM module that has all the same EventID’s/LVAR’s as MobiFlight. Just change to the Alpha channel and it will update. Then extract from the zip file and place in the Community folder (same process as MobiFlight). I have no doubt that he will automate this at some stage but that is the current process.

BOUBOU2175 · January 1, 2021, 9:40pm

Do you have a link ?

SergioSS1956 · January 1, 2021, 10:10pm

Very interesting

LikelyMatt · January 1, 2021, 10:51pm

Yeah, very interesting. I need to look this up.

hazbenz · January 1, 2021, 10:58pm

If you have Spad.Next then go into Settings - Application Settings - Expert and change the Update Channel to Alpha. Then restart Spad.Next and it will update. You do need a current subscription though!

If you don’t have Spad.Next you can get it Here.

If you don’t have Spad.Next then I can’t recommend it highly enough. It is my No.1 Add On

BOUBOU2175 · January 1, 2021, 11:01pm

Ok i have spadnext…
So, what will this add ? I mean, compare to mobiflight ?
Samething ?..

LikelyMatt · January 1, 2021, 11:10pm

Is there any documentation of this spad wasm?

hazbenz · January 1, 2021, 11:12pm

It is the same as MobiFlight’s WASM module (I assume they both have the same limitations in that the SimConnect SDK is not complete) except it comes with Spad.Next, so you don’t need to use yet another program. As both programs seem to do essentially the same thing and you’ve already got Spad.Next then it makes sense (to me) to stay with the one program, that’s all. Nothing extra - just convenience.

BOUBOU2175 · January 1, 2021, 11:19pm

Ok thank you

hazbenz · January 1, 2021, 11:20pm

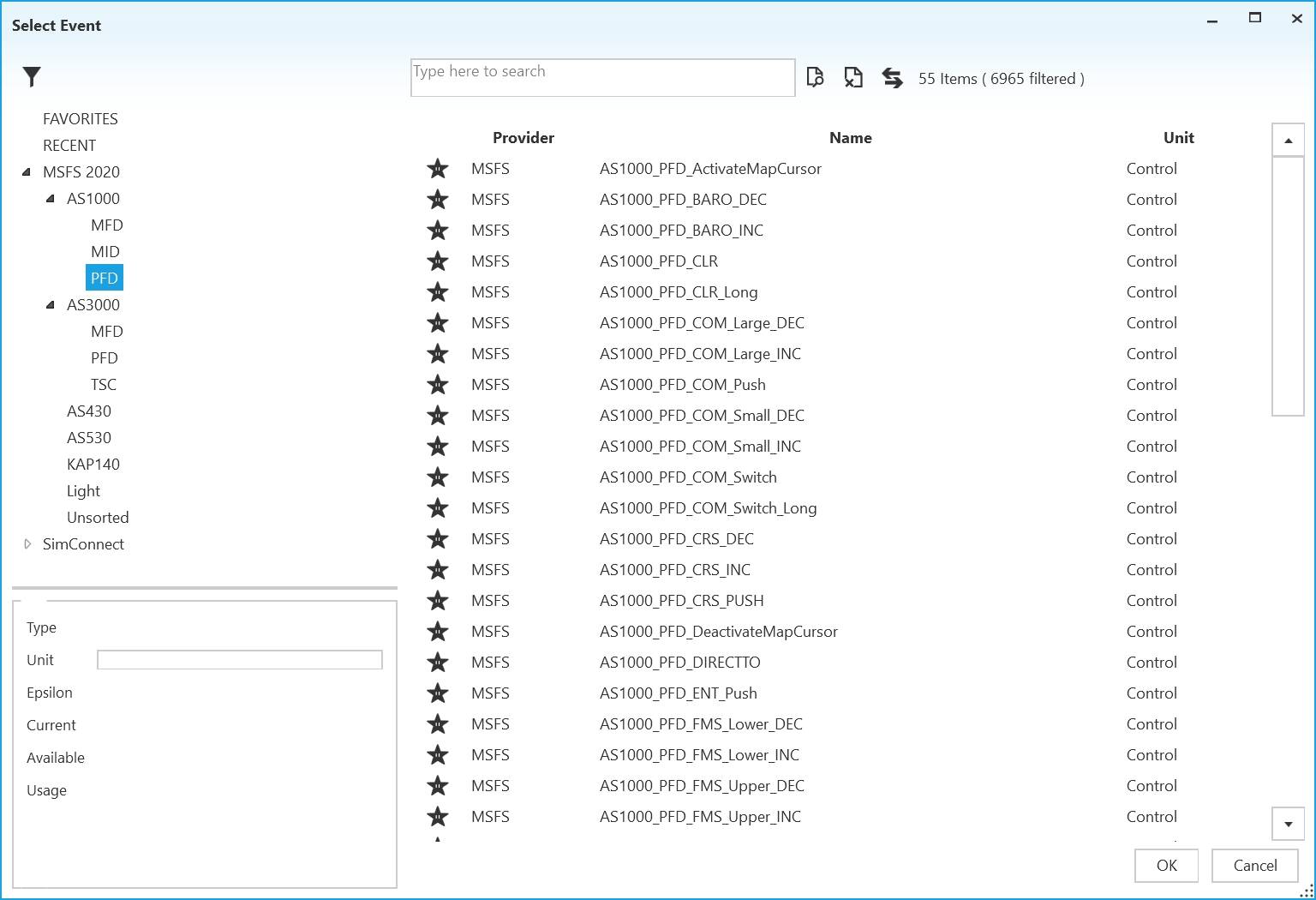

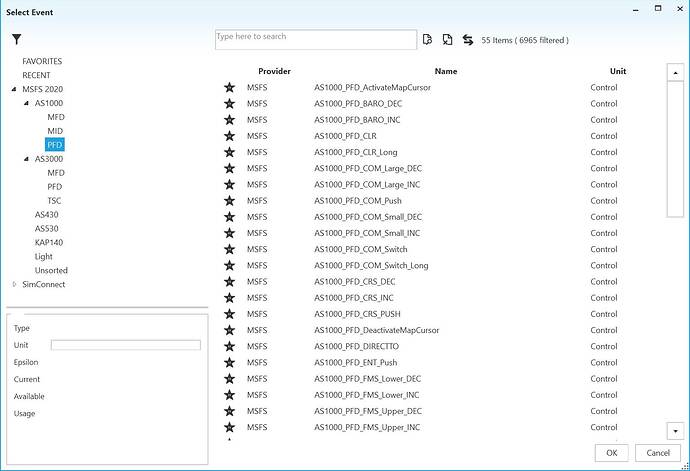

TBH I haven’t looked. I just go in and Add an Event to a button/switch/etc and use either the Search or Browse as you can see in the attached Image.

hazbenz · January 2, 2021, 12:48am

I should probably add that there are LVAR’s exposed for the FBW A320 as well when the A320 is loaded

BOUBOU2175 · January 2, 2021, 8:14pm

Where is that zip file with the wasm module ?..can’t find it

FlipperJeans470 · January 2, 2021, 9:36pm

No way…I wonder how much functionality I can get out of my mcp-pro and efis with this…gonna try it tonight…great find

FlipperJeans470 · January 2, 2021, 10:19pm

What zip? I updated Spad with beta update but i couldn’t find any files for the community folder.Thanks

hazbenz · January 2, 2021, 11:10pm

In the Spad.Next installation folder (NOT in Documents). In my case C:\SPAD.neXt\GamePlugins. I think it defaults to C:\Program Files (x86)\SPAD.neXt\GamePlugins. Look for SPAD.neXt.MSFS-Bridge.zip and unzip that (if you have MSFSBridge.zip in that folder IGNORE it). In the extracted zip folder copy/move/paste the folder “spad-bridge-module” (should be the only thing in there) into the Community folder. Voila!

BOUBOU2175 · January 2, 2021, 11:41pm

Working !
Thanks…
Is there a spadnext forum to follow these developments ?

hazbenz · January 3, 2021, 1:15am

https://www.spadnext.com/forum/ you need to register and sign-in to view everything. The best place though is on Discord (https://discord.gg/sRwcWkB).

BOUBOU2175 · January 3, 2021, 1:18am

Ok thank you

FlipperJeans470 · January 3, 2021, 3:17am

this is AMAZING, i now have my EFIS hardware working with the a320…now we’re talking baby, this sim just got a whole lot better. Thanks so much for pointing this all out!!
