Hi there. Thought some of you could find this useful.

Those are all of the configurations I have made to control the aircraft I possess.

Aircraft Full Name Edition Type # Eng. VelocityOne™ Mappings
Aero Vodochody L Series (39, 39C, 39MS) Reno Jets 1 Jet
Airbus A320neo Standard Airliners 2 Twin Jet
Aviat Pitts S Series, (1C, 1E, 1S, 2A, 2S, S-LNH) Reno Propellers 1 Single Basic - Type II
Boeing 747-8 Intercontinental Standard Airliners 4 Quad Jet
Boeing 787-10 Dreamliner Premium Deluxe Airliners 2 Twin Jet
Boeing F/A 18E/F Super Hornet GOTY Edition Jets 2 Twin Jet
Cirrus SR22 Premium Deluxe Propellers 1 Single Advanced
CubCrafters NXCub GOTY Edition Propellers 1 Single Advanced - Type III
CubCrafters X Cub Standard Propellers 1 Single Advanced - Type III
Daher TBM 930 Standard Turboprops 1 Single Turbo Props
Diamond Aircraft DA40 TDI Deluxe Propellers 1 Single Advanced
Diamond Aircraft DA40NG Standard Propellers 1 Single Advanced
Diamond Aircraft DA62 Standard Propellers 2 Twin Turbo Props
Diamond Aircraft DV20 Deluxe Propellers 1 Single Advanced
Extra 330LT Standard Propellers 1 Single Advanced - Type II
Flight Design CTSL Standard Propellers 1 Single Advanced
ICON A5 Standard Propellers 1 Single Advanced
JMB Aircraft VL-3 Standard Propellers 1 Single Advanced
McDonnel Douglas Orbis Flying Eye Hospital Standard Airliners 2 CANNOT FLY
North American Aviation AT Series (6, 6A, 6B, 6D) Reno Propellers 1 Single Advanced
North American Aviation F-51D Reno Propellers 1 Single Advanced
North American Aviation P-51 Series (A, D) Reno Propellers 1 Single Advanced
North American Aviation SNJ Series (4, 5) Reno Propellers 1 Single Advanced
North American Aviation T Series (6, 6G) Reno Propellers 1 Single Advanced
Pilatus PC-6 GOTY Edition Turboprops 1 Single Turbo Props
Pipistrel Virus SW121 Premium Deluxe Propellers 1 Single Advanced
Robin Cap10 Standard Propellers 1 Single Basic - Type II
Robin DR400/100 Standard Propellers 1 Robin DR400/100
Textron Aviation Beechcraft Baron G58 Deluxe Propellers 2 Twin Turbo Props
Textron Aviation Beechcraft Bonanza G36 Standard Propellers 1 Single Advanced
Textron Aviation Beechcraft King Air 350i Standard Turboprops 2 Twin Turbo Props
Textron Aviation Cessna 152 Standard Propellers 1 Single Basic
Textron Aviation Cessna 152 Acrobat Deluxe Propellers 1 Single Basic
Textron Aviation Cessna 172 Skyhawk Deluxe Propellers 1 Single Basic
Textron Aviation Cessna 172 Skyhawk (G1000) Standard Propellers 1 Single Basic
Textron Aviation Cessna 208 B Grand Caravan EX Standard Turboprops 1 Single Turbo Props
Textron Aviation Cessna Citation CJ4 Standard Jets 2 Twin Jet
Textron Aviation Cessna Citation Longitude Premium Deluxe Jets 2 Twin Jet
Volocity Volocity GOTY Edition Heli-Taxi 18 Volocity
Zlin Aviation Savage Cub Standard Propellers 1 Single Advanced
Zlin Aviation Shock Ultra Premium Deluxe Propellers 1 Single Advanced

Along with the mappings themselves :

Button(s) and/or Axis Jet Quad Jet Single Advanced - Type II Robin DR400/100 Single Advanced - Type III Single Advanced Single Basic - Type II Volocity Single Basic Single Turbo Props Twin Jet Twin Turbo Props
L-Axis 4 Yoke ⇆ Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis
L-Axis 3 Yoke ⇅ Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis
L-Axis 2 LT Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out
L-Axis 2 RT Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In
L-Axis 11 Trim Wheel Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis
L-Axis 1 Quadrant Lever 1 Spoilers Axis Spoilers Axis Throttle 1 Axis Throttle 1 Axis Throttle 1 Axis Throttle 1 Axis Throttle 1 Axis Throttle 1 Axis Spoilers Axis Throttle 1&2 Axis
L-Axis 5 Quadrant Lever 2 Throttle 1 Axis Throttle 1&2 Axis Propeller 1 Axis Propeller 1 Axis Propeller 1 Axis Propeller 1 Axis Throttle 1 Axis Propeller 1&2 Axis
L-Axis 6 Quadrant Lever 3 Throttle 3&4 Axis Mixture 1 Axis (-100 TO 100%) Mixture 1 Axis (-100 TO 100%) Condition Lever 1 Axis Throttle 2 Axis Condition Lever 1&2 Axis
L-Axis 7 Quadrant Lever 4 Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis
L-Axis 8 Throttle Lever Throttle 1 Axis Throttle Axis Throttle 1 Axis
L-Axis 9 Propeller Lever Propeller 1 Axis
L-Axis 10 Mixture Lever Mixture 1 Axis (-100 TO 100%) Mixture 1 Axis (-100 TO 100%) Mixture 1 Axis (-100 TO 100%) Mixture 1 Axis (-100 TO 100%)
Button 1 A Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master
Button 2 B Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold
Button 3 X Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold
Button 4 Y Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold
Button 5 LB
Button 6 RB
Button 7 View Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External
Button 8 Menu
Button 9 B1 Toggle Afterburners 1&2
Button 10 B2 Reset View Reset View Reset View Reset View Reset View Reset View Reset View Reset View Reset View Reset View Reset View Reset View
POV Gauche POV-1 Quick View Quick View Quick View Quick View Quick View Quick View Quick View Quick View Quick View Quick View Quick View Quick View
Buttons 15-22 POV-2 Free Look Free Look Free Look Free Look Free Look Free Look Free Look Free Look Free Look Free Look Free Look Free Look
Button 23 HAT-1 ↑
Button 24 HAT-1 → Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right
Button 25 HAT-1 ↓ Hold Throttle Reverse Thrust Hold Throttle Reverse Thrust Hold Throttle Reverse Thrust Hold Throttle Reverse Thrust Hold Throttle Reverse Thrust
Button 26 HAT-1 ← Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left
Button 27 HAT-2 ↑ Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View
Button 28 HAT-2 → Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right
Button 29 HAT-2 ↓ Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View
Button 30 HAT-2 ← Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left
Button 31 B3 Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights
Button 32 B4 Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes
Button 33 B5 Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights
Button 34 B6 Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights
Button 35 B7 Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights
Button 36 B8 Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights
Button 37 B9 Master Battery & Alternator ON, APU Start Master Battery & Alternator ON Master Battery & Alternator ON Master Battery & Alternator ON, Magnetos BOTH Master Battery & Alternator ON Master Battery & Alternator ON Master Battery & Alternator ON, Fuel Valve ON
Button 38 B10 Magnetos Start Magnetos Start Magnetos Start Magnetos Start Magnetos Start Magnetos Start
Button 39 B11 Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up
Button 40 B12 Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down
Button 9 + Button 40 Toggle Water Rudder Toggle Water Rudder Toggle Water Rudder Toggle Water Rudder Toggle Water Rudder Toggle Water Rudder Toggle Water Rudder
12 Likes
2

Maybe the most immensely helpful post I’ve ever seen on this forum. Kudos to you for putting all of this together and sharing it.

3 Likes
3

Thanks for the feedback - I do hope it will help you. That was the goal! :wink:

4

Very useful even for other controllers to see what you need to map for different types of planes - easy to find the equivalent input because of the logical layout and good descriptions. :+1:

1 Like
5

Hey guys, with version 1.1.0 we can use the reverse on the detent. Now that stopped working for me since yesterday. In training mode does not show up, in game does not show up… it is just like in the previous version. Am I alone with this one? Does anybody else have the issue?

6

It is a known bug. You need to exit the FS, unplug the V1F, after a few seconds plug it back in, and restart FS.
The detent button is not shown in training mode. It shows instead your last pressed button, independent which detent button you use.

7

You’re right, @Bruchpilot3550 !

Although recently, I have skipped the “quit MSFS” part - and it still works!

Hopefully it does for you, too.

I’m on Xbox…

8

Do you have your grid in excel format?

9

Actually, not anymore. I, myself, use this HTML table for reference. :wink:

10

Excellent. You and I clearly think on similar lines. I have developed a series of spreadsheets that have similar information. I am now going to do a detailed comparison of your aircraft profile groupings (and button assignments) and mine to see how they compare. A cursory look suggests there are many similarities. As a novice simmer myself I have been guided by the YT videos of Simhanger, Huddison etc.

2 Likes
11

Excellent! Let’s share ideas. Thanks for feedback.

1 Like
12

Thanks very much for the very useful information you posted regarding the V1F profiles and settings for your planes and agreeing to "share ideas”.

I have now completed converting your HTML table into two Excel worksheets (V1 Planes & Profiles and V1 Assignments). I will try to load it onto the forum. On each of the spreadsheets I have added my planes and their settings for comparison purposes. I have also added a further worksheet (Flybeeson Hangar) which shows my planes, which were based on the Standard version of MSFS 2020 augmented by 5 aircraft recently purchased on the Market Place.

What struck me was how similar your V1 Assignments are to mine, but there are some notable differences.

Single Basic

  1. You clearly have Rudder Pedals whereas I am using the V1F Yoke Trigger and Bumper switches for rudder and brakes. Consequently you have assigned your Triggers for zooming in and out.
  2. My Buttons 2 & 4 for Autopilot Heading Hold and NAV1 Hold are simply reversed on your set up.
  3. Our Camera Buttons are a bit different here and there, but this is very much a matter of personal preference. I am not sure I am completely happy with mine so may try switching to some of yours.
  4. I have buttons for Active Pause (37) and Pause returning to the menu (8); which you don’t have.
  5. You have buttons for Magnetos Start (38) and Toggle Water Rudder (9+ 40) which I don’t have. How does the Toggle Water Rudder work? Presumably you only use it when flying planes with floats!
  6. I have Button 38 for Tail Wheel Lock as I fly several "tail draggers”.

Single Advanced

  1. The main difference here is that you have generally switched to using the Quadrant levers whereas I have stuck with the Vernier style levers. Would that be because you find the QLs to be more authentic for these planes?
  2. You have 4 profiles for Single Advanced whereas I only have 1. Also in some cases you have mixed Quadrant and Vernier controls. Do you think there is an advantage in having more profiles? (Another approach is to construct profiles for the more complex planes, or say planes with more engines, and then the less complex ones simply don’t use the extra facility).

Turbo Props and Jets

Apart from the differences already mentioned under Single Basic there are no real differences here between our profiles.

Kind Regards,

Alan Davies (Flybeeson)

2 Likes
13

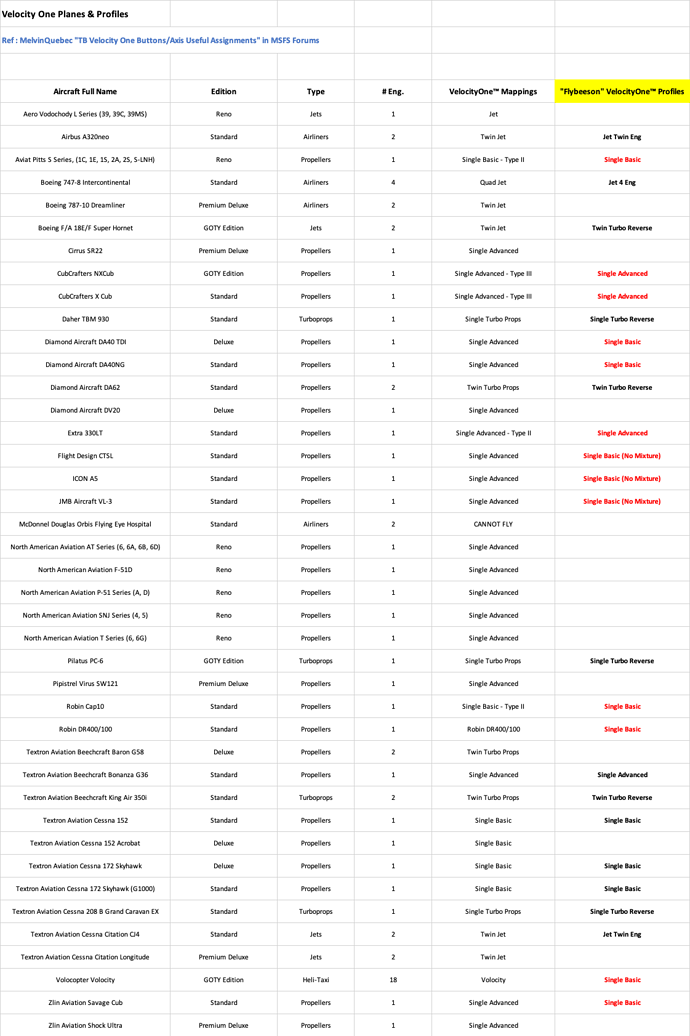

MQ V1F Planes
MQ V1F Planes1121×1684 155 KB

1 Like
14

Sorry this spreadsheet is unreadable on the screen but OK if downloaded. I converted the excel spreadsheet to a png file, but clearly it hasn’t worked very well. Please contact me with your email address if you would like the other spreadsheets and I will be happy to send them to you.

15

hello good evening, I would like you to share with me your settings, my e-mail: domingo.praesto@gmail.com
Thanks a lot.

16

Glad you got the spreadsheet with the settings etc.

17

Hi there!

First, SORRY for my belated answer - and thank you so much for having deep-dived in my settings. I did make some modifications since this initial version - so here it is. Hopefully, it is easier to figure out the settings name and applications.

Here is my response to your questions :

  1. Indeed, I use my T.Flight HOTAS One (ThrustMaster) Rudder Pedals
  2. Good observation - I also found mismatches in my own - maybe some still remain but I think it’s a bit better, now
  3. My left POV is for the “default” views whereas my Right POV is for the “freelook” version - I do prefer this (more realistic since I do not have access to VR)
  4. My startup buttons are now (for most planes) toggles - which I prefer. As for the Water Rudder, it is simply useless on planes without it - so I leave the key assignment there. Water Rudders allow you to turn on water more efficiently.
  5. I also love to fly tail draggers - but I did not know there was such a function. I merely tried to pull on the yoke/stick as they seem to be doing in the real life - but I wasn’t satisfied with my results. THANKS! I’ll try that.

Attached is my actual version of buttons assignments - hopefully you’ll still find it useful. I also attach the airplanes along with their associated yoke configuration.

Button(s) and/or Axis Jet Quad Jet Single Hybrid Type IV Single Hybrid Type III Single Hybrid Type II Single Levers Universal Single Hybrid Type I Volocity Single Verniers Universal Single Levers Universal Twin Jet Twin Levers Universal
L-Axis 4 Yoke ⇆ Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis Aileron Axis
L-Axis 3 Yoke ⇅ Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis Elevator Axis
L-Axis 2 LT Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out Zoom Out
L-Axis 2 RT Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In Zoom In
L-Axis 11 Trim Wheel Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis Elevator Trim Axis
L-Axis 1 Quadrant Lever 1 Spoilers Axis Spoilers Axis Throttle 1 Axis Throttle 1 Axis Throttle 1 Axis Throttle 1 Axis Throttle 1 Axis Throttle 1 Axis Spoilers Axis Throttle 1&2 Axis
L-Axis 5 Quadrant Lever 2 Throttle 1 Axis Throttle 1&2 Axis Propeller 1 Axis Propeller 1 Axis Propeller 1 Axis Propeller 1 Axis Throttle 1 Axis Propeller 1&2 Axis
L-Axis 6 Quadrant Lever 3 Throttle 3&4 Axis Mixture 1 Axis (-100 TO 100%) Mixture 1 Axis (-100 TO 100%) Condition Lever 1 Axis Throttle 2 Axis Condition Lever 1&2 Axis
L-Axis 7 Quadrant Lever 4 Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis Flaps Axis
L-Axis 8 Throttle Vernier Throttle 1 Axis Throttle Axis Throttle 1 Axis
L-Axis 9 Propeller Vernier Propeller 1 Axis
L-Axis 10 Mixture Vernier Mixture 1 Axis (-100 TO 100%) Mixture 1 Axis (-100 TO 100%) Mixture 1 Axis (-100 TO 100%) Mixture 1 Axis (-100 TO 100%)
Button 1 A Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master Autopilot Master
Button 2 B Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold Autopilot NAV1 Hold
Button 3 X Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold Autopilot Altitude Hold
Button 4 Y Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold Autopilot Heading Hold
Button 5 LB
Button 6 RB
Button 7 View Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External Cockpit/External
Button 8 Menu
Button 9 B1 Toggle Afterburners 1&2
Button 10 B2 Reset View Reset View Reset View Reset View Reset View Reset View Reset View Reset View Reset View Reset View Reset View Reset View
POV Gauche POV-1 Quick View Quick View Quick View Quick View Quick View Quick View Quick View Quick View Quick View Quick View Quick View Quick View
Buttons 15-22 POV-2 Free Look Free Look Free Look Free Look Free Look Free Look Free Look Free Look Free Look Free Look Free Look Free Look
Button 23 HAT-1 ↑ Hold Propeller Reverse Thrust Hold Propeller Reverse Thrust
Button 24 HAT-1 → Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right Rudder Trim Right
Button 25 HAT-1 ↓ Hold Throttle Reverse Thrust Hold Throttle Reverse Thrust Hold Throttle Reverse Thrust Hold Throttle Reverse Thrust Hold Throttle Reverse Thrust
Button 26 HAT-1 ← Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left Rudder Trim Left
Button 27 HAT-2 ↑ Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View Toggle Instrument View
Button 28 HAT-2 → Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right Aileron Trim Right
Button 29 HAT-2 ↓ Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View Next Instrument View
Button 30 HAT-2 ← Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left Aileron Trim Left
Button 31 B3 Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights Nav Lights
Button 32 B4 Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes Parking Brakes
Button 33 B5 Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights Beacon Lights
Button 34 B6 Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights Taxi Lights
Button 35 B7 Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights Strobe Lights
Button 36 B8 Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights Landing Lights
Button 37 B9 Master Battery & Alternator ON, APU Start Master Battery & Alternator ON Master Battery & Alternator ON Master Battery & Alternator ON, Magnetos BOTH Master Battery & Alternator ON Master Battery & Alternator ON Master Battery & Alternator ON, Fuel Valve ON
Button 38 B10 Magnetos Start Magnetos Start Magnetos Start Magnetos Start Magnetos Start Magnetos Start
Button 39 B11 Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up Gear Up
Button 40 B12 Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down Gear Down
Button 9 + Button 40 Toggle Water Rudder Toggle Water Rudder Toggle Water Rudder Toggle Water Rudder Toggle Water Rudder Toggle Water Rudder Toggle Water Rudder
18

And here is the file in which I “categorize” all planes…
My data might be OFF (V-speeds) but I’m trying… :wink:

Takeoff Speeds Stall Speeds In-Flight Speeds Landing Speeds
Vr Vy Vx Vso Vs1 Vfe Vno Vne Va Vg Vs
1 2 3 4 6 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43
Aircraft Full Name Edition Type # Eng. T.Flight HOTAS One Mappings NEW VelocityOne™ Mappings Max Alt. Endurance Range Rotation (takeoff) speed Best climb rate Best climb angle Flaps Fully Extended Gears and Flaps Retracted Maximum Flaps Extended speed Normal Operating Speed Never Exceed Speed Maneuvering Speed Cruise Speed Best Glide Speed Landing speed Airplane Basic MAXIMUM Weight Airplane Basic Empty Weight Pilot / Co-Pilot Fuel Load (gal.) Cargo or Passengers Max. Zero Fuel Weight Fuel Load (lbs) Ramp Condition Less 5% Fuel for start, taxi & takeoff Max Takeoff Weight Travel Duration (hrs) Fuel Burn Rate (gal per hr) Fuel Burn Rate (gal per nm) Less fuel to destination (gal) Less fuel to destination (lbs) Landing Condition
Aero Vodochody L Series (39, 39C, 39MS) Reno Jets 1 Jet Jet 36 000 Ft 2 Hr 590 NM 405 KTAS 10 360.0 7 485.0 340.0 337.0 513.0 8 675.0 2 022.0 10 697.0 -101.1 10 595.9 2.0 168.5 0.6 337.0 -2 022.0 8 573.9
Airbus A320neo Standard Airliners 2 Twin Jet Twin Jet 39 800 Ft 7 Hr 3 500 NM 115 KTAS 280 KTAS 220 KTAS 455 KTAS 135 KTAS 174 165.0 90 400.0 340.0 7 000.0 41 425.0 139 165.0 42 000.0 181 165.0 -2 100.0 179 065.0 7.0 1 000.0 2.0 7 000.0 -42 000.0 137 065.0
Aviat Husky A-1C Mario Propellers 1 Not Configured Single Hybrid Type IV 20 000 Ft 4 Hr 695 NM 91 KTAS 2 250.0 1 275.0 340.0 52.0 323.0 1 990.0 312.0 2 302.0 -15.6 2 286.4 4.0 13.0 0.1 52.0 -312.0 1 974.4
Aviat Pitts S Series, (1C, 1E, 1S, 2A, 2S, S-LNH) Reno Propellers 1 Single Engine - Type II Single Hybrid Type I 15 000 Ft 2 Hr 298 NM 51 KTAS 150 KTAS 51 KTAS 1 150.0 720.0 340.0 20.0 -30.0 1 050.0 120.0 1 170.0 -6.0 1 164.0 2.0 10.0 0.1 20.0 -120.0 1 044.0
Boeing 747-8 Intercontinental Standard Airliners 4 Quad Jet Quad Jet 43 100 Ft 16 Hr 8 000 NM 493 KTAS 145 KTAS 987 000.0 485 300.0 340.0 62 868.0 124 152.0 672 660.0 377 208.0 1 049 868.0 -18 860.4 1 031 007.6 16.0 3 929.3 7.9 62 868.0 -377 208.0 653 799.6
Boeing 787-10 Dreamliner Premium Deluxe Airliners 2 Twin Jet - Type II Twin Jet 41 100 Ft 13 Hr 6 430 NM 495 KTAS 557 000.0 298 700.0 340.0 33 384.0 57 656.0 390 080.0 200 304.0 590 384.0 -10 015.2 580 368.8 13.0 2 568.0 5.2 33 384.0 -200 304.0 380 064.8
Boeing F/A 18E/F Super Hornet GOTY Edition Jets 2 F/A 18E/F Twin Jet 45 000 Ft 5 Hr 2 165 NM 451 KTAS 66 000.0 32 081.0 340.0 2 161.0 20 613.0 55 195.0 12 966.0 68 161.0 -648.3 67 512.7 5.0 432.2 1.0 2 161.0 -12 966.0 54 546.7
Cirrus SR22 Premium Deluxe Propellers 1 Single Engine Single Levers Universal 17 500 Ft 5 Hr 800 NM 150 KTAS 3 400.0 2 269.0 340.0 81.0 305.0 2 995.0 486.0 3 481.0 -24.3 3 456.7 5.0 16.2 0.1 81.0 -486.0 2 970.7
CubCrafters NXCub GOTY Edition Propellers 1 Single Engine Single Hybrid Type II 14 000 Ft 6 Hr 695 NM 126 KTAS 2 300.0 1 216.0 340.0 46.0 468.0 2 070.0 276.0 2 346.0 -13.8 2 332.2 6.0 7.7 0.1 46.0 -276.0 2 056.2
CubCrafters X Cub Standard Propellers 1 Single Engine Single Hybrid Type II 14 000 Ft 6 Hr 695 NM 52 KTAS 64 KTAS 51 KTAS 126 KTAS 52 KTAS 2 300.0 1 216.0 340.0 46.0 468.0 2 070.0 276.0 2 346.0 -13.8 2 332.2 6.0 7.7 0.1 46.0 -276.0 2 056.2
Daher Kodiak 100 Mario Turboprops 1 Single Turbo Props Single Levers Universal 25 000 Ft 8 Hr 1 132 NM 174 KTAS 7 255.0 3 775.0 340.0 315.0 1 250.0 5 680.0 1 890.0 7 570.0 -94.5 7 475.5 8.0 39.4 0.3 315.0 -1 890.0 5 585.5
Daher TBM 930 Standard Turboprops 1 TBM 930 Single Levers Universal 31 000 Ft 5 Hr 1 730 NM 330 KTAS 7 394.0 4 629.0 340.0 292.0 673.0 5 934.0 1 752.0 7 686.0 -87.6 7 598.4 5.0 58.4 0.2 292.0 -1 752.0 5 846.4
Diamond Aircraft DA40 TDI Deluxe Propellers 1 Single Engine Single Levers Universal 16 400 Ft 6 Hr 741 NM 120 KTAS 2 535.0 1 797.0 340.0 28.0 230.0 2 395.0 168.0 2 563.0 -8.4 2 554.6 6.0 4.7 0.0 28.0 -168.0 2 386.6
Diamond Aircraft DA40NG Standard Propellers 1 Single Engine Single Levers Universal 16 400 Ft 6 Hr 940 NM 136 KTAS 2 822.0 1 984.0 340.0 28.0 330.0 2 682.0 168.0 2 850.0 -8.4 2 841.6 6.0 4.7 0.0 28.0 -168.0 2 673.6
Diamond Aircraft DA62 Standard Propellers 2 DA62 Twin Levers Universal 20 000 Ft 7 Hr 1 283 NM 171 KTAS 5 071.0 3 461.0 340.0 89.0 736.0 4 626.0 534.0 5 160.0 -26.7 5 133.3 7.0 12.7 0.1 89.0 -534.0 4 599.3
Diamond Aircraft DV20 Deluxe Propellers 1 Single Engine Single Levers Universal 13 120 Ft 6 Hr 630 NM 55 KTAS 110 KTAS 1 609.0 1 147.0 340.0 21.0 -4.0 1 504.0 126.0 1 630.0 -6.3 1 623.7 6.0 3.5 0.0 21.0 -126.0 1 497.7
Extra 330LT Standard Propellers 1 Single Engine - Type II Single Hybrid Type IV 10 000 Ft 4 Hr 600 NM 150 KTAS 2 095.0 1 291.0 340.0 40.0 224.0 1 895.0 240.0 2 135.0 -12.0 2 123.0 4.0 10.0 0.1 40.0 -240.0 1 883.0
Flight Design CTSL Standard Propellers 1 Single Engine Single Levers Universal 15 000 Ft 6 Hr 780 NM 120 KTAS 992.0 595.0 340.0 34.0 -147.0 822.0 204.0 1 026.0 -10.2 1 015.8 6.0 5.7 0.0 34.0 -204.0 811.8
FlyingIron Spitfire LF Mk IXc François A. Propellers 1 Single Engine - Type II Single Levers Universal 44 000 Ft 2 Hr 350 NM 211 KTAS 9 500.0 5 852.0 340.0 177.0 2 246.0 8 615.0 1 062.0 9 677.0 -53.1 9 623.9 2.0 88.5 0.5 177.0 -1 062.0 8 561.9
ICON A5 Standard Propellers 1 Single Engine Single Levers Universal 15 000 Ft 6 Hr 427 NM 85 KTAS 1 510.0 1 080.0 340.0 20.0 -30.0 1 410.0 120.0 1 530.0 -6.0 1 524.0 6.0 3.3 0.0 20.0 -120.0 1 404.0
JMB Aircraft VL-3 Standard Propellers 1 Single Engine Single Levers Universal 13 000 Ft 5 Hr 690 NM 130 KTAS 1 042.0 639.0 340.0 23.0 -75.0 927.0 138.0 1 065.0 -6.9 1 058.1 5.0 4.6 0.0 23.0 -138.0 920.1
McDonnel Douglas Orbis Flying Eye Hospital Standard Airliners 2 CANNOT FLY CANNOT FLY 0 Ft 0 Hr 0 NM 455 KTAS 174 165.0 90 400.0 340.0 7 000.0 41 425.0 139 165.0 42 000.0 181 165.0 -2 100.0 179 065.0 0.0 0.0 0.0 0.0 0.0 179 065.0
North American Aviation AT Series (6, 6A, 6B, 6D) Reno Propellers 1 Single Engine - Type II Single Levers Universal 15 000 Ft 2 Hr 298 NM 126 KTAS 5 617.0 4 158.0 340.0 110.0 459.0 5 067.0 660.0 5 727.0 -33.0 5 694.0 2.0 55.0 0.4 110.0 -660.0 5 034.0
North American Aviation F-51D Reno Propellers 1 Single Engine - Type II Single Levers Universal 15 000 Ft 2 Hr 298 NM 222 KTAS 12 100.0 7 125.0 340.0 269.0 3 021.0 10 755.0 1 614.0 12 369.0 -80.7 12 288.3 2.0 134.5 0.9 269.0 -1 614.0 10 674.3
North American Aviation P-51 Series (A, D) Reno Propellers 1 Single Engine - Type II Single Levers Universal 15 000 Ft 2 Hr 298 NM 222 KTAS 10 600.0 6 451.0 340.0 180.0 2 729.0 9 700.0 1 080.0 10 780.0 -54.0 10 726.0 2.0 90.0 0.6 180.0 -1 080.0 9 646.0
North American Aviation SNJ Series (4, 5) Reno Propellers 1 Single Engine - Type II Single Levers Universal 15 000 Ft 2 Hr 298 NM 126 KTAS 5 617.0 4 158.0 340.0 110.0 459.0 5 067.0 660.0 5 727.0 -33.0 5 694.0 2.0 55.0 0.4 110.0 -660.0 5 034.0
North American Aviation T Series (6, 6G) Reno Propellers 1 Single Engine - Type II Single Levers Universal 15 000 Ft 2 Hr 298 NM 126 KTAS 5 617.0 4 158.0 340.0 110.0 459.0 5 067.0 660.0 5 727.0 -33.0 5 694.0 2.0 55.0 0.4 110.0 -660.0 5 034.0
Pilatus PC-6 GOTY Edition Turboprops 1 Single Turbo Props Single Levers Universal 26 900 Ft 4 Hr 450 NM 115 KTAS 6 173.0 3 103.0 340.0 184.0 1 626.0 5 253.0 1 104.0 6 357.0 -55.2 6 301.8 4.0 46.0 0.4 184.0 -1 104.0 5 197.8
Pipistrel Virus SW121 Premium Deluxe Propellers 1 Single Engine - Type II Single Levers Universal 16 000 Ft 6 Hr 642 NM 120 KTAS 1 323.0 768.0 340.0 26.0 59.0 1 193.0 156.0 1 349.0 -7.8 1 341.2 6.0 4.3 0.0 26.0 -156.0 1 185.2
Robin Cap10 Standard Propellers 1 Single Engine Single Hybrid Type I 16 000 Ft 5 Hr 650 NM 135 KTAS 1 930.0 1 190.0 340.0 41.0 154.0 1 725.0 246.0 1 971.0 -12.3 1 958.7 5.0 8.2 0.1 41.0 -246.0 1 712.7
Robin DR400/100 Standard Propellers 1 Single Engine Single Hybrid Type III 14 000 Ft 4 Hr 550 NM 115 KTAS 1 984.0 1 323.0 340.0 29.0 147.0 1 839.0 174.0 2 013.0 -8.7 2 004.3 4.0 7.3 0.1 29.0 -174.0 1 830.3
Textron Aviation Beechcraft Baron G58 Deluxe Propellers 2 Baron G58 Twin Levers Universal 20 688 Ft 7 Hr 1 480 NM 85 KTAS 105 KTAS 92 KTAS 176 KTAS 100 KTAS 5 500.0 3 156.0 340.0 188.0 876.0 4 560.0 1 128.0 5 688.0 -56.4 5 631.6 7.0 26.9 0.1 188.0 -1 128.0 4 503.6
Textron Aviation Beechcraft Bonanza G36 Standard Propellers 1 Single Engine - Type II Single Levers Universal 18 500 Ft 6 Hr 920 NM 69 KTAS 100 KTAS 84 KTAS 176 KTAS 80 KTAS 3 650.0 2 600.0 340.0 80.0 230.0 3 250.0 480.0 3 730.0 -24.0 3 706.0 6.0 13.3 0.1 80.0 -480.0 3 226.0
Textron Aviation Beechcraft King Air 350i Standard Turboprops 2 King Air 350i Twin Levers Universal 35 000 Ft 6 Hr 1 806 NM 105 KTAS 140 KTAS 125 KTAS 244 KTAS 100 KTAS 16 500.0 9 955.0 340.0 539.0 2 971.0 13 805.0 3 234.0 17 039.0 -161.7 16 877.3 6.0 89.8 0.3 539.0 -3 234.0 13 643.3
Textron Aviation Cessna 152 Standard Propellers 1 Single Engine Single Verniers Universal 14 700 Ft 5 Hr 415 NM 51 KTAS 67 KTAS 55 KTAS 107 KTAS 65 KTAS 1 670.0 1 081.0 340.0 28.0 81.0 1 530.0 168.0 1 698.0 -8.4 1 689.6 5.0 5.6 0.1 28.0 -168.0 1 521.6
Textron Aviation Cessna 152 Acrobat Deluxe Propellers 1 Single Engine Single Verniers Universal 14 700 Ft 5 Hr 415 NM 51 KTAS 67 KTAS 55 KTAS 36 KTAS 40 KTAS 85 KTAS 110 KTAS 150 KTAS 104 KTAS 60 KTAS 65 KTAS 1 670.0 1 081.0 340.0 28.0 81.0 1 530.0 168.0 1 698.0 -8.4 1 689.6 5.0 5.6 0.1 28.0 -168.0 1 521.6
Textron Aviation Cessna 172 Skyhawk Deluxe Propellers 1 Single Engine Single Verniers Universal 14 000 Ft 5 Hr 640 NM 55 KTAS 74 KTAS 62 KTAS 124 KTAS 70 KTAS 2 558.0 1 691.0 340.0 56.0 191.0 2 278.0 336.0 2 614.0 -16.8 2 597.2 5.0 11.2 0.1 56.0 -336.0 2 261.2
Textron Aviation Cessna 172 Skyhawk (G1000) Standard Propellers 1 Single Engine Single Verniers Universal 14 000 Ft 5 Hr 640 NM 55 KTAS 74 KTAS 62 KTAS 124 KTAS 70 KTAS 2 558.0 1 691.0 340.0 56.0 191.0 2 278.0 336.0 2 614.0 -16.8 2 597.2 5.0 11.2 0.1 56.0 -336.0 2 261.2
Textron Aviation Cessna 208 B Grand Caravan EX Standard Turboprops 1 Single Turbo Props Single Levers Universal 25 000 Ft 7 Hr 964 NM 70 KTAS 104 KTAS 72 KTAS 50 KTAS 63 KTAS 125 KTAS 175 KTAS 195 KTAS 185 KTAS 97 KTAS 80 KTAS 8 807.0 5 150.0 340.0 330.0 1 337.0 7 157.0 1 980.0 9 137.0 -99.0 9 038.0 7.0 47.1 0.3 330.0 -1 980.0 7 058.0
Textron Aviation Cessna Citation CJ4 Standard Jets 2 Twin Jet - Type II Twin Jet 45 000 Ft 5 Hr 2 165 NM 451 KTAS 17 110.0 10 280.0 340.0 860.0 1 330.0 12 810.0 5 160.0 17 970.0 -258.0 17 712.0 5.0 172.0 0.4 860.0 -5 160.0 12 552.0
Textron Aviation Cessna Citation Longitude Premium Deluxe Jets 2 Twin Jet Twin Jet 45 000 Ft 7 Hr 3 500 NM 483 KTAS 39 500.0 23 389.0 340.0 2 160.0 2 811.0 28 700.0 12 960.0 41 660.0 -648.0 41 012.0 7.0 308.6 0.6 2 160.0 -12 960.0 28 052.0
Volocity Volocity GOTY Edition Heli-Taxi 18 Single Engine Volocity 2 500 Ft 1 Hr 16 NM 48 KTAS 1 984.0 1 544.0 340.0 0.0 100.0 1 984.0 0.0 1 984.0 0.0 1 984.0 1.0 0.0 0.0 0.0 0.0 1 984.0
Zlin Aviation Savage Cub Standard Propellers 1 Single Engine Single Levers Universal 14 400 Ft 4 Hr 377 NM 35 KTAS 60 KTAS 56 KTAS 91 KTAS 45 KTAS 1 235.0 650.0 340.0 18.0 137.0 1 145.0 108.0 1 253.0 -5.4 1 247.6 4.0 4.5 0.0 18.0 -108.0 1 139.6
Zlin Aviation Shock Ultra Premium Deluxe Propellers 1 Single Engine Single Levers Universal 15 750 Ft 5 Hr 323 NM 78 KTAS 1 320.0 650.0 340.0 28.0 162.0 1 180.0 168.0 1 348.0 -8.4 1 339.6 5.0 5.6 0.1 28.0 -168.0 1 171.6
19

Hi,

No worries about taking a while to reply. I can see from the two files you have posted that you have been busy! I will examine them with interest, but there is a lot there so it might be for a week or so before I am able to reply. I will look out for planes with a water rudder - maybe my new Dornier Do J flying boat has one.
Regarding the Tail Wheel Lock I fly the Beechcraft Staggerwing which is a lovely plane. It has a TWL but unfortunately I don’t think the Lever in the plane that operates it works. Although someone on the forum did say it makes a difference when taxiing in a tight area. Certainly the lever is not linked to the right control button. The TWL is a feature of the real world plane checklist, but is not mentioned in the sim checklist which is disappointing. It is something that I hope will be fixed by the developer in a future update.

1 Like
20

Hi,

I have completed a review of my profiles and have decided to adopt yours. I like the way that they can be used for all planes with whatever combination of Vernier and Quadrant Levers they have, which adds to the authenticity. The differences between your set up and mine are now very minor.

I think Turtle Beach should also adopt your profiles as a guide for newbie flight simmers. I initially set my profiles up by following YouTube videos which were very helpful, but did not accurately match the V1F throttle, prop and mixture controls to those in specific planes. There are a lot more combinations than I initially thought!

On the subject of Water Rudders again, have you got the Big Radials Grumman Goose? If so it has got a “Water Helper” which I have tried out and it certainly makes manoeuvres on water a lot easier.

Thanks again.

1 Like
