Update 1.2.7.0 engine fumes visible in the cockpit

Bug Reporting Hub Virtual Reality (VR)
, , , , ,
1

Using the template below will greatly help the team reproduce the issue and ease the process of fixing it. Before posting, search for an existing report. If you are not sure it’s a bug, please first report in User Support Hub.

2 tags are required - add them in the tag section next to the title above:

Feel free to delete this quote section after adding your appropriate tags.

ISSUE DESCRIPTION

Description of the issue:

The new update 1.2.7.0 has brought the engine fumes inside the cockpit for at least the Draco X and Zlin, rendering them completely unuseful in VR. Fortunately it is not happening in the Cubcrafters X Cub.

The issue was not happening before. It appears with update 1.2.7.0.

Is actually anyone in Asobo using VR? MSFS2024 is completely full of bugs in VR, and new updates only make them worse for flying in VR

[PC Only] Did you remove all your community mods/add-ons? If yes, are you still experiencing the issue?

Yes

FREQUENCY OF ISSUE

How often does this occur for you (Example: Just once, every time on sim load, intermittently)?

All the time

REPRODUCTION STEPS

Please list clear steps you took in order to help our test team reproduce the same issue:

  1. Just try to fly these aircraft in VR.

YOUR SETTINGS

If the issue still occurs with no mods and add-ons, please continue to report your issue. If not, please move this post to the User Support Hub.

What peripherals are currently plugged in, as well as your VR headset? Please name all of them as there could be a potential conflict.

HP reverb 2

[PC Only] Are you using Developer Mode or have you made any changes to it?
No developer mode. Just regular flight

[PC, MSFS 2020 Only] Are you using DX11 or DX12?

[PC Only] What GPU (Graphics Card) do you use?

RTX40290

[PC Only] What other relevant PC specs can you share?

high end PC.

MEDIA

Please add a screenshot or video of the issue occurring.

[END OF FIRST USER REPORT]

:loudspeaker: For anyone who wants to contribute on this issue, Click on the button below to use this template:

Do you have the same issue if you follow the OP’s steps to reproduce it?
•

Provide extra information to complete the original description of the issue:
•

If relevant, provide additional screenshots/video:
•

2 Likes
2

Do you have the same issue if you follow the OP’s steps to reproduce it?
• I have the same issue. It happens as soon as you enter the cockpit in VR with the engine running.

Provide extra information to complete the original description of the issue:
• There is no exhaust gas outside the aircraft, only in my right eye inside the cockpit, and it’s displayed over all cockpit instrumentation. This only started after the most recent update.

PC, Game Pass
Developer mode is off, no mods installed
RTX 3070, latest drivers
AMD Ryzen 7 5700X
HP Reverb G2
Windows 10 Pro build 19045.5131

If relevant, provide additional screenshots/video:
•

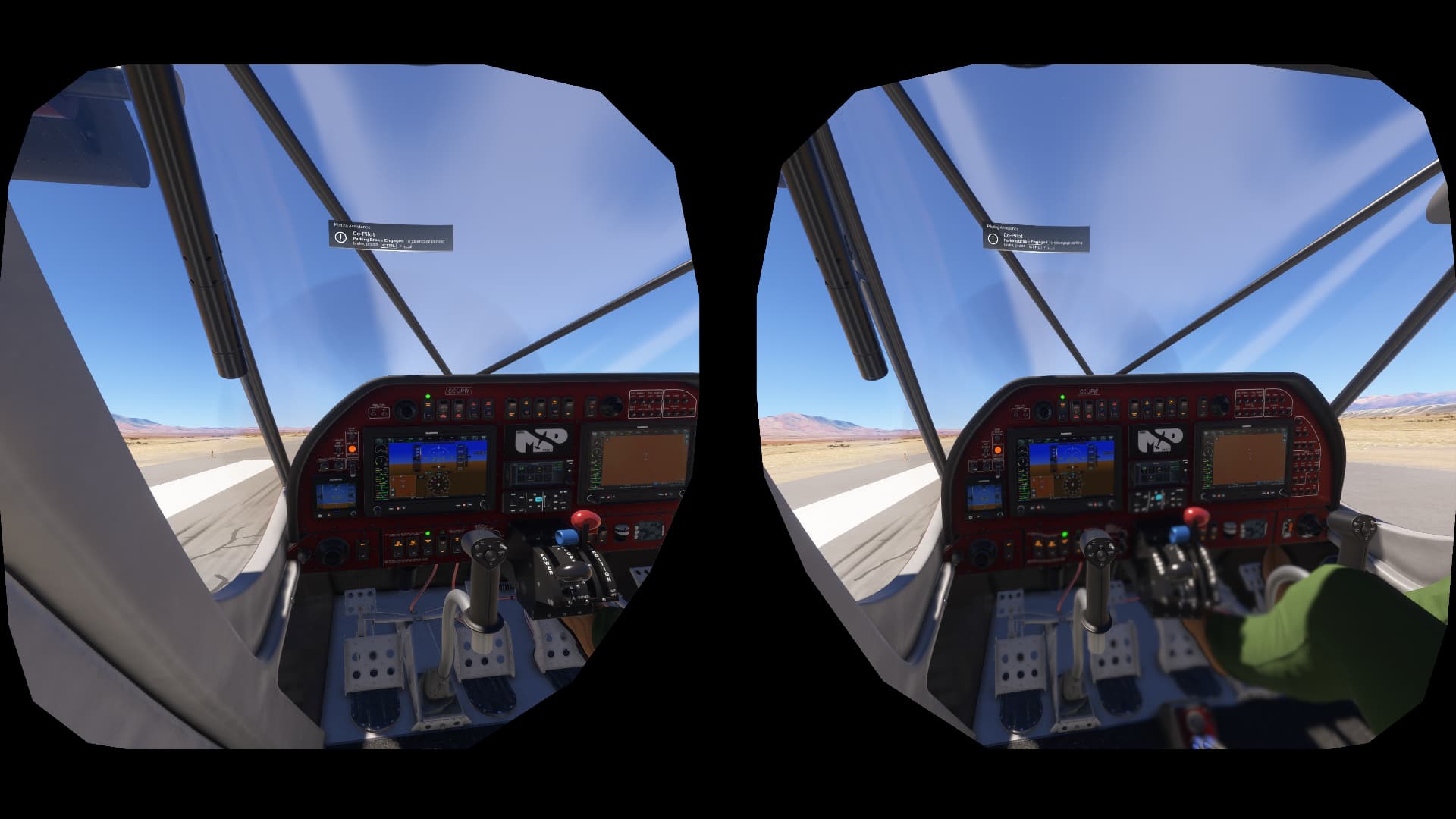

image1920×1080 116 KB

3

Same issue, as soon as I enter VR, you can see the heat blur by your feet.

4

Do you have the same issue if you follow the OP’s steps to reproduce it?
• YES

Provide extra information to complete the original description of the issue:
• Heat blur & smoke in VR pilot side in “PC-12 NGX - MS / Carenado VIP” is blurry mess with black spots as smoke.

If relevant, provide additional screenshots/video:
• https://photos.app.goo.gl/ngyHwwg3fsywLwqK9

5

I have exactly the same issue with DRACO fumes in the cockpit in VR. I’m using an RTX4090 and Pimax crystal light. The fumes are not visible in the cockpit when I jump back to flat screen mode.

6

in the Draco, but only in the right eye.

3 Likes
7

Do you have the same issue if you follow the OP’s steps to reproduce it?
•

Provide extra information to complete the original description of the issue:
• vr heat blurr inside cockpit also in Kodiak 100 and Cessna 208B

If relevant, provide additional screenshots/video:
•

8

I understand that is not a solution but i have removed all HEAT…fx files from the effects directory and it helps remove the over exaggerated unrealistic heat effect distortion, I always ride real aircraft behind the wing where I would see the heat wave which simply does not exist, well never to the ridicules amount as depicted by the simulator maybe lower by a factor of 1000 then we talk, i know my personal opinion but that is the most ridicules unrealistic effect ever I have NEVER EVER SEEN THIS IN REAL LIFE ON REAL FLIGHT

1 Like
10

Thank you for the bug report.

We have created an internal ticket to see if our team already has this logged, and if not they will attempt to reproduce the issue and create a new bug report. This item is now marked as feedback-logged. If there is an existing bug report or one is created, we will move this thread to bug-logged

2 Likes
12

Exactly. I just noticed that it only happens in the right eye

1 Like
13

Thank you for your helpful tip to hide the HEAT fx files.

1 Like
14

Adding link to another report on the same issue:

15

Same problem here, where can i find these HEAT-FX files? Thanks

16

In my case as a steam user:

C:\Program Files (x86)\Steam\steamapps\common\Limitless\Packages\fs-base-effects\VisualEffectLibs\Asobo\Base

C:\Program Files (x86)\Steam\steamapps\common\Limitless\Packages\fs-base-effects-legacy\effects

I tried renaming files I thought might sensibly be the problem and it didnt work, so i just renamed every file that had the word HEAT in it and one of them has fixed the problem, I didn’t waste time keep reloading the sim to find which file or files are the culprit, I don’t mind having no heat effect in the sim.

3 Likes
17

Thank you for the tip.
It works in the Zlin A Norden and the A400, but strangely enough not in the Draco X.

18

Do you have the same issue if you follow the OP’s steps to reproduce it?
•

Provide extra information to complete the original description of the issue:
• YES :frowning:

If relevant, provide additional screenshots/video:
• Heat-effects on the VR right eye

19

Can also report heat blur in right eye in VR. especially bad in Draco but seems several turbine props effected: also the Kodiak 100. But not for the H145. Seems to be associated with engines in front of cockpit. Can start cold and dark and no heat blur. As soon as fuel introduced to spinning turbine the ‘wobble’ starts up. Switching to external view eliminates the effect. Thanks for the heat blur tip to remove. Will give that a go as it’s not very realistic effect in the slipstream.

2 Likes
20

For me Draco was fixed, these were names that I renamed the files to in the two folders:-

C:\Program Files (x86)\Steam\steamapps\common\Limitless\Packages\fs-base-effects\VisualEffectLibs\Asobo\Base

HeatEffect.spbx
FX_Heat_Exhaust.spbx
FX_Heat_Engine_Jet.spbx
FX_Heat_Engine.spbx

C:\Program Files (x86)\Steam\steamapps\common\Limitless\Packages\fs-base-effects-legacy\effects

FX_Asobo_TBM930_EXHAUST.fxx
FX_Asobo_M_REACTORHEAT_TBM930_R.fxx
FX_Asobo_M_REACTORHEAT_TBM930.fxx
FX_Asobo_M_REACTORHEAT_CAP10.fxx
FX_Asobo_M_REACTORHEAT_A320.fxx
FX_Asobo_M_REACTORHEAT_747.fxx
FX_Asobo_HEAT_SMALL.fxx
FX_Asobo_HEAT_BIG.fxx

I included any files related to exhaust and heat, because I don’t know if Draco borrows the effects from another aircraft. Maybe someone else would like to kindly go through the files one by one to see which files are used by Draco, and let us know. It will take a fair bit of time having to keep rebooting the sim to do this test.

1 Like
21

Ah, i did just search for “heat” so i missed…

FX_Asobo_TBM930_EXHAUST.fxx
FX_Asobo_M_REACTORHEAT_TBM930_R.fxx
FX_Asobo_M_REACTORHEAT_TBM930.fxx
FX_Asobo_M_REACTORHEAT_CAP10.fxx
FX_Asobo_M_REACTORHEAT_A320.fxx
FX_Asobo_M_REACTORHEAT_747.fxx

will try again.

22

Did some testing… To get rid of the cockpit heatblur in the Draco and Zlin Norden you have to rename

…fs-base-effects-legacy\effects

FX_Asobo_M_REACTORHEAT_TBM930.fx
FX_Asobo_M_REACTORHEAT_CAP10.fx

You don’t have to rename anything in
…fs-base-effects\VisualEffectLibs\Asobo\Base

But the A400 gets heatblur in the back if you don’t rename the Heat files there.

3 Likes
