Vision Jet does not respond to Flap events

Bug Reporting Hub Aircraft & Systems
, ,
1

Using the template below will greatly help the team reproduce the issue and ease the process of fixing it. Before posting, search for an existing report. If you are not sure it’s a bug, please first report in User Support Hub.

3 tags are required - add them in the tag section next to the title above:

Feel free to delete this quote section after adding your appropriate tags.

ISSUE DESCRIPTION

Description of the issue: Cirrus Vison Jet does not respond to flap events sent from SPAD-Next (all other aircraft with flaps do)

FREQUENCY OF ISSUE

How often does this occur for you (Example: Just once, every time on sim load, intermittently)?

100% of the time

REPRODUCTION STEPS

Please list clear steps you took in order to help our test team reproduce the same issue:

  1. Use SPADnext (or a native peripheral driver) to send FLAP events (FLAPS_UP, FLAPS_DOWN, FLAPS_INCR or FLAPS_DECR

  2. Notice that flaps do not respond. Expected the respond like on all other aircraft

  3. Notice that the GEN 2 AMP display on the Right MFD jumps up and down a bit when the event is sent.

  4. The only way I can get flaps to work is to use the Keyboard V and B keys (or with some difficulty using the mouse on the cockpit lever) - I really want to use my panel with a physical flaps lever.

YOUR SETTINGS

If the issue still occurs with no mods and add-ons, please continue to report your issue. If not, please move this post to the User Support Hub.

What peripherals are you using, if relevant:

[PC Only] Are you using Developer Mode or have you made any changes to it? NO

[PC, MSFS 2020 Only] Are you using DX11 or DX12?

[PC Only] What GPU (Graphics Card) do you use? AMD 9070XT

[PC Only] What other relevant PC specs can you share? SPADNext - Logitech Panel - Nothing but spad in community directory.

NOTE: another user previously entered this bug and it was moved. Several other people have duplicated with different panels and software in that thread. It is a problem with the Vision Jet, not with the multiple panels and software packages that are having the issue.

Vision Jet flaps not working on the Logitech multi panel...Only on the Vision Jet....works on all other A/C
2

Are you referring to the throttle lever or the flap lever ?
The flap lever works for me with the mouse (the throttle lever also works with the mouse):

So maybe the issue is not with SPADnext event but a different issue that prevents the flaps to work.

1 Like
3

Sorry it’s the flaps lever. I’ve corrected the original post. Thanks for pointing it out.

I may be just not getting the flaps lever interaction correctly in the cockpit, but the not responding to events issue has been reported by multiple users with multiple software/hardware setups in the thread linked above

4

Thanks for pointing to the other thread.
I am wondering if you succeed to fix the underlying issue with moving the flaps using the mouse if it will also fix the event issue ?. You should investigate this one.

5

Ok I played around with the mouse more, with great trial and error I get get the flaps lever to move with my mouse. Maybe I’m just bad at figuring out the cockpit interface, I use it as little as possible and prefer to use my joystick, throttle and saitek panels.

If I still can I’ll edit my original post to remove the mouse point.

6

Hm. I wonder what happens if you try Flaps 1, 2, 3 instead. This is the same configuration I took from my 2020 installation. Works fine on MS/WT Vision Jet.

image1072×404 44.9 KB
7

OK more research/testing

Adding any of the flaps events to my joystick in MSFS2024 control settings works.

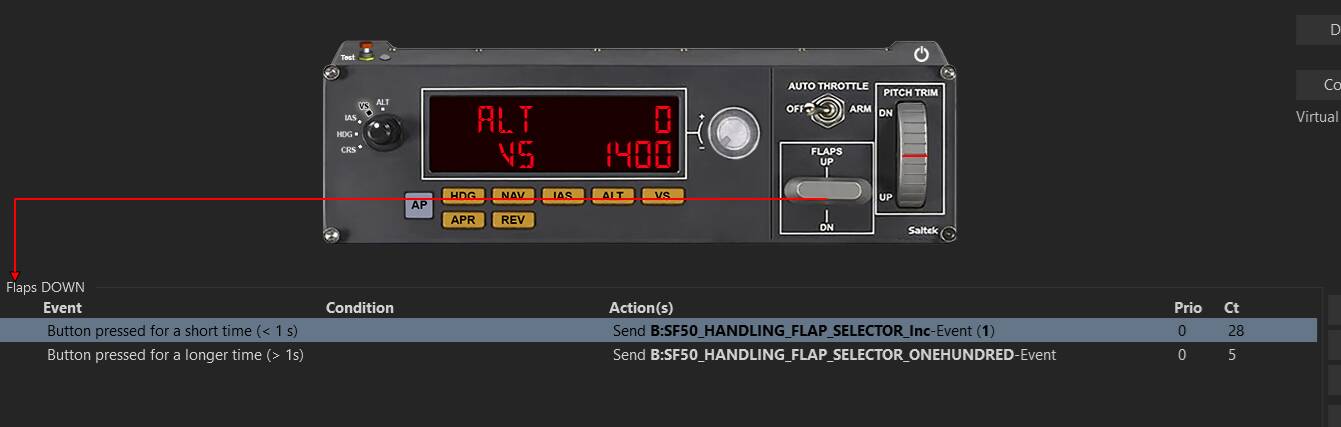

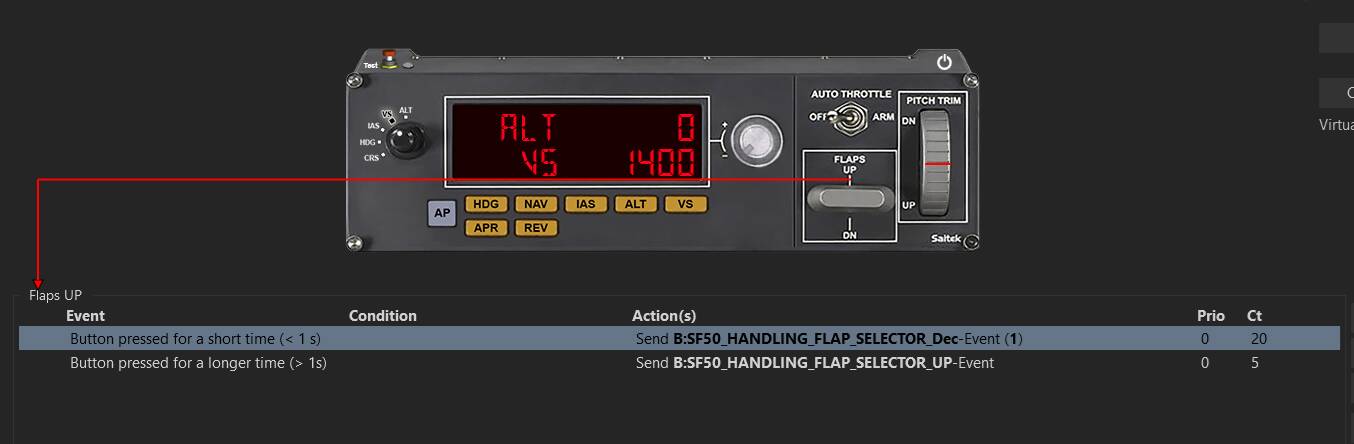

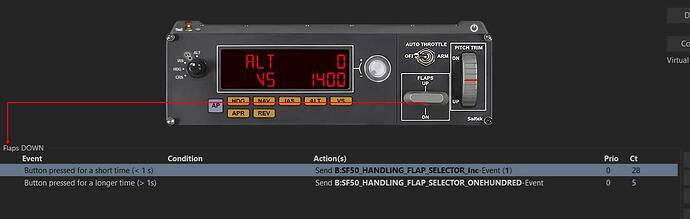

However adding the events to my Saitek Panel Flaps lever via SPADnext does not work for the Vision Jet. However this works for all other aircraft I have tested. (I’m using the exact same profile for all aircraft) And there is no way to map the Saitek panel in MSFS without a third party tool.

Combining this with the feedback from the other thread we have:

Sending FlapEvents from any of the following software:

  • SPADnext

  • FSUIpc

  • Saitek Panel Driver

Works for all aircraft tested (20+) except the Cirrus VisonJet. This really seems to be an issue with the VisionJet not with 3 separate software packages. (SPAD and FSUIpc and Saitek Driver)

Basically the Vision jet is not responding correctly to the Flap events in the published sim connect API.

Note: Aircraft it does work with:

Airbus 310-300, AirBus 320 Neo v2, AirBus 321LR, AirBus 330-200RR, Antonov AN225, Beechcraft V35B Bonanza, Beechcraft King Air C90 GTx, Boeing 737 Max, Boeing 747 8i, Boeing 787-10, Boeing C17, Boeing F/A-18E, Cessna 172 Skyhawk, Cirrus SR22, Daher TBM 930, Diamond DA-62, Fairchild A-10c, Grumman G21A Goose, P51 Mustang, Pilatus PC-24, Citation CJ4, Citation Longitude

  • At this point (23 working) I got tired testing.
