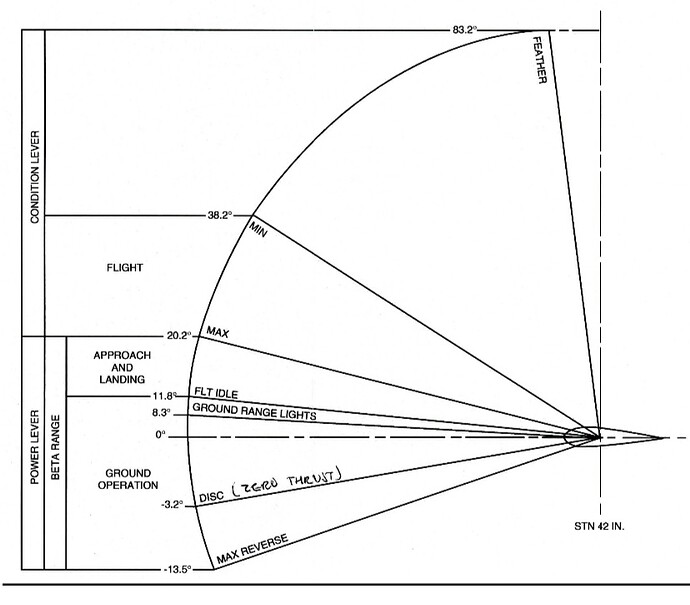

The prop angle is covered in the Air Pelita manual. The chart should be turned 90 degree to the left to see it with the air flow coming from the left.
Apparently DISC is -3.2 degrees. Every setting below 11 degrees (beta range) is controlled by the power lever (and limited by the flight idle gate). As discussed above the ground range operation isn’t modelled very well.
