Thrustmaster Boeing TCA Yoke Pack Sel button

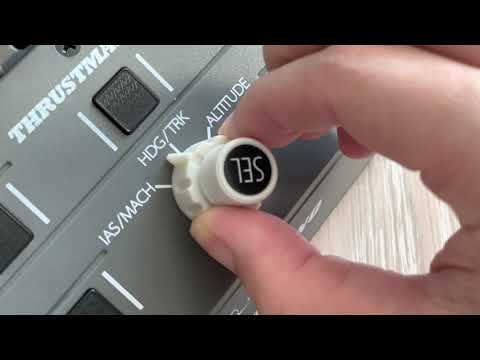

Hey guys has anybody got to set up the “Sel” button to work for altitude, heading or speed select on the AP? I got the Boeing TCA pack a week ago and got it set up as I like, only thing missing is the correct configuration of the select button on the rotary switch of the throttle quadrant. One thing I concern is, that it always shows as “button 17” no matter if spd, hdg or alt is selected on the rotary switch.

Yeah, I have the same controllers too. I think the “Sel” switch will need some sort of custom mapping or at least some dedicated MS recognized function for the “knob press” that is found on Boeing MCPs. The hard part is that the IAS/MACH - HDG/TRK - ALTITUDE selector would change how the “SEL” switch functions, so not sure how to even set that up to beginwith. Which function are you trying to use it for? I personally would use it for HDG HOLD / HDG SEL only, which I’m not sure is an option in FS.

Speaking of, does your rotary (button 15/16) work correctly? Mine is really slow or jumpy, which is a bit indicative in the control panel, since the button presses displays a lot faster than a normal button press.

If there would be only one option for this button, I would like to use it for ALT SEL mode. But I haven’t found this option in the settings yet.

For the function of the SEL button, if the rotary switch is turned, I think Asobo has to code it. It would be fairly simple, they could just code "if rotary switch is set to HDG/TRK, then the button is used as HDG/TRK, if it would be set to IAS/MACH then it would function as IAS/MACH SEL. Same for ALT, but they have ro code it.

As for my rotary switch: it works fine for me. Sometimes a bit harder to turn but I don’t mind. Maybe you should send yours to RMA?

1 Like

I checked my HC Bravo knobs and they seem to function the same way, so it may just be SU7 is a bit more finnicky in the knob turn detection.

Regardless, I set my “SEL” button as TO/GA (reminiscent of the switch on the C-17 throttles) and can bump it with my palm. Airspeed hold and Heading hold, and my right two switches are flap up/down since I don’t have a second quadrant yet for a flap lever.

I’m not sure FS really models Boeing MCP modes very well. Do you use the TOGGLE AUTOPILOT ALTITUDE HOLD command at all? I’m not sure what some of these FS commands do:

Yes, i think there is some issues with the rotary switch. I just received mine yesterday and there seems to have 2 additionally notches between the selections. I need to use 2x more strength to turn as compared to the selector knob.

These are my button mappings i used for GA planes, have been flying the bush trips for the past few days. Sometimes when I am scanning for buttons, it will suddenly add 4 buttons. I think this is due to the rotary knob recognised as a click and turning it once in either direction will prevent that.

To set the increase of airspeed to work on the knob, my rotary knob will be at HDG/TRK. When i start to scan, i will turn the rotary knob left to IAS/MACH and turn the selector knob clockwise. To complete the mapping, turn the rotary knob back to HDG/TRK. It works the same for the HDG/TRK and ALT button mappings.



2 Likes

It’s more like a click and hold rather than a click. The sim doesn’t see an “on release” event until the knob is turned to another setting. Since the switches are momentary switches, when the knob is set to one its three positions it keeps the switch held down until it’s moved again.

I found the mapping of them to be tricky in the way you described.

It’s a bit of a drag that there isn’t, for now, a key mapping for the Speed, Heading & Altitude knobs’ push function. In a way, it’s sort of strange that Thrustmaster modeled the knob and buttons after the Boeing AP, yet we can’t map the Select push function, as such.

2 Likes

How do you know what buttons are what on the controller to program to the game ?

Are you on PC?

If so, launch the Thrustmaster control panel. Once there, select the throttle and when you press the various buttons, you’ll see their associated button number light up in the control panel. Make a note of that.

If you’re on Xbox, promise me an ice cream and I’ll write them down here for you.

Another way to figure it out is to go to the keybinding controls in the sim and basically experiment. Find something that hasn’t been bound to a key(button) and bind it to one of the buttons and you’ll see what that button’s number is. You can always clear that keybind and then do the same trick with all the other buttons to learn their numbers.

1 Like

How do you configure each button in the game? It just says joystick button 1,2 and so on. On the Yoke and throttle quadrant, how do you know what joystick button is what ?

I’m on Xbox

Pretty please, Double the ice cream :icecream:

Ok.

Yoke:
• Left trigger: 1
• Left thumb button: 2
• Left “hat”: POV up, POV down, POV left, POV right, POV up left, POV up right, POV down left, POV down right
• X up: 3
• X down: 4
• Y up: 5
• Y down: 6
• View: 16
• Share: 15
• Menu: 14
• Xbox home: 17
• Gear up/down: 18
• Left base slider: Joystick R-Axis Z
• Right base slider: Joystick L-Axis Z
• Right trigger: 12
• Right thumb: 11
• Right “hat”: Joystick R-Axis X
• A left: 7
• A right: 8
• B left: 9
• B right: 10

Throttle
• Left axis: Joystick R-Axis X
• Center axis: Joystick R-Axis Y
• Right axis: Joystick R-Axis Z
• Left throttle reverse switch: 4
• Center throttle reverse switch: 5
• Right throttle reverse switch: 6
• Left throttle side button: 1
• Center throttle side button: 2
• Right throttle side button: 3
• Top left: 7
• Top center: 8
• Top right: 9
• Bottom left: 10
• Bottom right: 11
• IAS/MACH: 12
• HDG/TRK: 13
• Altitude: 14
• SEL rotate anti-clockwise: 15
• SEL rotate clockwise: 16
• SEL push: 17

Note on the throttles, you will use left, center and/or right depending upon whether or not you’re using the handles inserted in the respective axis.

Might I suggest using the two triggers as “Shift” keys, that way you will triple the use of all the additional buttons. e.g. Left trigger+Left thumb, Right trigger+Left thumb and Left thumb can be assigned to three different functions

Cheers!

3 Likes

Crapsicle. I can’t help since I’m not on an Xbox. . .hopefully @NixonRedgrave helped?

1 Like

Appreciate it, thanks for taking the time replying back exactly what I was looking for.

1 Like

I spoke to quick. Those didn’t work, still appreciate time though. My throttle one actually matches a photo I seen posted on main page. Has the blue writings on the buttons. Note to figure out the Yoke.

How did you figure out what button corresponds to each number? Like how you have the numbers written on each button? Do you have the numbers for the Yoke you wouldn’t mind sharing? Thanks

I just select the function which i need, then from the top left, i select ‘start scanning’ and press the button i wish to map to. It will then register the button which i pressed on. It is buggy sometimes as it will randomly scan and select 4 button combinations. This bug may be due to the selector knob and turning it before the scan may help.

I did wrote down the buttons mapping on my phone’s note but i realised it was too time consuming.

Ah, so the Xbox assigns completely different numbers to the buttons.

I’ve not hooked the yoke & throttle up to the Xbox, yet.

If I do so, I can update the list for you.

If you’re still looking for a comprehensive list, I’ve put together this post that covers the assignments for both Xbox and PC:
